●4k/60FPS |
●Startlight Camera |
●Built-in EIS |
●Support Gyroflow |
●Sd card |
●FOV 160° |
●Dual Antennas |
●7.4V-25.2V |
Bullet Points:
Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.

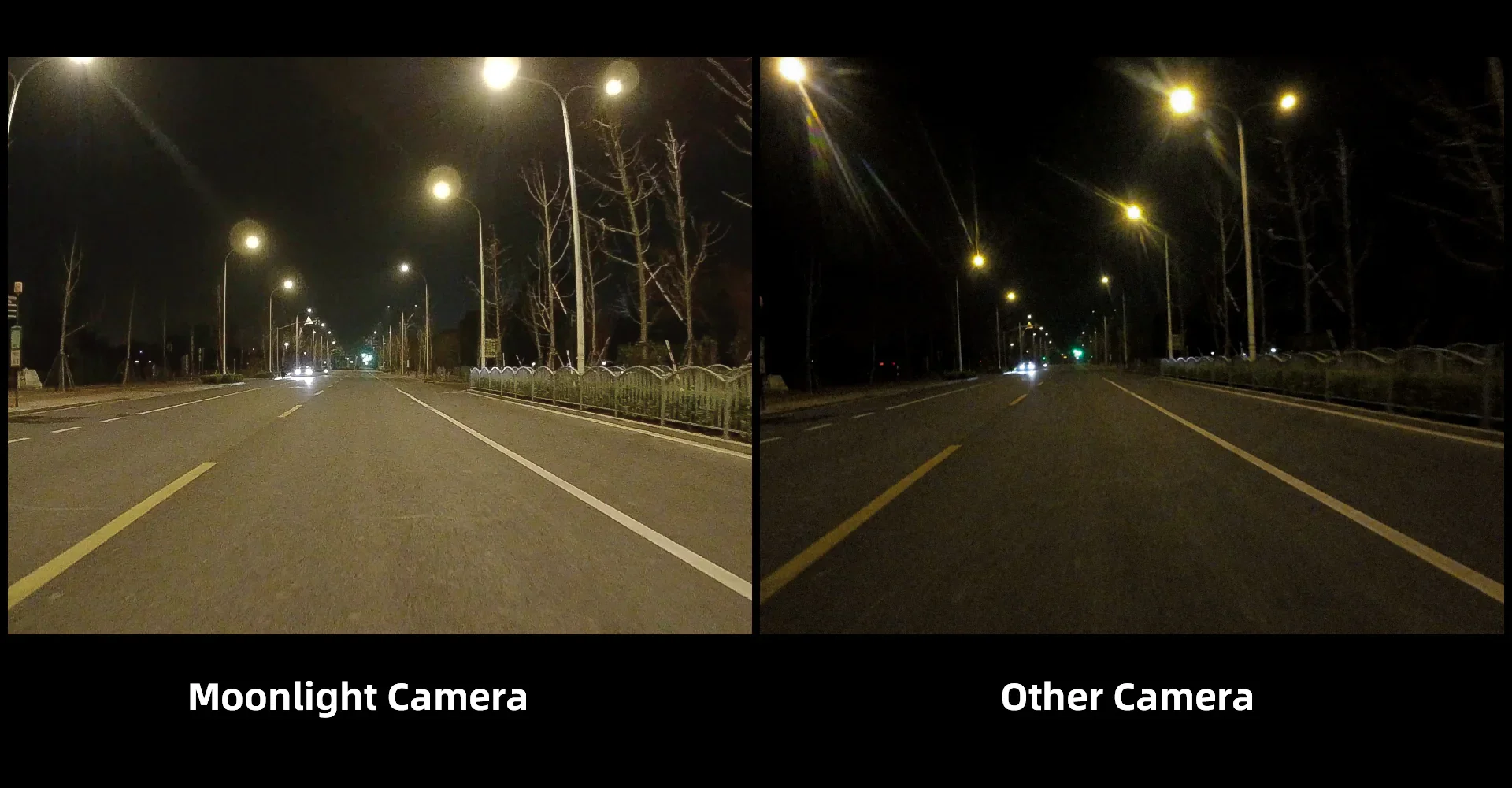

Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.
Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.

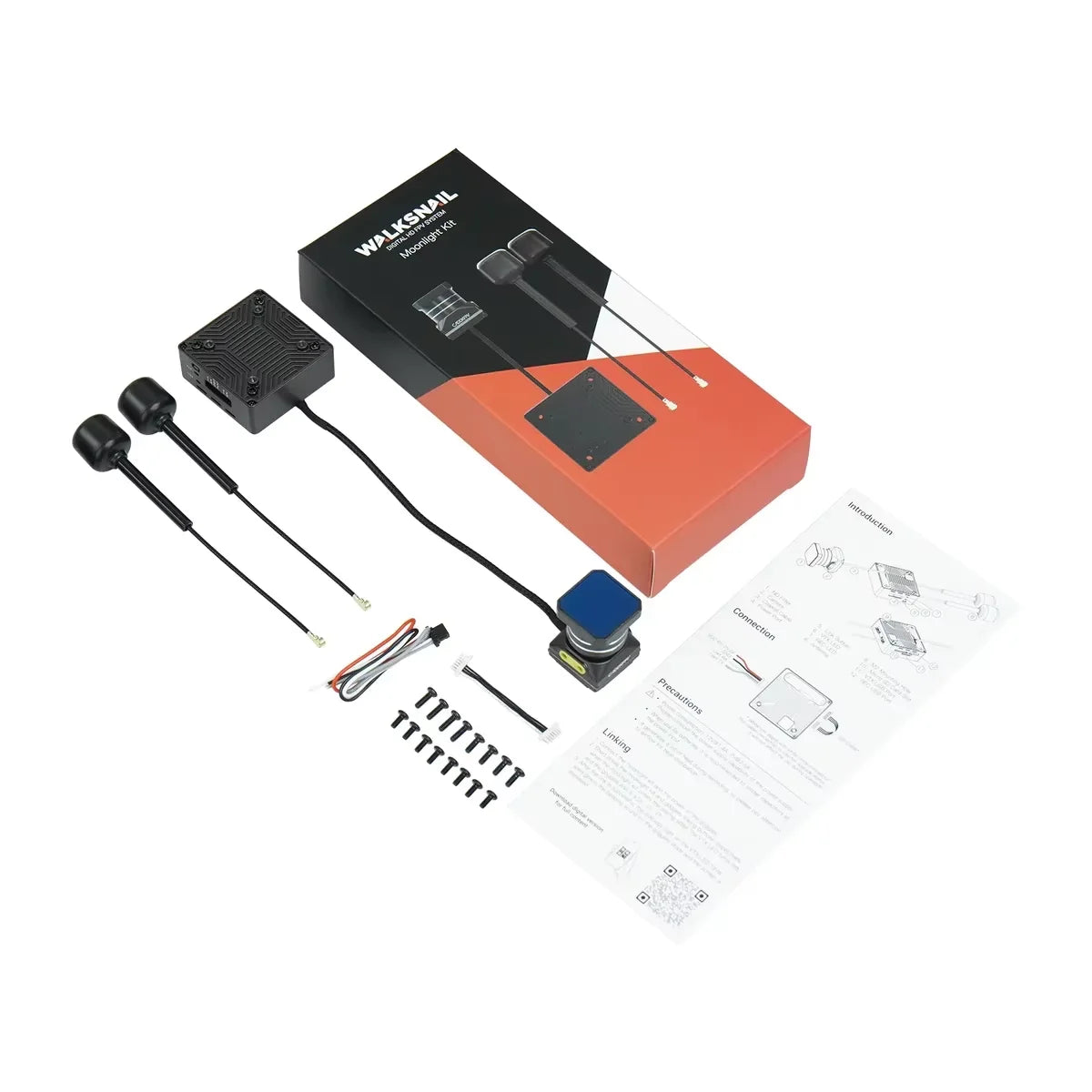

Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

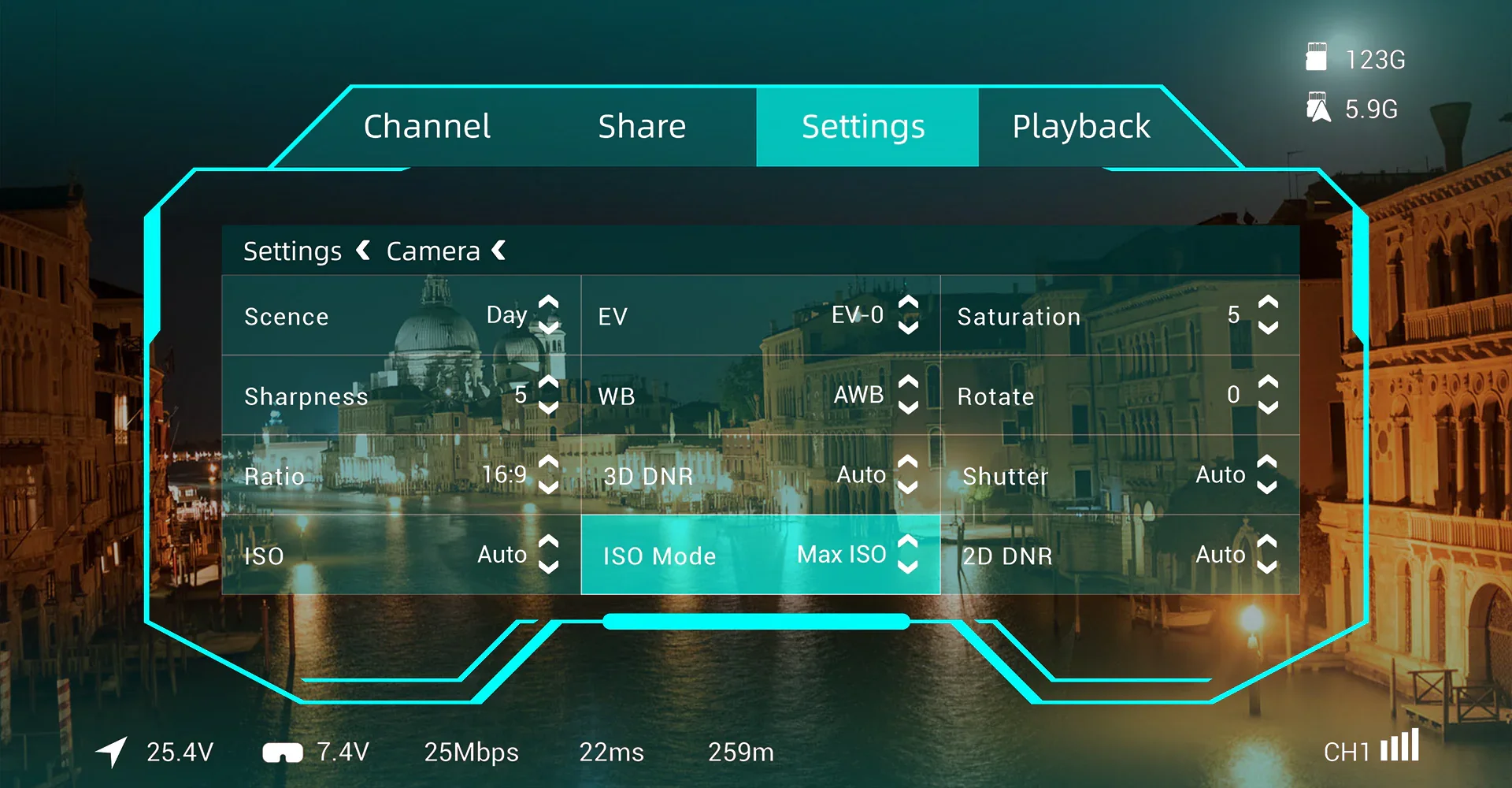

Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.
The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

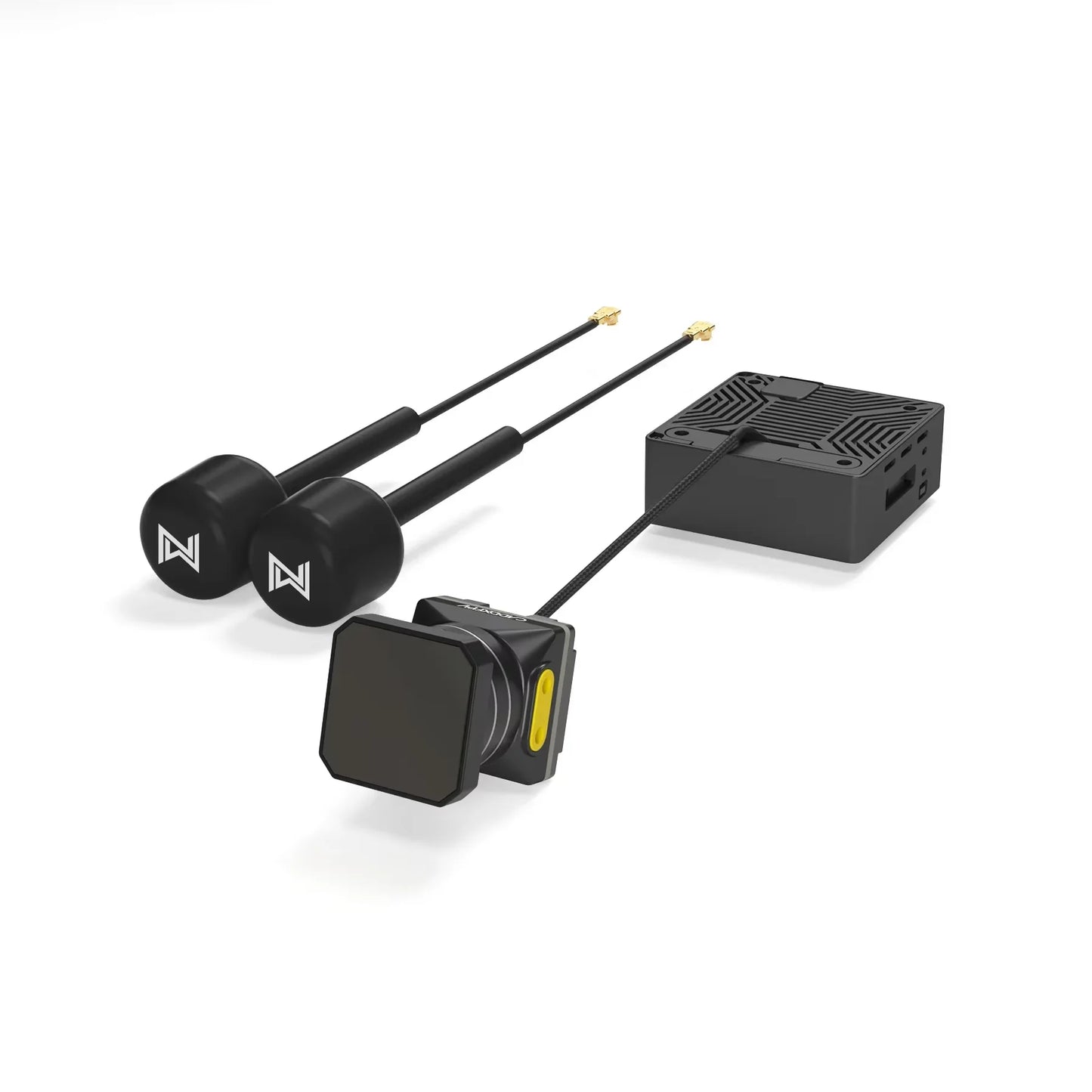

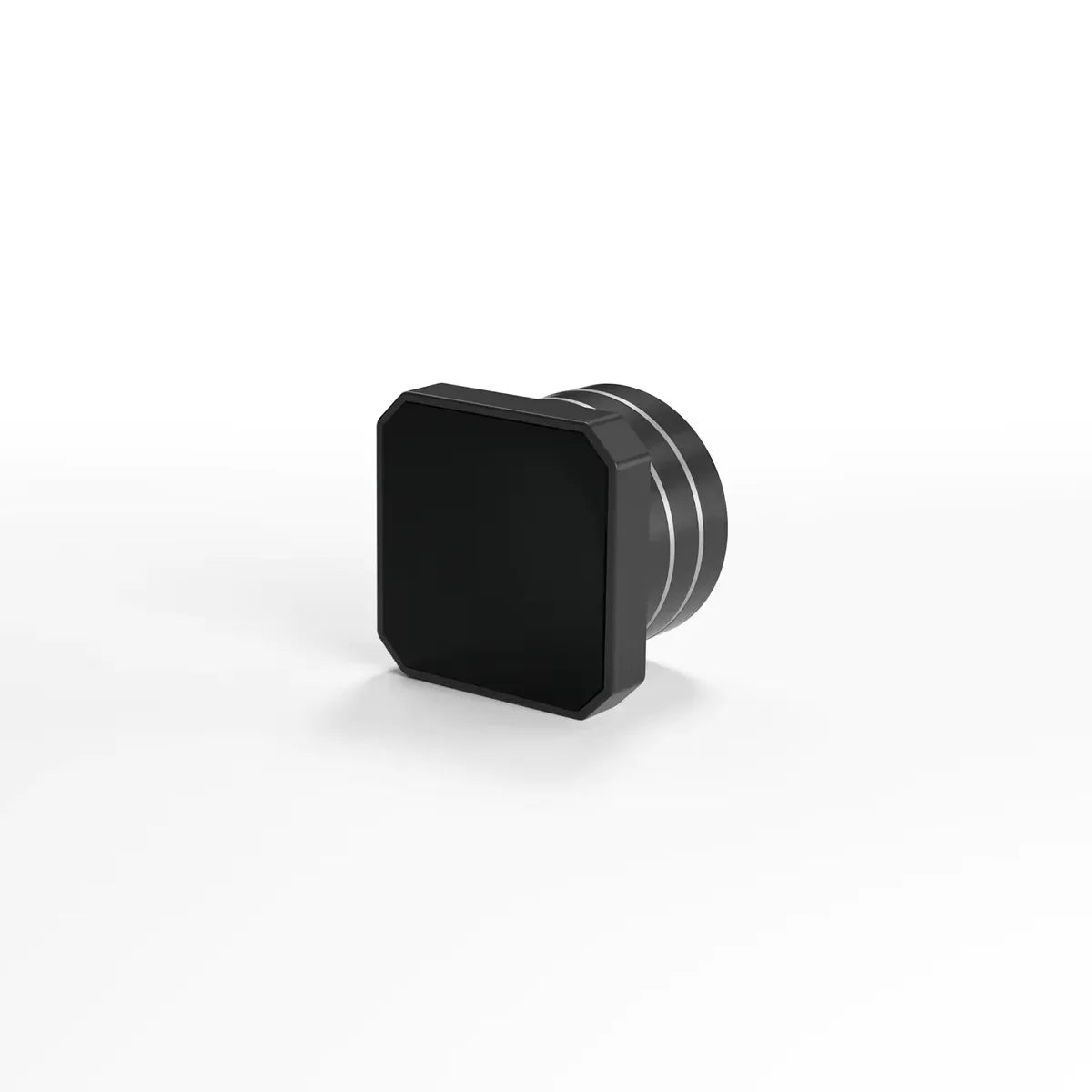

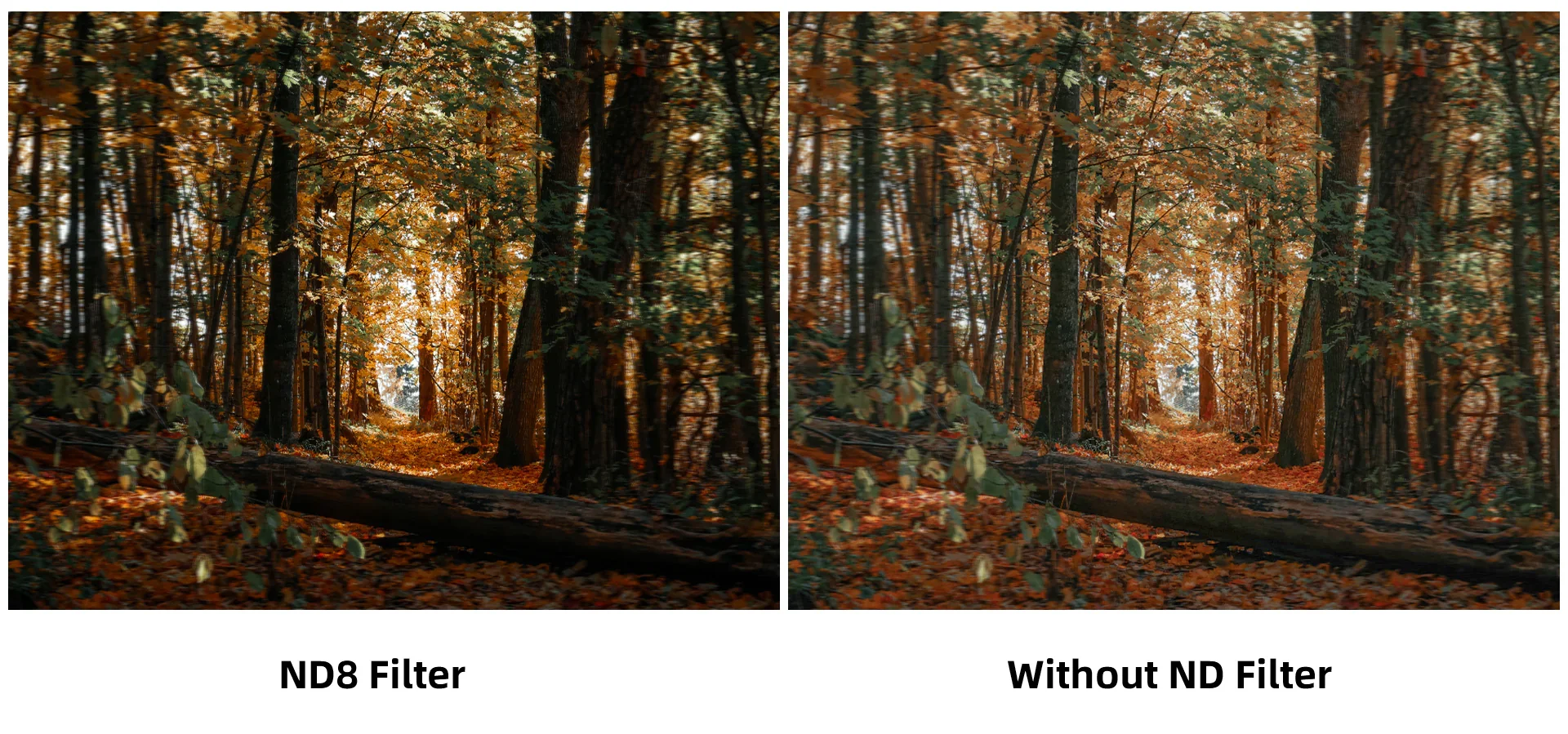

Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.
Specification |
|

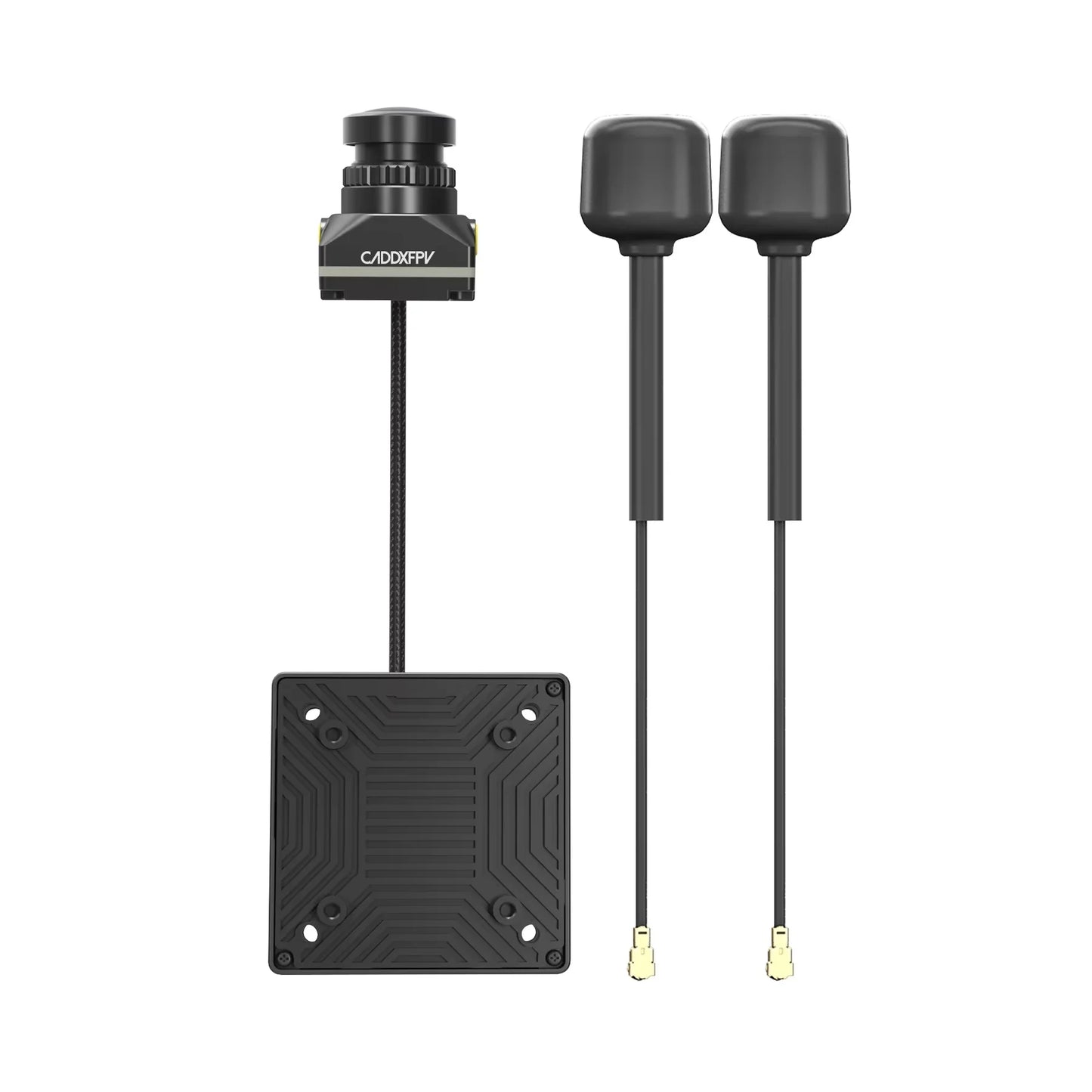

Model |

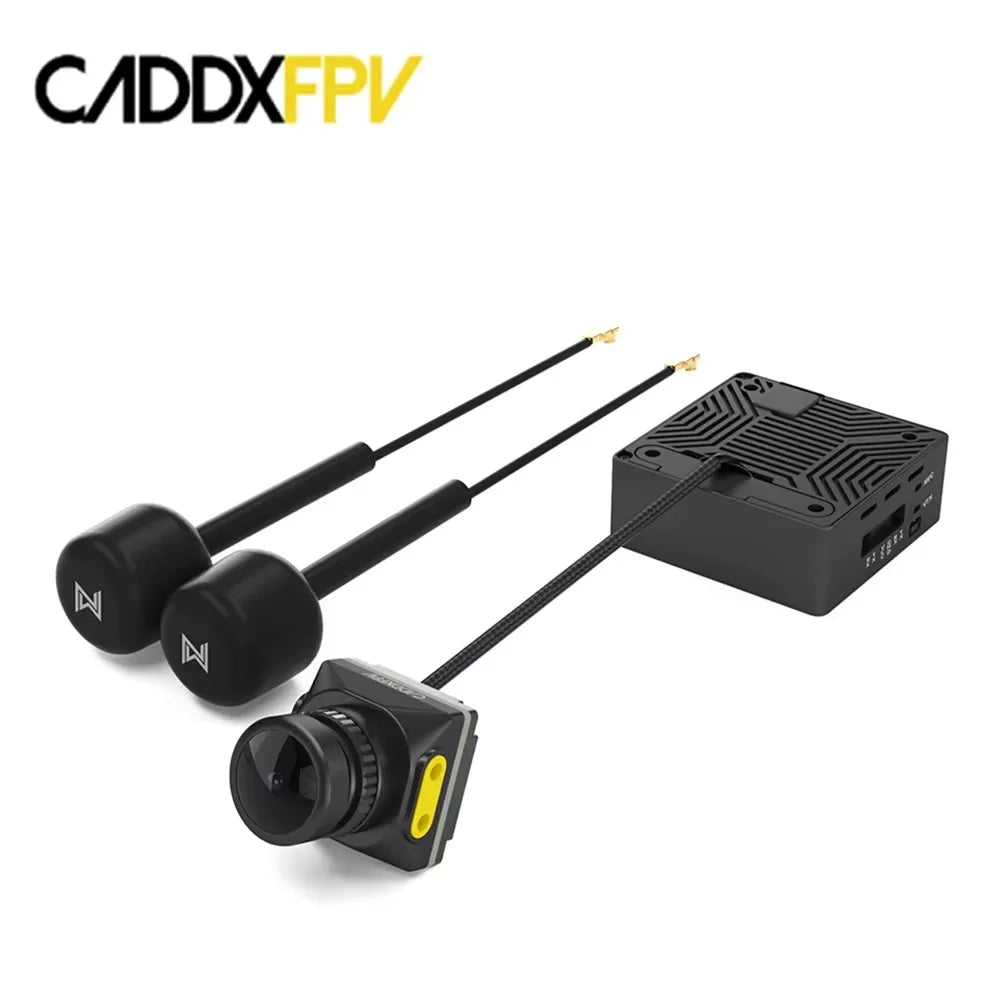

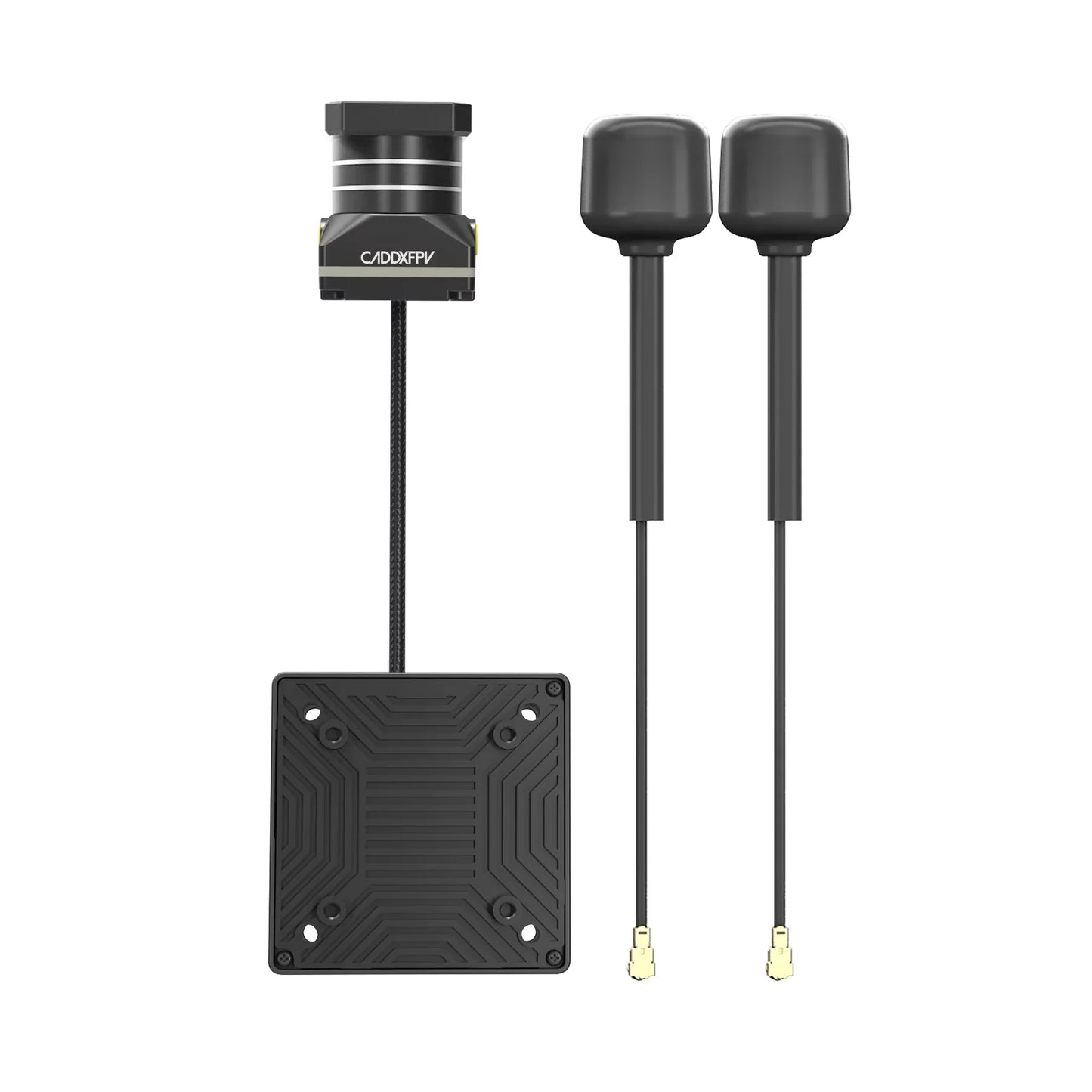

Moonlight kit |
Firmware name |
AvatarMoonlight_Sky_X.X.X |
Communication Frequency |
5.725-5.850GHz |
Transmitter Power (EIRP) |
FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |

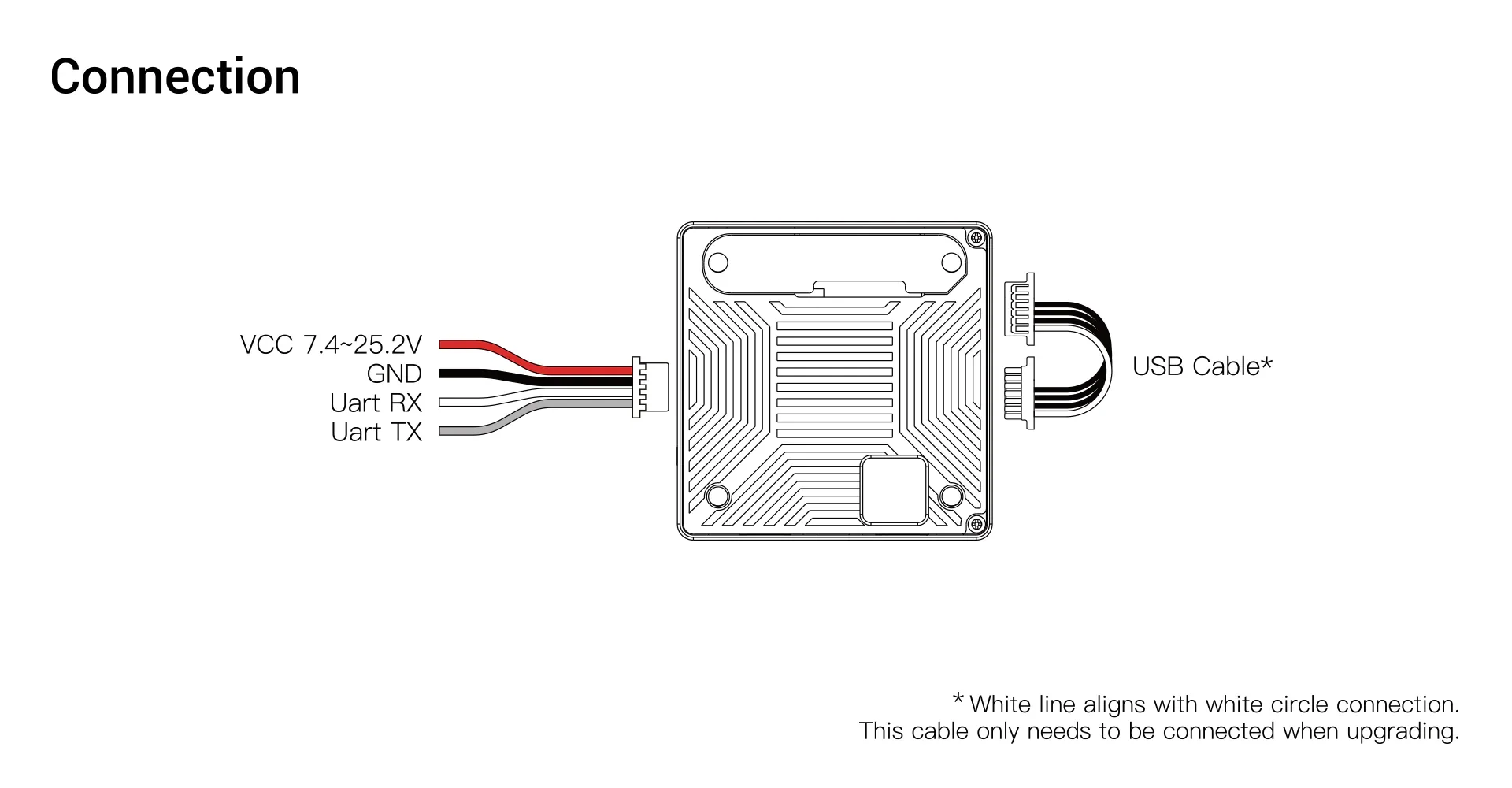

1/O Interface |
JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1 |
Sensor |
Starlight sensor
|
FOV |
Max 160° |
Aperture |
F2.1 |
Shutter |
Rolling shutter |
ISO |
100-25600 |
Recording resolution |
4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps |
Max Mbps |
150Mbps |
Video format |
MP4 (H.264) |
3D DNR |
Support |
Gyroflow |
Support |
Built-in EIS |
Support |
Wide Power Input
|
7.4V-25.2V |
Power consumption |
12V@1.4A, 8V@2.2A |
Memory card type |
U3 MicroSD, Max 256G |

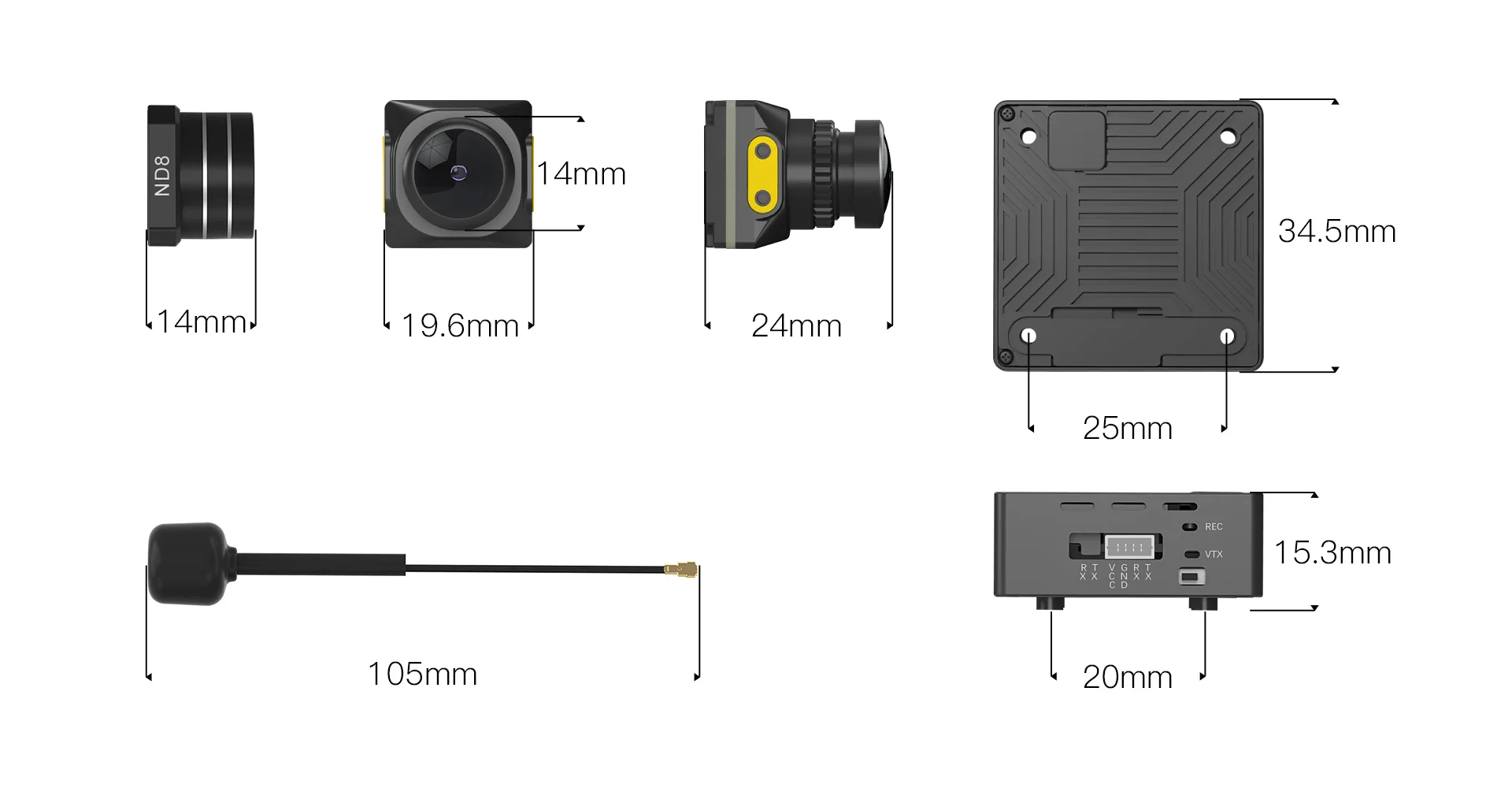

Camera size |
19.6mm*19mm*24mm |
VTX size |
15.3mm*34.5mm*34.5mm |
VTX Installation hole distance |
20*20mm/25*25mm (M2) |
Weight
|
38.5g(Antenna not included)
|
OSD |
Canvas mode |
Latency |
Average delay 22ms |
Antenna |
2 (IPEX) |
VTX Antenna |
|
model |
avatar V2 antenna |
Polarization |
LHCP |
Frequency range |
5600MHz-6000MHz |
Average Gain |
1.9dBi |
VSWR |
＜1.5 |
Input Impedance |
50Ω |
Interface |
IPEX-1 |
Dimension |
R15 X 45mm （without cable） |
Weight |
2g |
