SPECIFICATIONS

Brand Name: kebidu

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Origin: Mainland China

Hign-concerned Chemical: none

Wireless Communication: RF

Support APP: No

Frequency: 433 MHz

Channel: 1

Package: No

Model Number: RF Wireless Socket Remote Control for Lamp Fan

Working Voltage: AC 85~265V

Max current: 15A

RF frequency: 433 mhz

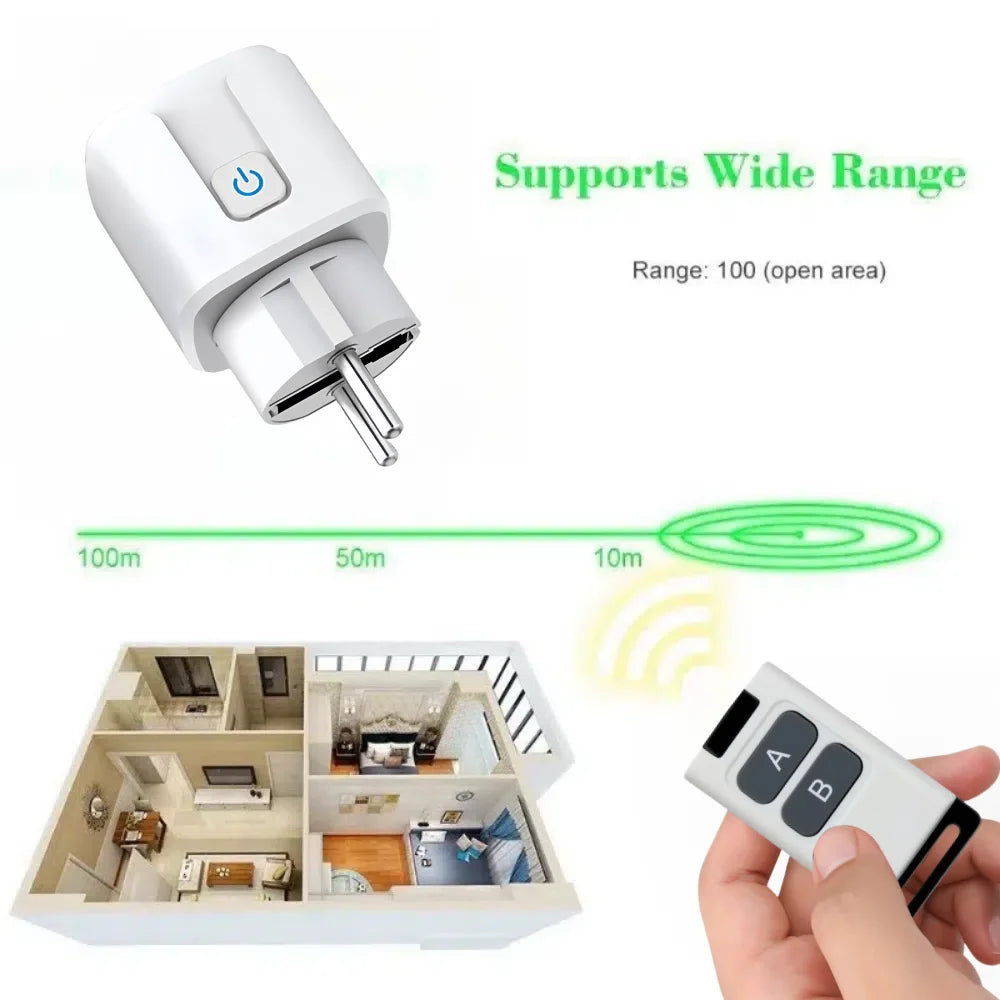

Receiving range: Open space is more than 70 meters

Amount of storage remote controls: 25 pieces

Support encoding: 1527 Learning code

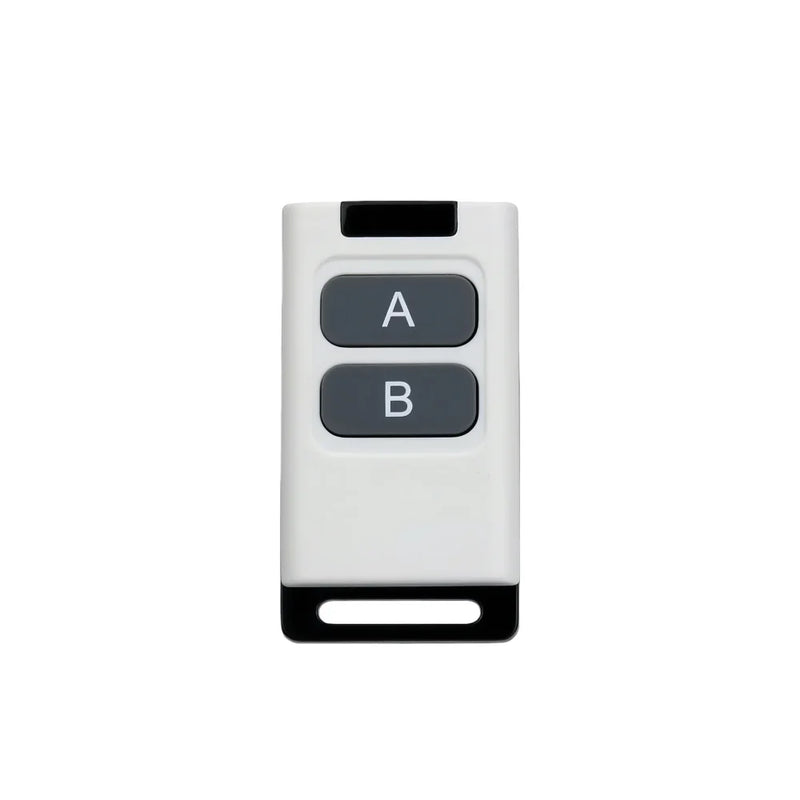

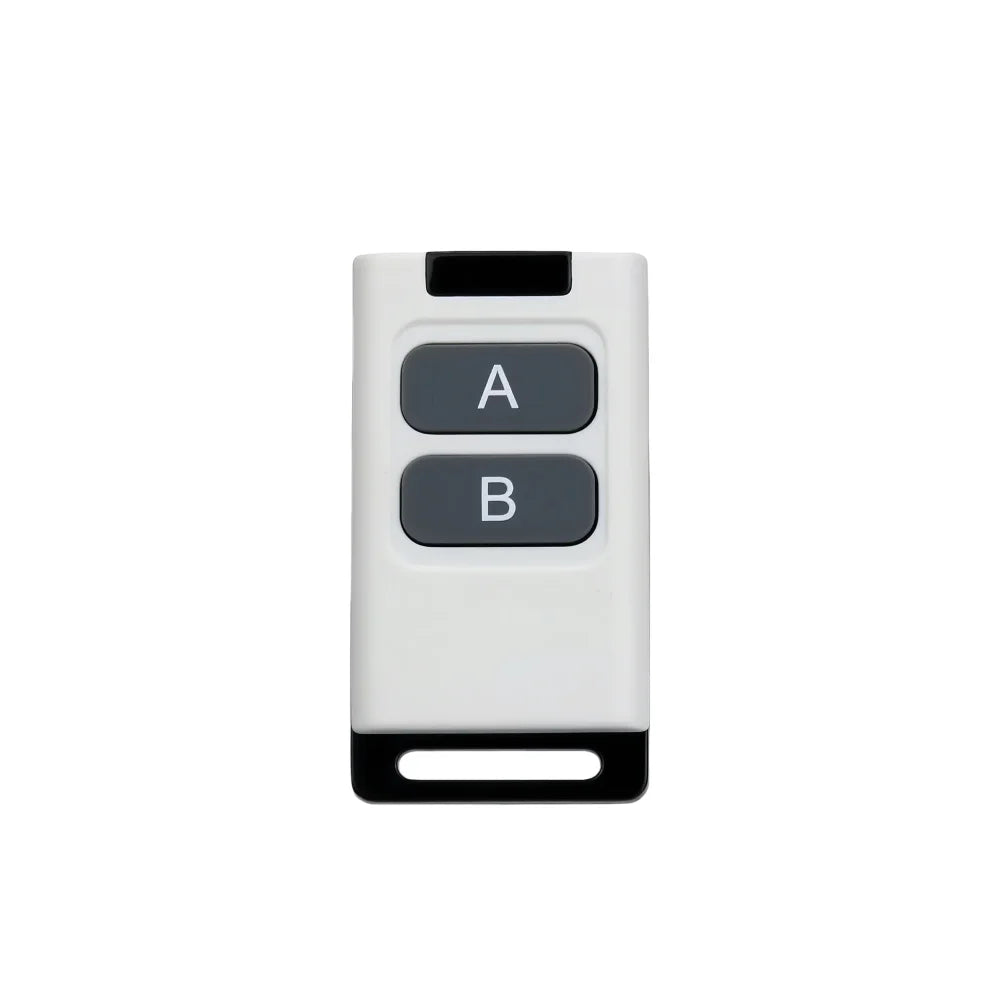

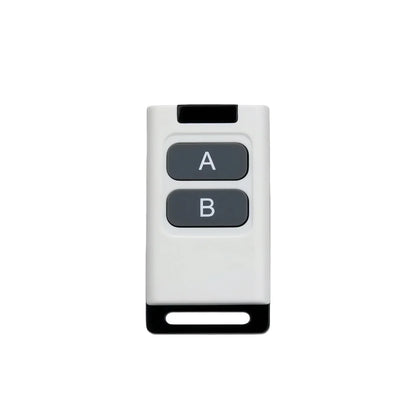

Remote Control Battery: 2*CR 2016

Remote operating mode: Toggle/ Latched Mode

Load Power: 4000W

RF Operating mode: ASK superheterodyne wireless reception

Application 1: Family, Farm, Factory, Office, Supermarket

Application 2: Led Light Lamp Bulb Switch, Home Security Alarm System

Application 3: For Kitchen Food Garbage Disposal Waste Grinder

Features 1: Universal Plug With Electrical Outlets Remote On Off For Light

Features 2: House Power Outlet Light Switch Socket

Features 3: Remote Control Socket EU 433Mhz For Smart Home

Features 4: 433MHZ RF Remote Control Switch Socket

Features 5: ON OFF 2 Buttons Remote Control

Features 6: Multi-purpose Remote Control Switch Socket

Features 7: EU Socket With Remote Controller

Relay Receiver Board Parameter

Working Voltage : AC 85~265V

Max current : 15A

Load Current : 4000W

Remote Control Battery : 2*CR2016(Include)

RF frequency : 433MHz

Working temperature : -30~+80 Celsius

Receiving Sensitivity : >97dbm

Amount of storage remote controls : 25 pieces

Support encoding :1527 Leaning code /2262 fixed code

RF Operating mode : ASK superheterodyne wireless reception

Receiving range : Open space is more than 50 meters

Remote operating mode : Toggle Mode/Latched Mode

Use: Press *ON* button -> The Home Appliances OR Light will turn ON;

Press *OFF* button ->The Home Appliances OR Light will turn OFF.

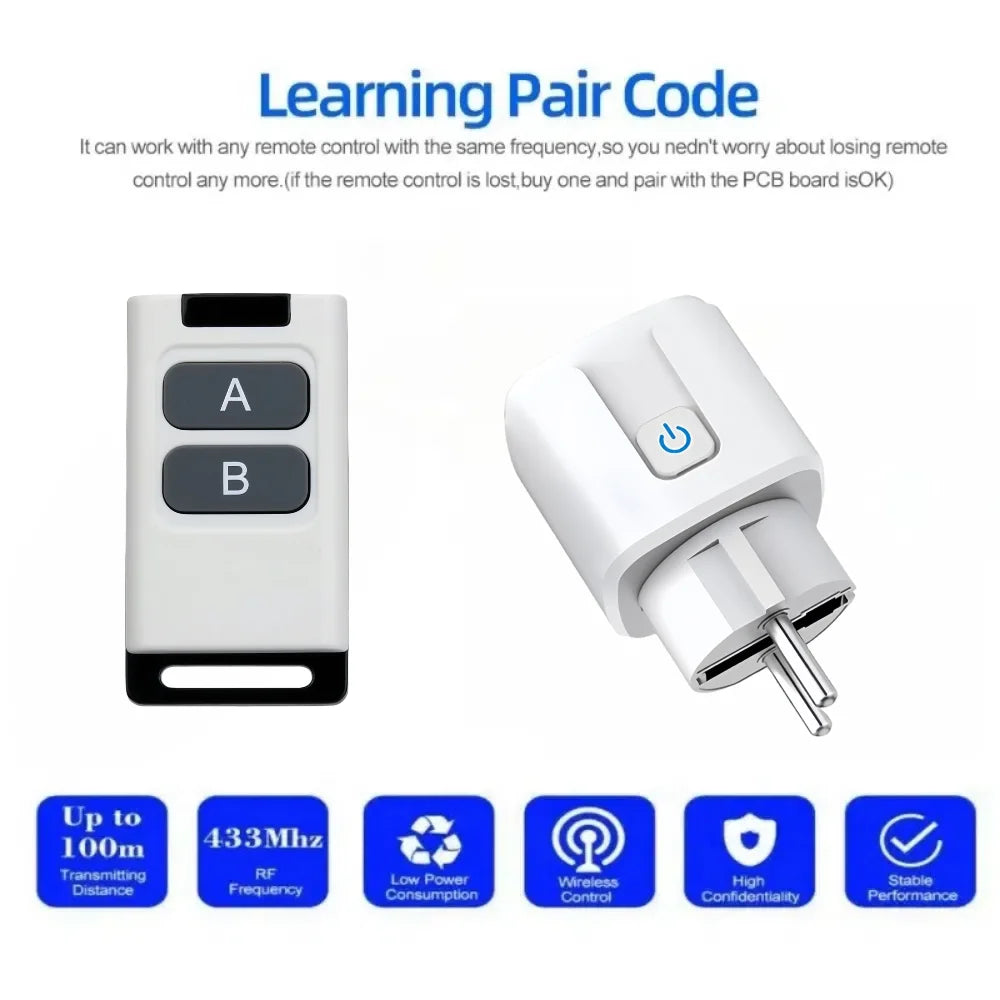

Setting: 1.According to the picture above, Press and hold the learning button until the indicator flashing twice .

2.Press the *ON* button, the indicator flashing twice.

3.Press the *OFF* button, the indicator flashing twice.

4.Success

How to clear the signal

Only one step :Press and hold the learning button until the indicator flashing8 Times(about 7 seconds ).
