Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
Place of Origin: Guangdong, China
Brand Name: Sunnymed
Model Number: SY-W002
Properties: Diagnosis & Injection
Product name: Animal Hemodialysis Machine
Size: 870*410*1330mm
Weight: 35kg
Voltage: 220V/110V
Frequency: <500VA
Blood flow: 1-250ml/min
Accuracy: ±10%
Venous pressure: -10kPa-101KPA
Dear customer,
Welcome to my store,There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and accurate prices, please add WA for confirmation
Manager: Violet Ms
WhatsApp:+86 18966023528
Email： 15367315926@163.com
C. Paypal in Alibaba
If you are still satisfied with our product and want to get more discounts and product information, please add my contact information so that I can send more detailed product information,This is my business card information.
Manager: Violet Ms
WhatsApp:+86 18966023528
Email：15367315926@163.com
SUNNYMED Reliable Quality Affordable Price

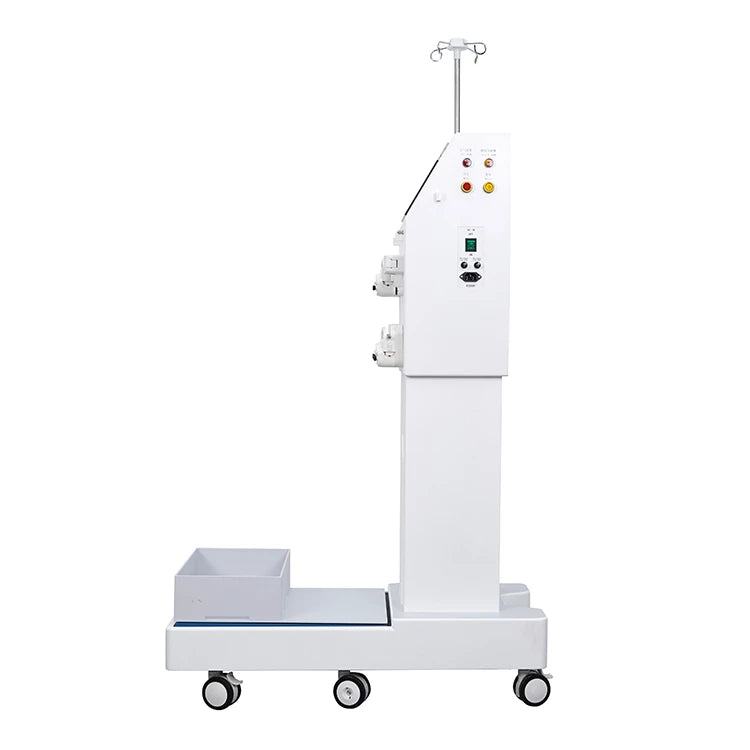

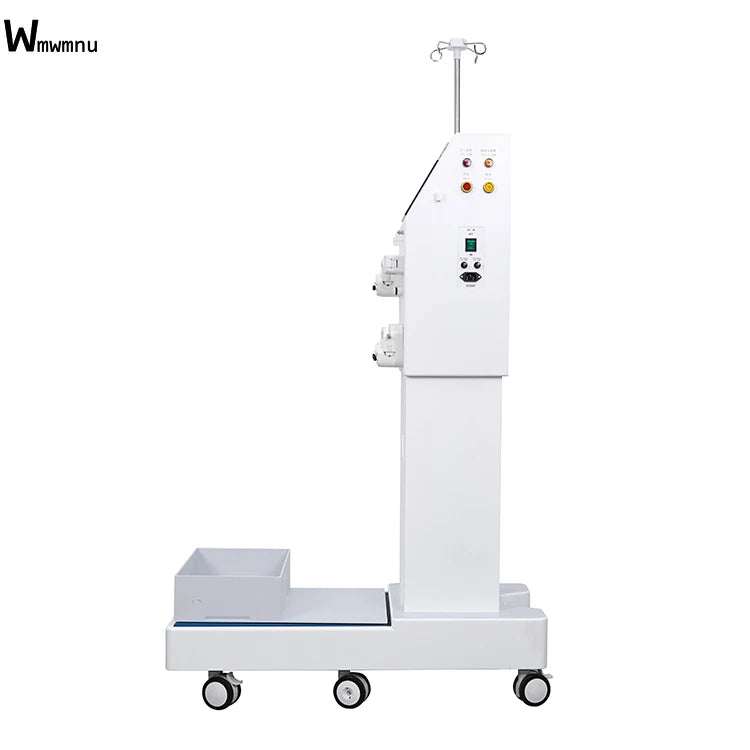

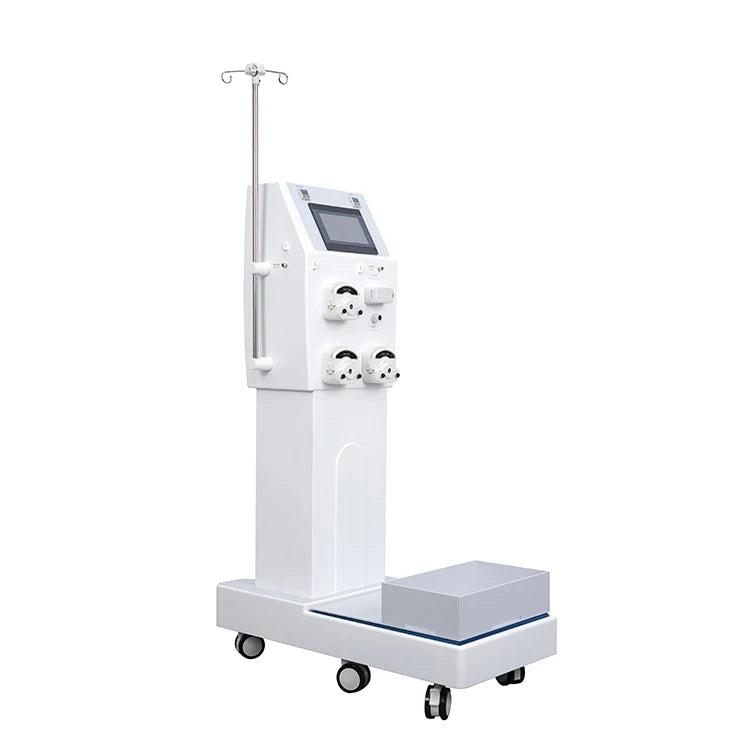

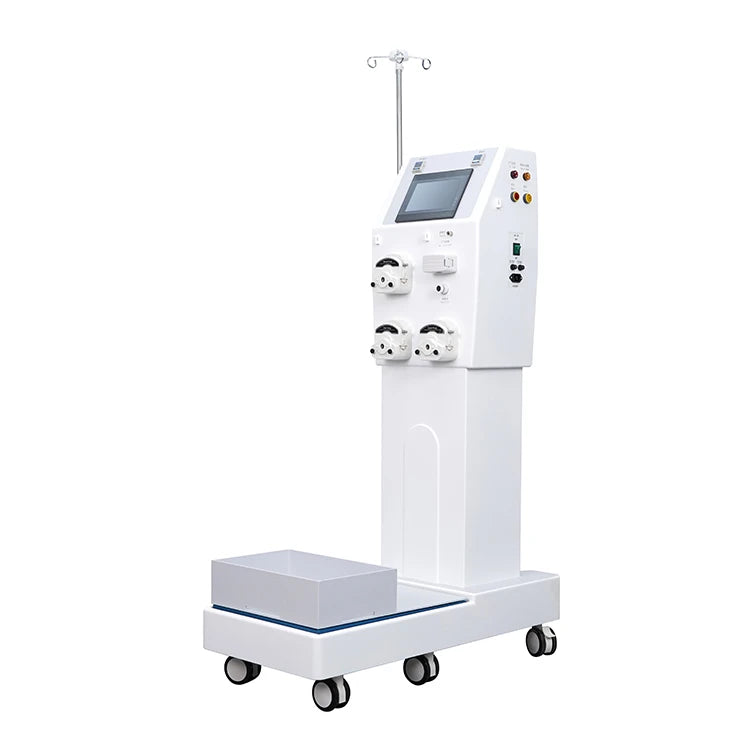

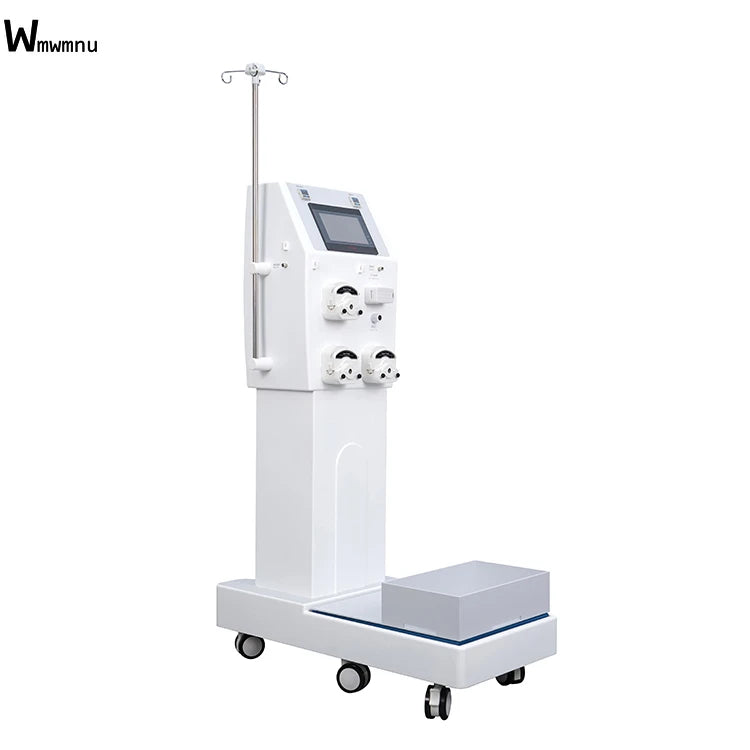

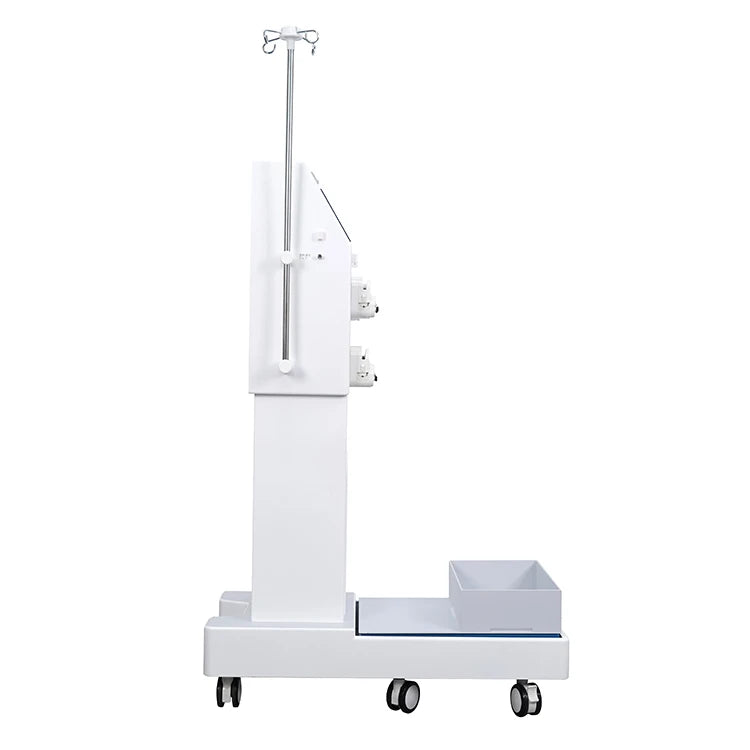

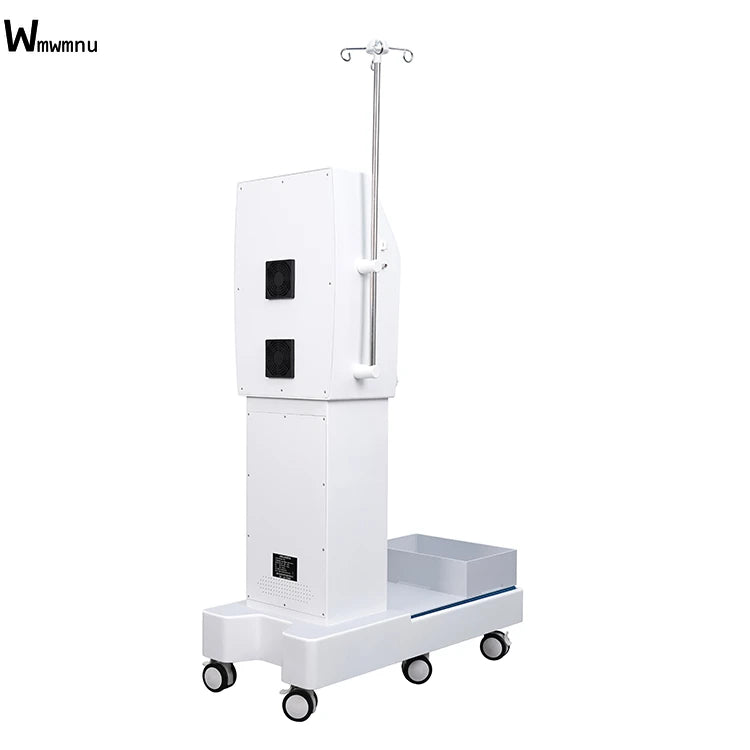

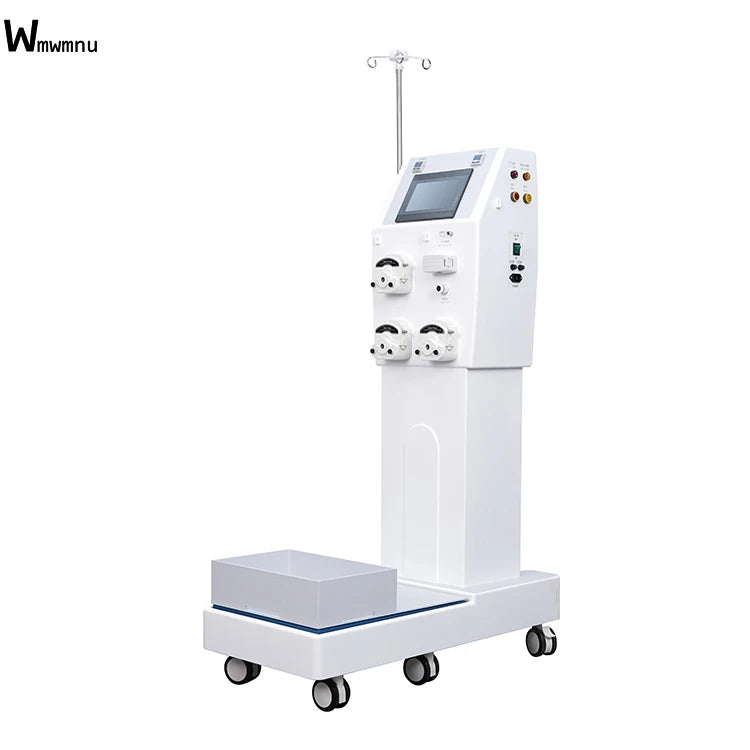

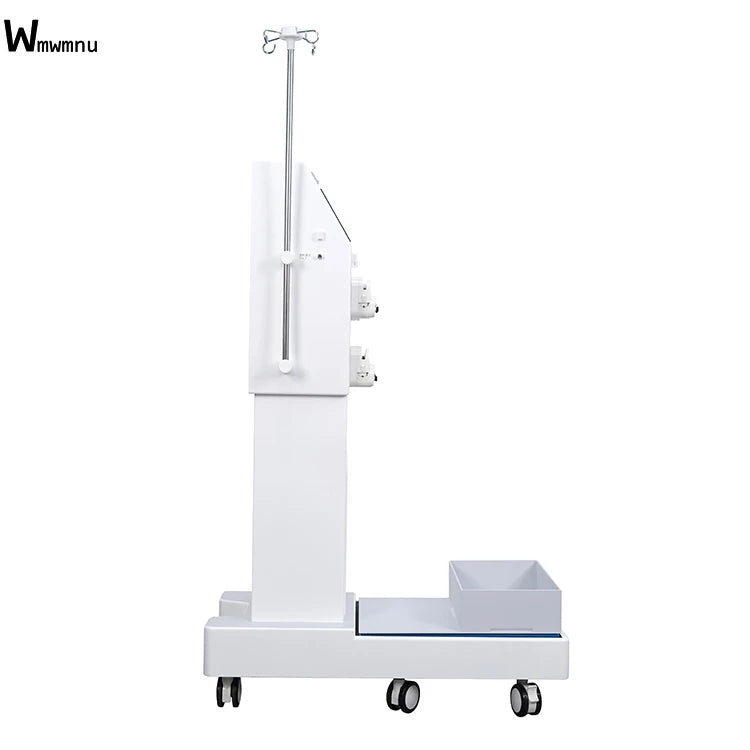

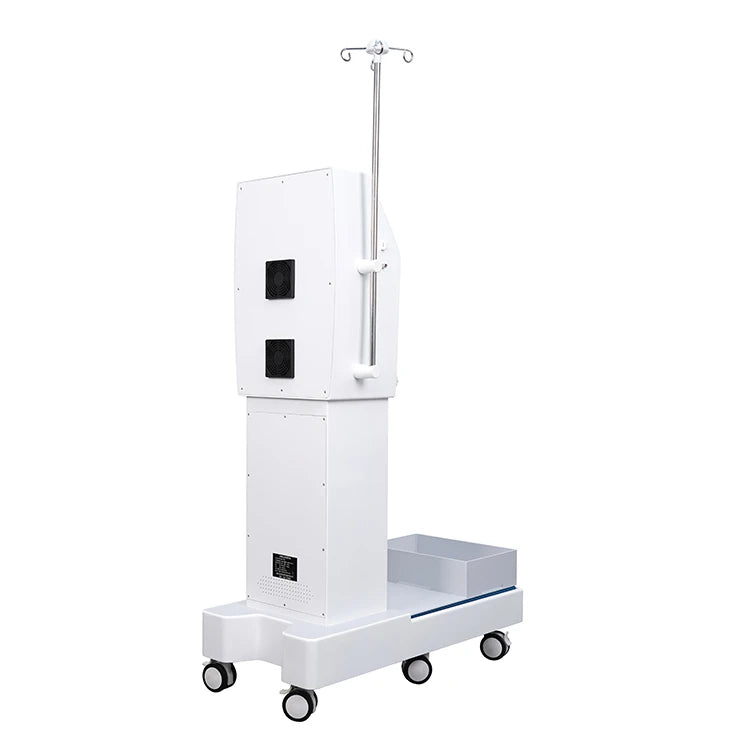

SY-W002 Portable Animal Dialysis Equipment hospital veterinary animal hemodialysis machine
Why this model?
Features
* Direct use of the prepared dialysis fluid ensures 100% accurate dialysis fluid concentration, simpler, more convenient and safer.
* The entire hemodialysis treatment process is carried out with disposable consumables and operates completely airtight, with no possibility of external contamination.
* The unique high-flow convection plus diffusion dialysis mode provides high dialysis efficiency. The dialysis time is usually completed within 2-3 hours.
* The weighing method is used to control the amount of ultrafiltration with an accuracy of ±5%, which is of great importance for small animals.
* The flow of dialysate in and out can be adjusted simply and efficiently, providing precise control of ultrafiltration.
* It is designed in accordance with the small blood volume in vitro, the volume of dialyzer plus hemodialysis tube can be
controlled at 30ml. Hemodialysis can be easily carried out on animals from 3 to 50 kg.
* LCD display, touch key, easy parameter setting, no need to be equipped with a special water purifier, easy to operate.
* Small size, light weight, easy to move, and dialysis fluid can be moved at will even after it has been prepared, so that
hemodialysis treatment can be carried out in different rooms and locations and it can also go out for on-site treatment.
* Direct use of the prepared dialysis fluid ensures 100% accurate dialysis fluid concentration, simpler, more convenient and safer.
* The entire hemodialysis treatment process is carried out with disposable consumables and operates completely airtight, with no possibility of external contamination.
* The unique high-flow convection plus diffusion dialysis mode provides high dialysis efficiency. The dialysis time is usually completed within 2-3 hours.
* The weighing method is used to control the amount of ultrafiltration with an accuracy of ±5%, which is of great importance for small animals.
* The flow of dialysate in and out can be adjusted simply and efficiently, providing precise control of ultrafiltration.
* The use of high throughput dialysis, i.e, the rapid removal of creatinine, urea nitrogen, but also remove the pathogenic
molecular weight of toxic substances, inflammatory substances, in acute renal failure has the effect of both the symptoms and the root cause of the treatment.
molecular weight of toxic substances, inflammatory substances, in acute renal failure has the effect of both the symptoms and the root cause of the treatment.
* It is designed in accordance with the small blood volume in vitro, the volume of dialyzer plus hemodialysis tube can be
controlled at 30ml. Hemodialysis can be easily carried out on animals from 3 to 50 kg.
* LCD display, touch key, easy parameter setting, no need to be equipped with a special water purifier, easy to operate.
* Small size, light weight, easy to move, and dialysis fluid can be moved at will even after it has been prepared, so that
hemodialysis treatment can be carried out in different rooms and locations and it can also go out for on-site treatment.
|
Technical Parameters
|
||
|
Main Functions
|
Hemodialysis; Blood Perfusion (Poisoning Rescue); Simple Ultrafiltration (Dehydration); Liver Ascites Recovery
|
|
|
Blood Pump
|
Blood pump flow range: 0.1mL/min～250mL/min
|
|
|
Step value: 1mL/min
|
||
|
Error: ±10%
|
||
|
Liquid Pump
|
Liquid pump flow range: 2mL/min to 600mL/min
|
|
|
Step value: 1mL/min
|
||
|
Error: ±10%
|
||
|
Venous Pressure Monitoring
|
Venous pressure range: -13kPa to 66.7kPa (-100mmHg to 800mmHg), resolution: 1mmHg
|
|
|
Venous pressure indication accuracy: ±1.3kPa (±10mmHg)
|
||
|
Adjustable high and low limits for venous pressure alarms, with an alarm action error of ±1.3kPa (±10mmHg)
|
||
|
Dialysis Hydraulic Monitoring
|
Dialysis hydraulic pressure range: -13kPa to 66.7kPa (-100mmHg to 800mmHg), resolution:1mmHg
|
|
|
Dialysis hydraulic pressure indication accuracy: ±1.3kPa (±10mmHg)
|
||
|
Dialysis hydraulic alarm high limit adjustable, with alarm action error ±1.3kPa (±10mmHg)
|
||
|
Stable state of continuous operation during 4 hours
|
Fluctuation in dialysate flow rate is of 5%
|
|
|
Fluctuation in blood flow rate is of 5%
|
||
|
Pressure Control
|
The pressure monitoring equipment should have an intravenous pressure and dialysis pressure monitoring system
|
|
|
Alarm Action
|
When intravenous pressure monitoring system is alarmed, the equipment shall have the corresponding alarm action: triggering ann audible and visual alarm
|
|
|
Air Protection System
|
A protection system to prevent safety-related risks to patients due to air entering the body. When air enters the pipeline, the protection system is activated. An audible and visual alarm is emitted and the blood pump is stopped at the same time, blocking
the venous circuit and preventing air bubbles from entering the body |
|
