SPECIFICATIONS

Brand Name: LanYuXuan

Origin: Mainland China

DIY Supplies: ELECTRICAL

Warranty: 1 Year

Customized support: OEM, ODM

Brand Name: Shenchen

Model Number: OEM-B236

Place of Origin: Hebei, China

Application: Food and Beverage Industry, Industrial Utilities

Power Source: Electric

Pressure: Low Pressure

Structure: OEM peristaltic pump

Voltage: 12v, 24v

Power: <80W

motor: Stepper Motor

Pump head: UC25

Flow rate: 0.3423~3331.5mL/min

Speed: 0.1-300rpm

Tube size: 13#, 14#, 16#, 25#

Tube material: Silicone tube

Pump head material: PSF & PC

Roller number: 2

Hello, welcome to my shop. What can I do for you? If you have any questions, you can send me product information to ask, if you have something urgent to tell me, please add my WhatsApp +86 17352823125 . If you need to confirm the product and confirm the shipping cost of the product, please contact me after placing the order. My email: 3353361535@qq.com

Product Description

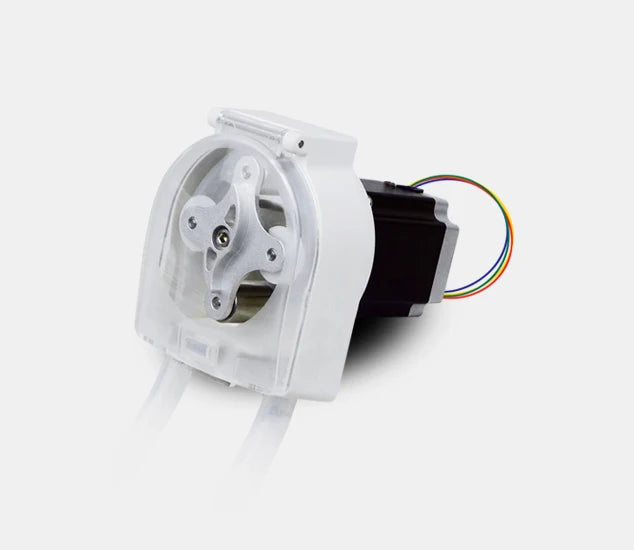

OEM Peristaltic Pump Introduction

Compact pump head, functional design, more practical.

Transparent protective cover, can observe the working situation anytime;

Uncover signal output, stop working when uncover to ensure safety;

Running smoothly, low nosie;

Support DC motor, brushless DC motor, stepper motor, servo motor and AC motor.

Flow Data

Model	Housing Material			Tubing			Speed (rpm)	Flow Rate (mL/min)
		Base	Protecting Cover	Size	IDxWall(mm)
UC25	PSF	PC	15#	4.8x2.4	0.1-300	0.3423-1027
							24#	6.4x2.4		0.5033-1510
							35#	7.9x2.4		0.8588-2576.5
							36#	9.6x2.4		1.1105-3331.5

Technical Parameters

OEM-B236 Technical Specification
Model No.	OEM-B236
Motor type	57 stepper motor
Motor phase number	2
Motor step angle	1.8°
Motor phase voltage	1.5V
Motor phase current	3A
Working environment	0-40℃, 80%RH

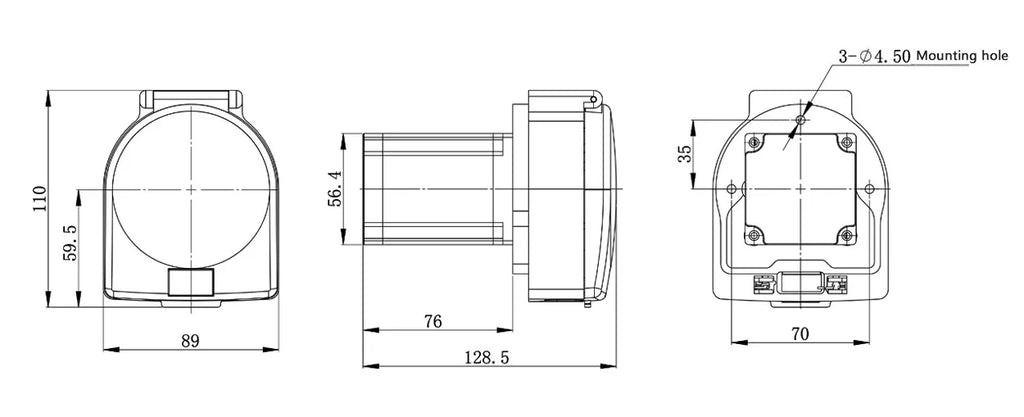

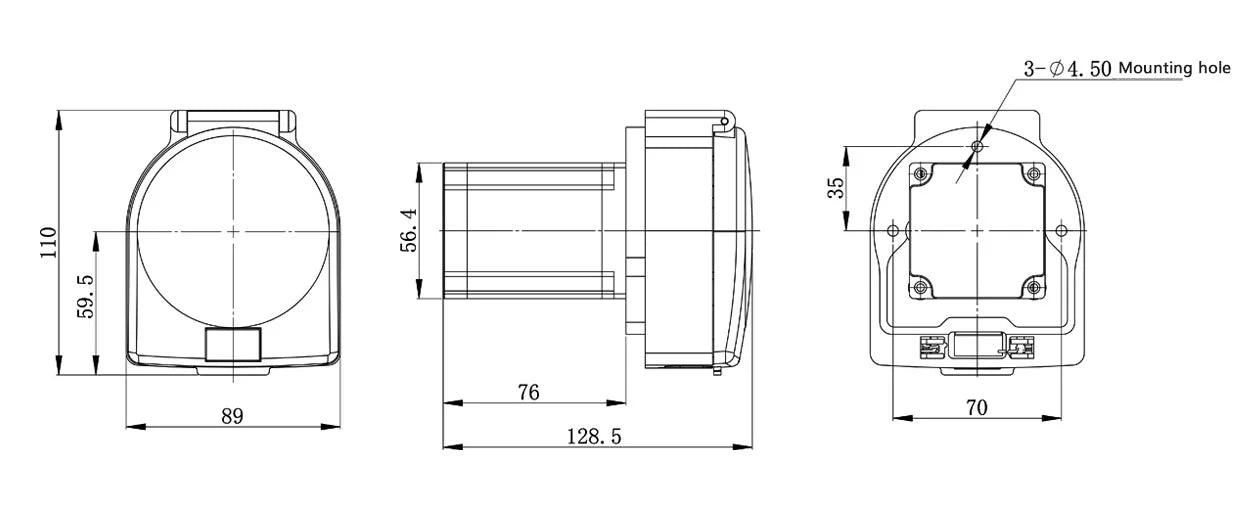

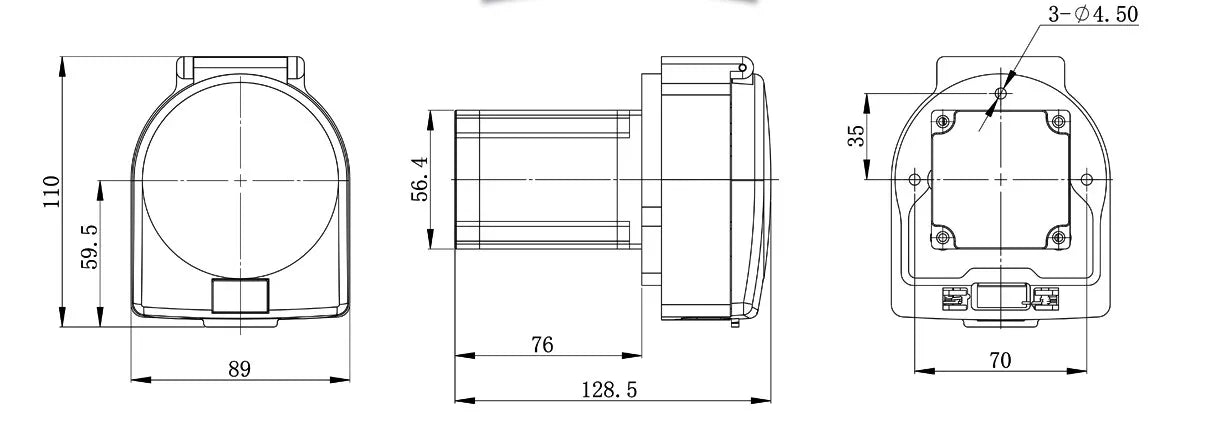

Product Dimensions

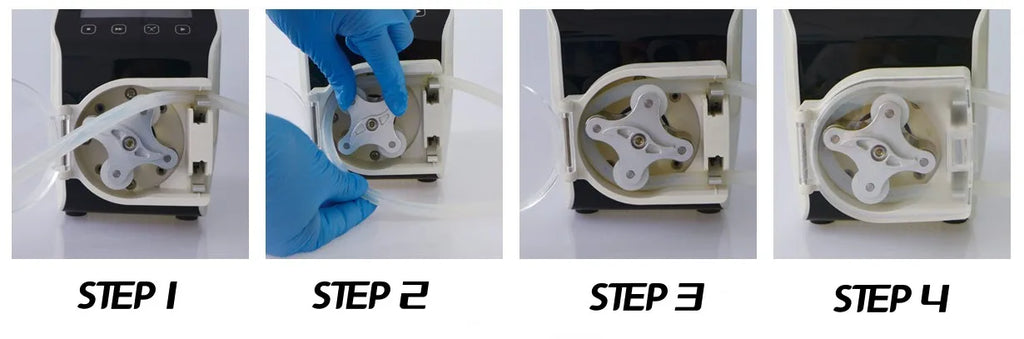

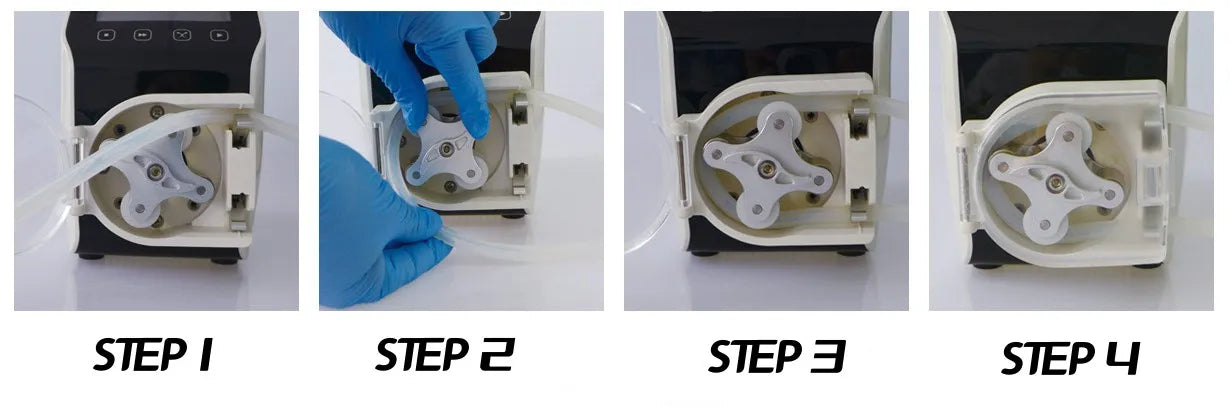

Tubing Installation Procedure

STEP 1. Press the tubing clamp, put the tube into the U shaped groove.

STEP 2. Put the tubing between the two guide posts. Hold the spanner, rotate the wheel body.

STEP 3. Press the tubing clamp, put the tubing into the U shaped groove.

STEP 4. Installation is finished.

Related Products

Packing & Delivery

Packing: 1 set/carton.
Delivery Time: within 3 days after payment.
Courier: DHL, TNT, UPS, Fedex, delivery door to door.
Power Plug: GB, European standard, American standard, British standard.
