Save 5%
My Store
Price:
$371.64 $391.20
Stock:
In stock

Description

SPECIFICATIONS

Brand Name: QIACHIP

Use: TV

Use: Air Conditioner

Use: Computer

Use: Universal

Use: Projectors

Use: Audio / Video Players

Use: Camera / Video Camera

Use: Speaker

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: FCC

Certification: RoHS

Frequency: 433 MHz

Channel: 4

Package: Yes

Model Number: RX217-4

Support ASK / OOK modulation,: the receiver sensitivity of -107dBm

Operating frequency:: 433.92MHz

bandwidth of about: ± 150KHz

mains input voltage range:: 2.2V-5V

Working current:: Type :2.1mA (Requirement:VDD=5V)

Type :: 2.1mA (Requirement:VDD=3V)

Quiescent Current:: 1uA

Low power consumption;: good selectivity and spurious radiation suppression,

and easy to pass CE / Fcc international certification;: multiple transmission rates, the general module for 2KHz, up to 10KHz;

Temperature range:: -40-85 °C

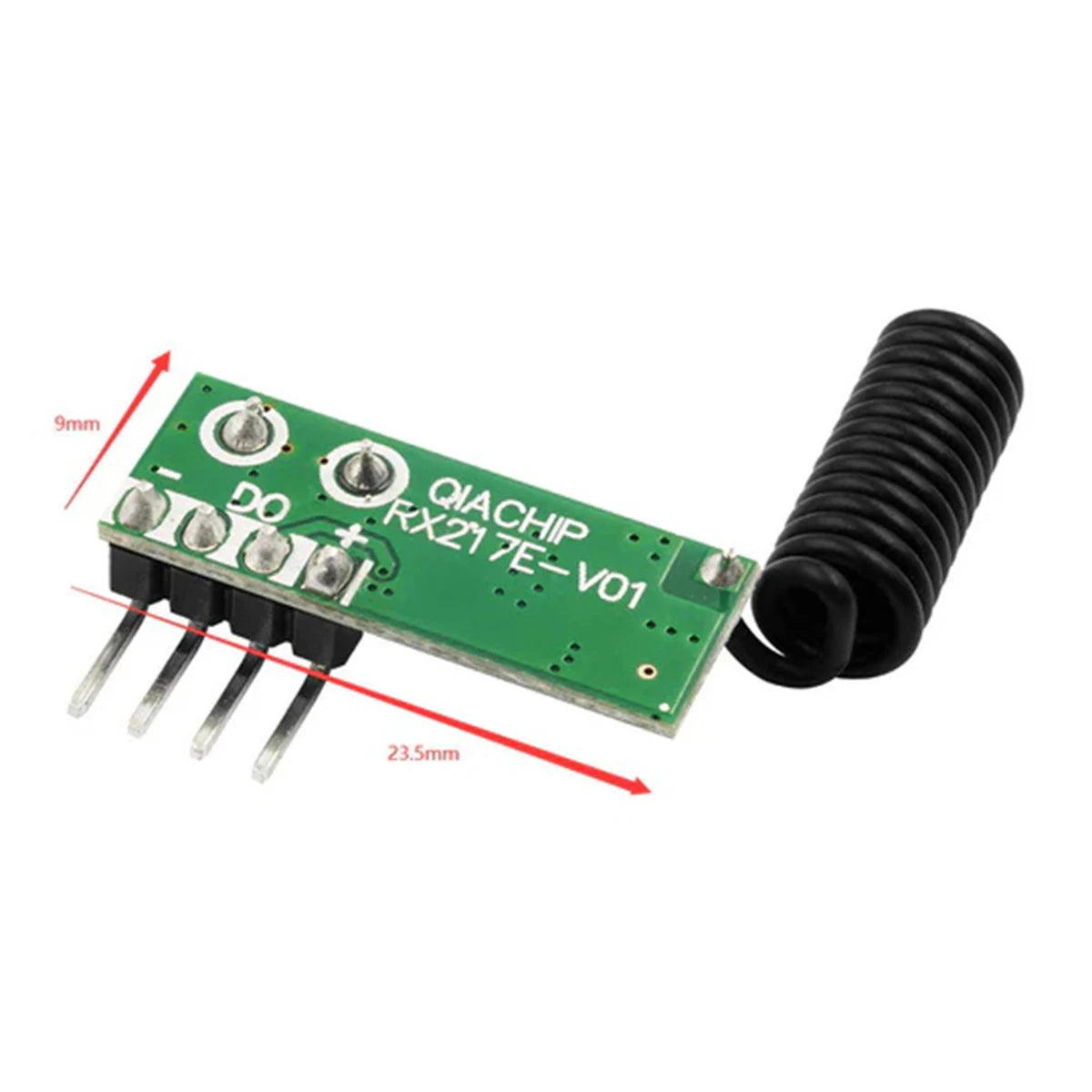

ultra-small size: 23.5 x 8.5 x 1 (mm) (can be customized according to customer)

External antenna:: 32CM single core wire, wound into a spiral

Application environment：

Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.For Arduino Uno DIY Learning Research Development

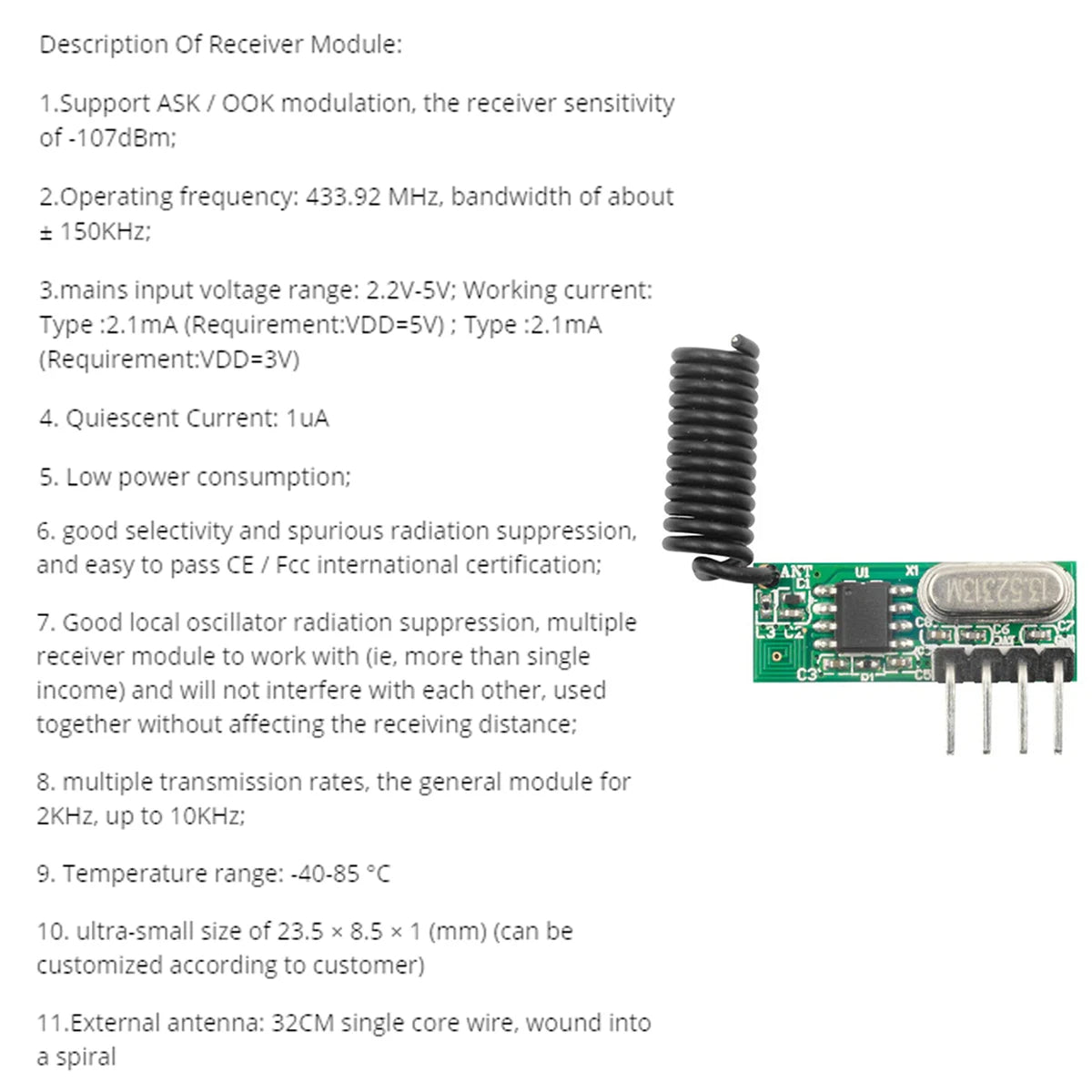

Description Of Receiver Module:

1.Support ASK / OOK modulation, the receiver sensitivity of -107dBm;

2.Operating frequency: 433.92 MHz, bandwidth of about ± 150KHz;

3.mains input voltage range: 2.2V-5V; Working current: Type :2.1mA (Requirement:VDD=5V) ; Type :2.1mA (Requirement:VDD=3V)

4. Quiescent Current: 1uA

5. Low power consumption;

6. good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;

7. Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance;

8. multiple transmission rates, the general module for 2KHz, up to 10KHz;

9. Temperature range: -40-85 °C

10. ultra-small size of 23.5 × 8.5 × 1 (mm) (can be customized according to customer)

11.External antenna: 32CM single core wire, wound into a spiral
