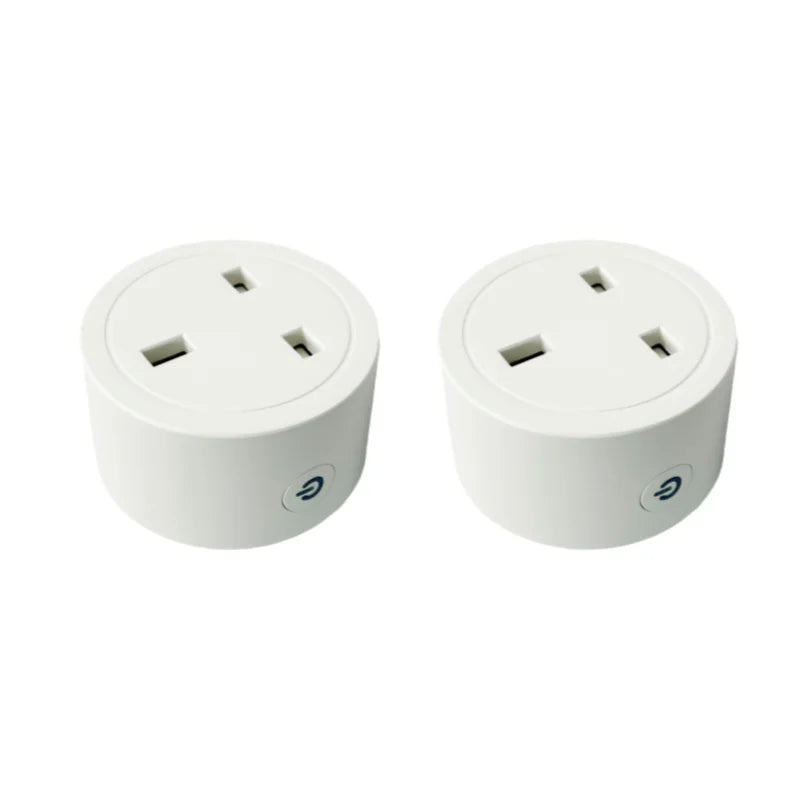

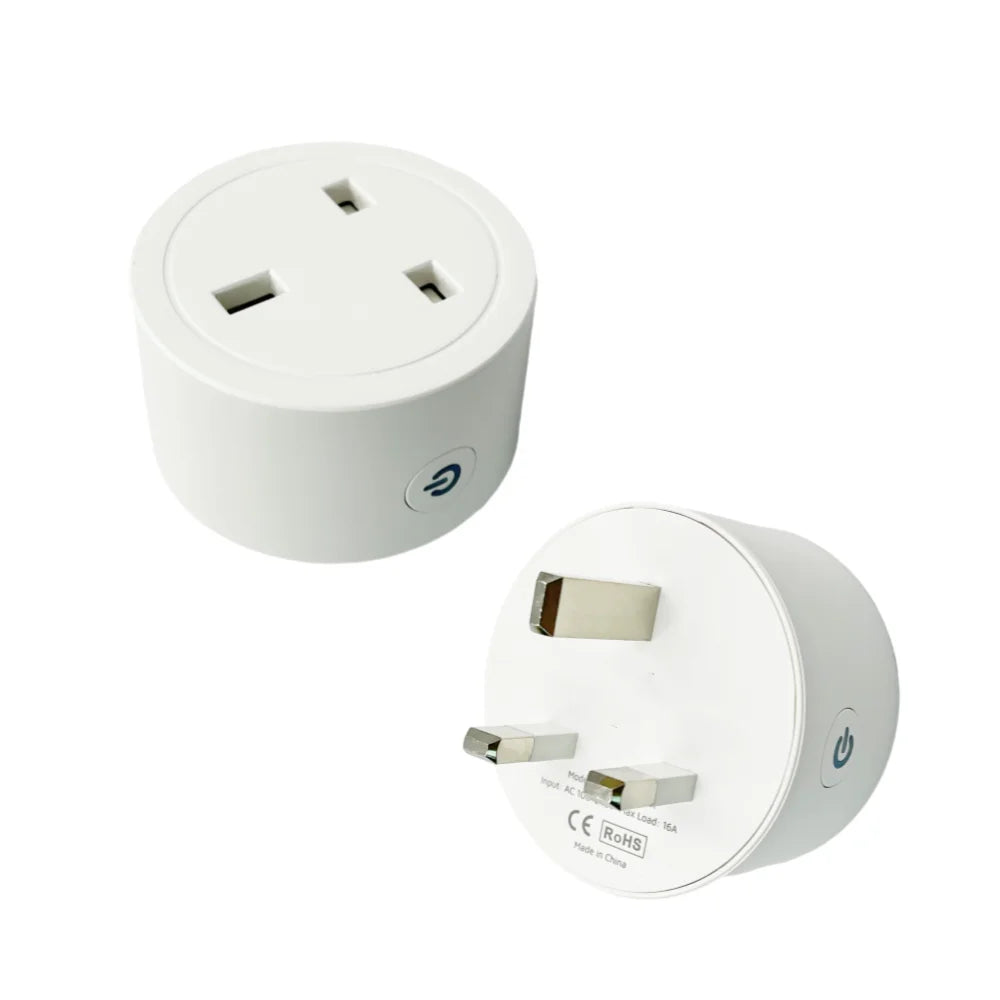

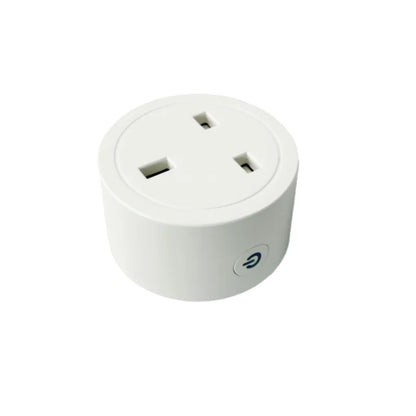

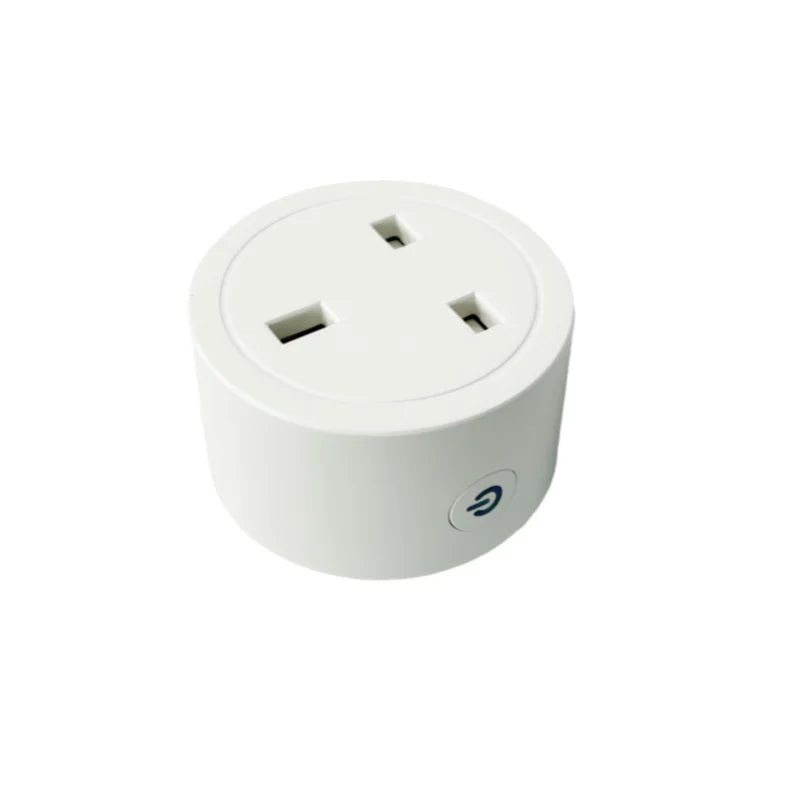

preflashed ESPhome Smart Plug Works With Home Assitant UK Standard 16A

$102.14

~~$106.58~~ $102.14

Sale Sold out

Shipping calculated at checkout.

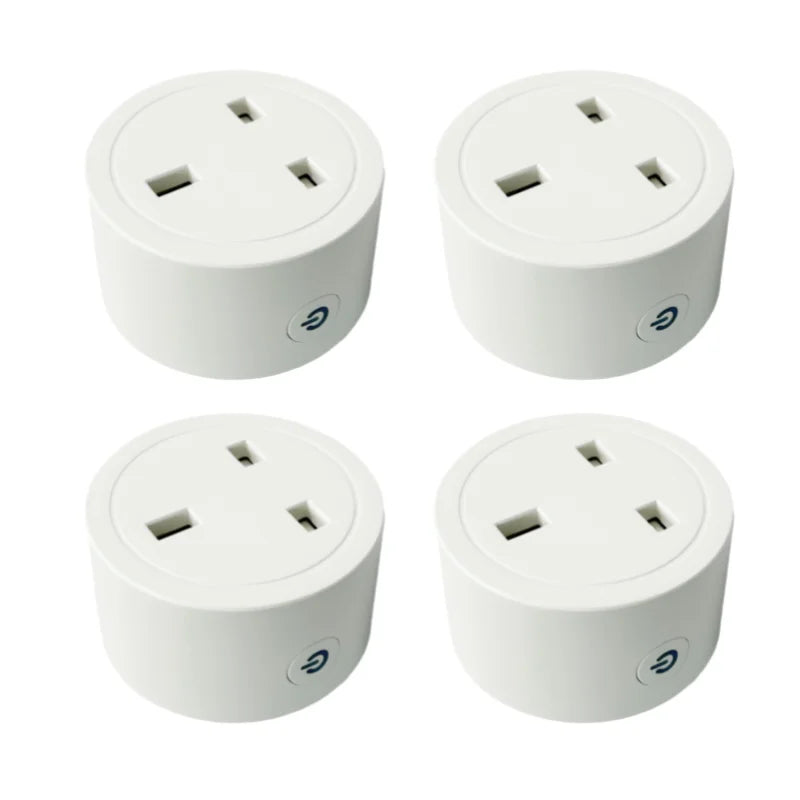

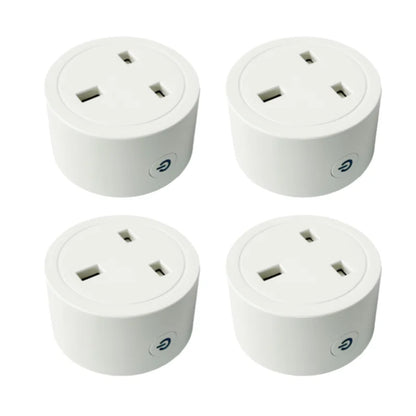

Bundle 4 Pcs ESPHome 1 pc ESPHome 2 pcs ESPHome

Ships From CHINA

SPECIFICATIONS

Brand Name: tasmota

Communication method: Wi-Fi

Hign-concerned Chemical: none

Origin: Mainland China

Compatibility: All Compatible

State of Assembly: Ready-to-Go

Camera Equipped: No

Certification: CE

Model Number: PG04V2

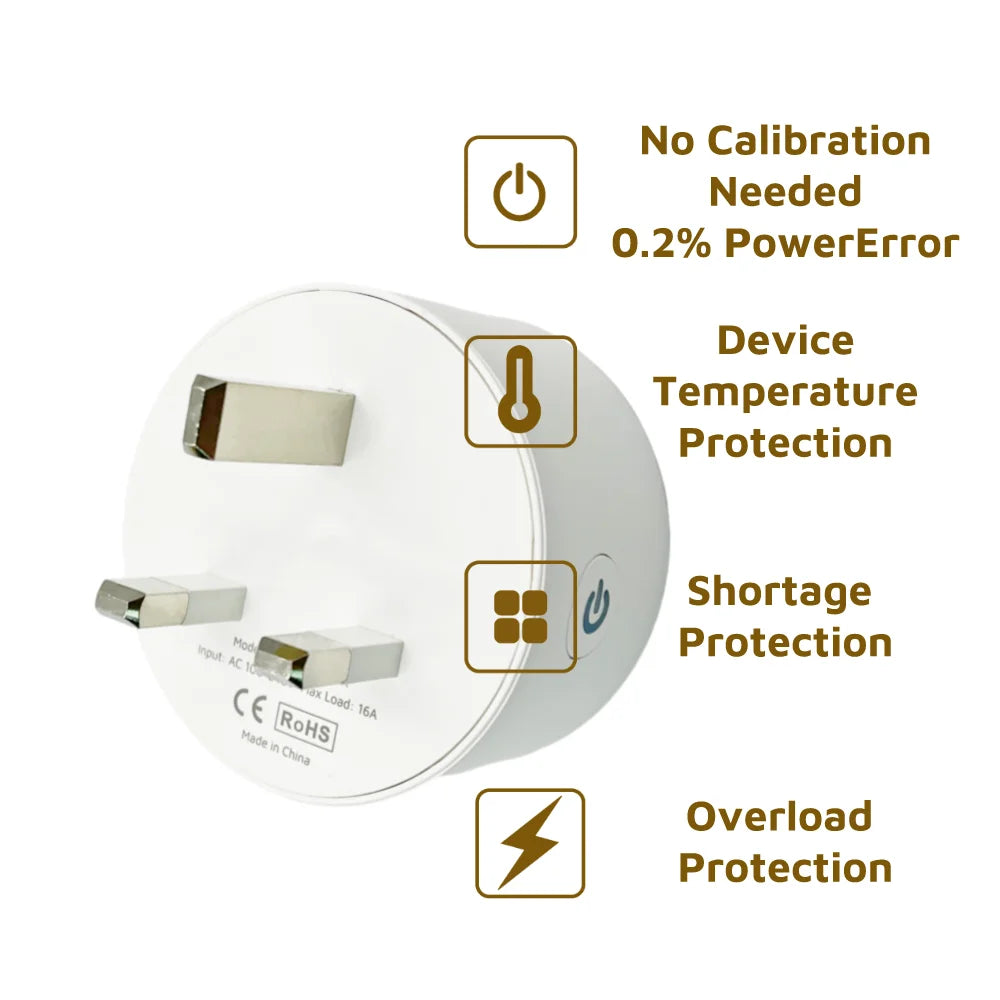

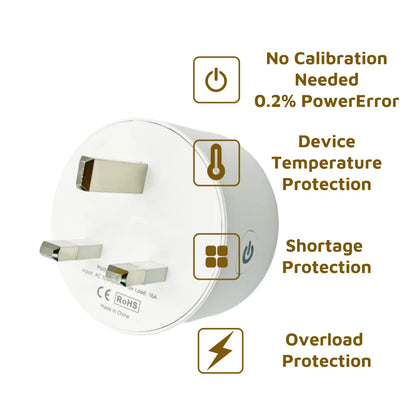

The plugs shipped after 26th May 2022 is upgraded new version , HLW8032 consumption monitoring chipset build in, NO calibration needed

The measurement error of active power about 0.2%
The measurement error of effective current is 0.5%
The measurement error of effective voltage is 0.5%

Officially Approved Made For ESPHome UK Plug

Pre configed IOs plug and play
Build in ESP8285 chip with 2M flash

Automatically detect on Home Assistant

Total local control with quick setup and updates.
Control using MQTT, Web UI, HTTP or serial.
Automate using timers, rules or scripts.
Integration with home automation solutions.
Incredibly expandable and flexible.

Specification:

*Input voltage：100-240VAC 50/60Hz
*Current：16A(Max)
*Power rating：3840W
*Standard：UK
*Wireless standard：IEEE802.11b/g/n,2.4GHz
*Housing Color：Whtie
*Operation Temperature：-20℃～+50℃
*Plastic material:ABS+PC
*Fire-protection rating:94-V0

How to set WiFI password of the plug

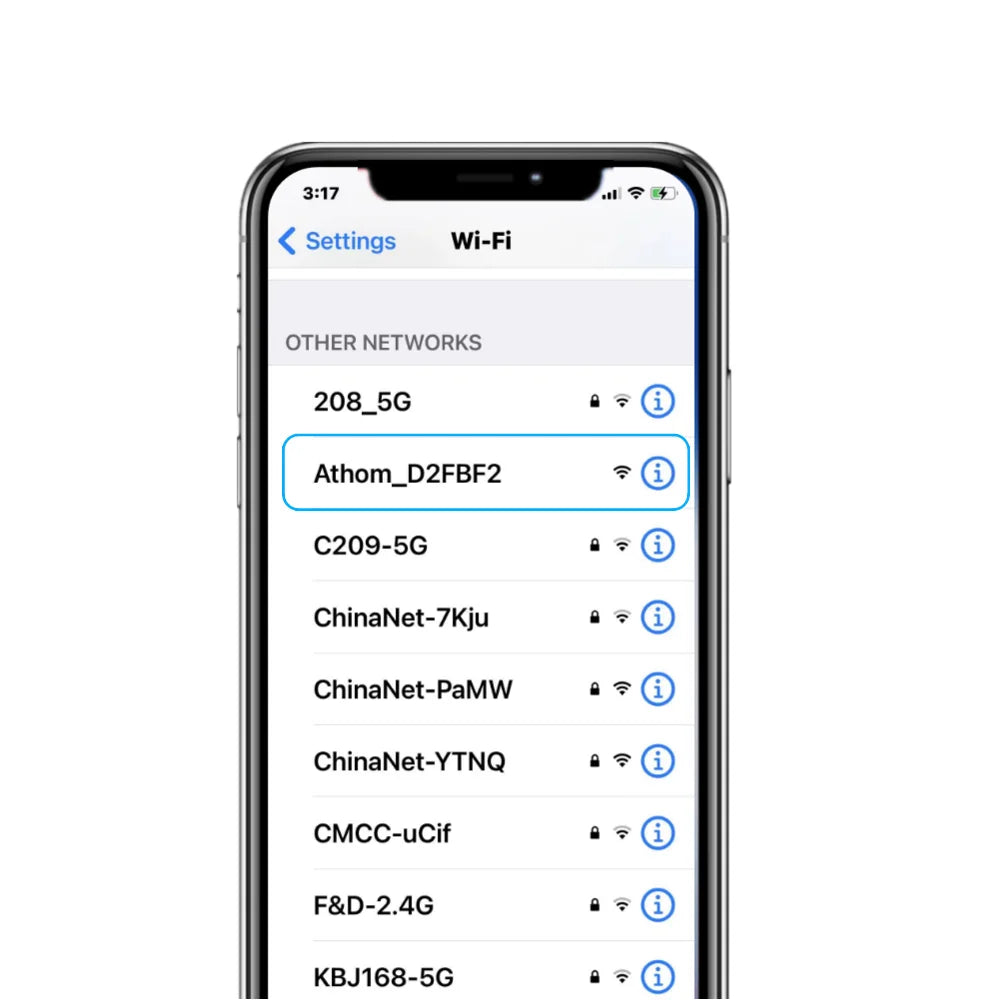

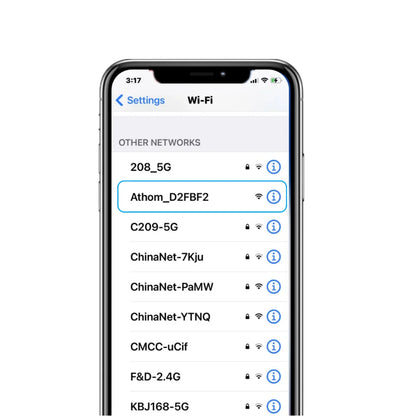

Use your phone or computer search wireless until you find SSID named： Athom_xxxxxx ( xxxxxx will be mac address of your plug )

Then connect it

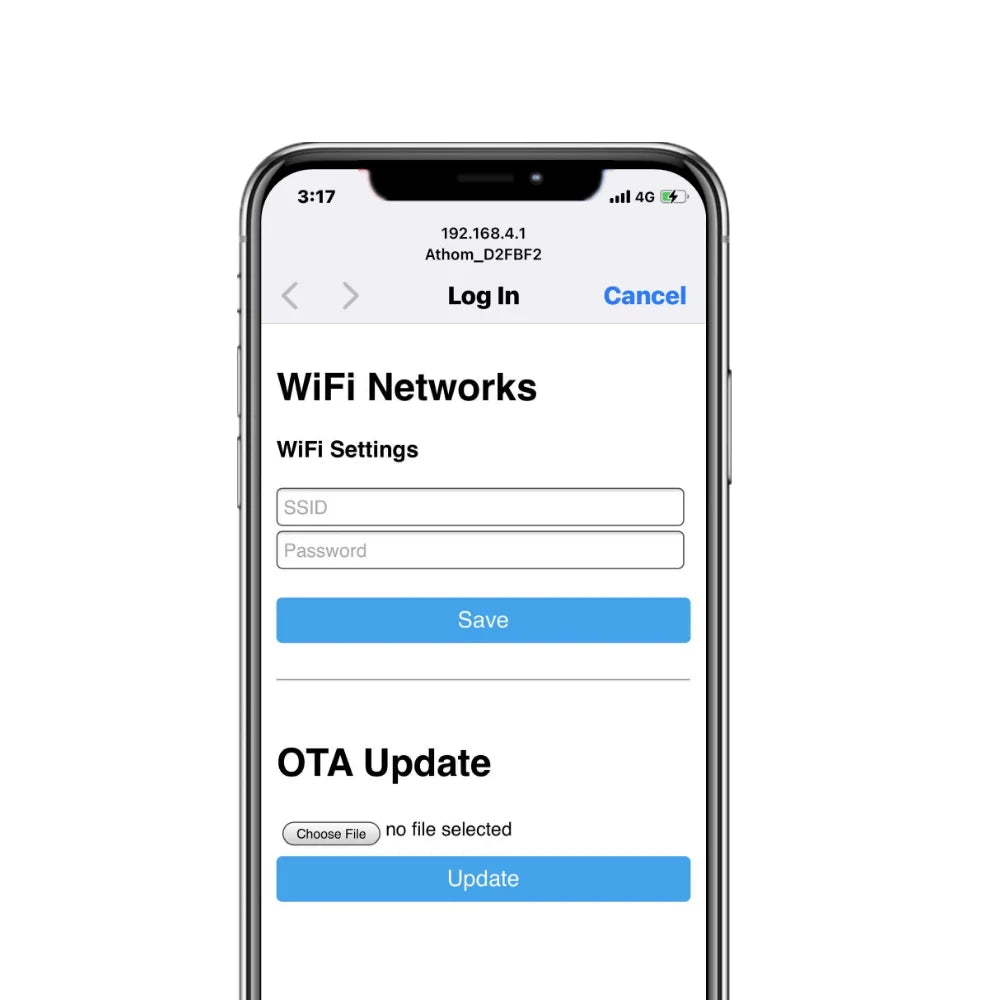

After you connect it successfully, a setting window will automatically pop up.

Then please input your router SSID and password.

Then click save.

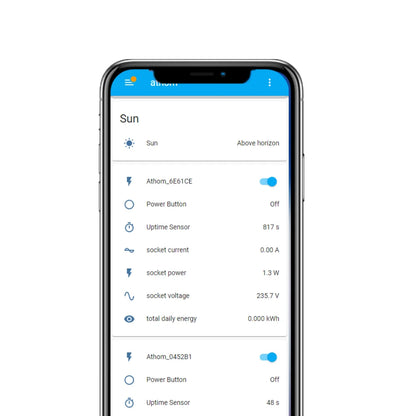

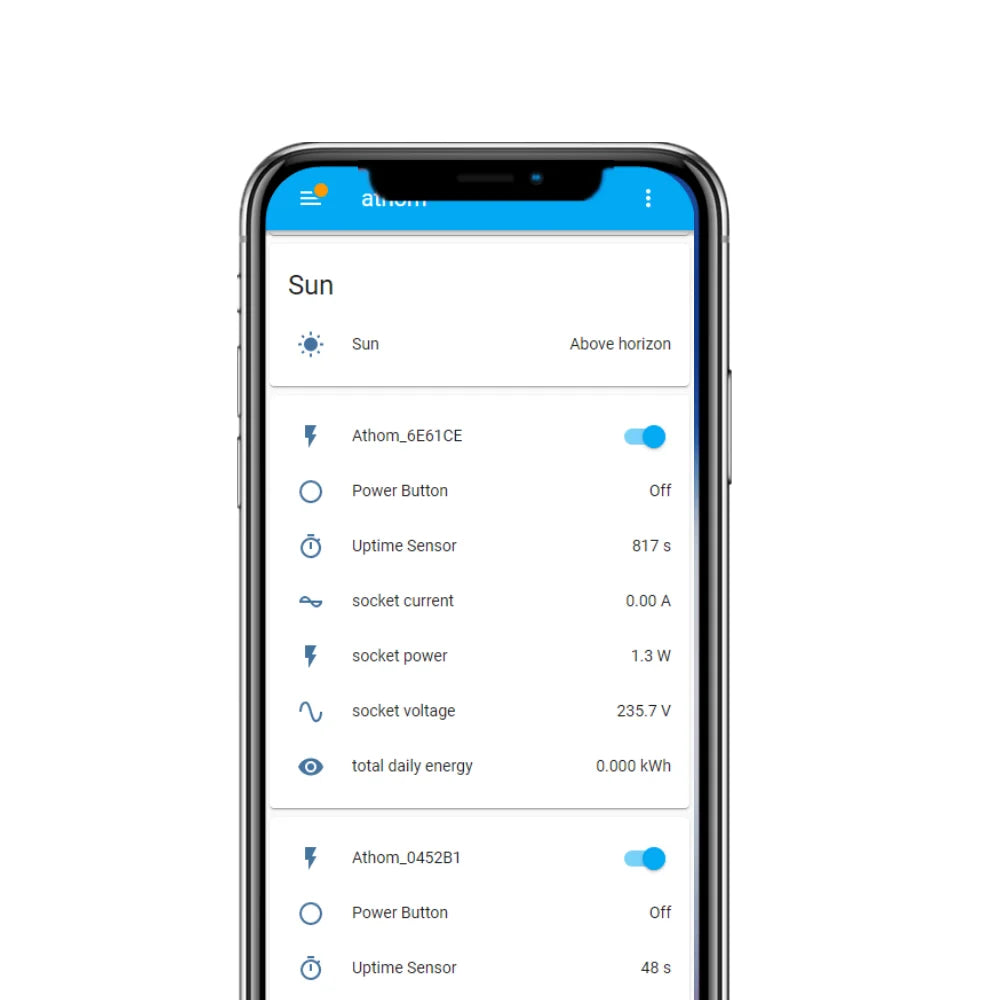

then go to your Home Assitant

It will shows new devices discovered, press continue to add it succesfully

Specification

Specification:
*Input voltage：100-240VAC 50/60Hz
*Current：16A(Max)
*Power rating：3840W
*Standard：UK
*Wireless standard：IEEE802.11b/g/n,2.4GHz
*Housing Color：Whtie
*Operation Temperature：-20℃～+50℃
*Plastic material:ABS+PC
*Fire-protection rating:94-V0

GPIOs:

GPIO# Component
GPIO0 None
GPIO1 None
GPIO2 None
GPIO3 CSE7766 Rx
GPIO4 None
GPIO5 Button1
GPIO9 None
GPIO10 None
GPIO12 Relay1
GPIO13 LedLinki
GPIO14 None
GPIO15 None
GPIO16 None
FLAG None

The old version ( Shipped before 26th May 2022):

GPIO# Component
GPIO0 None
GPIO1 None
GPIO2 None
GPIO3 Button1
GPIO4 BL0937 CF
GPIO5 HLWBL CF1
GPIO9 None
GPIO10 None
GPIO12 HLWBL SELi
GPIO13 Led1i
GPIO14 Relay1
GPIO15 None
GPIO16 None
FLAG None
