Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Type: Other
Origin: Mainland China
Model Number: WH12A
Properties: Rehabilitation Therapy Supplies
Place of Origin: Jiangsu, China
Type: handcycle
Product Name: handcycle for disability electric fast and max speed
Motor power: 250W/350w/500w
Battery type: lithium ion
Battery capacity: 36v 8Ah/8.8Ah/10.4ah/11.6ah
Controller: 36V 17A Intelligent Controller
Wheel size: 12"
Motor type: geared brushless
Charger: AC 100-240v 2A
Display: LCD005 display
Brake: Disc Brake /Hand Brake
Product Description

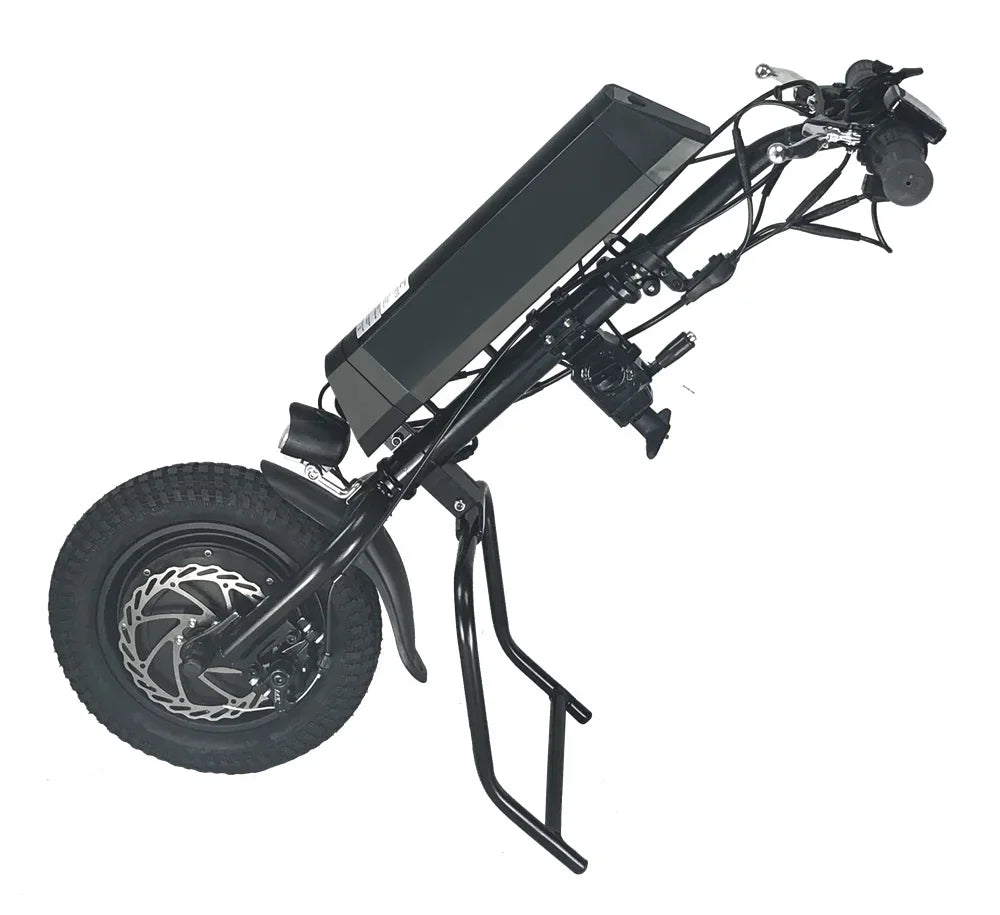

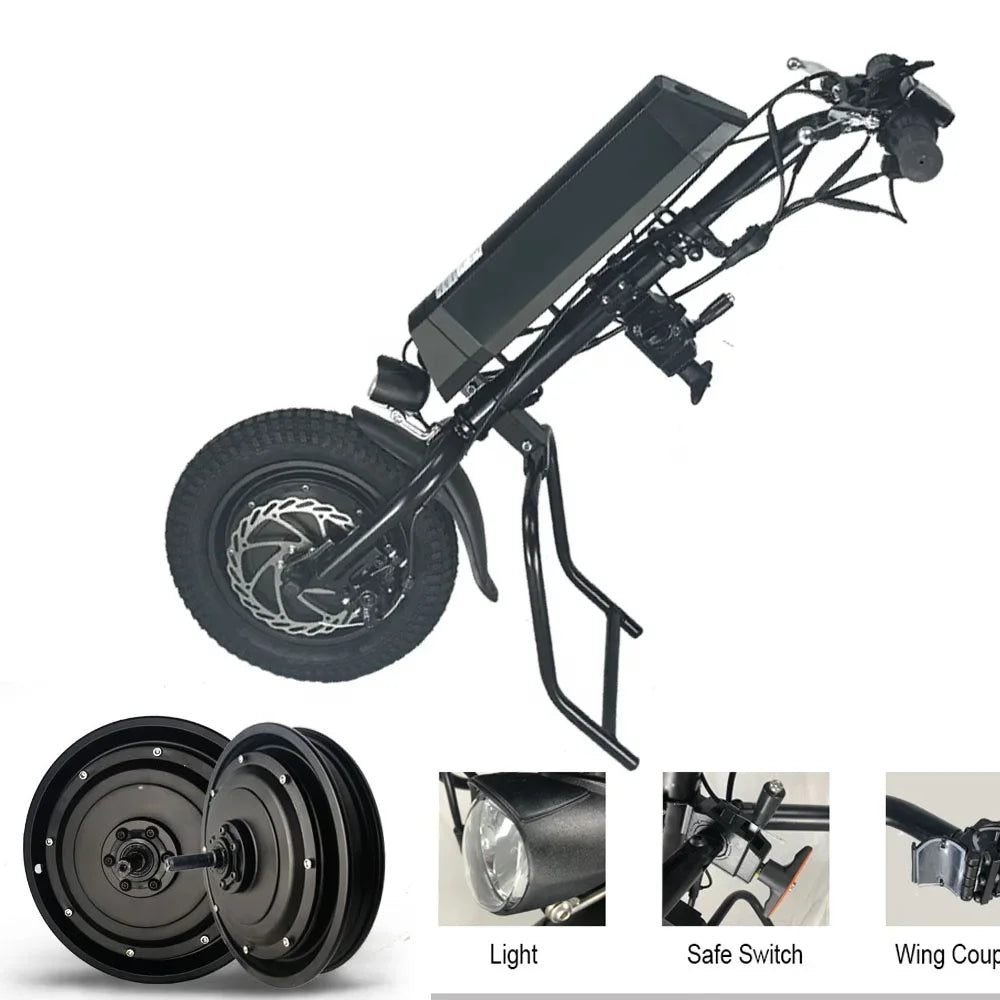

Wheelchair Device with Convenient Forward and Back Function 350w in wheel hub motor handbike handcycle
CNEBIKES----With us, your business in safe, your money in save.
CNEBIKES----Quality is our culture.
New design optional
The advantage of electric handcycle
Maneuverable! Steering turn 90 degree so you can turn in place for maneuvering indoors and out.
Adjustable! Adjust to you,from child to adult.
Snap on/Snap off! Pop in your trunk or take on a plane,no need to transfer.
Go off road! Grass,gravel and potholes are no problem.
Easy steering! No need to strugle.Go where you want
|
wheelchair handbike electric wheelchair parts
|
|
|
|
|||
|
MODEL
|
WH12A
|
Brand
|
CNEBIKES
|
|||
|
Motor Type
|
geared
|
Motor Power
|
36v 250w /350w/500w
|
|||
|
Battery Type
|
LG cells
|
Battery Power
|
36v 8ah/8.8ah/10.4/11.6ah
|
|||
|
Display
|
LCD005
|
Display Function
|
forward and back
|
|||
|
Brake
|
Disc brake
|

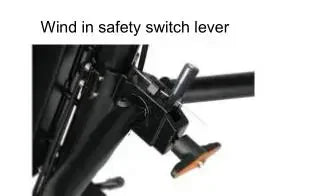

Safty Switch
|
yes
|
|||
|
Max Speed
|
30km/h (customized )
|
Distance
|
25kms -40kms
|
|||
|
Certification
|
CE,Patent ,SGS
|
Warranty
|
2 years
|
|||

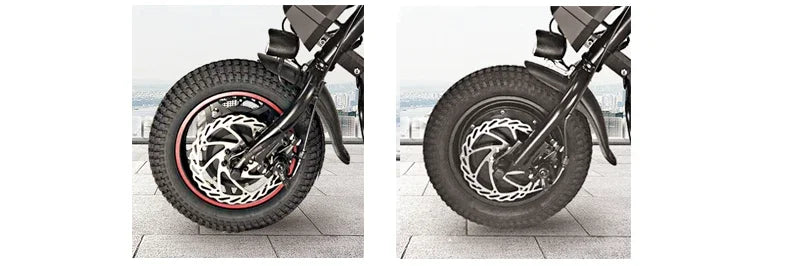

Motor
.
36v 350w brushless geared hub motor
(waterproof cables )
Connectors
All the wheelchair tube diameter are ok for the connector .
if more than 33 mm ,please notice us so we can send a extra part to suits

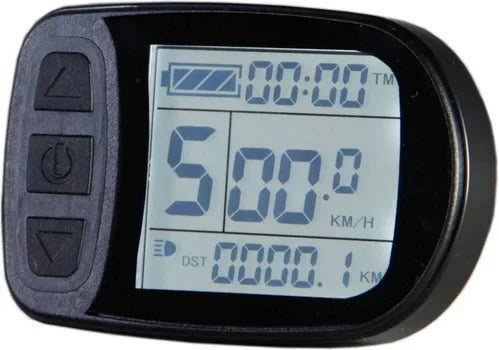

Display
four different level for choosing :
1 level -- 12km/h
2 level --16km/h
3 level --20km/h
-1 level --6km/h ( go backwards)
Front Light
Front ligh will help you use the handcycle when its dark .more safe
Battrey
36v 8.8ah /10.4ah /11.6ah lithium battery for choosing
Standard 2a charger for different country
Professional packing and shipping
1. Standard export carton packing. good package can be delivered to customer directly. And user manual inside.
2.For samples,we deliver goods to customer by UPS,FEDEX,DHL,TNT or EMS.
For mass production order,we deliver goods to customer by air or by sea.
Q:Does your handcycle fit all wheelchair?
A:Our handcycle fit almost all normal wheelchair,it can attach the wheelchair tube with dimension between 18mm~33mm.
Q:How many hours can go per charge?
A:If with 8.8Ah battery,it will go about 1.5 hours per charge.
Q:Can you send me manual or video?
A:Yes,we will send manual together with package,and you can find video on youtube,just write "cnebikes" to search.
Q:Can it be checked at the airline's gate with a mobility impaired customer's wheel chair?
A:Don't worry,This product is in the allowed range.
Q:Is there anyway to limit the speed less than 12km/h?
A:Yes,you can set the limited speed on LCD display.
Q:What is the warranty:
A:Item has one year warranty. Warranty is invalid for natural wearing or any damage due to wrong operation.
Q:Is the lithium battery rechargeable? If so, do I need to purchase a separate battery charger?
A:Yes,It is.You needn't purchase a separate battery charger,it will be sent to you with the battery together
Q:Is the battery type Lithium?
A:Yes,it is.
