SPECIFICATIONS

Brand Name: enpiwti

Hign-concerned Chemical: None

Origin: Mainland China

Effect: Release Pain From Illness

Item Type: Braces & Supports

Model Number: RYK-10

Number of Pieces: One Unit

Material: ABS

Application: LeG

product information:

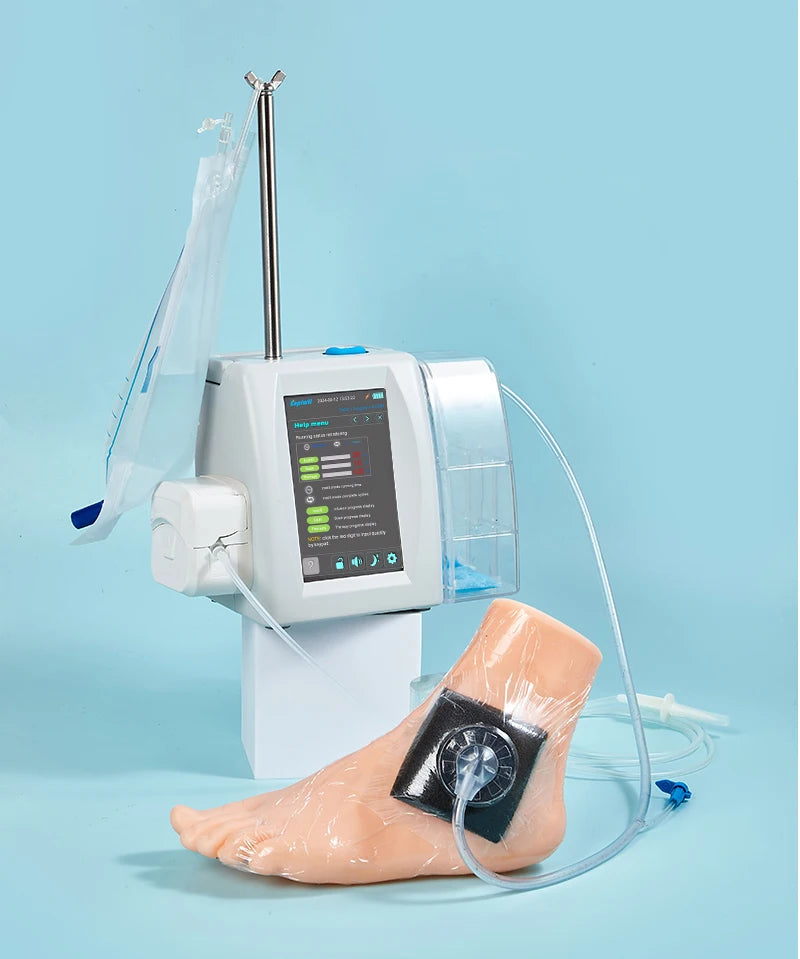

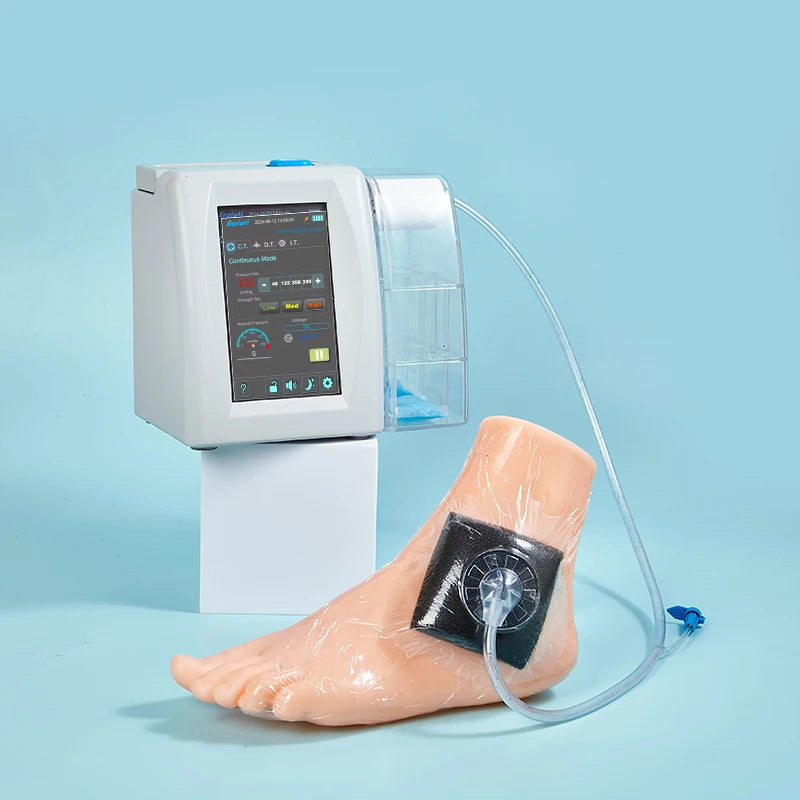

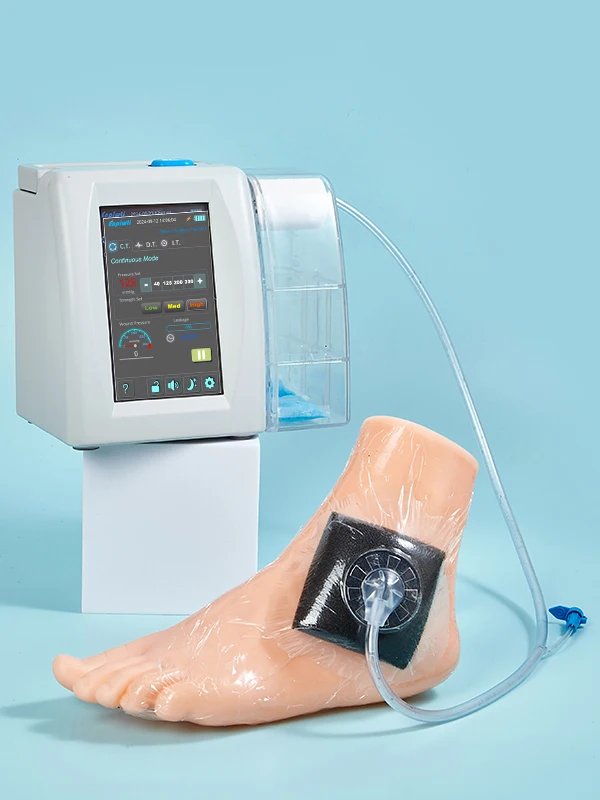

item name: Negative Pressure Wound Therapy System

Brand: Enpiwti

Model: RYK-11

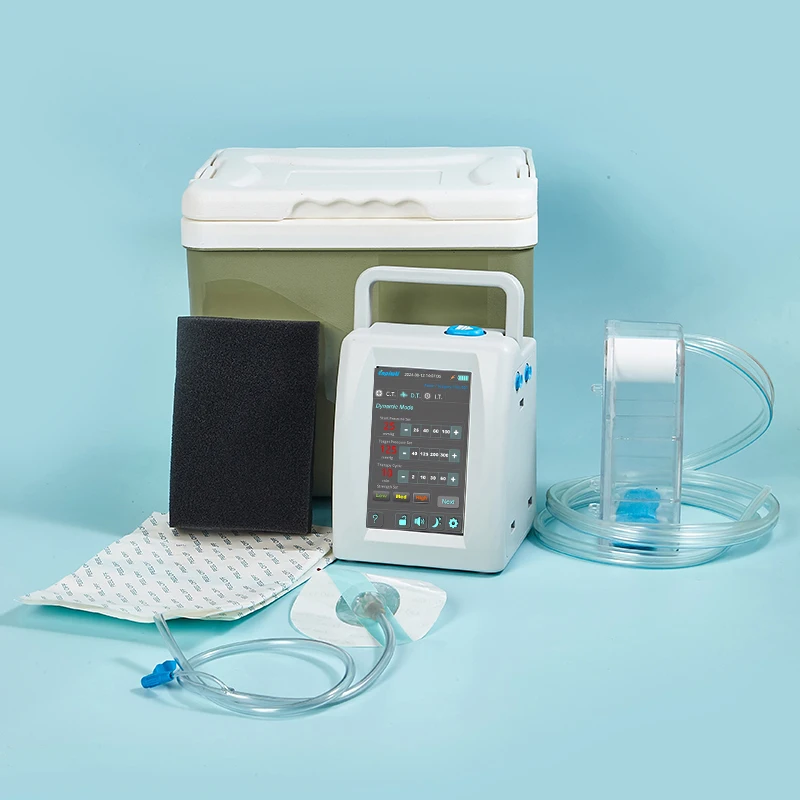

it is including one NPWT machine + 5pcs 500ml canister + 5 sets NPWT dressing kit 15x10x3cm

here is the details about the machine as below:

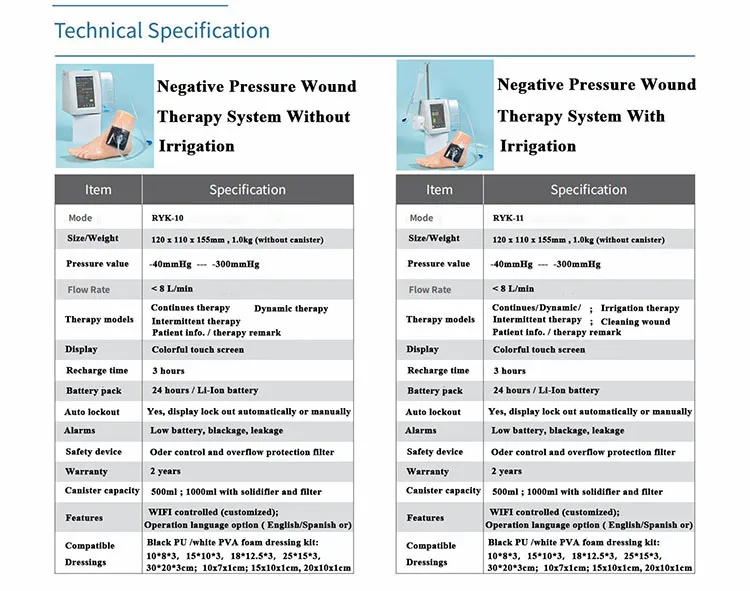

Technical specification

1. Size：150X100X120mm

2. Weight：<96g

3. Battery Type：Lithium (rechargeable) 3xAA 1.1V（ LR6/FR6 ）

4. Ingress Protection：IP33

5. Vacuum value：-40mmHg~ -300mmHg

6. Air flow rate: <8 liters/minute

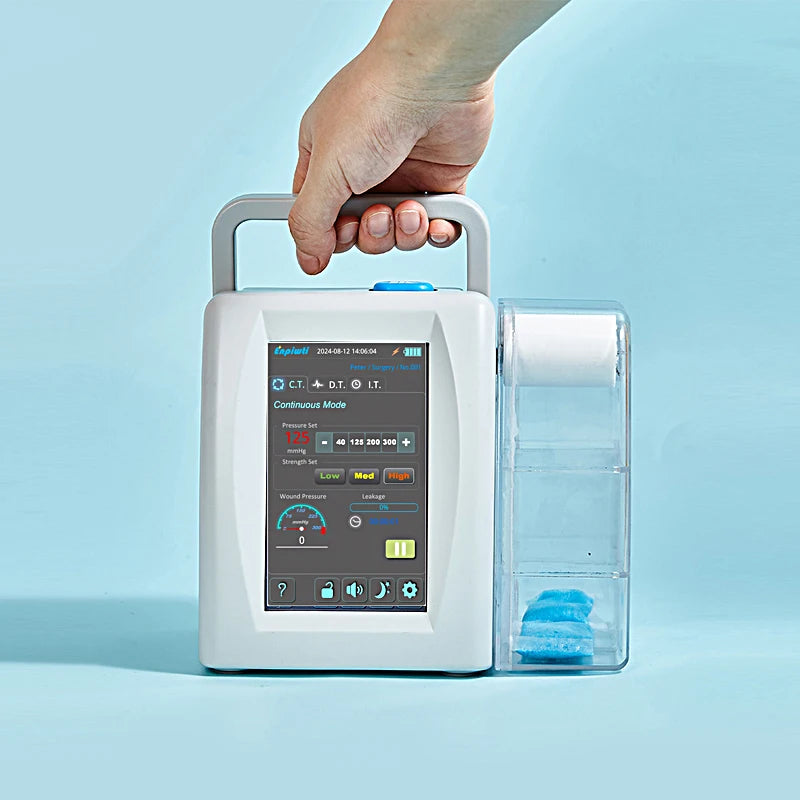

6. Treatment mode：Continuous Therapy, Intermittent Therapy, Dynamic Therapy

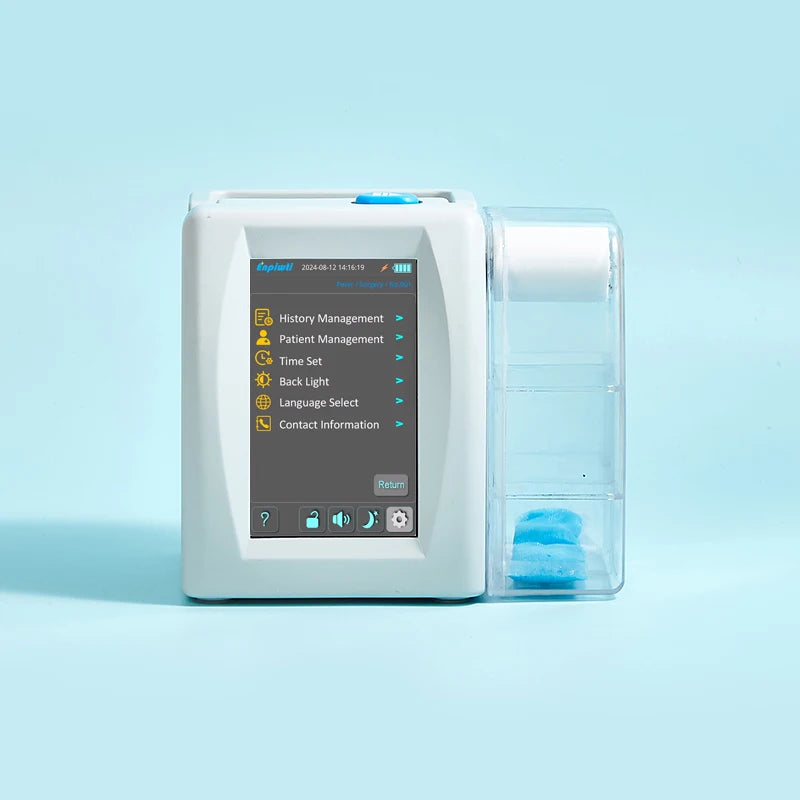

7. Advantage features：With patients' information, therapy records,
operation languages option, time & brightness setting, WIFI available (For large order, we can customize it for you )

8. Battery recharge: 3 hours; working time with battery: 24 hours

8. Quiet treatment： <45dB

9. Function indicator: Brockage , Leakage and Low battery tip

10.Warranty: 2 Years

11.Alarm indicator: Brockage, Leakage and low battery tips

12.Input: 100-240 V, 50/60 Hz, 1.5A

2.Accessories of NPWT system:

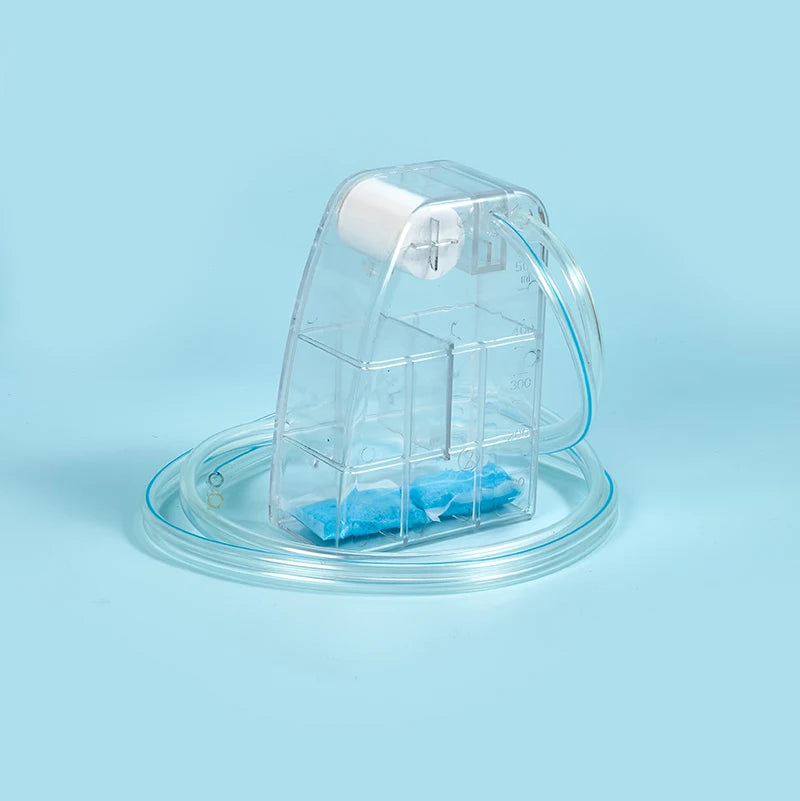

Disposable canister: 500ml, 1000ml with solidifier and antibacterial filter.

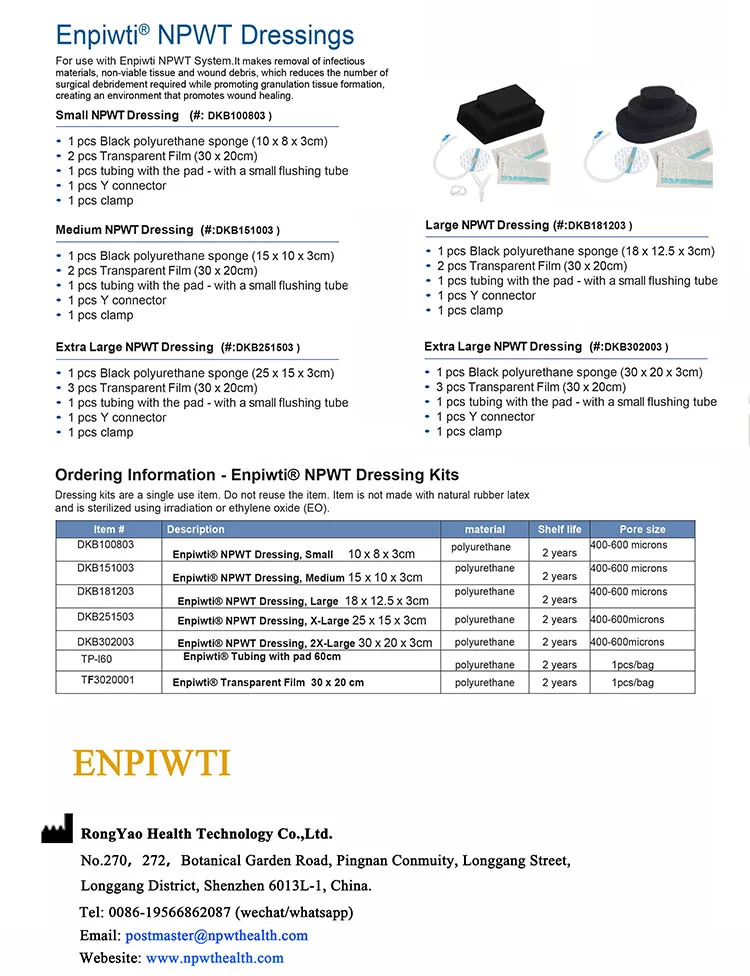

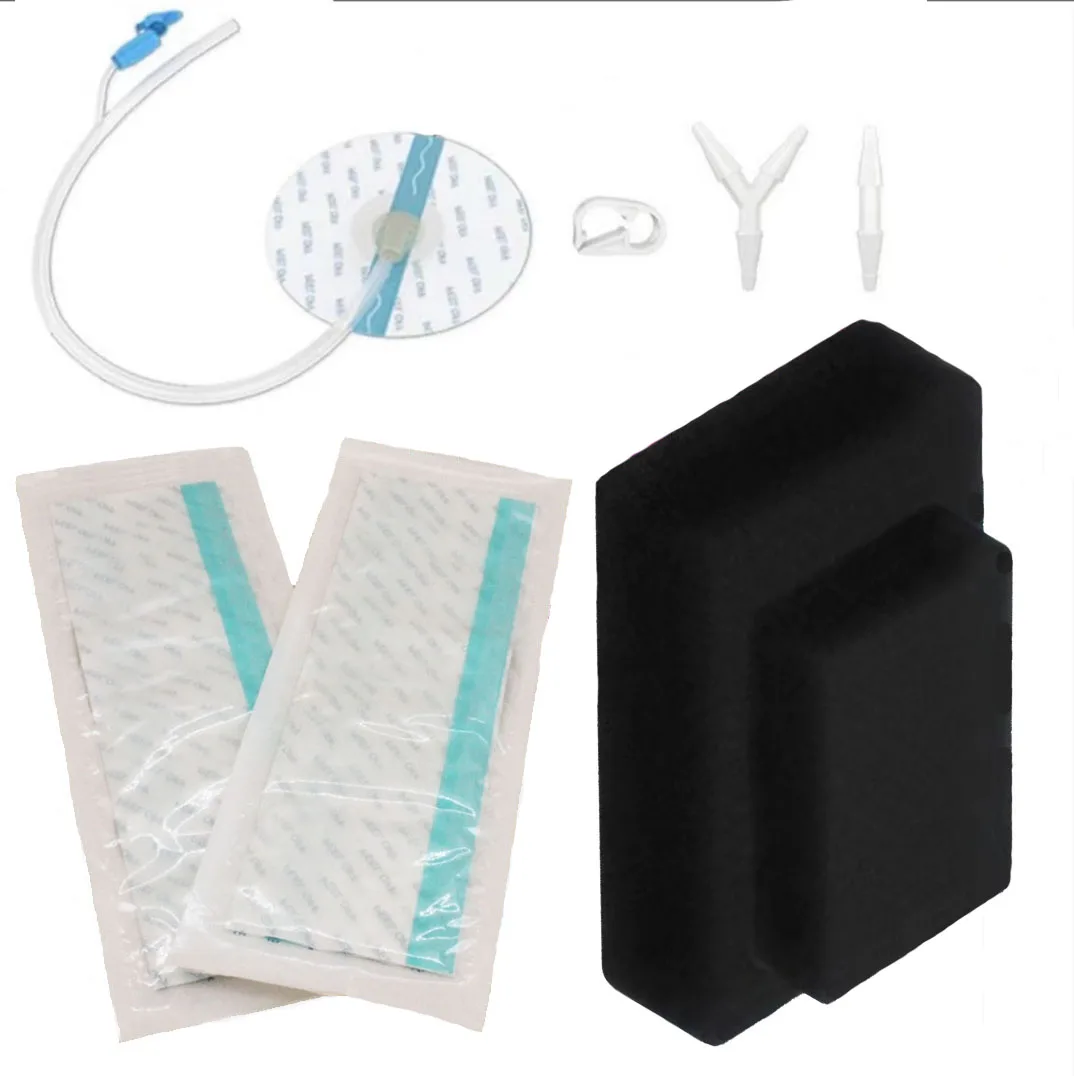

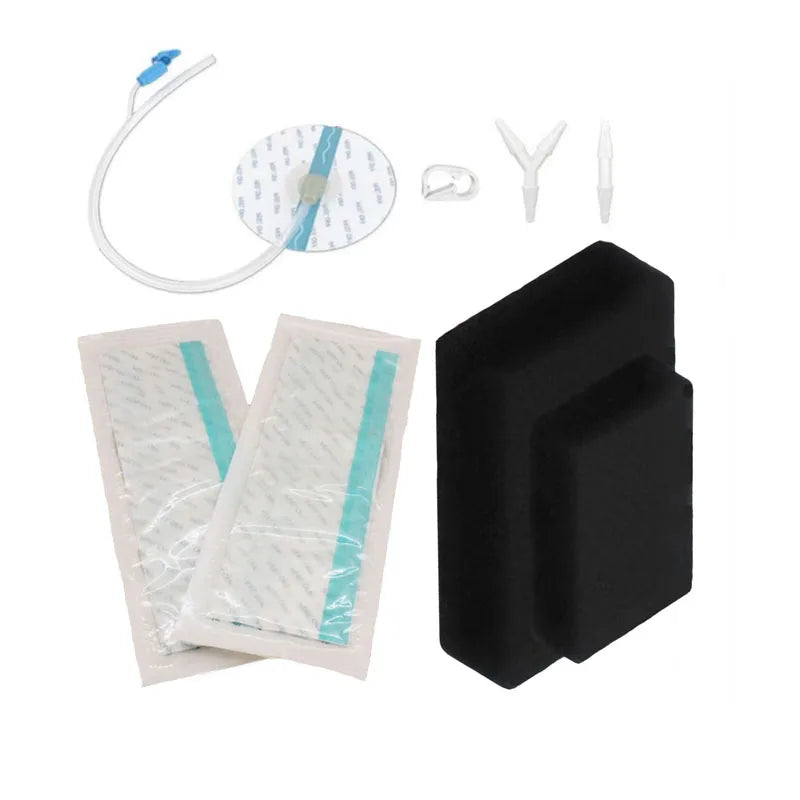

Specifications of the dressing kit:

10X8x3cm ; 15X10x3cm ; 18X12.5x3cm ; 26X15cm ; 30X20x3cm and others

Material: Polyester
polyurethane (PU)

Operating Conditions:

Temperature: +5°C - 40°CHumidity: 15% -93%

Pressure Options: 40mmHg - 200mmHg

Charging Time: < 5 hours

Barometric Pressure Range: 800 hPA - 1060 Hpa

Storage Temperature: -25°C - +70°CAltitude
Range: < 2000 m

lngress Protection: IP21Protection Against
Electric Shock: CLASS II

Patient Protection: Type BF

Indications for Use:

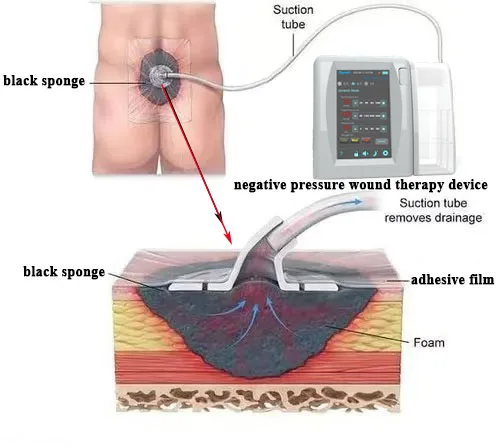

The Enpiwti Negative Pressure Wound Therapy (NPWT) system is indicated for patients who would benefit from

a suction device (Negative Pressure Wound Therapy) as when used on open wounds it creates an environment that

promotes wound healing by secondary or tertiary (delayed primary) intention by preparing the wound bed for closure,

reducing edema, promoting granulation tissue formation and perfusion, and by removing exudates and infectious

material. When used on closed surgical incisions, the Enpiwti NPWT System is also intended to manage the environment

of surgical incisions that continue to drain following sutured or stapled closure by maintaining a closed environment and

removing exudate via the application of Negative Pressure Wound Therapy (NPWT).

The Enpiwti NPWT system is intended for use in acute, extended and home care settings.

The Enpiwti NPWT system is appropriate for the following indications:

- Acute or subacute wounds

- Chronic wounds

- Dehisced wounds

- Pressure ulcers

- Diabetic/Neuropathic ulcers

- Venous insufficiency ulcers

- Traumatic wounds

- Partial thickness burns

- Flaps and grafts

- Closed surgical incisions

Package:
