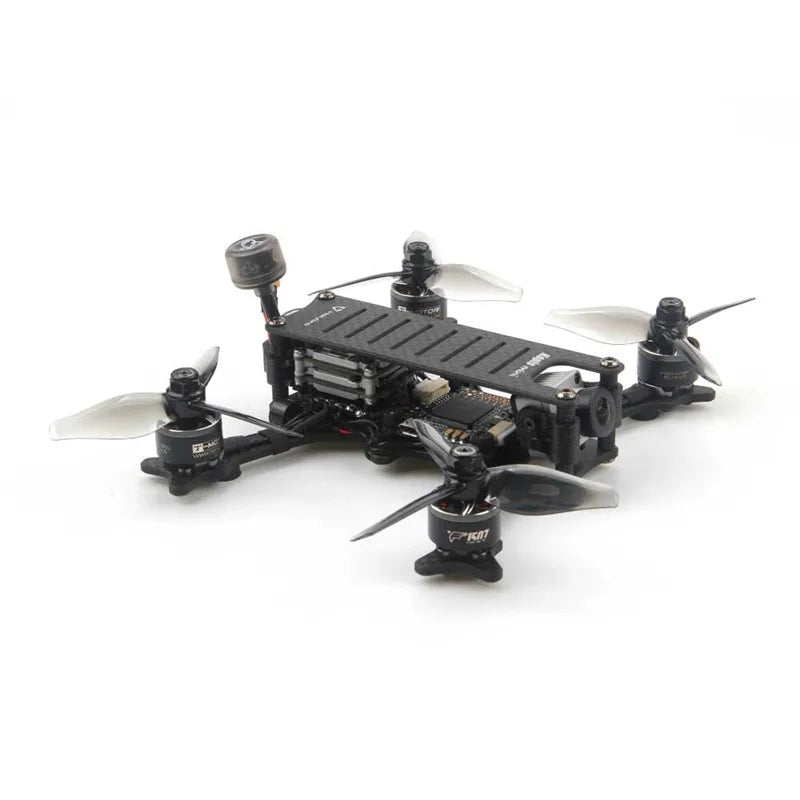

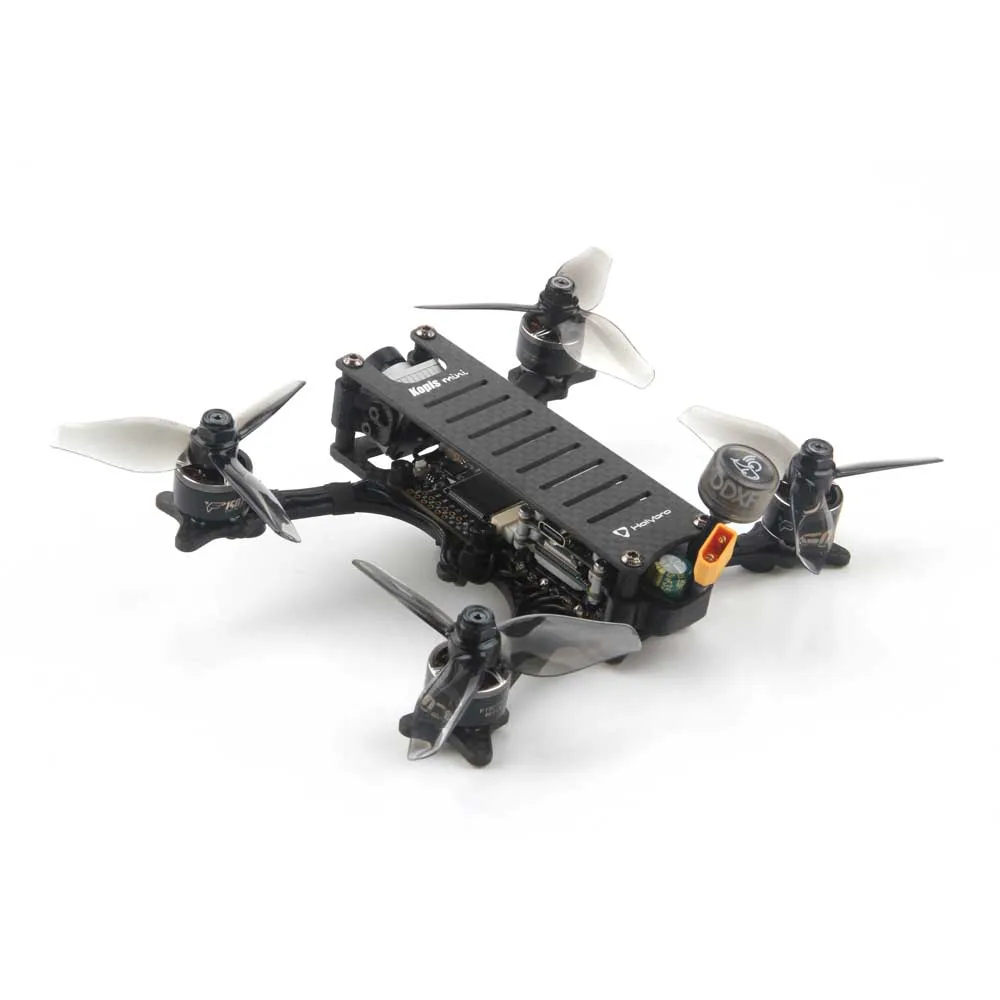

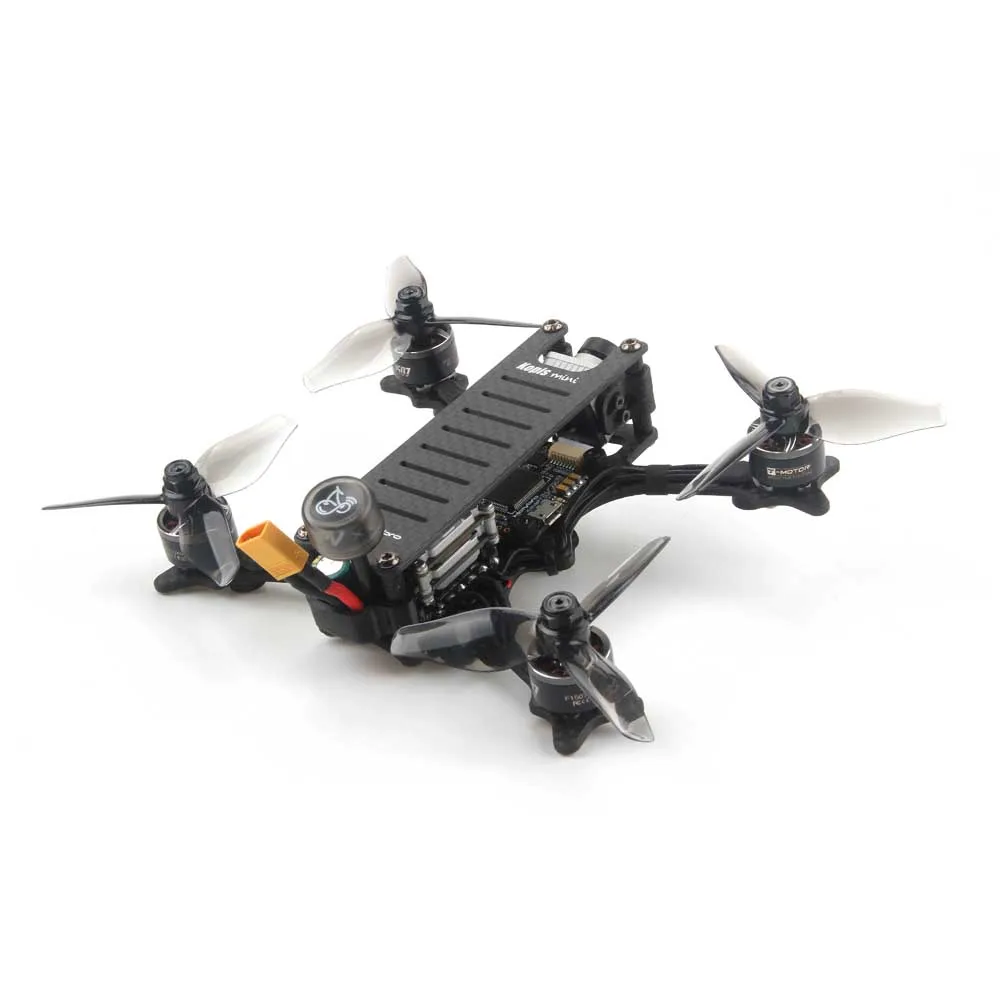

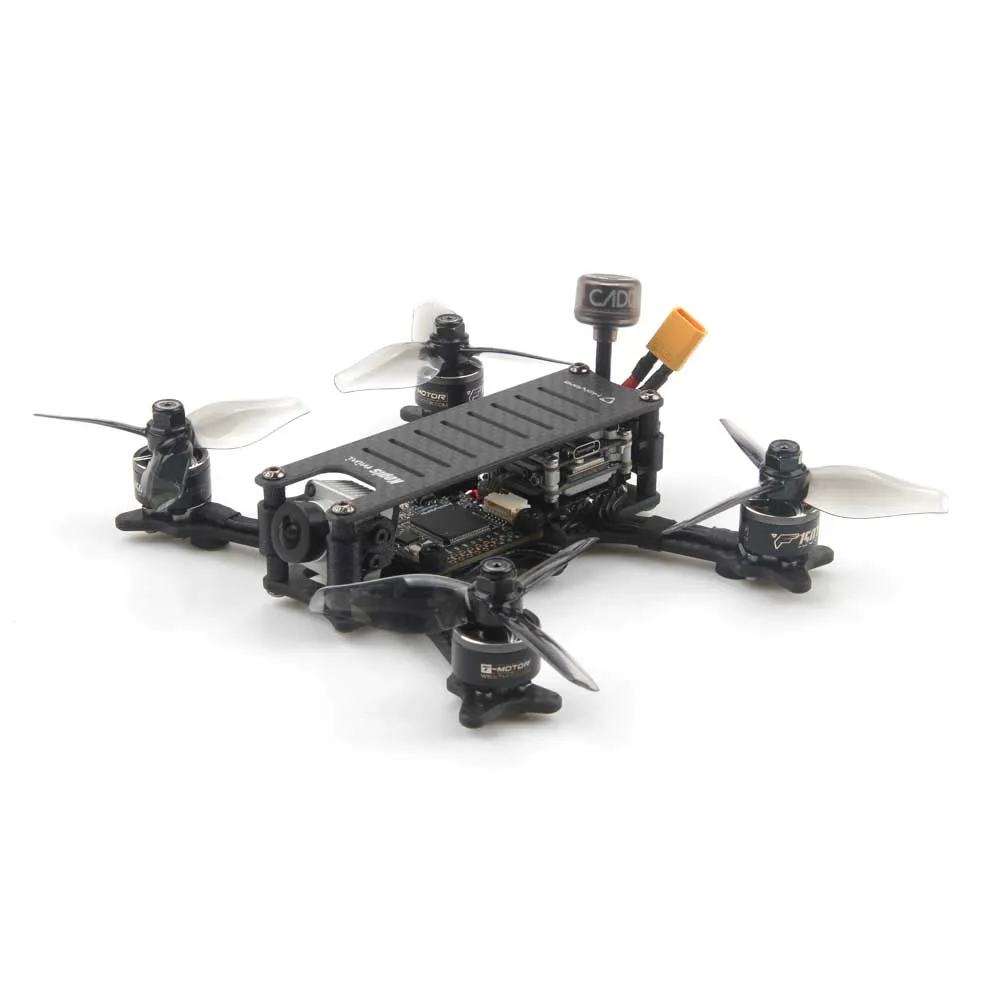

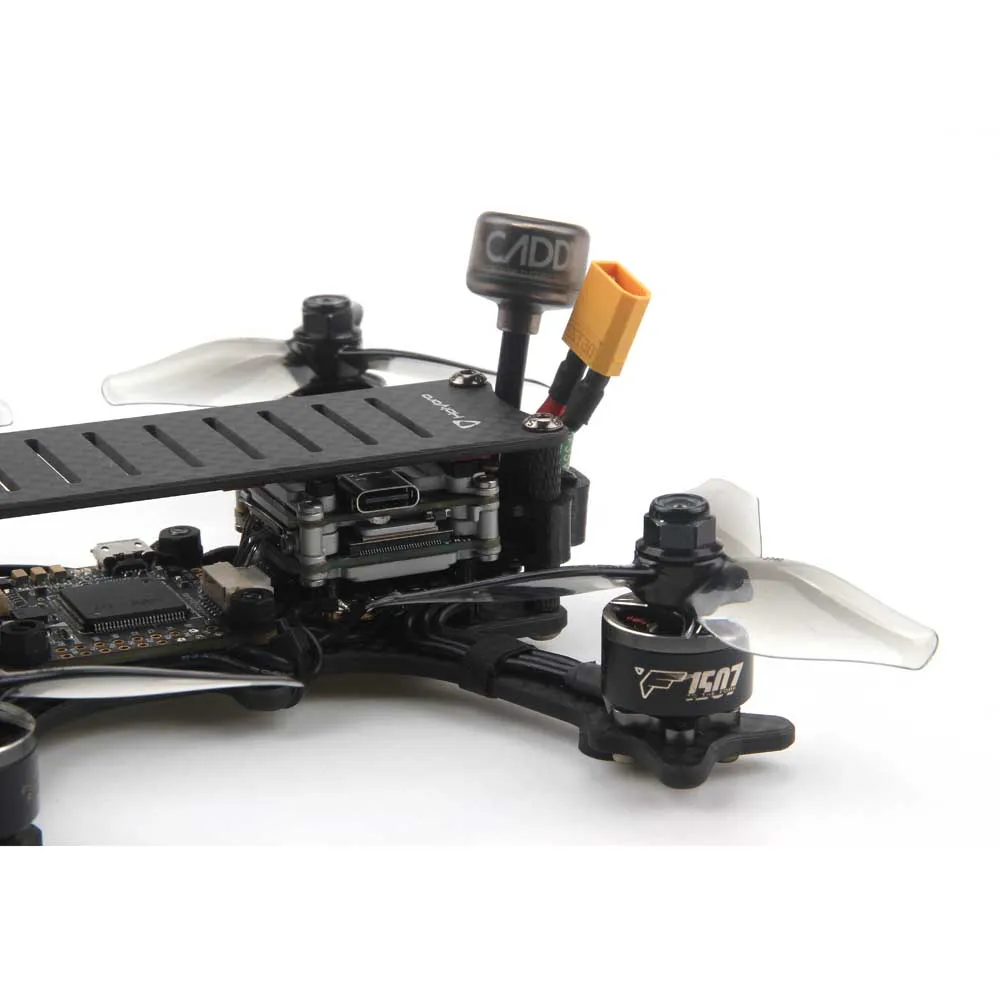

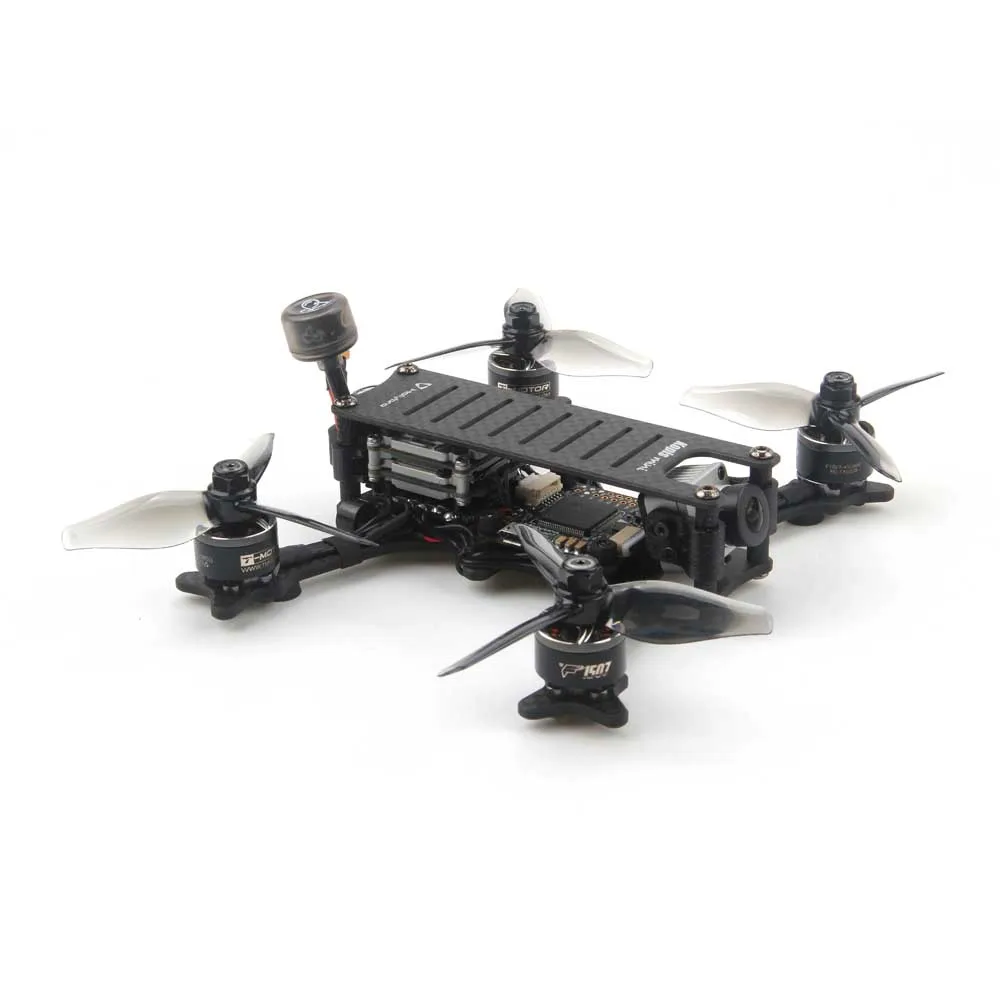

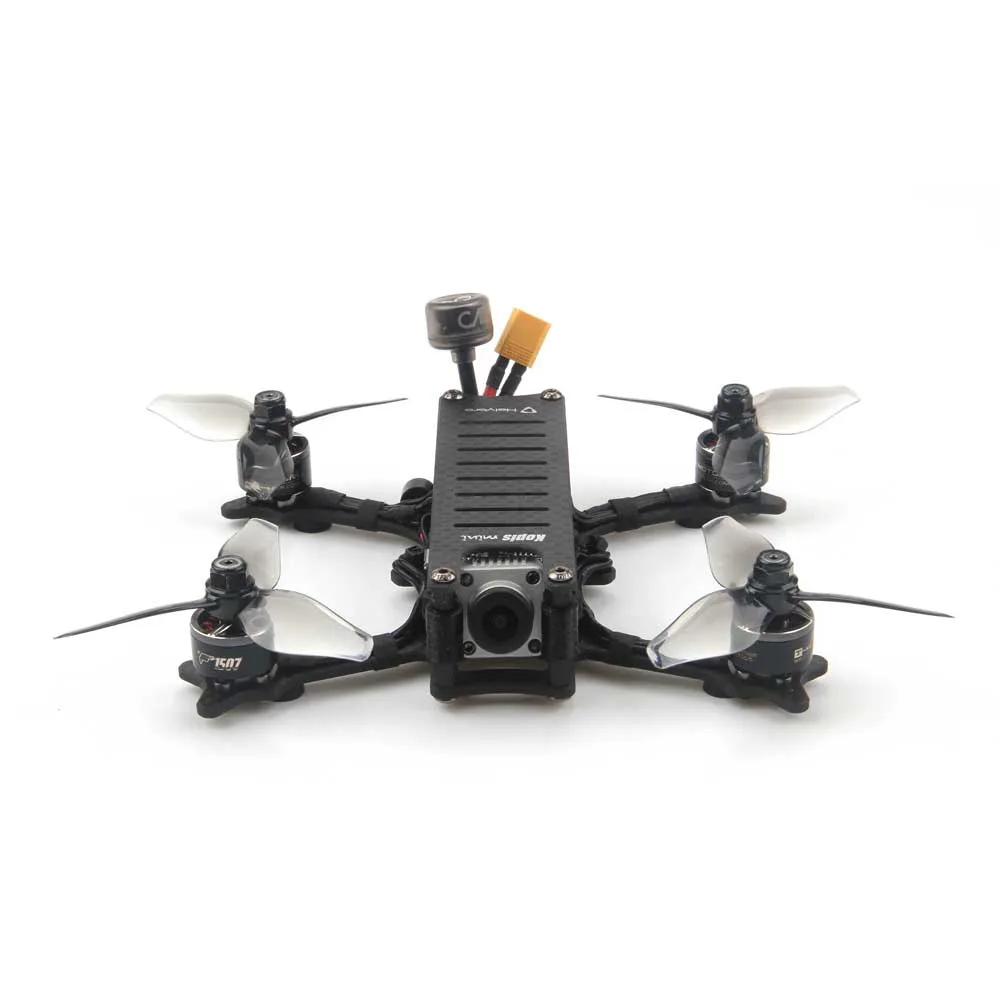

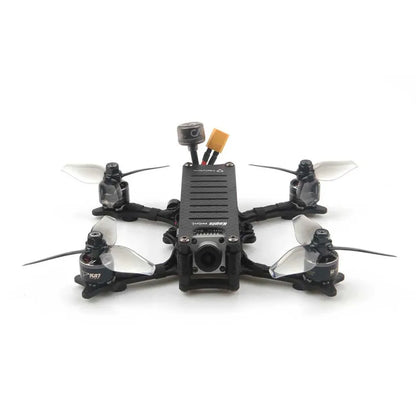

Holybro Kopis Mini 3 Inch 4S F7 Flight Controller 45A ESC with CADDX VISTA Polar HD System RC FPV Racing Drone RC Quadcopter PNP

Includes

• 1 x Kopis Mini Drone

• 1 x Caddx polar Vista Digital HD System for DJI HD FPV

• 4 x T3140 Propeller

• 1 x Carrying case

• 1 x Battery strap(installed)


Features

• MCU: STM32F745 32-bit processor

• IMU: MPU6000 (SPI)

• Barometer: BMP280

• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)

• 6 hardware UARTS (UART1,2,3,4,6,7)

• All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.

• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.

• TF card for Blackbox logging

Specifications

• Frame:3mm 3k carbon fiber

• Flight Controller: Kakute F7 HDV

• ESC: Tekko32 F3 4in1 45A mini ESC

• VTx: Caddx Polar  Vista Digital HD System for DJI HD FPV

• Motor：F1507 KV3800(Standard)

• Propeller：T3140

• Buzzer included.

• Battery plug: XT30

• Wheelbase: 148.6mm

• Weight:198g（included CADDX Vista）

• Recommend battery: 650mah~1300mah 4s

3D Print

Holybro_Kopis-mini_3D_Print.rar
