Summary:

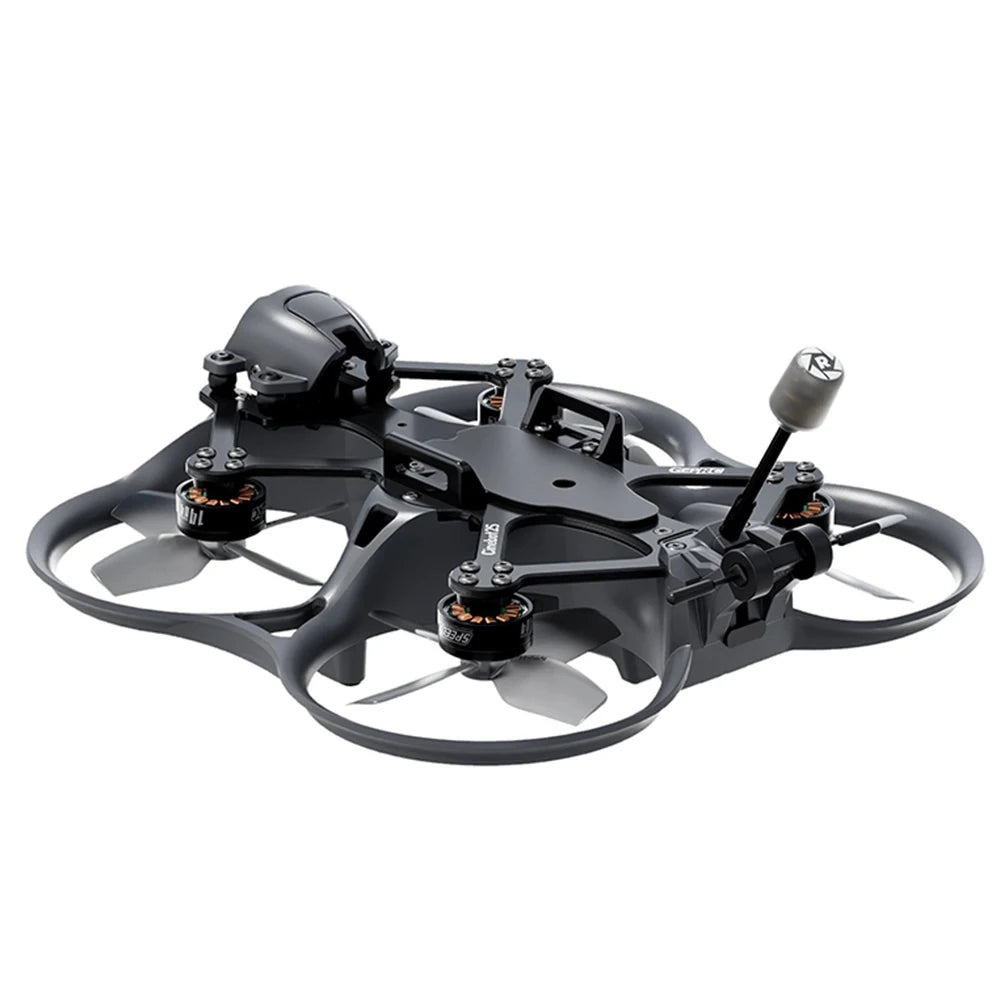

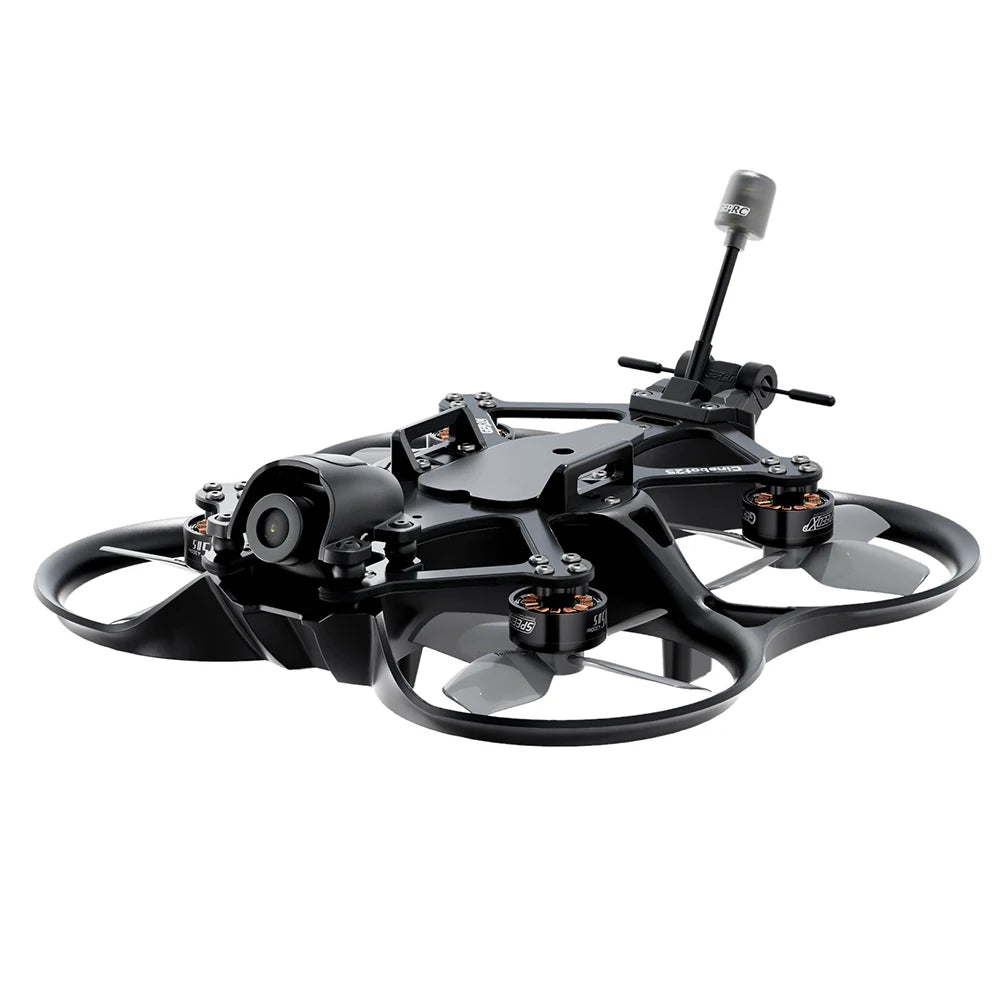

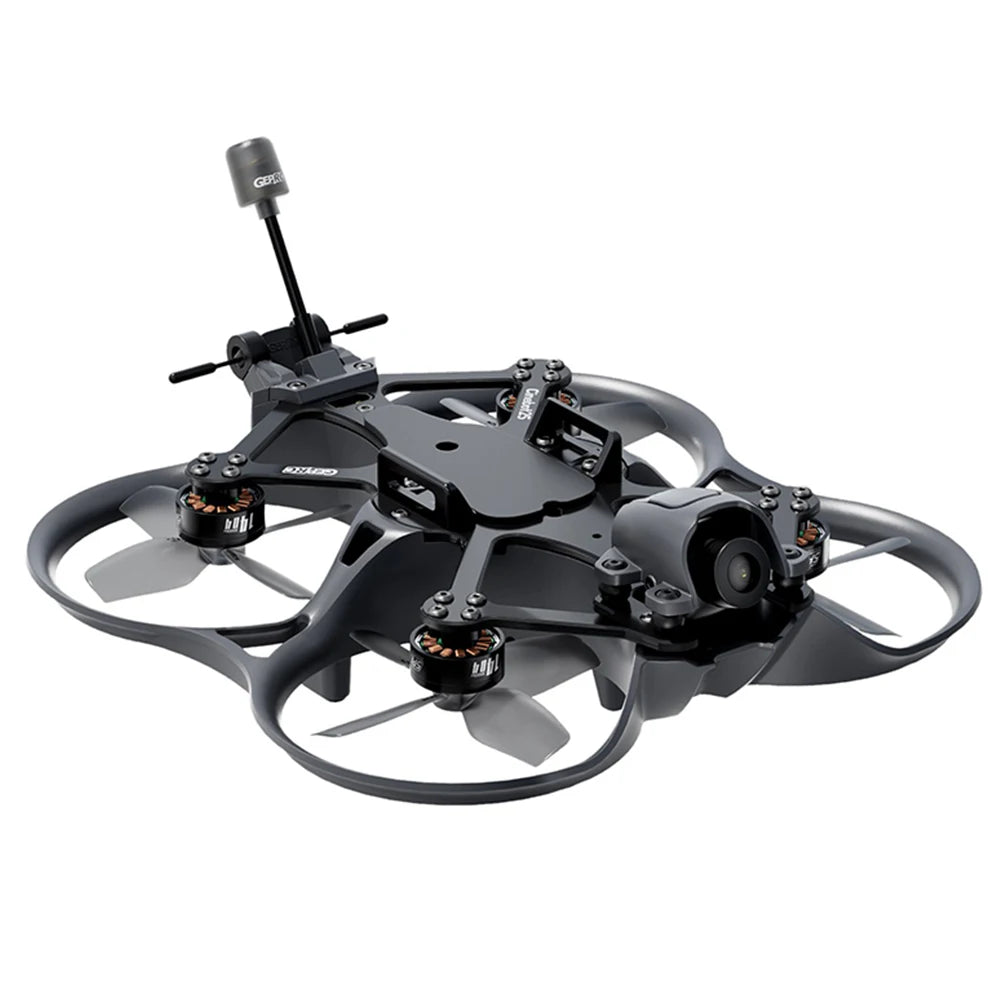

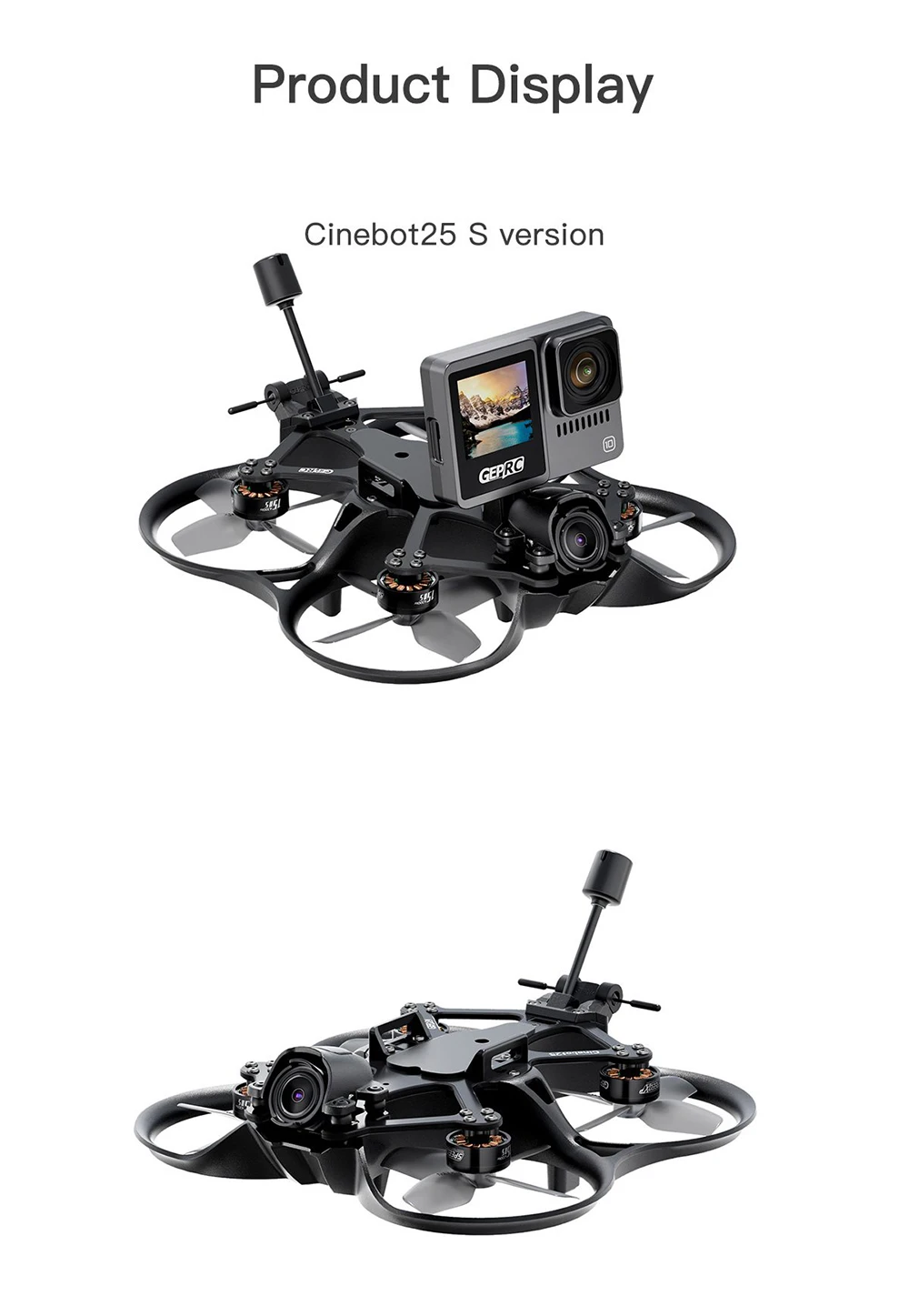

Cinebot25 / Cinebot25 S is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

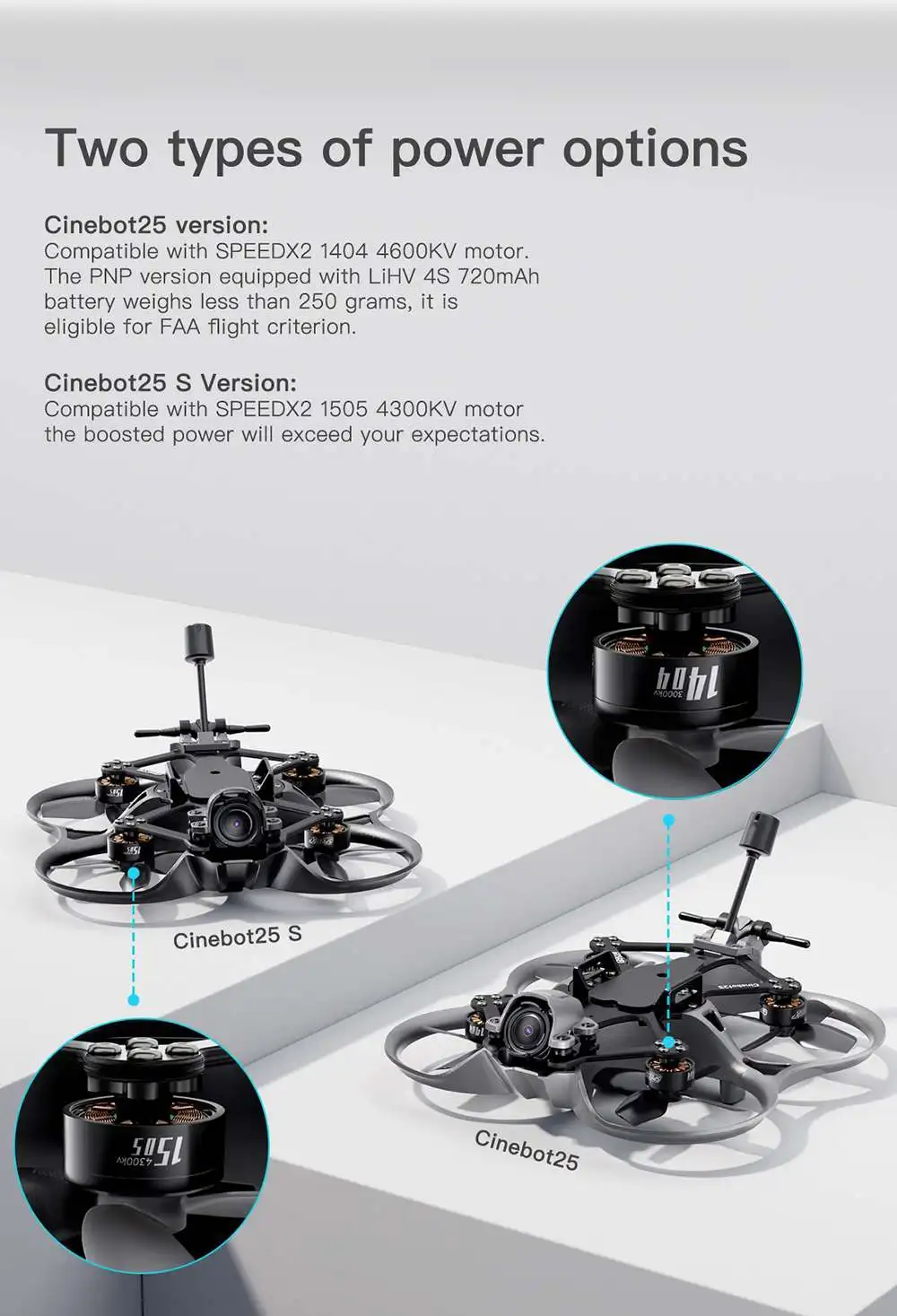

Cinebot 25 / Cinebot25 S comes with two different options for the power version. They are the standard version with the SPEEDX2 1404 motor and the S (sport) version with the SPEEDX2 1505 motor.

Feature:

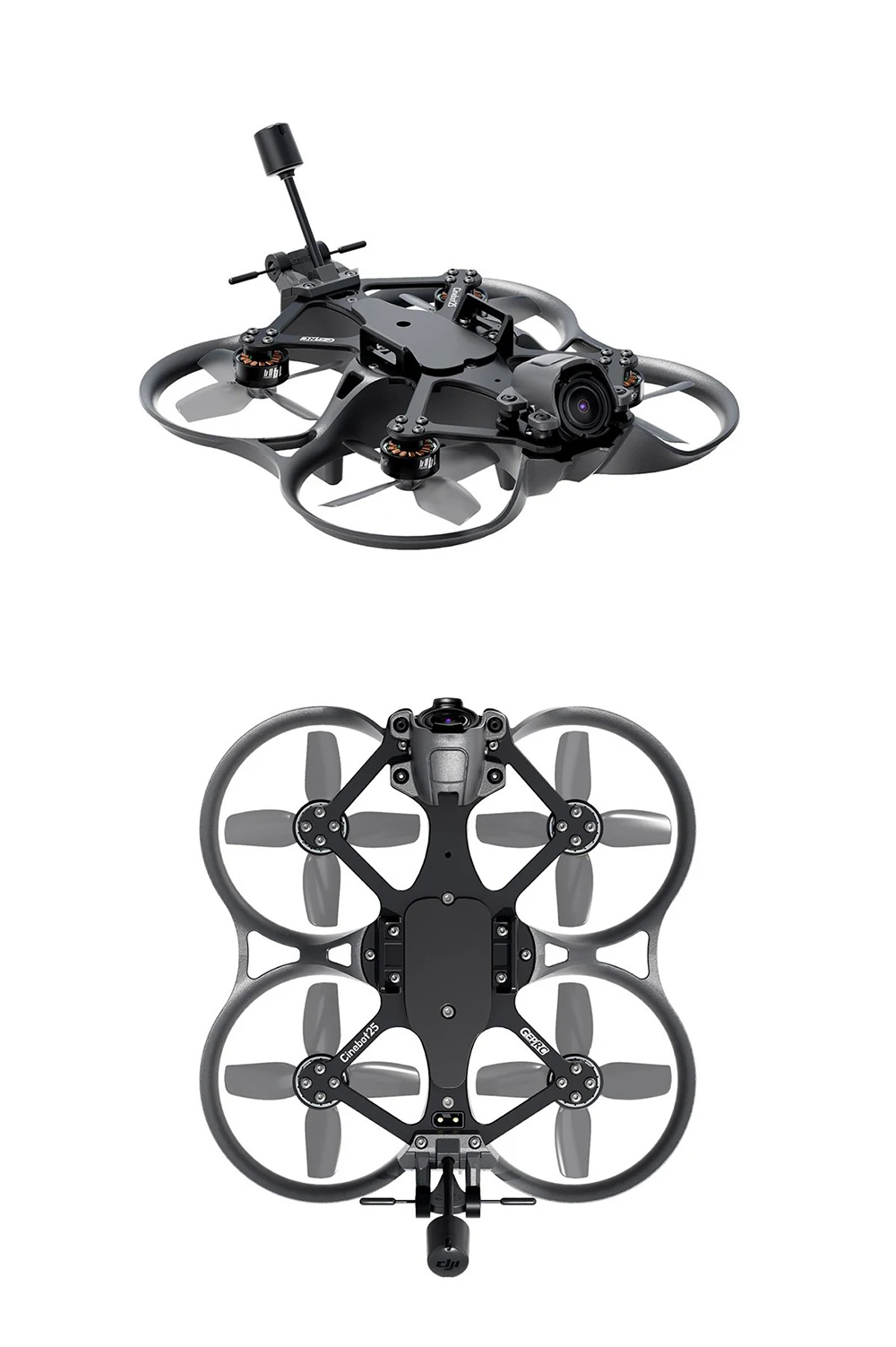

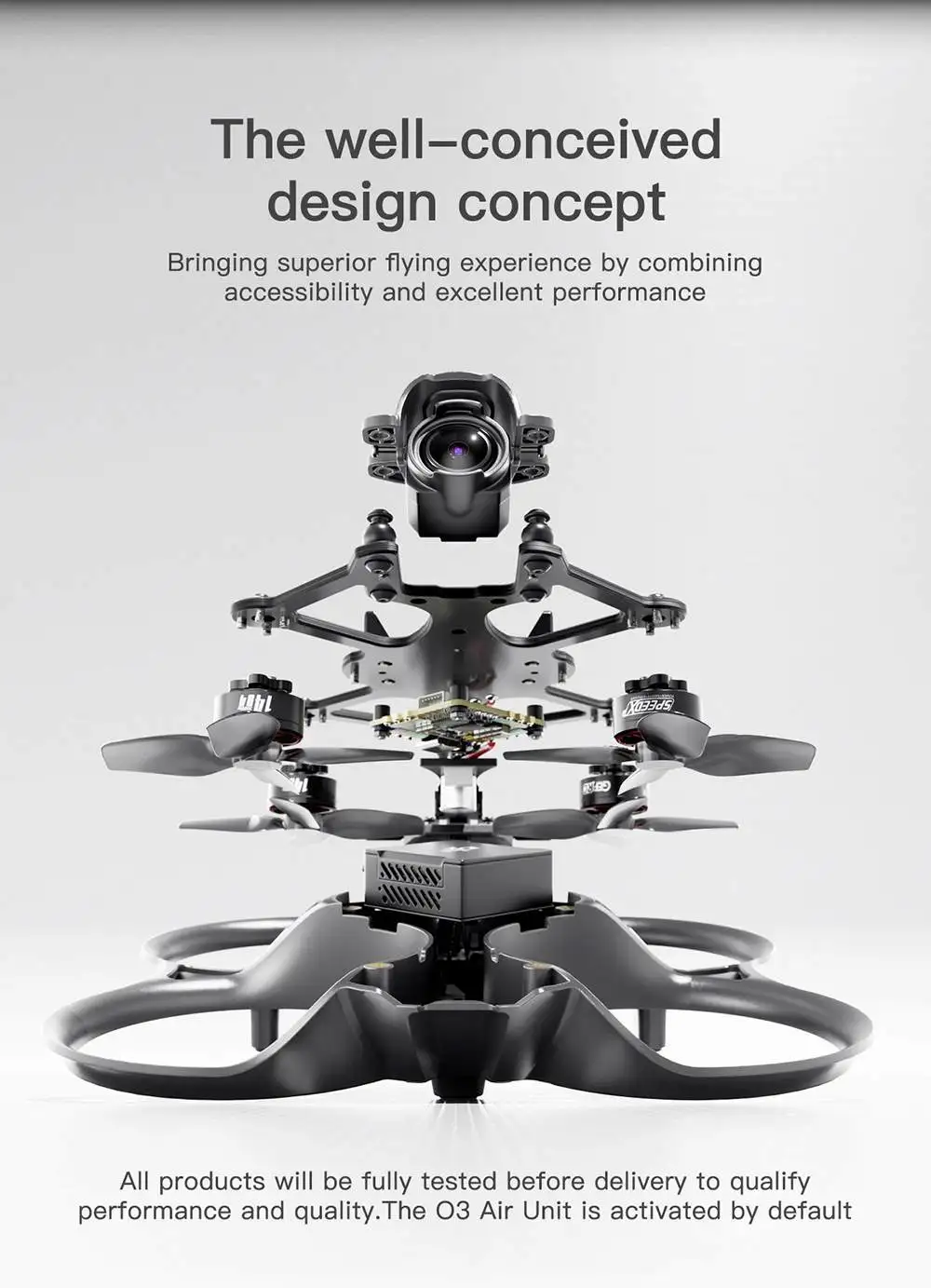

1. Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.

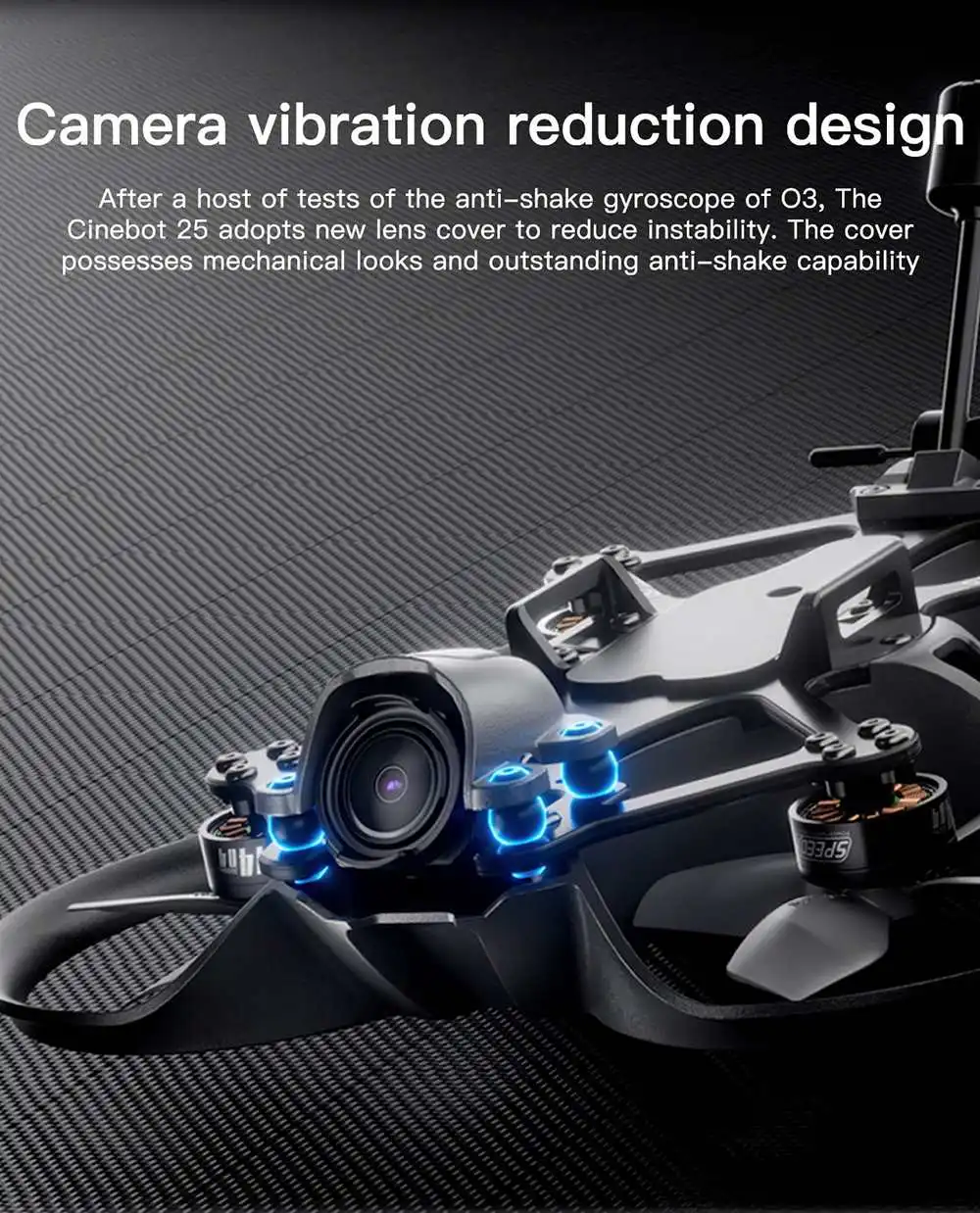

2. The shock-absorbing protection cover of the camera provides better stability for footage shooting.
3. Two power versions are available: the regular one with SPEEDX2 1404 motor and the superior one with SPEEDX2 1505 motor.

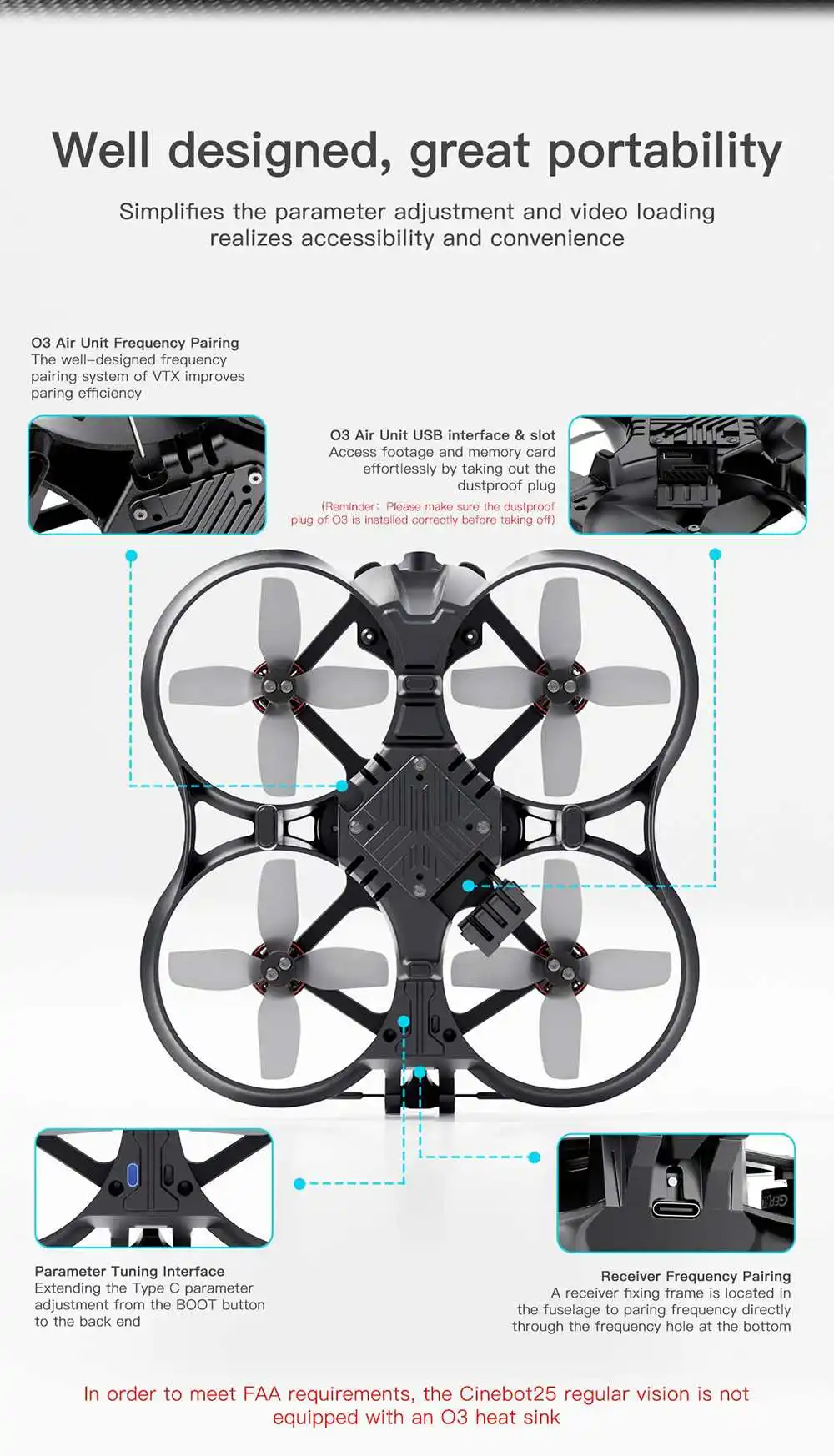

4. The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.
5. Optimized silicone T-shaped antenna fixing component.
6. Cinebot25 Lite quadcopter eqquiped with a LiHV 4S 720mAh battery that weighs less than 250g.

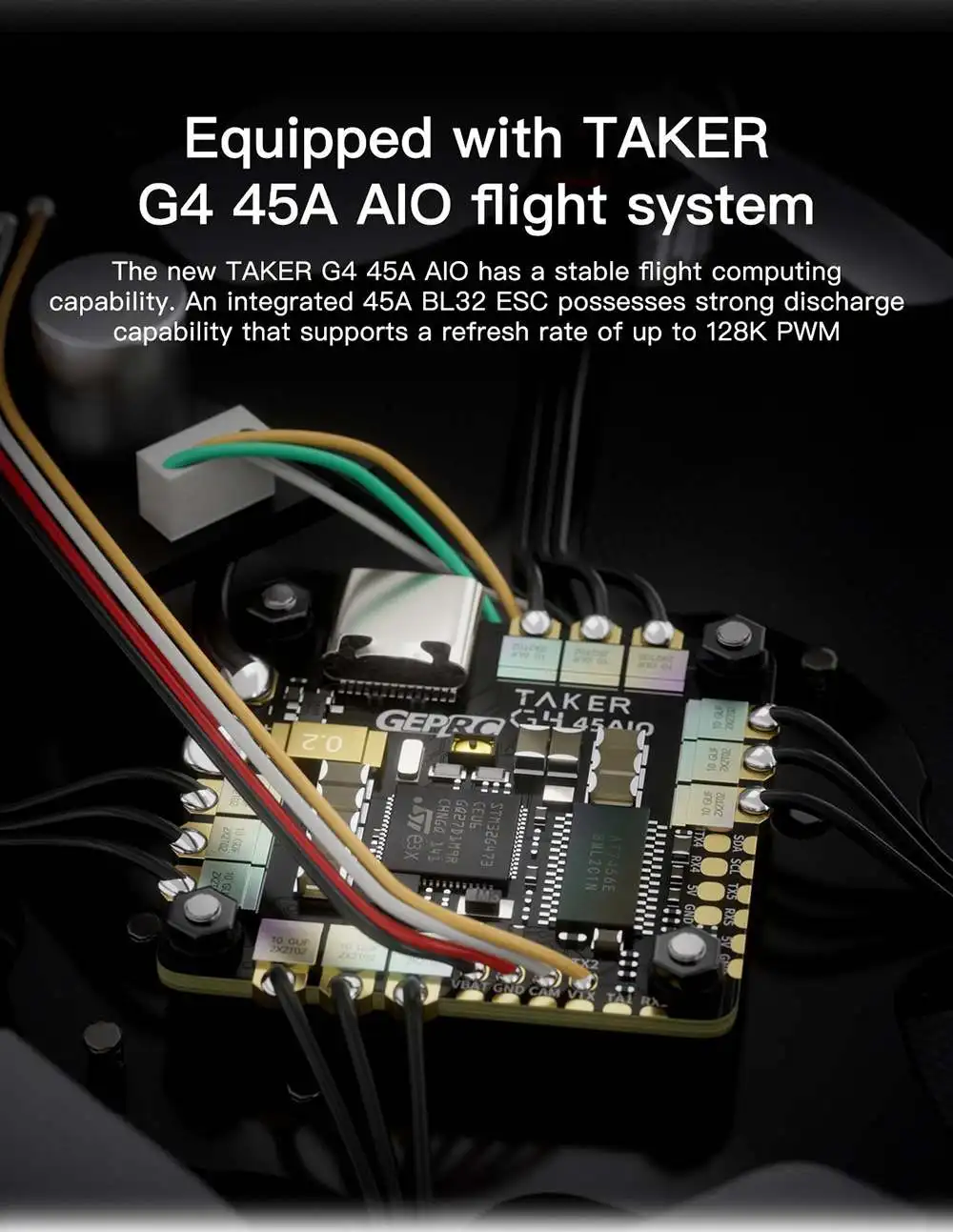

7. Equipped with the new TAKER G4 45A AIO, the G4 FC has a stable flight computing capability. An integrated 45A BL32 ESC possesses strong discharge capability that supports a refresh rate of up to 128K PWM.
8. The customized fixing stand of the receiver simplifies the internal space.
9. Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.

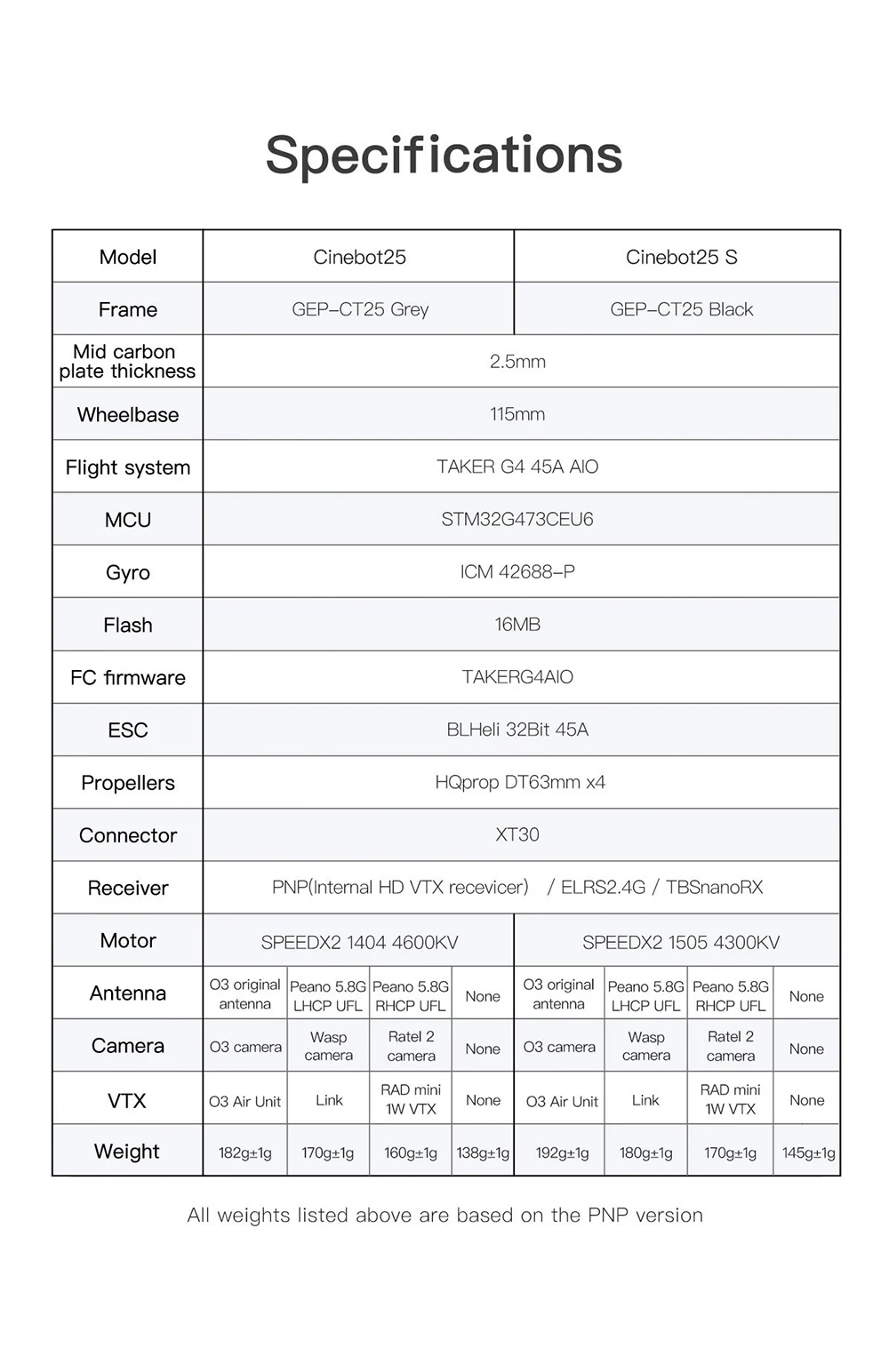

Specifications:
Brand: Geprc

Model: Cinebot25 / Cinebot25 S ( Analog)

Optional Version: Standard Version ( Cinebot25 )
Frame: GEP-CT25 Grey
Wheelbase:115mm
FC: TAKER G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
FC firmware: TAKERG4AIO
ESC: BLHeli 32Bit 45A
Motor:SPEEDX2 1404 4600KV
Propellers: HQprop DT63mm x4
Connector: XT30
VTX: RADmini 5.8G 1W
Camera: CADDX Ratel 2
Antenna: Peano 5.8G RHCP UFL
Receiver: PNP (without Receiver) / ELRS 2.4G / TBS Nano RX
Weight:Cinebot25 Analog PNP version 160g±1g

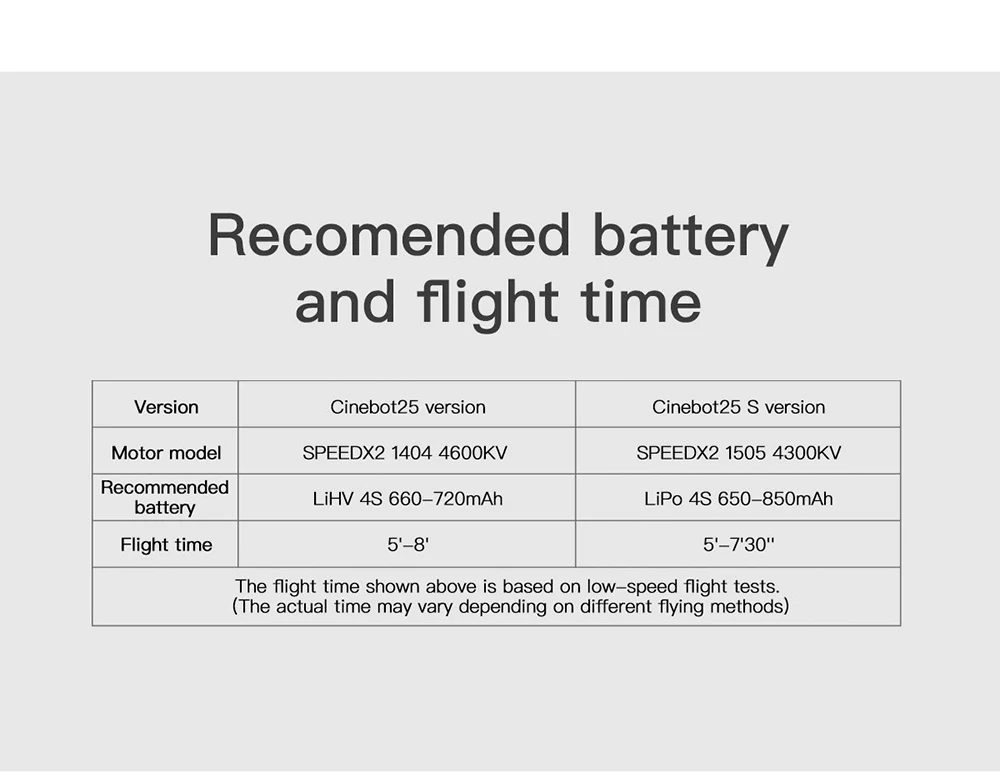

Recommended battery ( NOT Included): LiHV 4S 660mAh-720mAh
Flight Time:5′-8’

Optional Version: Sport Version ( Cinebot25 S )
Frame: GEP-CT25 Black
Wheelbase:115mm
FC: TAKER G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
FC firmware: TAKERG4AIO
ESC: BLHeli 32Bit 45A
Motor:SPEEDX2 1505 4300KV
Propellers: HQprop DT63mm x4
Connector: XT30
VTX: RADmini 5.8G 1W
Camera: CADDX Ratel 2
Antenna: Peano 5.8G RHCP UFL
Receiver: PNP (without Receiver) / ELRS 2.4G / TBS Nano RX
Weight:Cinebot25 S Analog PNP version 170g+1g
Recommended battery ( NOT Included): LiHV 4S 660mAh-720mAh
Flight Time:5′-8’

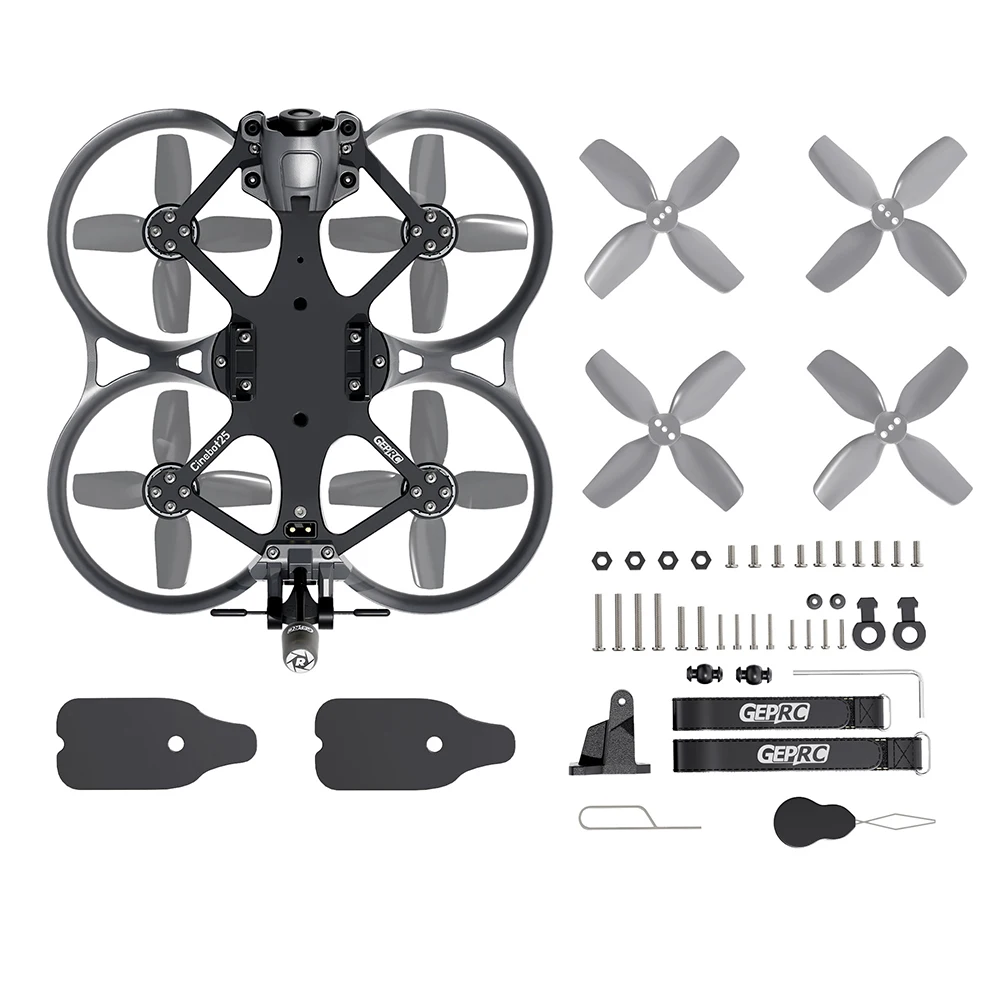

Includes:
1 x Cinebot25 / Cinebot25 S quadcopter
1 x HQprop DT63mmx4 propeller（pack）
2 x Battery anti-slip pads
1 x 15150mm battery strap
1 x 15*180mm battery strap

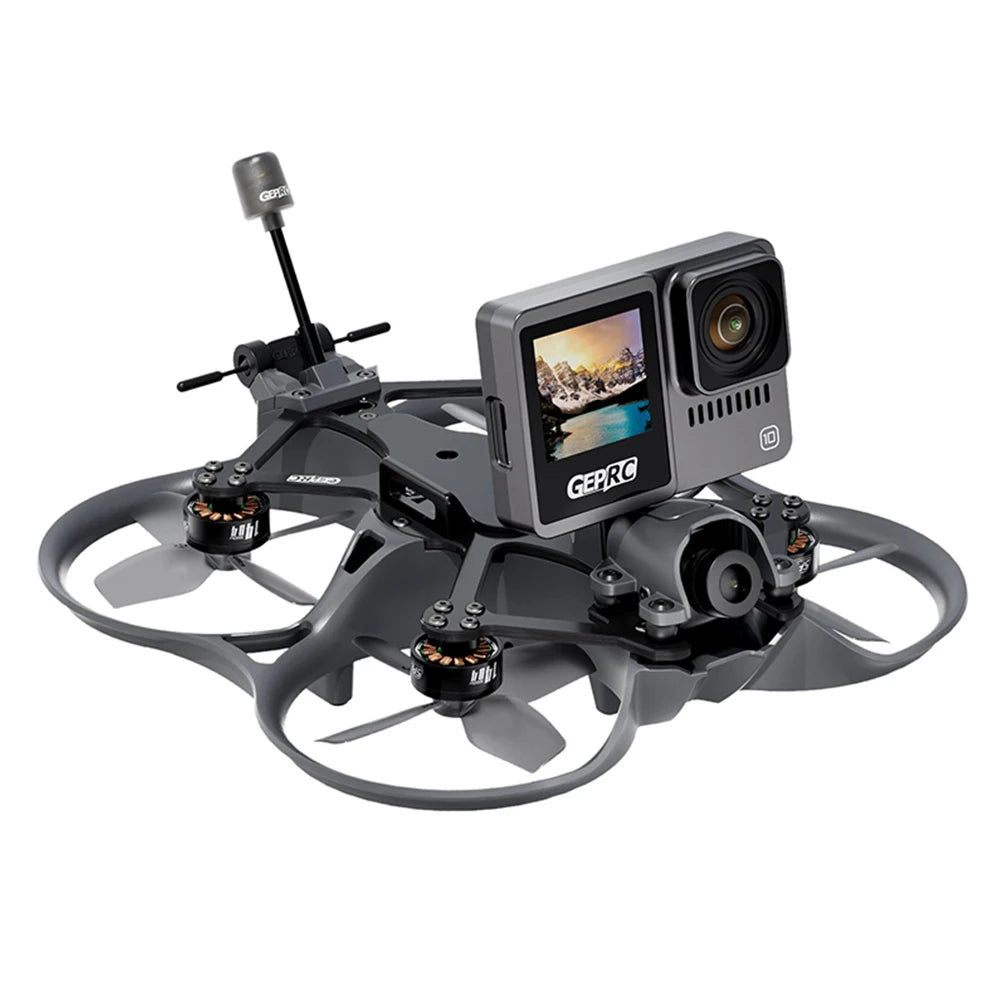

1 x Mounting base for Naked Gobro
1 x Reserved screw pack
1 x L-shaped screwdriver 1.5mm
1 x Frequency paring pointer
1 x Damping ball puncher

Reserved screw pack includes:
2 x Camera damping balls
4 x M2 nuts
6 x M2*6 button head screws
4 x M2*18 button head screws
4 x M1.6*8 Round Head screws with collar
4 x M2*5 button head screws
4 x M1.6*10 allen screws
2 x M2*12 button head screws
2 x M2 self-clinching nuts
2 x T-shaped antenna fixing silicones
