SPECIFICATIONS

Brand Name: Mitoot

Control Channels: 4 channels

Flight Time: 5~10

Transit Time (Days): 15

Controller Mode: MODE2

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Operator Skill Level: expert

Is Electric: No battery

Drone Weight: 500g

Anti-wind Ability: 1

Package Includes: Camera

Remote Control: Yes

Features: FPV Capable

Indoor/Outdoor Use: Indoor-Outdoor

Video Capture Resolution: 720P HD

Camera Mount Type: other

Takeoff Weight: 50g

Warning: Be careful

Warranty: No

Certification: CE

Origin: Mainland China

Type: Airplane

Dimensions: 11cm-30cm

Recommend Age: 14+y

Remote Distance: about 500 meter

Plugs Type: Fiber Frame

State of Assembly: Unassembled Kit

Barcode: No

Charging Voltage: 12V

Charging Time: about 2 hours

Material: Metal

Material: Carbon Fiber

Model Number: APEX (DC)

Power Source: Electric

Controller Battery: AAA(not include)

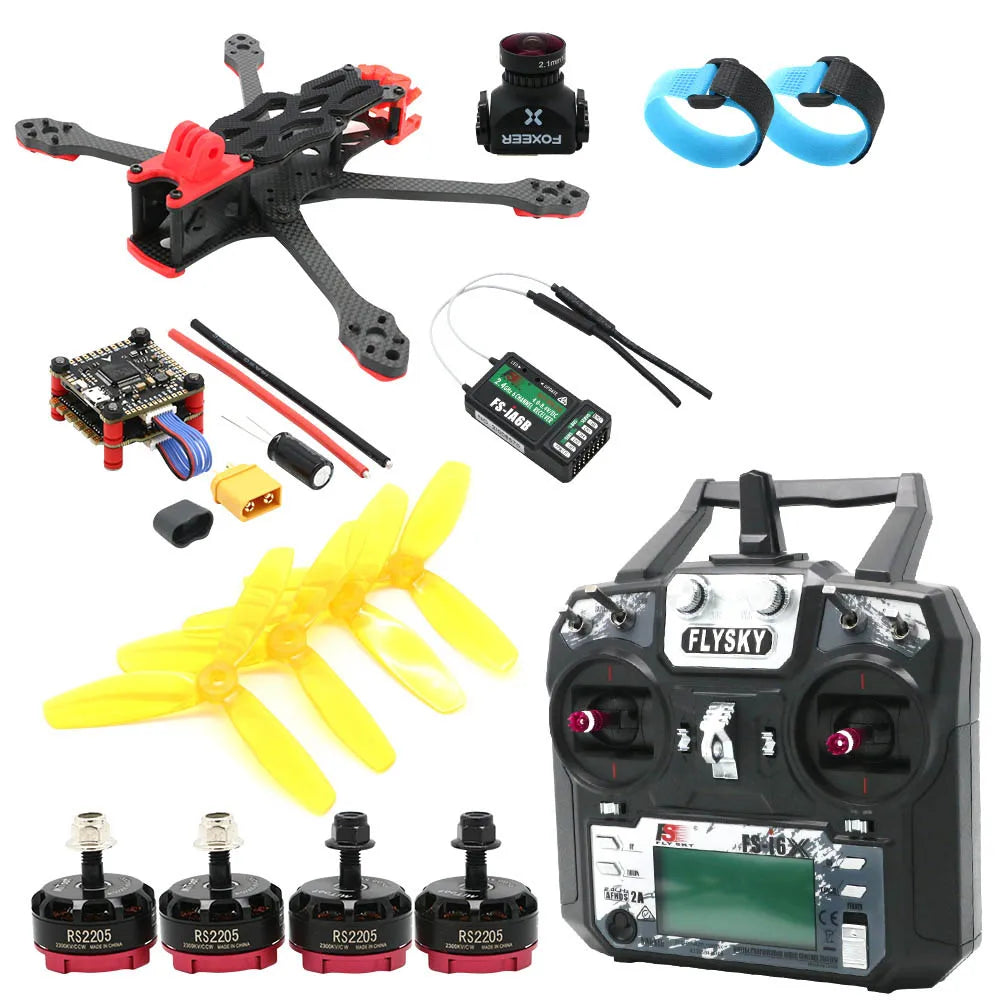

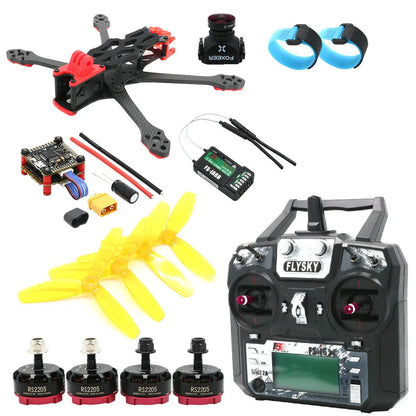

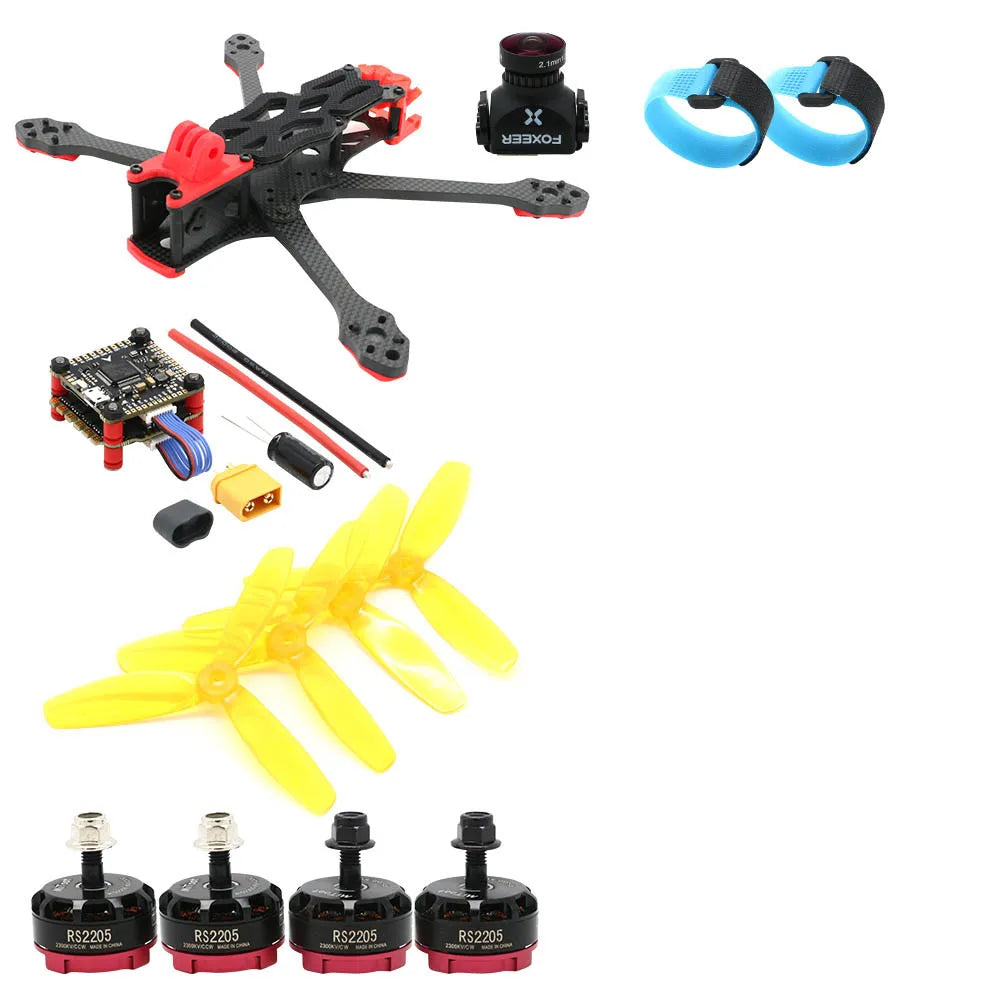

Packing List:

- 1set Flysky i6X remote control with ia6b receiver( send it as your choice)

- 1set APEX 5inch 225mm Carbon Fiber frame(unassembled)

- 1pcs 45A BLheli_S 2-6S 4In1 ESC

- 4pcs 2205 2300kv (2CCW, 2CW)

- 1pcs F4 V3S Flight Control Board

- 1pcs foxeer Razer Mini Camera

- 1pcs VTX5848 LITE FPV video transmitter

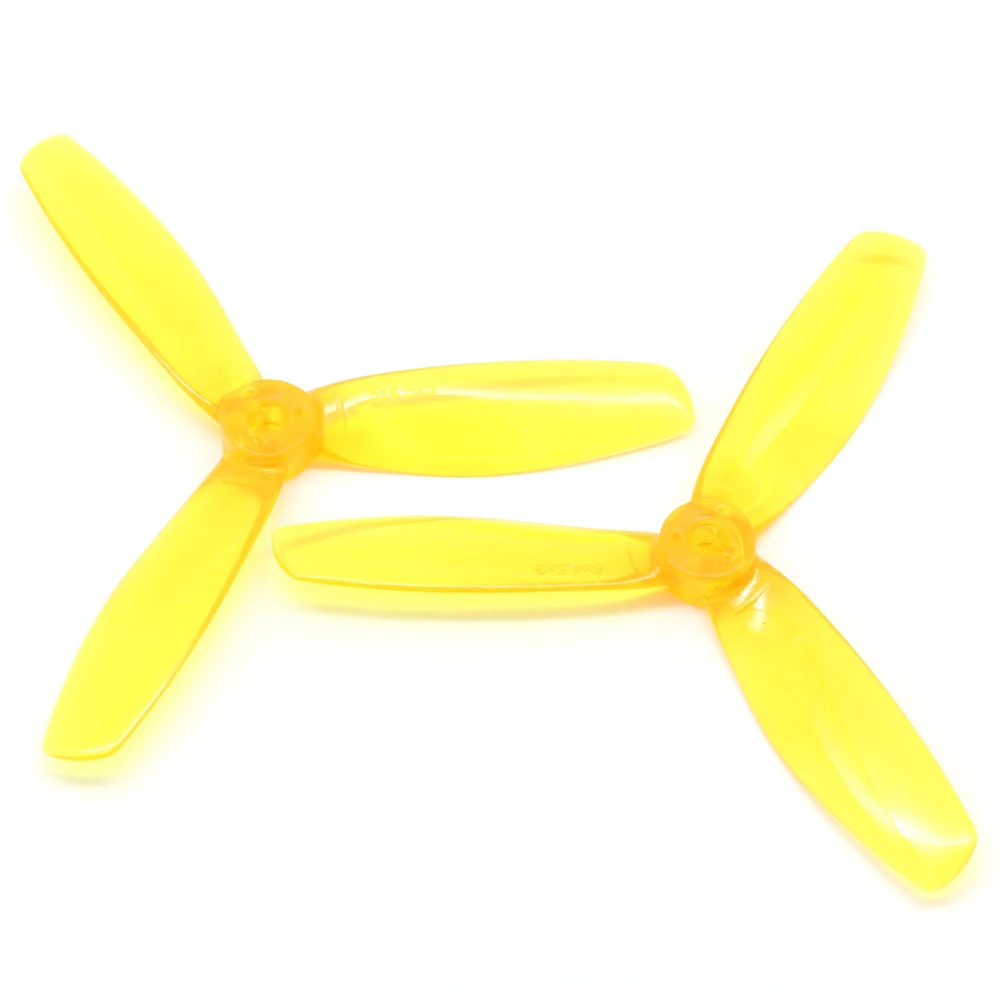

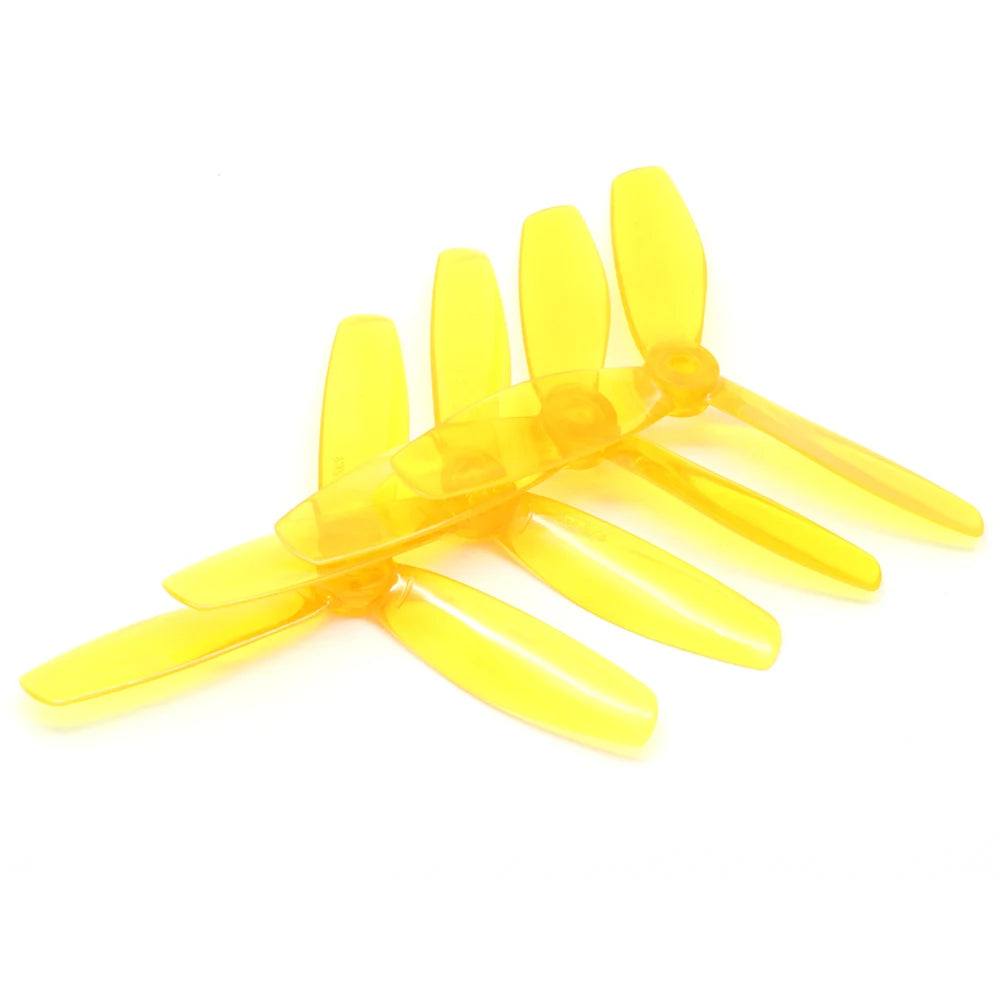

- 2pairs 5045 3 blade propellers

- 4pcs LED

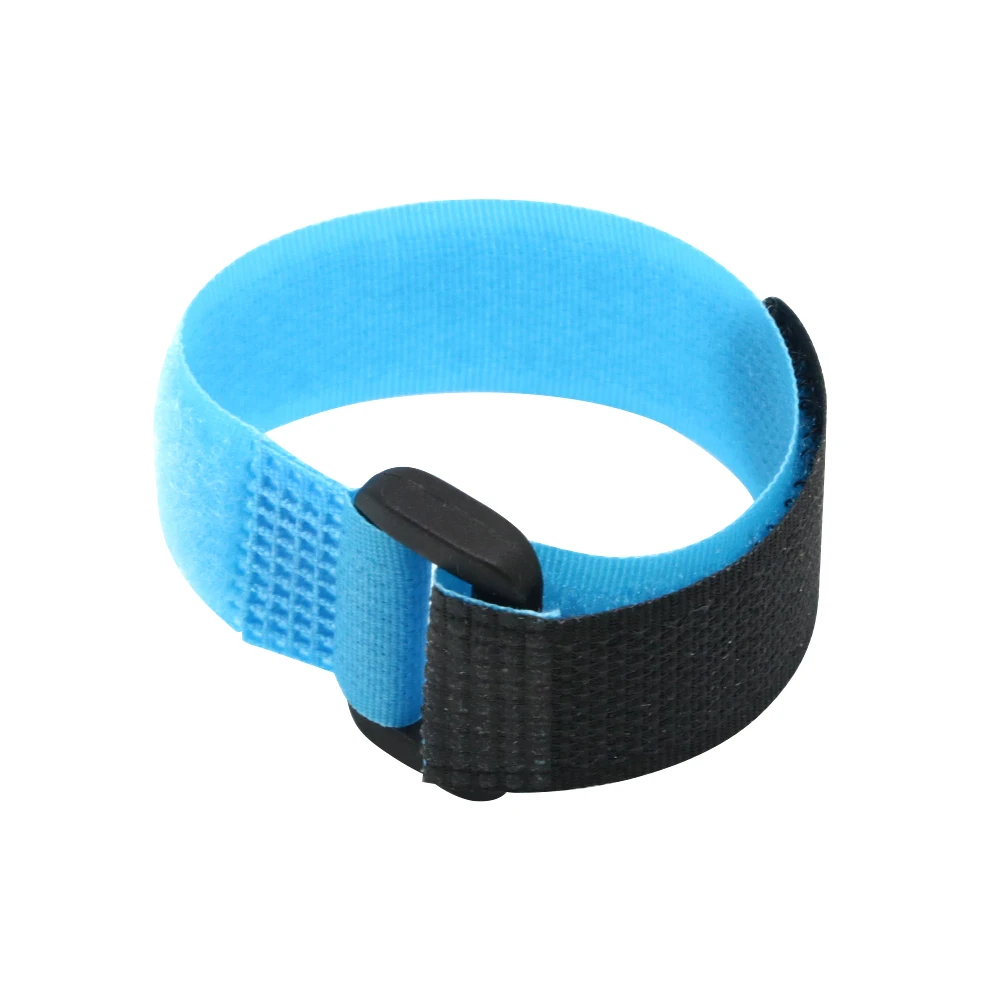

- 2pcs battery Strap

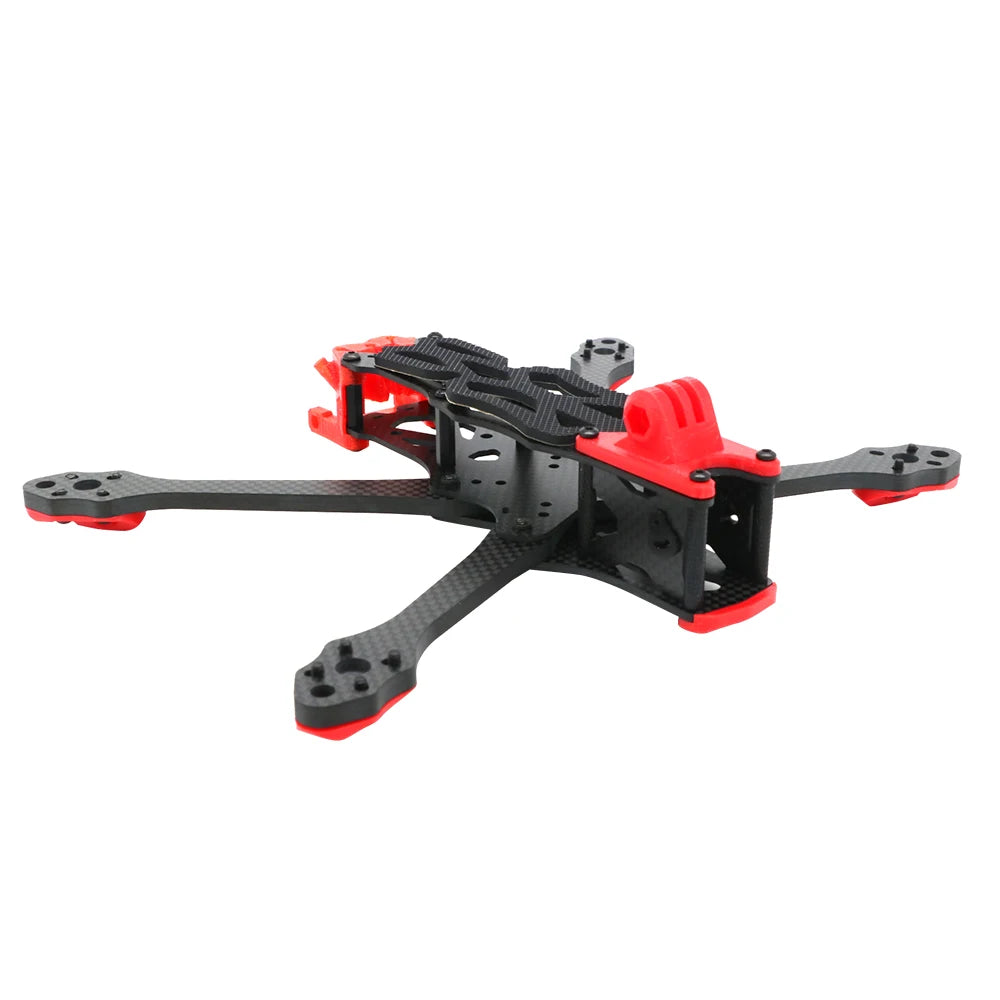

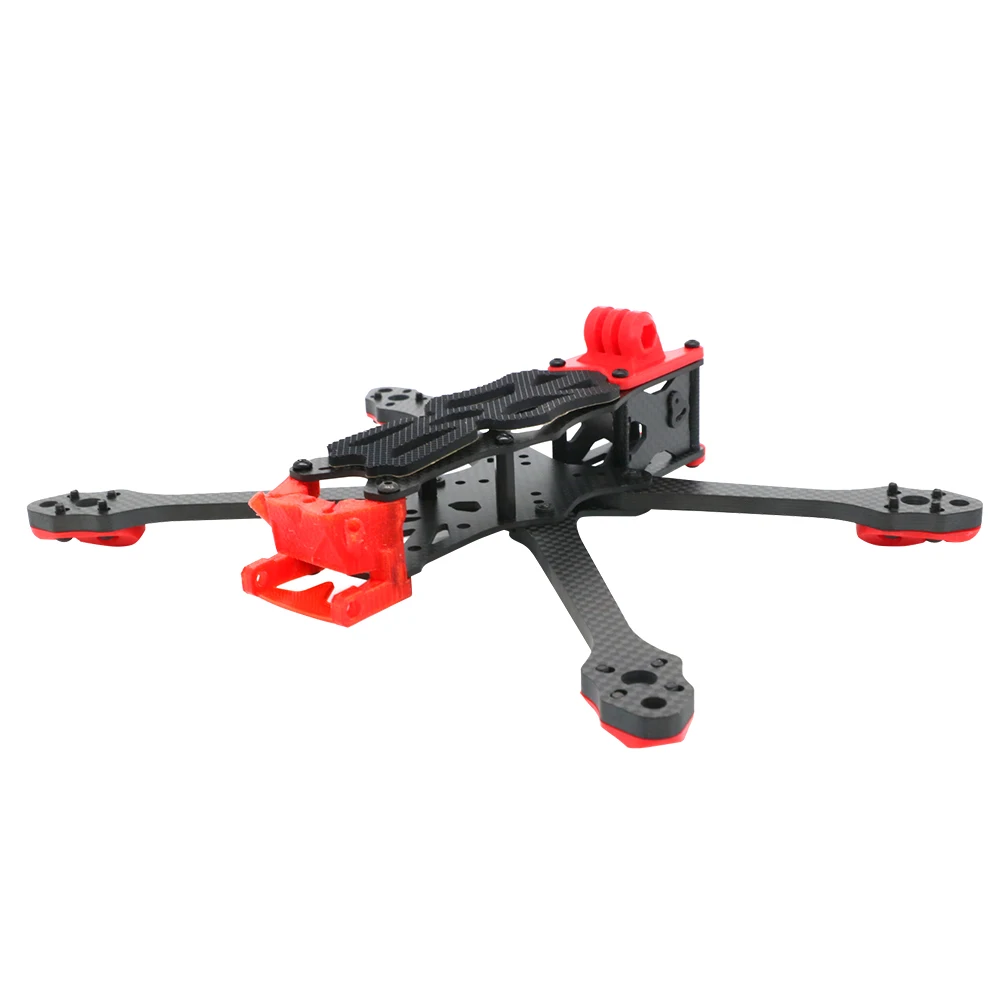

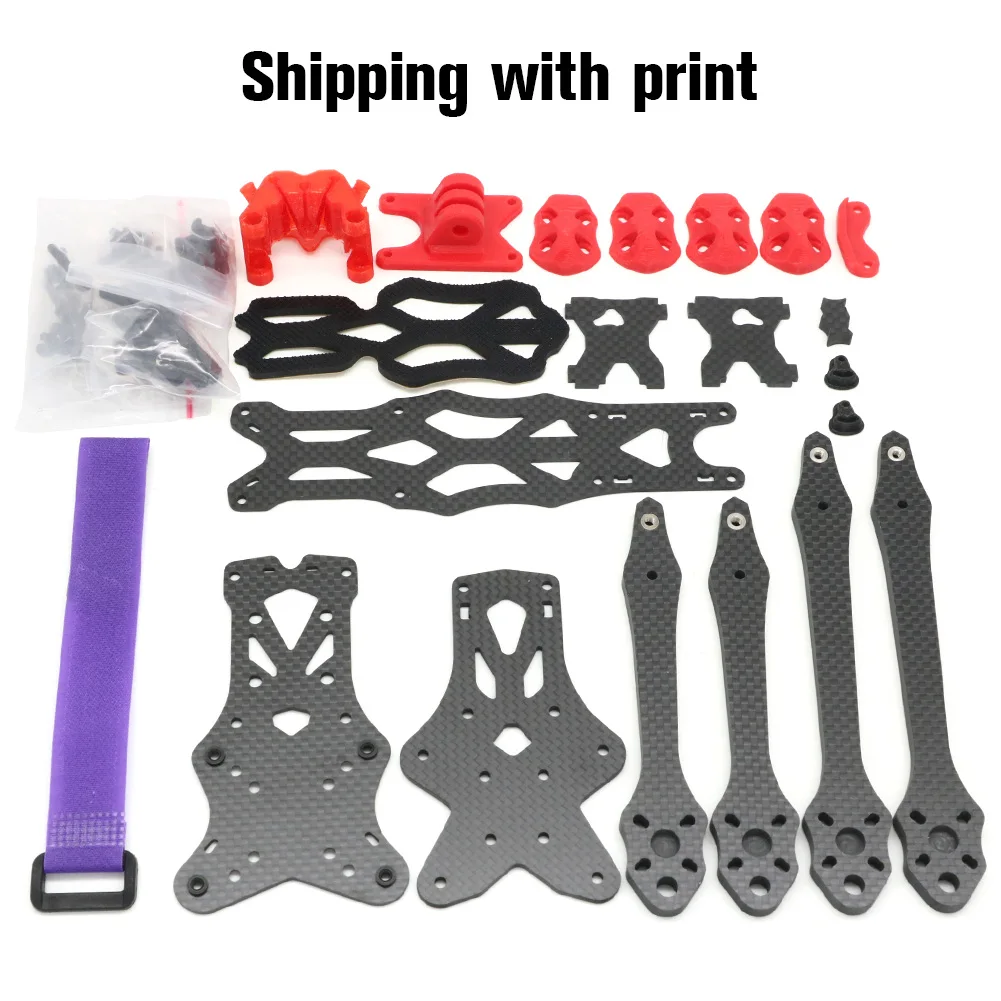

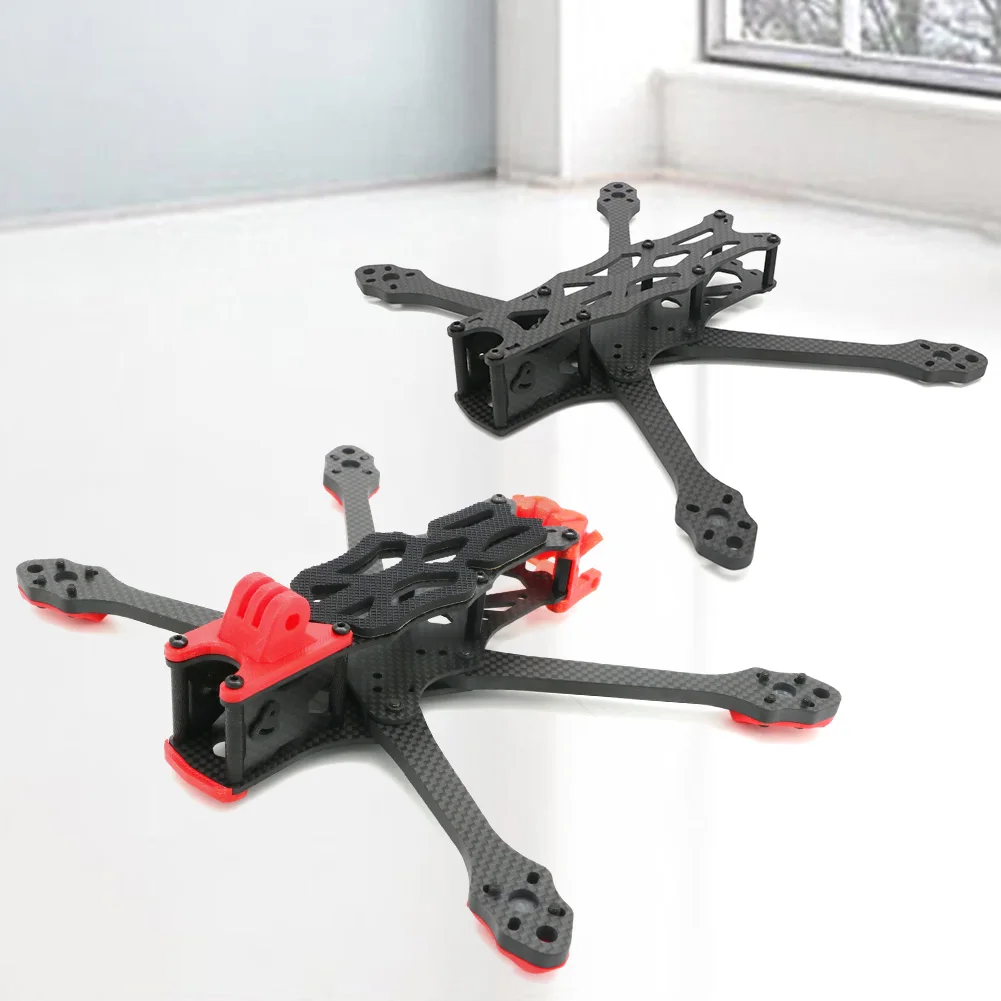

APEX DC / DC HD 5Inch 250mm Carbon Fiber Frame Kit

Propeller: 5Inch

Weight about: 138g

Wheelbase: 240mm

Arms plate: 5.5mm

Top plate: 2.0mm

Bottom plate: 2.5mm

Side plate: 2.0mm

Description:

The APEX DC5 by modifying only the upper and lower main plates we retained full compatiblity with regular Apex arms, using standard 5" arms at the front and standard 6" arms at the back.

CADDX VISTA ISOLATION

A major drawback of the Caddx Vista system is that the body of the unit is grounded, this can cause the conductive carbon fiber plates and frame hardware to be grounded too. In an ideal world this is not necessarily a problem, however in the real world it's an accident waiting to happen.

Included with the ApexDC are newly redesigned 3D printed insulation inserts. This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.

Recommended configuration: ( Not included)

Battery: 4S 1500mAh

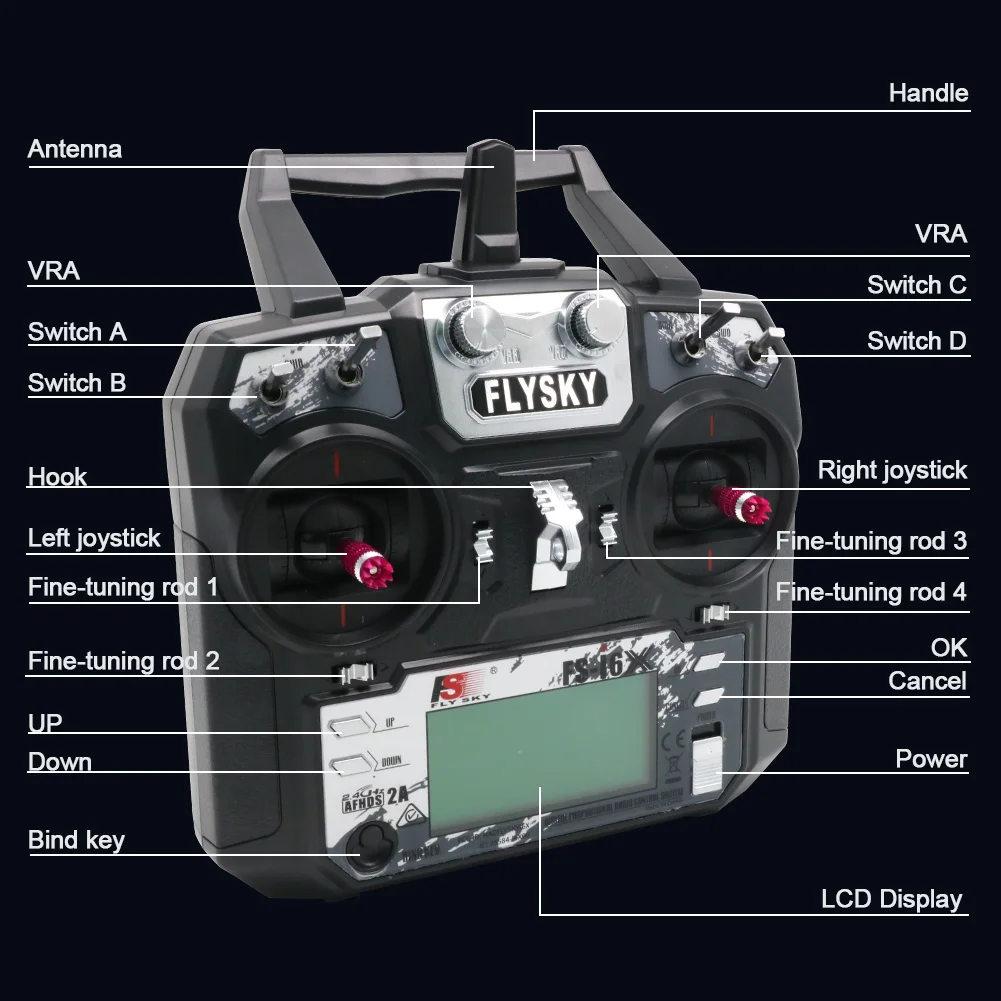

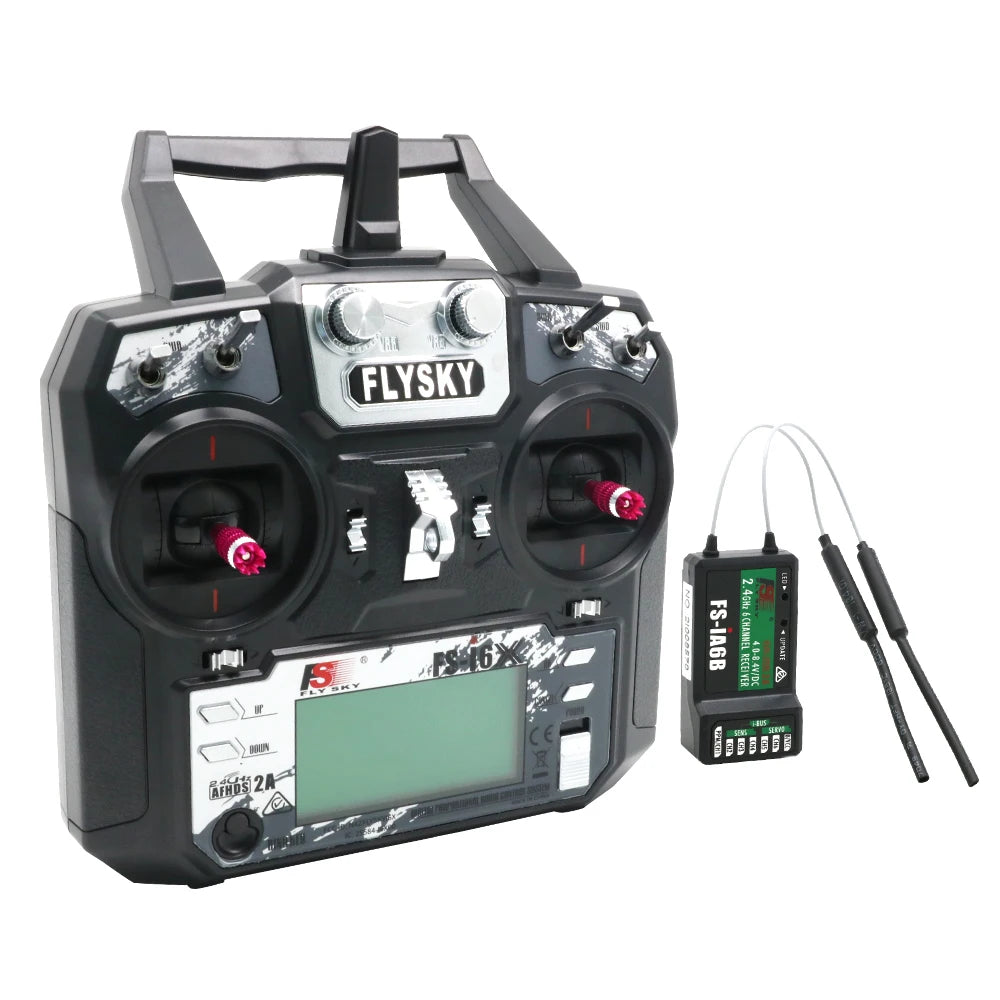

FS-i6X Specifications:

Item: FS-i6X RC Transmitter

Channel: 6-10 (Default 6)

Model Type: Fixed-Wing/Glider/Helicopter

RF Range: 2.408-2.475GHz

RF Power: < 20dBm

RF Channel: 135

Bandwidth: 500KHz

2.4GHz System: AFHDS 2A / AFDHS

Modulation Type: GFSK

Stick Resolution 4096

Low Voltage Warning: < 4.2V

DSC port: PS/2 Port PPM

Chargeable: No

Antenna Length: 26mm (Dual Antenna)

Weight: 392g

Power: 6V DC 1.5AA*4

Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight

Size: 174x89x190mm

On-line Update: Yes

Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

Features:

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.

Bidirectional Communication

Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.

Multi-channel Hopping Frequency

This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna

The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.

Unique ID Recgnition System

Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Low Power Consumption

The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

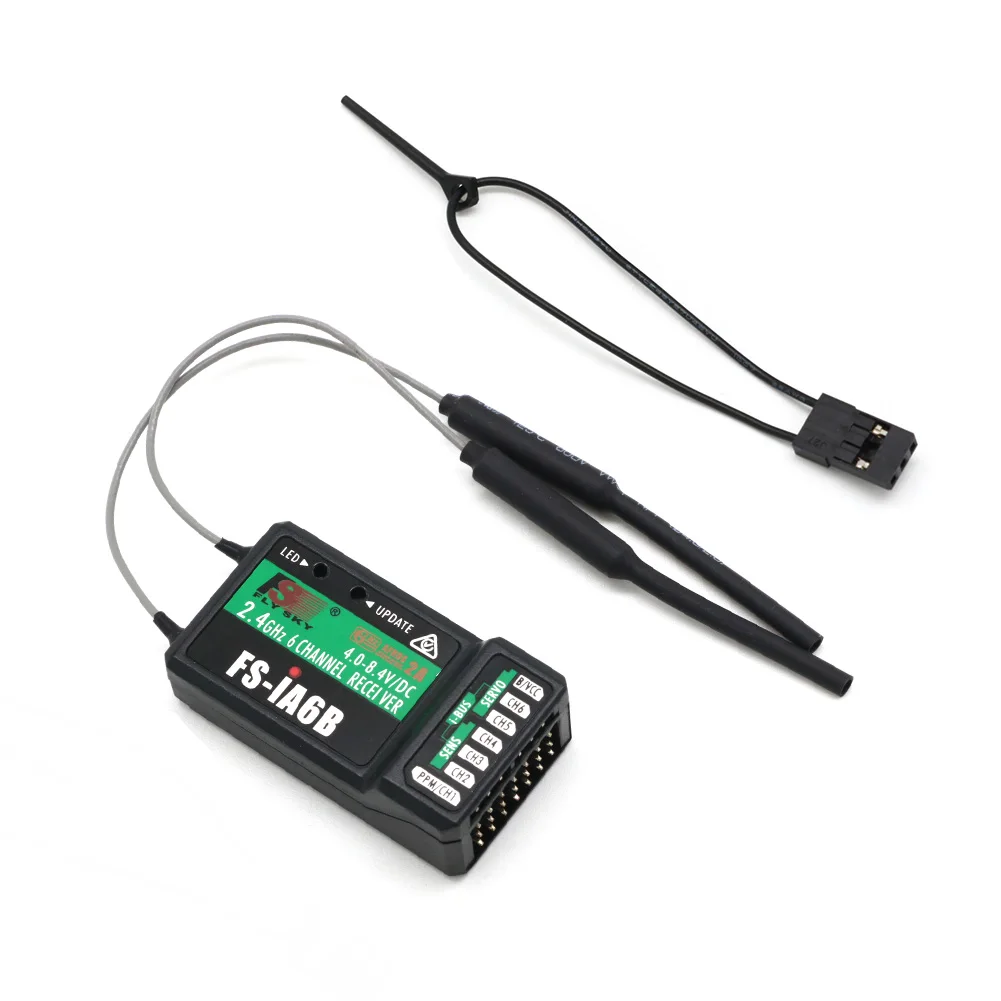

IA6B Specifications:

Item Name: IA6B

Channel: 6

Model type: fixed wing/helicopter/glider

RF receiver sensitivity: -105dBm

Modulation: GFSK

System type: AFHDS2A/AFHDS

Channel resolution: 1024 steps

Bind port: yes

Power port: yes( VCC)

Power: 4V -6.5V DC

Weight: 14.9g

Antenna lenght: 26mm

Size: 47.4*262.2*15 mm

Certificate: CE ,FCC

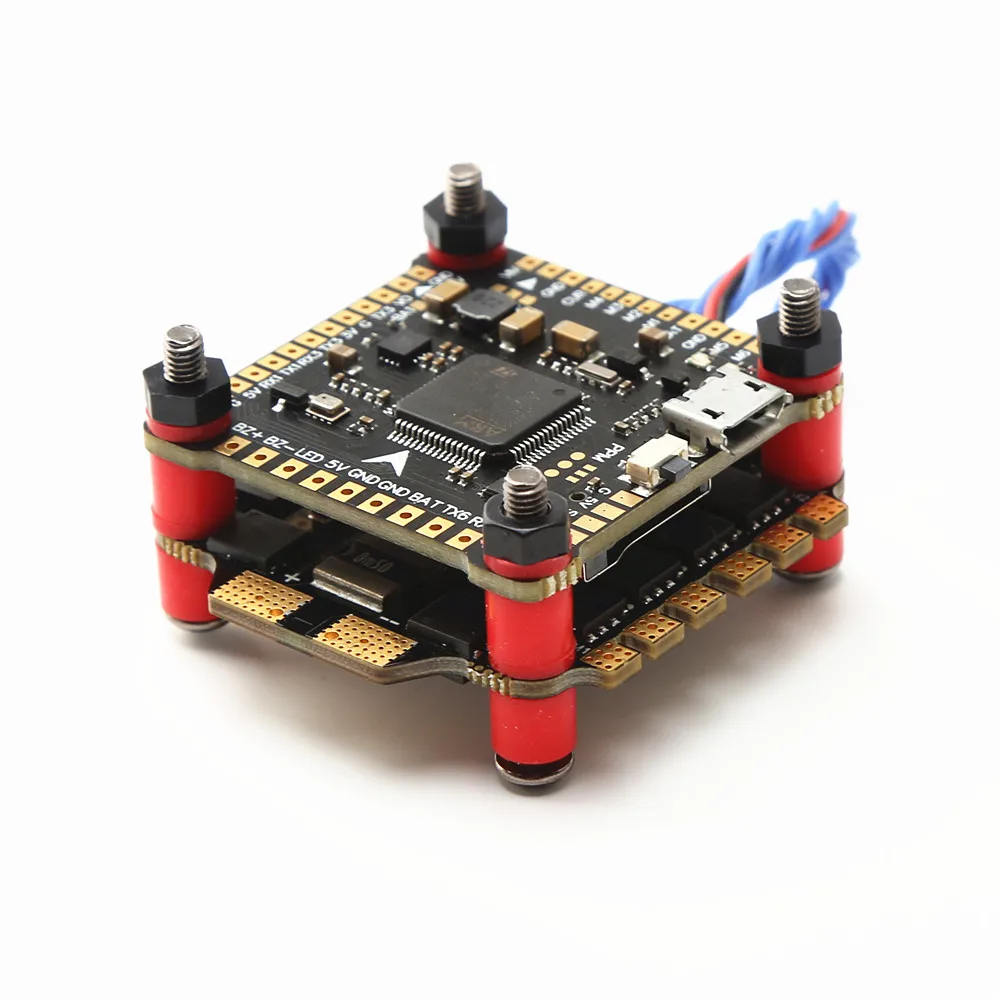

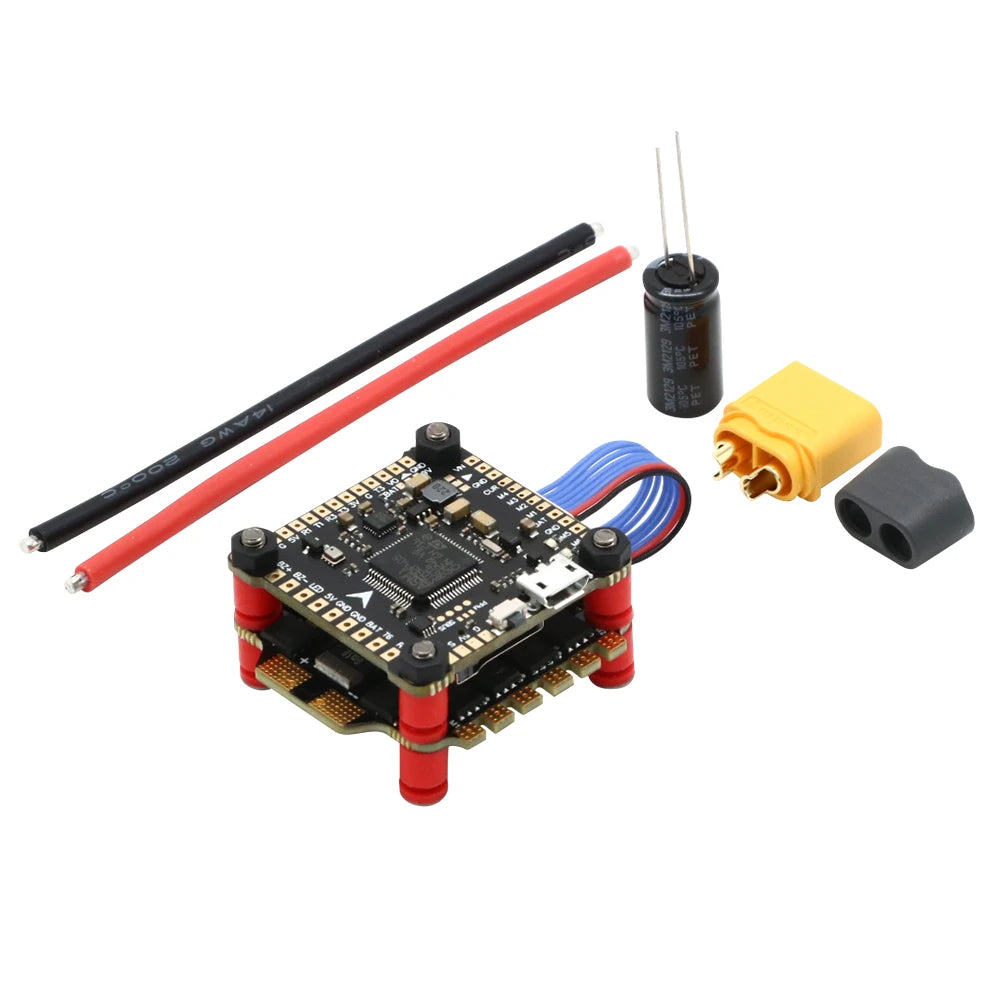

F4 V3S PLUS FC

Item name: F4 V3 PLUS Flight Controller

Size: 36x36mm

Mounting holes: 30.5x30.5mm

STM32 F405 MCU

Dshot support

Drag and Drop OSD configured via Betaflight

Gyro:BMI270

SBUS / PPM AND Spketrum DSMX ports

MicroSD card blackbox

Baro (BMP280)

BEC:5v3a 9V3A

On-board video filters (only 5V to VTX and camera)

45A ESC

BLHELI_S 45A 4IN1 3-6S Brushless ESC Support DShot300-600/Multishot/Oneshot/PMW 30.5*30.5mm For RC FPV Racing Drone

45A 4-in-1 ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball)

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PMW

Current sensor: Support

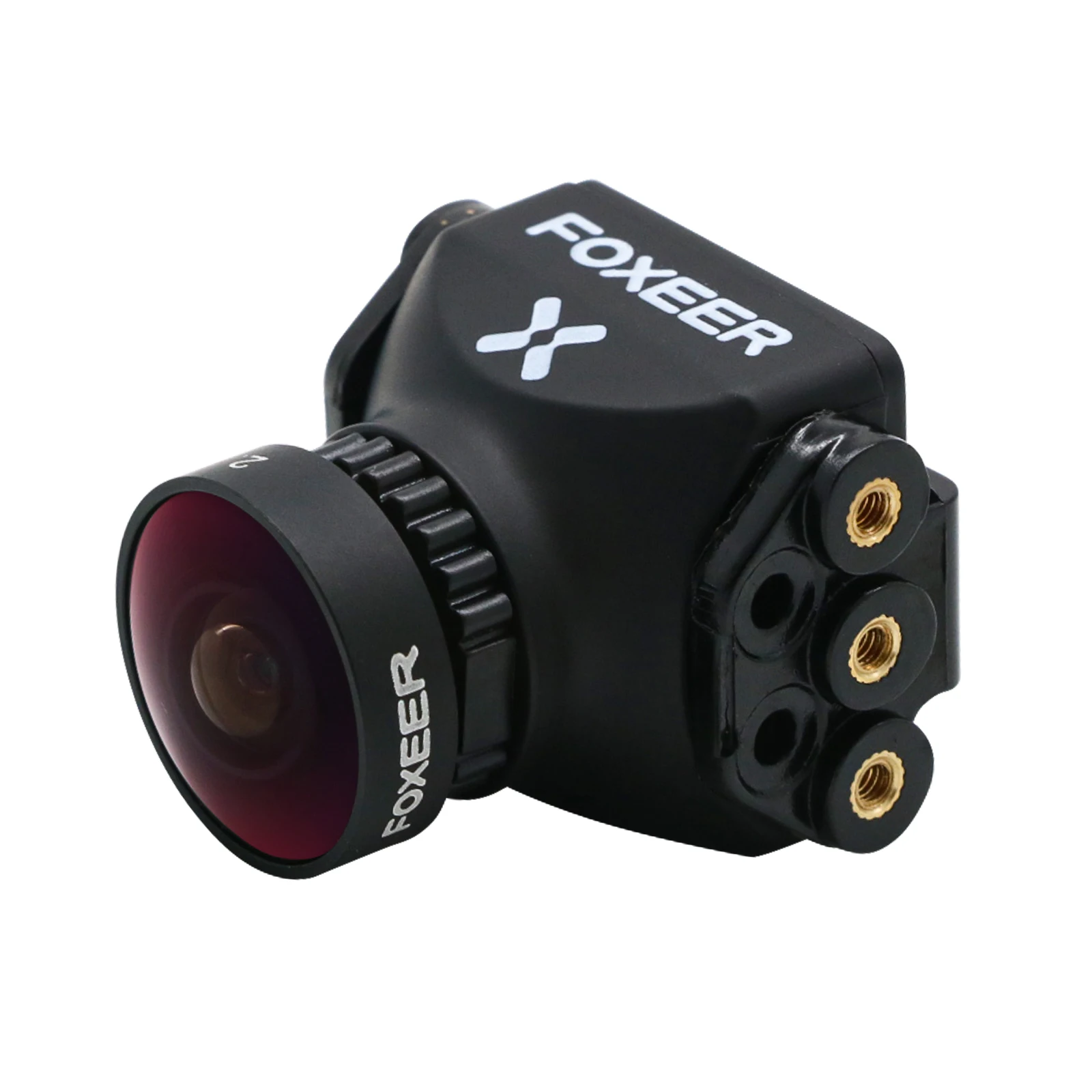

Item Name: Razer Mini

Color: Black, Red (optional)

Scale: 4:3 / 16:9 (optional)

Lens: 1.8mm, 2.1mm (optional)

Sensor Type: 1/3 CMOS

TV System: PAL / NTSC Switchable

Resolution: 1200TVL

FOV: 4:3 FOV-H 125°, FOV-D 155° / 16:9 FOV-H 125°, FOV-D 145°

Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec

Video Out: CVBS

Min. Illumination: 0.01Lux

White Balance: Auto

DNR: 3DNR

WDR: 90db

Day / Night Shift: EXT / Auto / Color / B&W

Power Requirement: DC 4.5V~25V

Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese /  Korean / Eaahnika

Working Temperature: -10℃ ~ +50℃ RH90% MAX

Working Humidity: 20~80%

Storage Temperature: -20℃ ~ +70℃

Storage Humidity: 20~95%

Dimension: 21.8x21.8mm (without bracket)

Weight: 12g

Features:

- 1200TVL definition with advanced natural image.

- HD 5MP 2.1mm M12 Lens.

- 4:3/16:9 optional, PAL/NTSC switchable.

- Supports 4.5~25V input voltage.

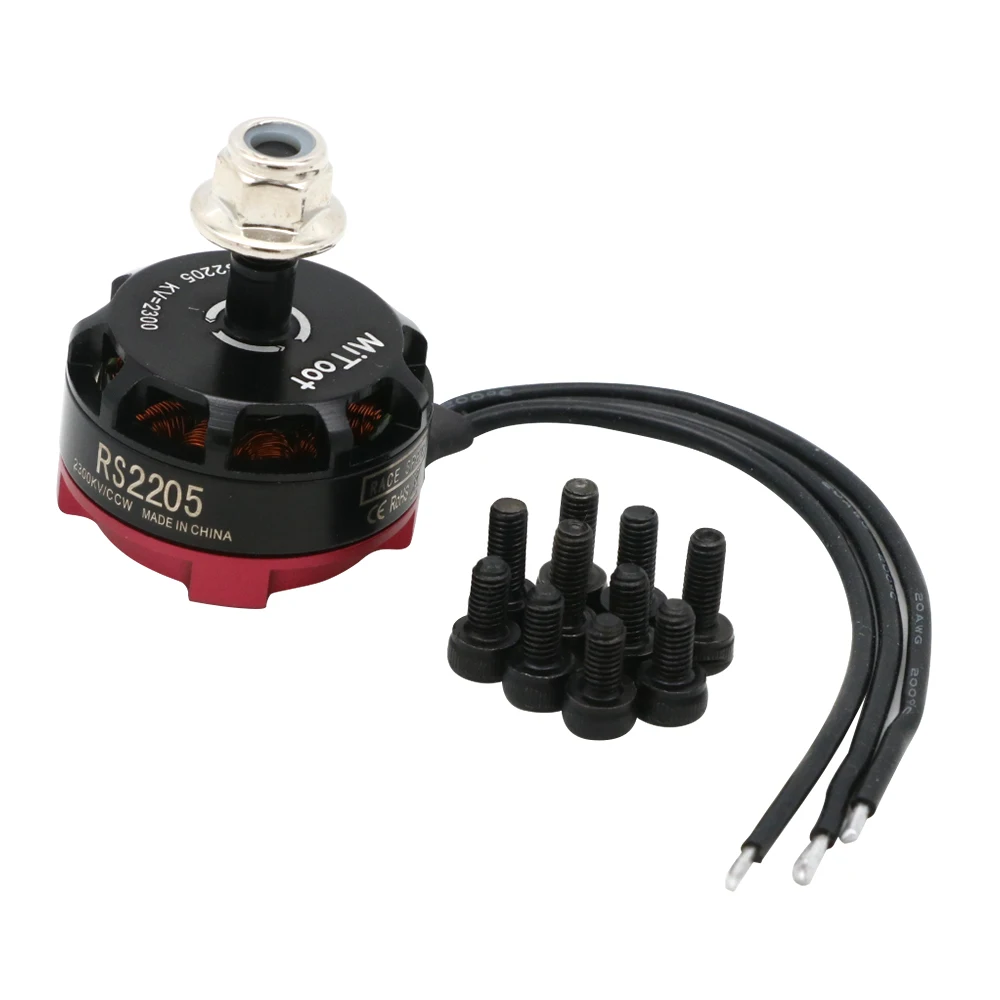

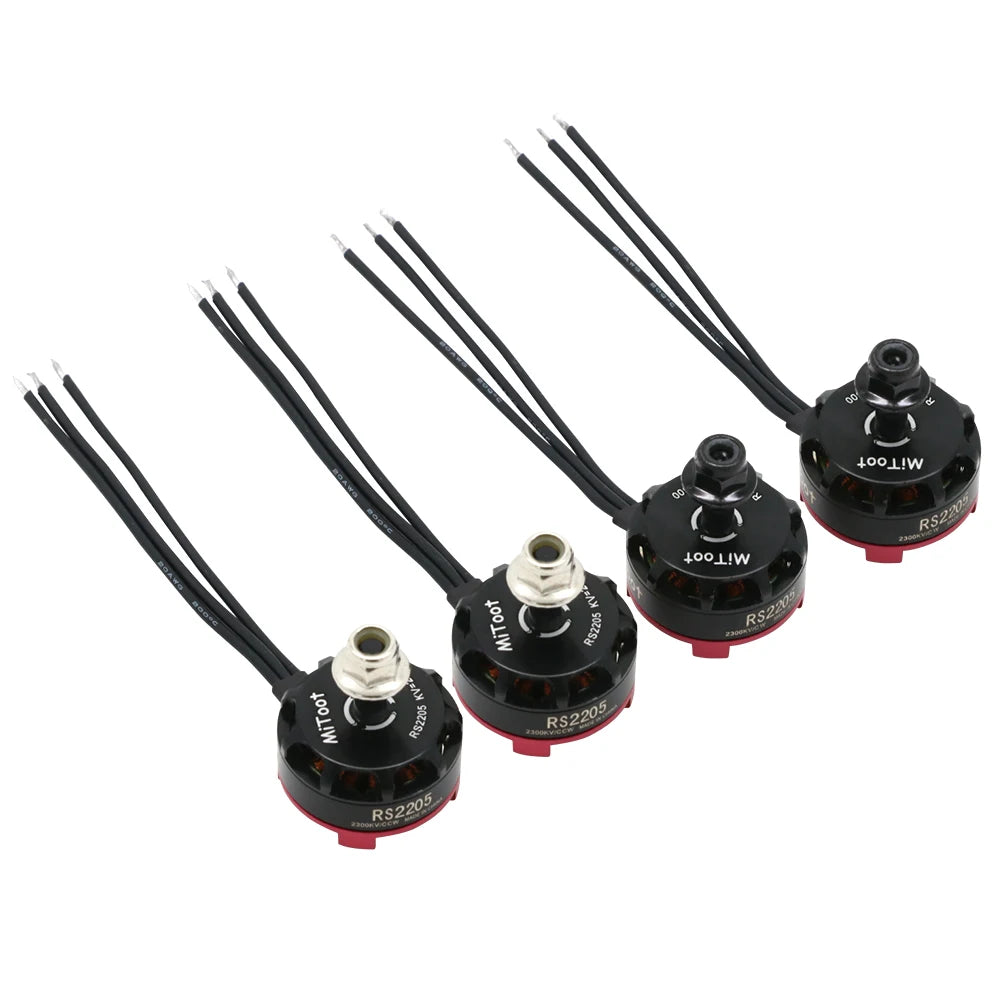

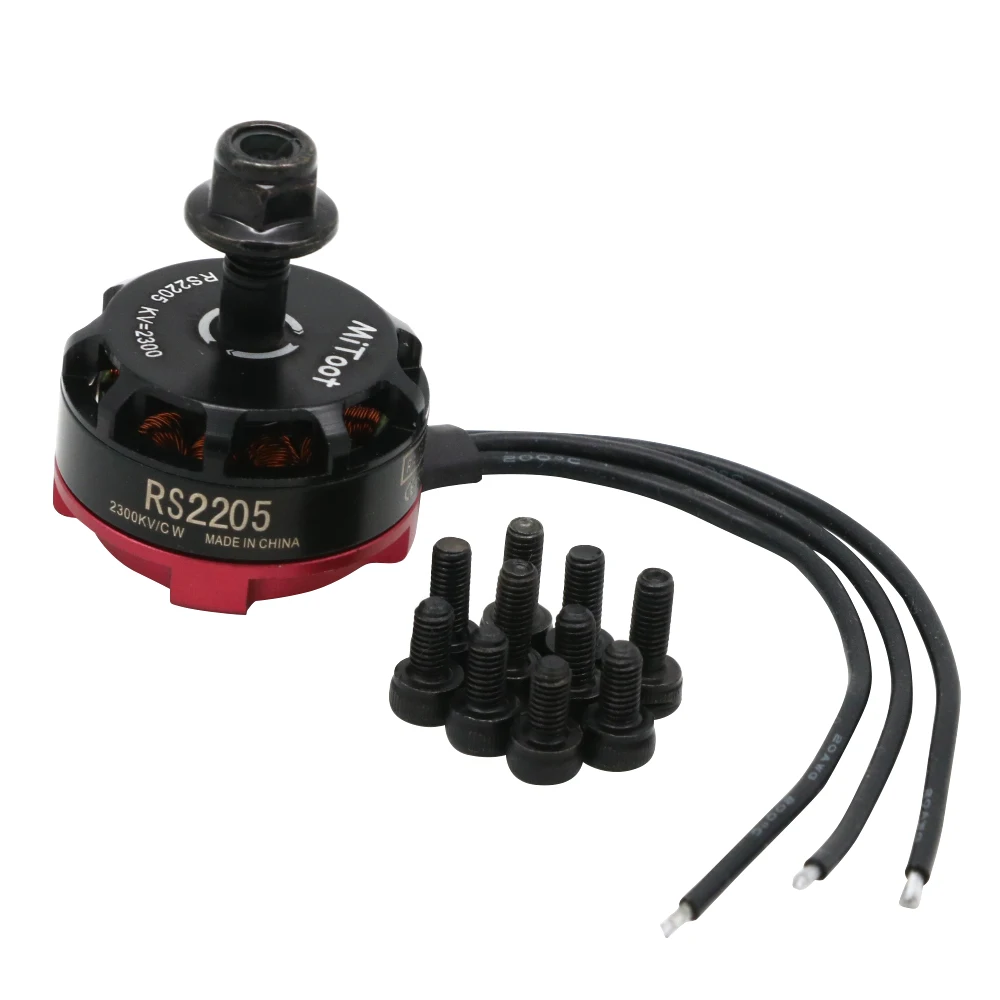

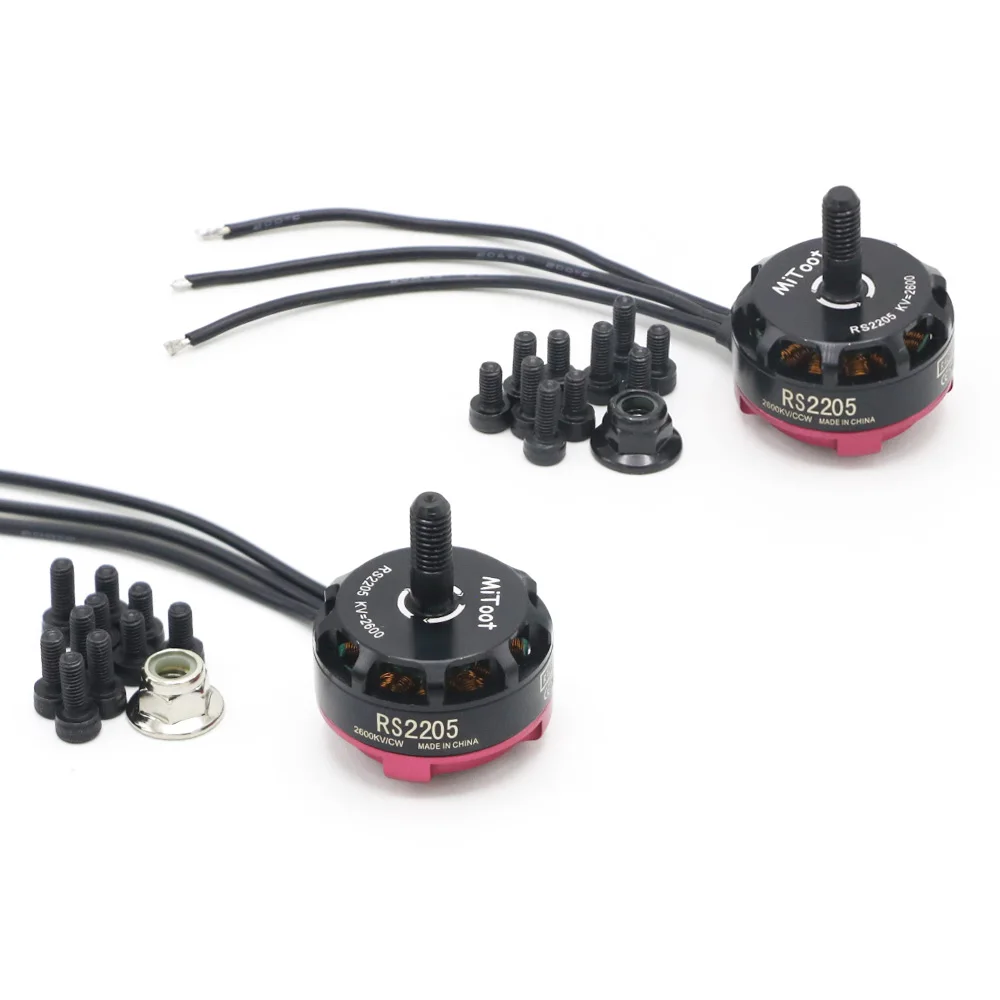

Brands:Mitoot

Model: RS2205-2300

Framework: 12N14P

No. of Cells: 3 - 4S

Color: Red

Length: 31.7mm

Shaft: M5

KV: 2300

Max Thrust about: 1024g

Diameter: 27.9mm

Propeller Suggested: HQ 5045 BN

Weight: 30g

Features:

1. Race Spec Performances

2. High Strength N52 Neodyum Magnets

3. Active Cooling Fins Greatly Reduce Motor Temeratures

4. Low CG, Light Weight Design

5. Japanese Bearing For Performances

6. Enchance Anti Off U Ring For Safety & Stablility

7. Dual Lock CW / CCW Locknuts
