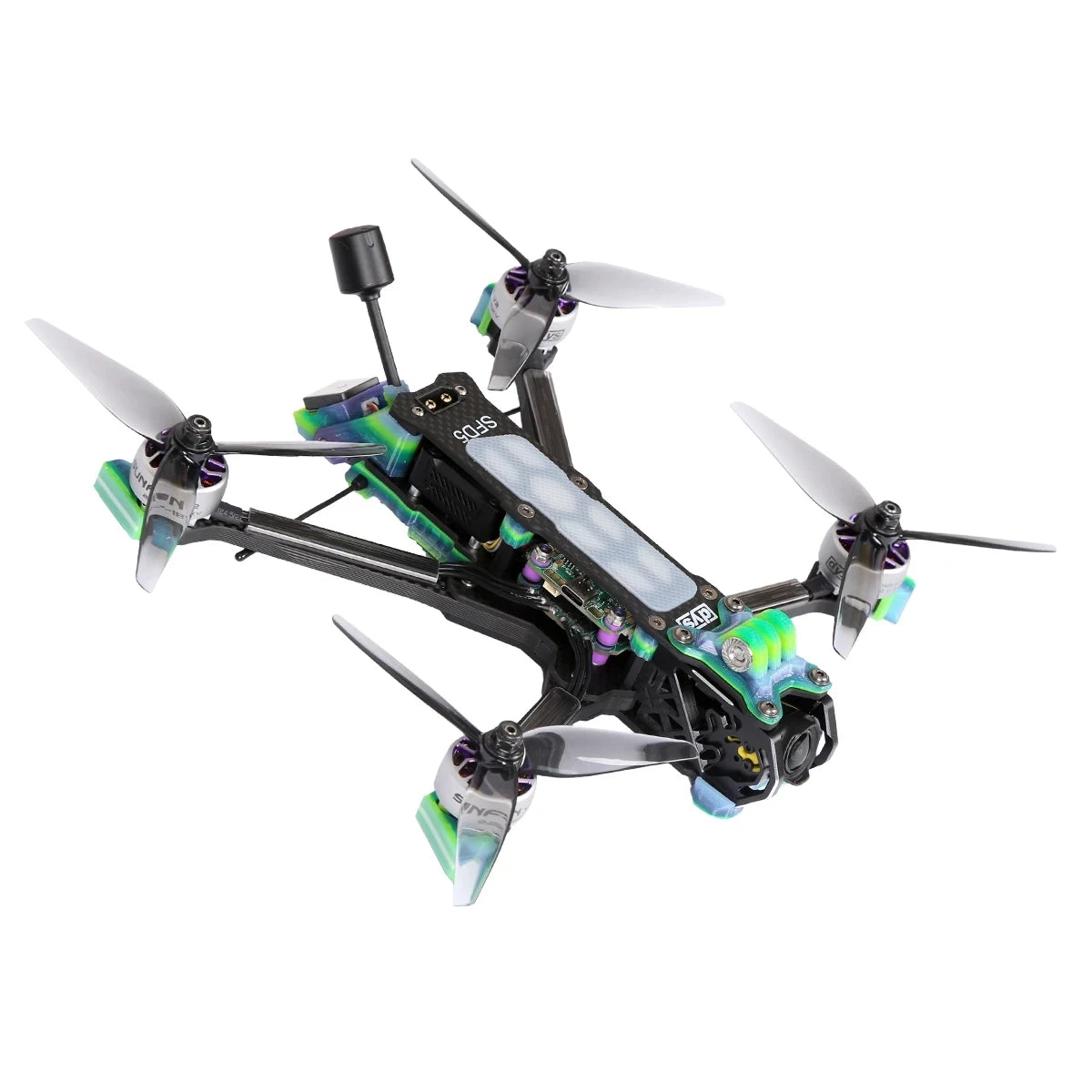

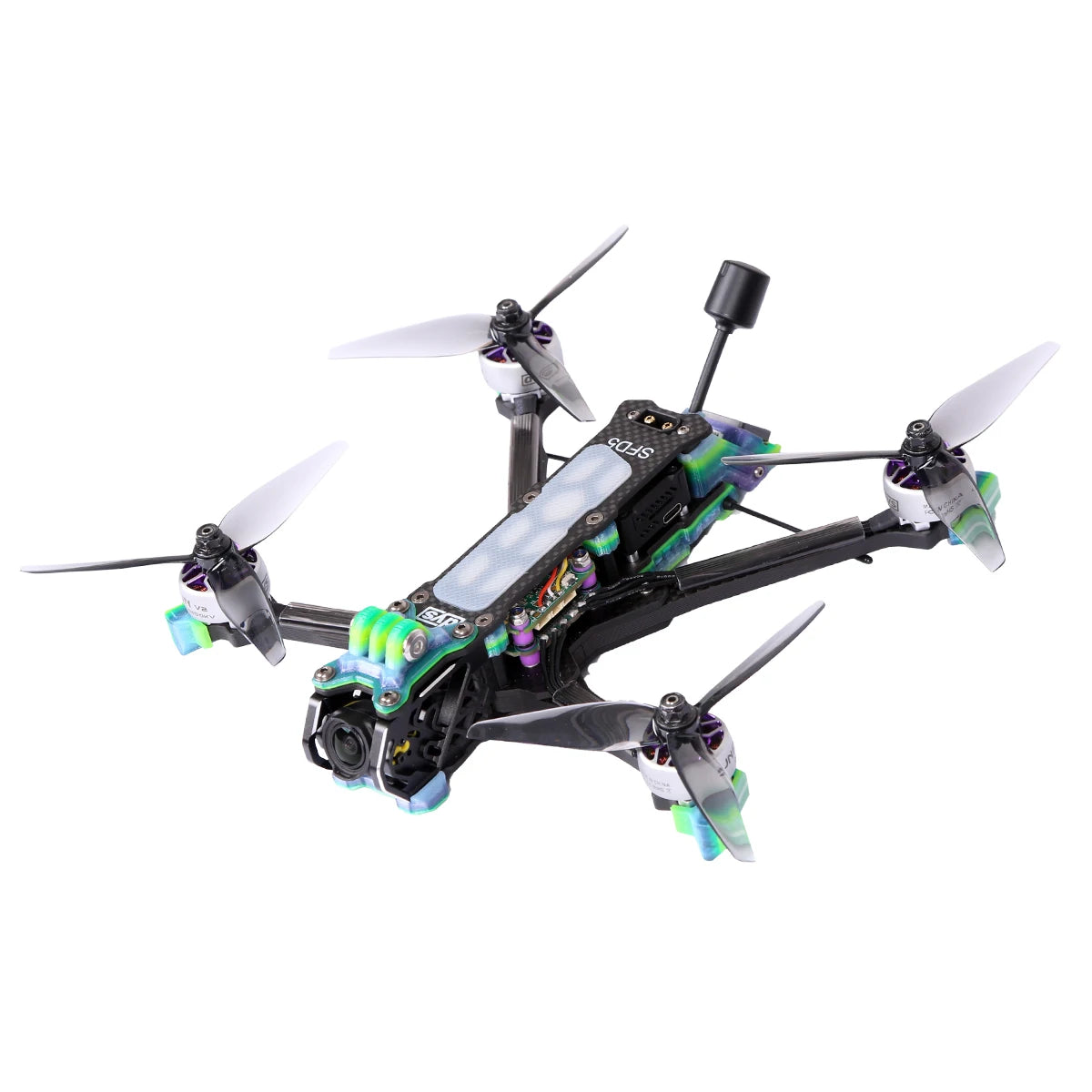

DYS SFX5 Freestyle FPV Drone 5 Inch 6S X Type Racing Drone with DJI O3 Air Unit Digital HD System

About this product
Our new released SFX5 X Type / SFD5 Deadcat Type drone just got better! Another breakthrough in FPV visuals through DJI works with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started, but also with the durability and performance for enthusiasts. Welcome to the DYS experience!

Features
Smooth and Powerful SUNFUN V2 Motors

The latest upgrade of our bestseller SUNFUN V2 2207 motor, integrated rotor technology, strong titanium alloy shaft, collision resistant 7075 aluminum shell, smooth and durable Japanese NMB bearings, center slotted N52H curved arc magnets.

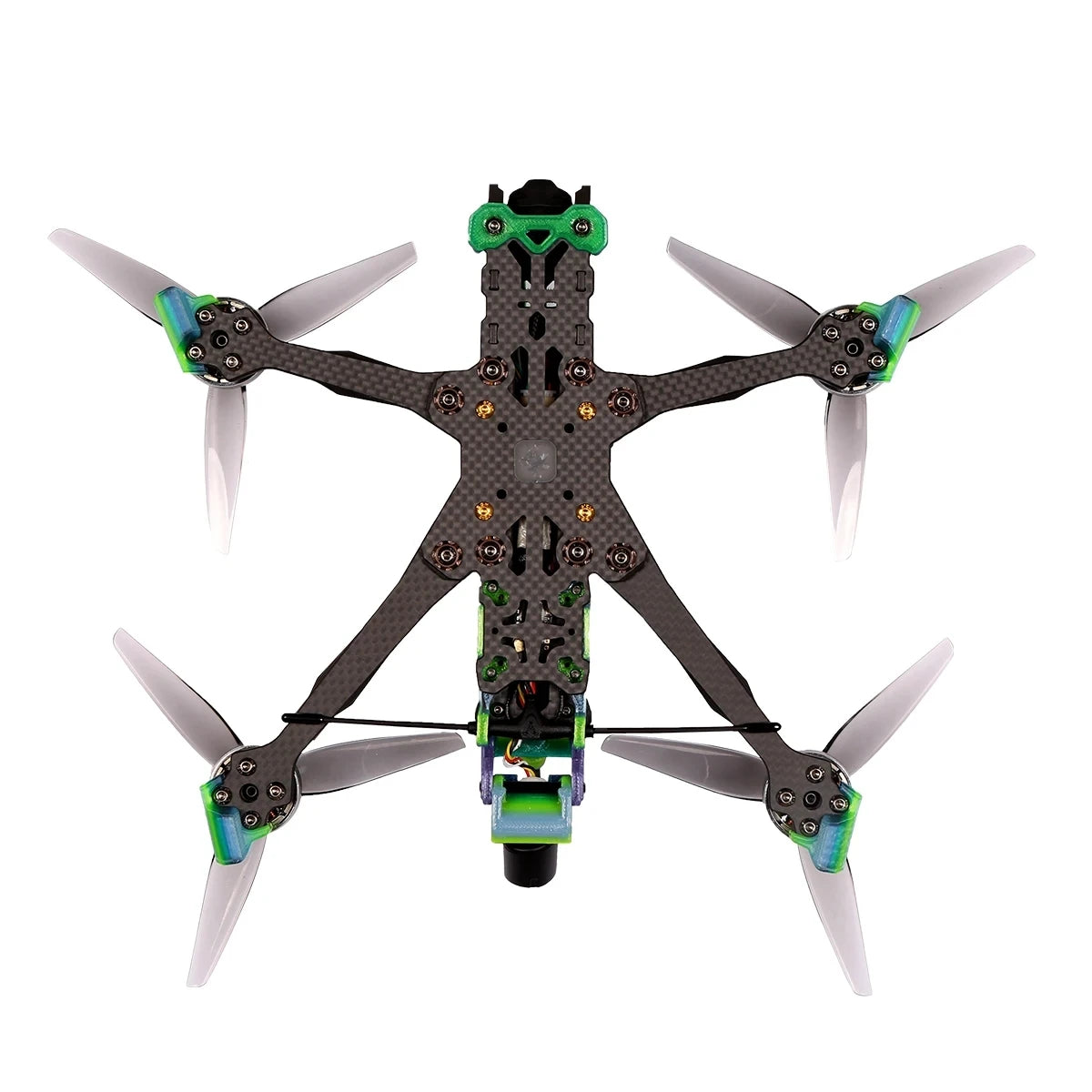

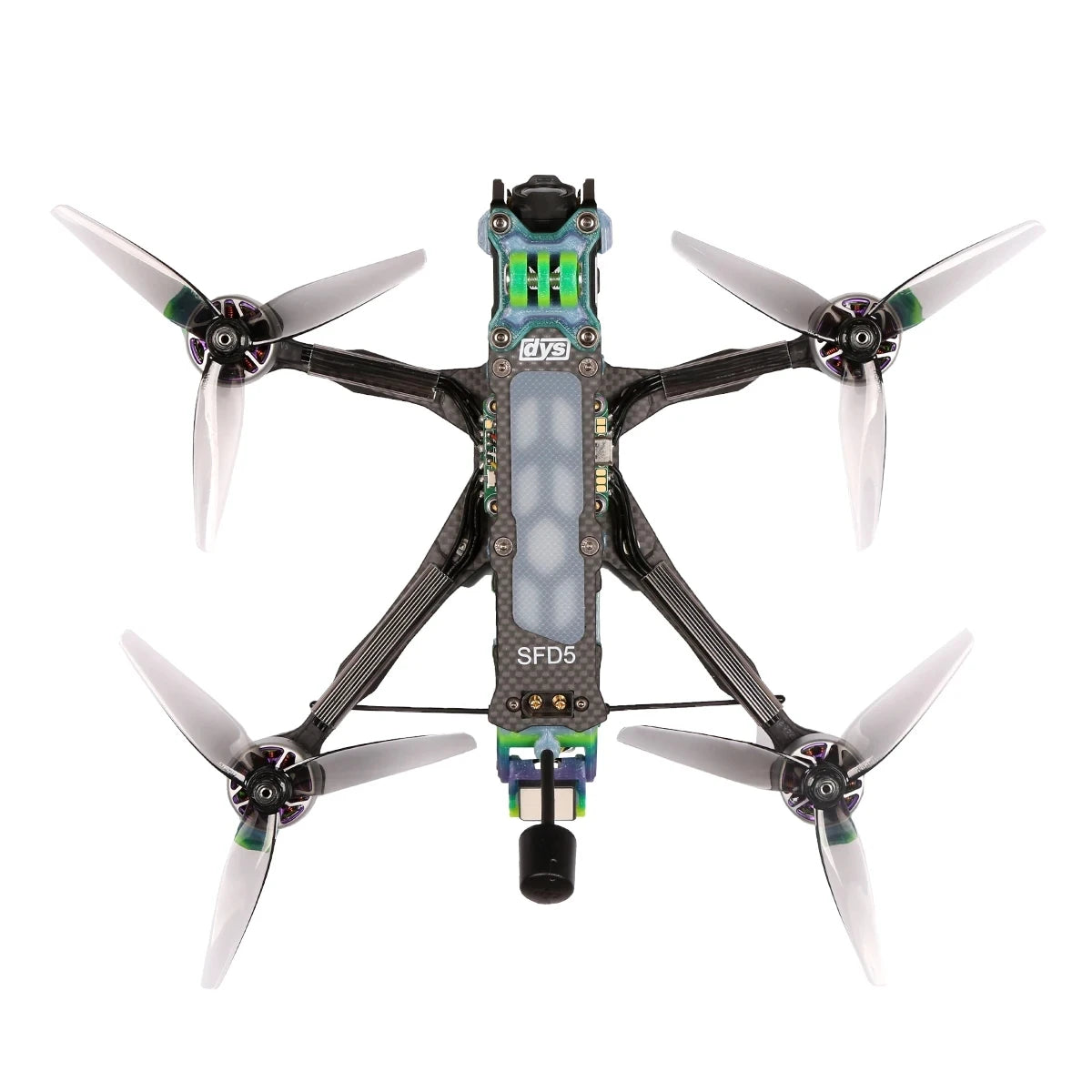

Latest SFX5 / SFD5 Frame for Maximum Protection

DJI O3 HD Air Unit Low-Latency digital transmission

Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Specially Designed Heatsink for DJI O3 HD Air Unit

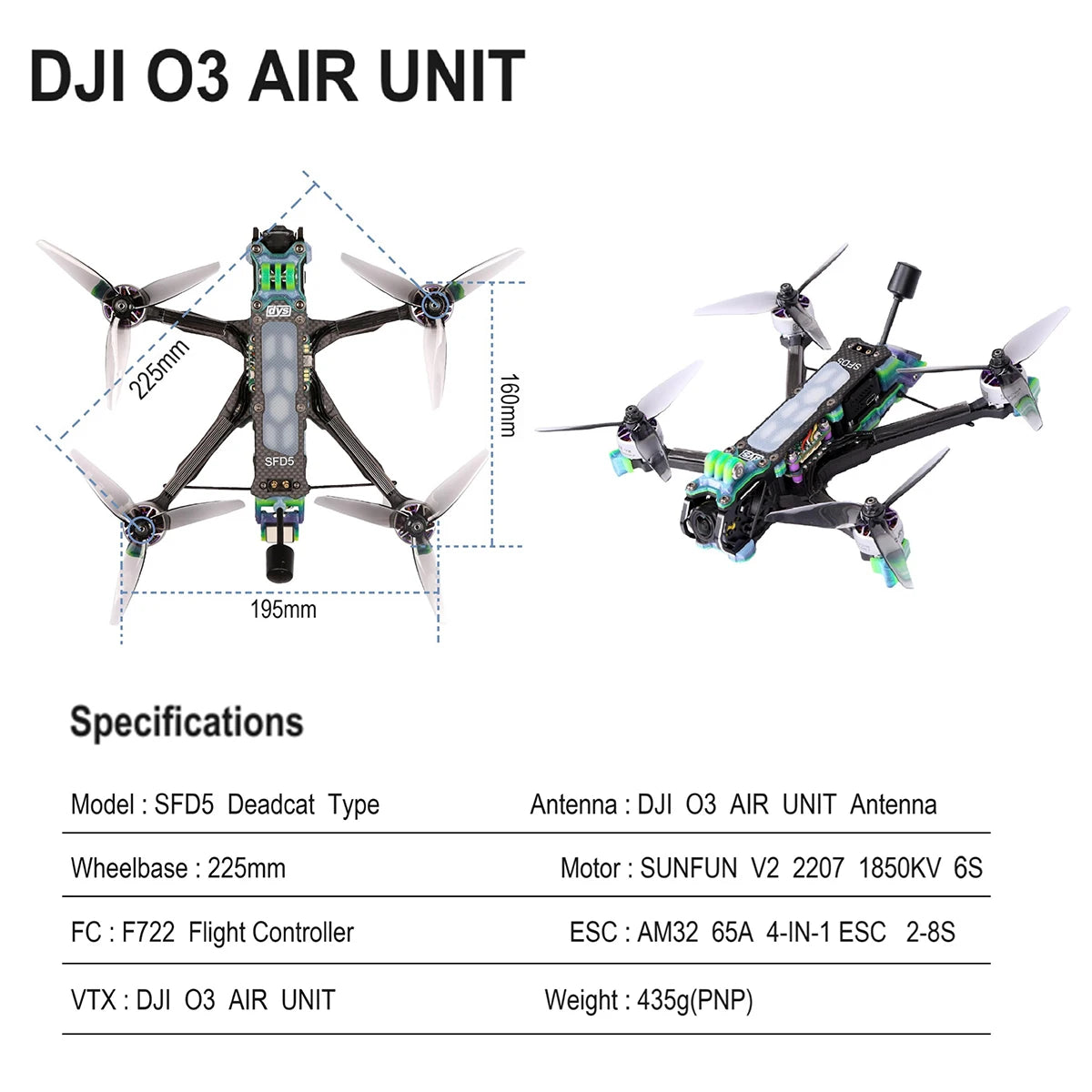

Specifications

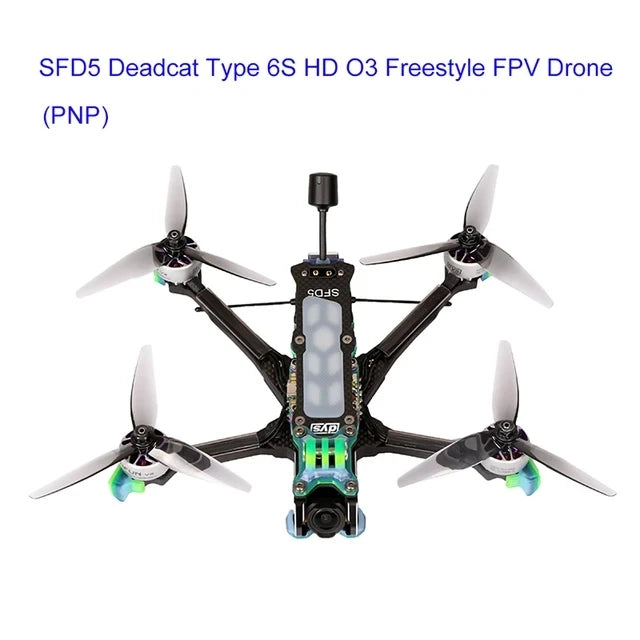

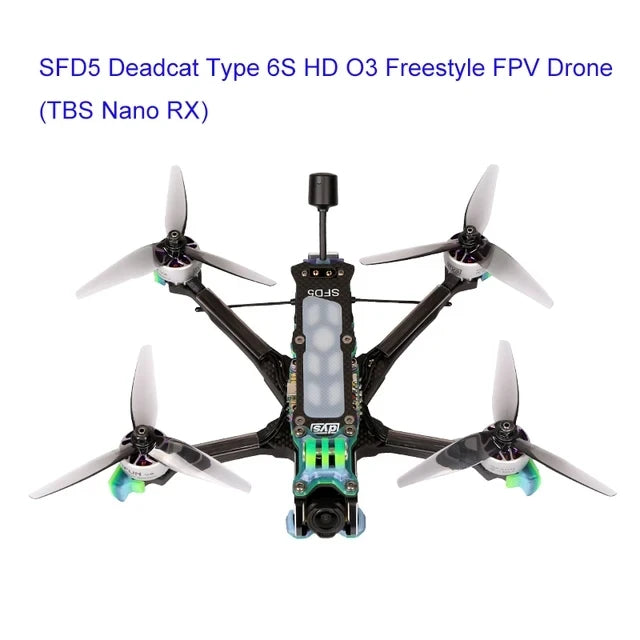

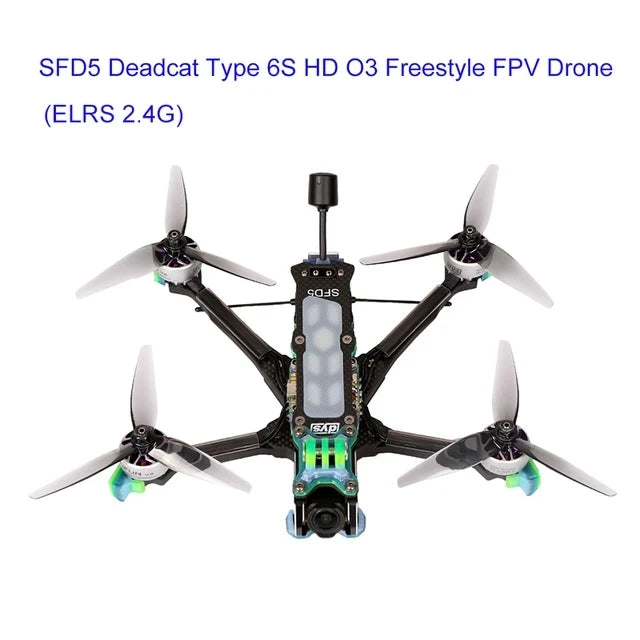

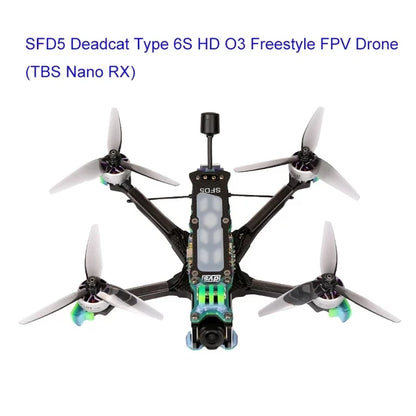

Product Name: SFX5 X Type / SFD5 Deadcat Type
FC: F722 Flight Controller
ESC: 4-IN-1 2-8S AM32 65A ESC
Video Transmission: DJI O3 Air Unit
Frame wheelbase: 225mm (Squashed X) / 225 mm (DeadCat)
Motor: SUNFUN V2 2207 motors
Prop: 5 inch propellers
Weight: 425/435grams
Takeoff Weight: Approx. 610 g
Diagonal Distance: 225 mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: 100 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS+Galileo

Video Transmission System
Product Name: DJI O3 Air Unit
Weight: Approx. 290 grams（headband included）
Dimensions (L×W×H): L167 * W1039 * H 813mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm
Diopter Adjustment Range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Max Video Transmission Bitrate : 50 Mbps
Operating Temperature Range: 0° to 40° C (32° to 104° F)
Power Input: 7-9 V (1.5 A)

Includes
1 x SFX5 X Type or SFD5 Deadcat Type
1 x Battery pad
2 x propeller pairs
2 x Battery strap
