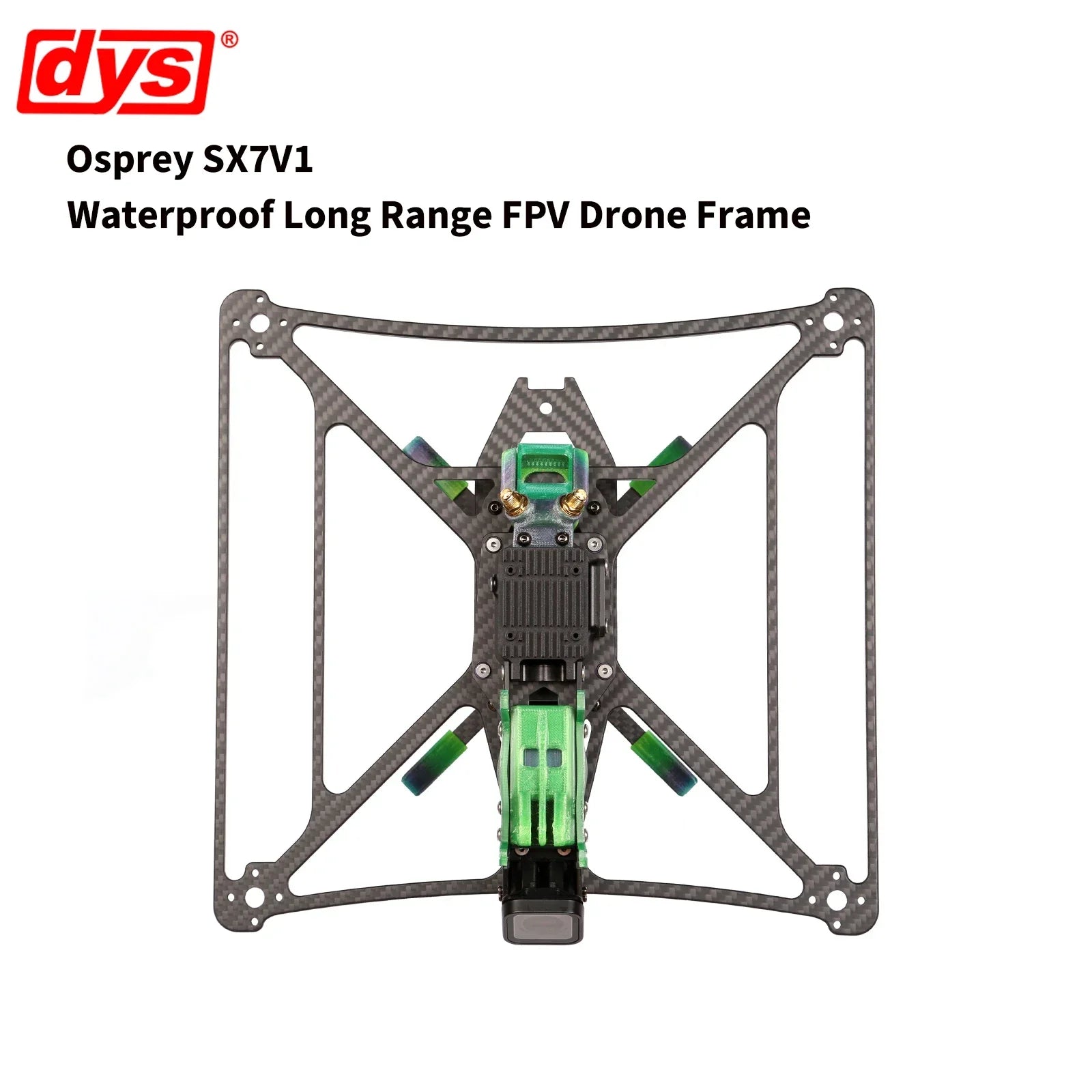

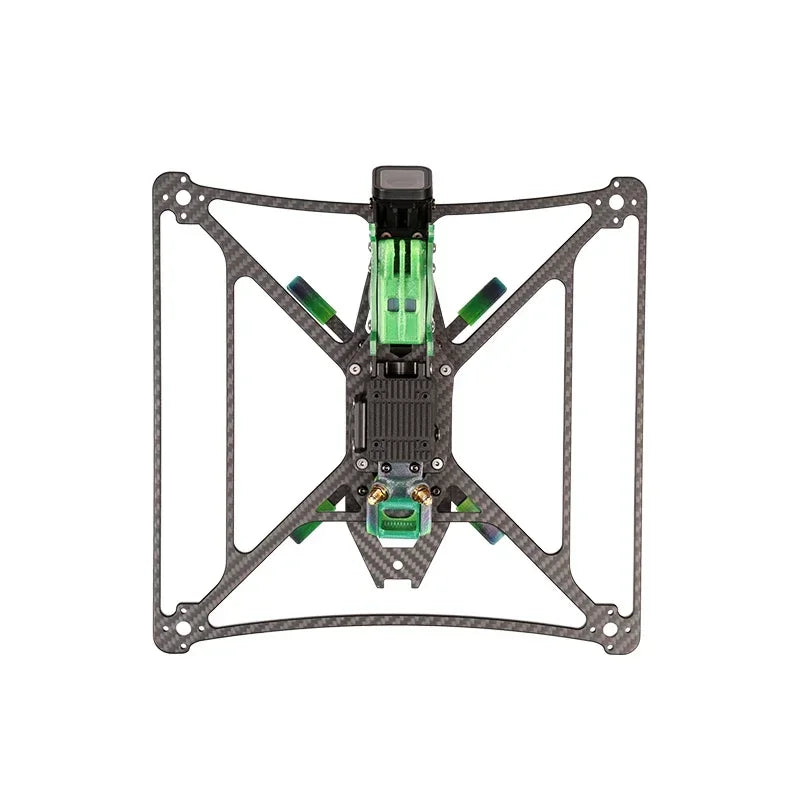

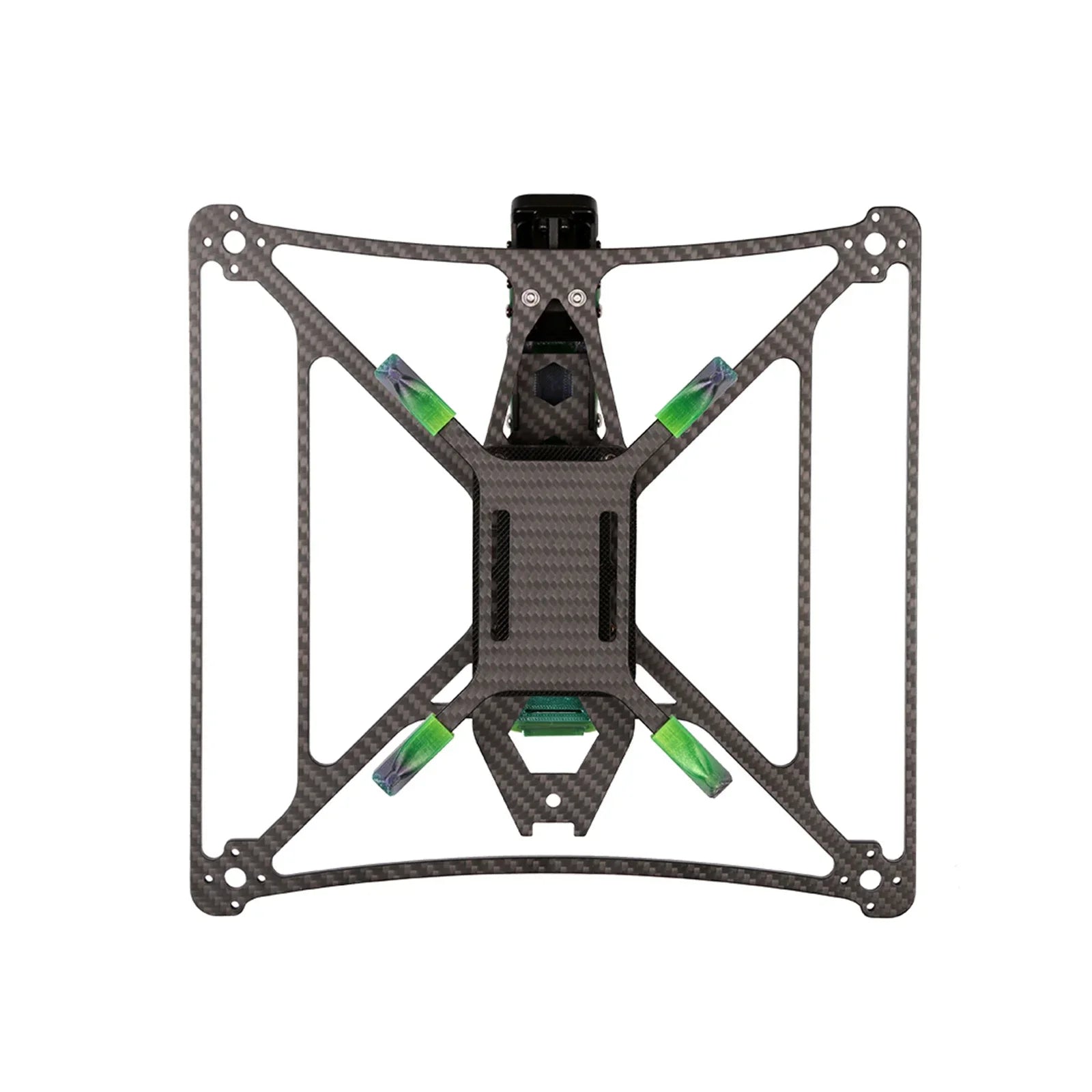

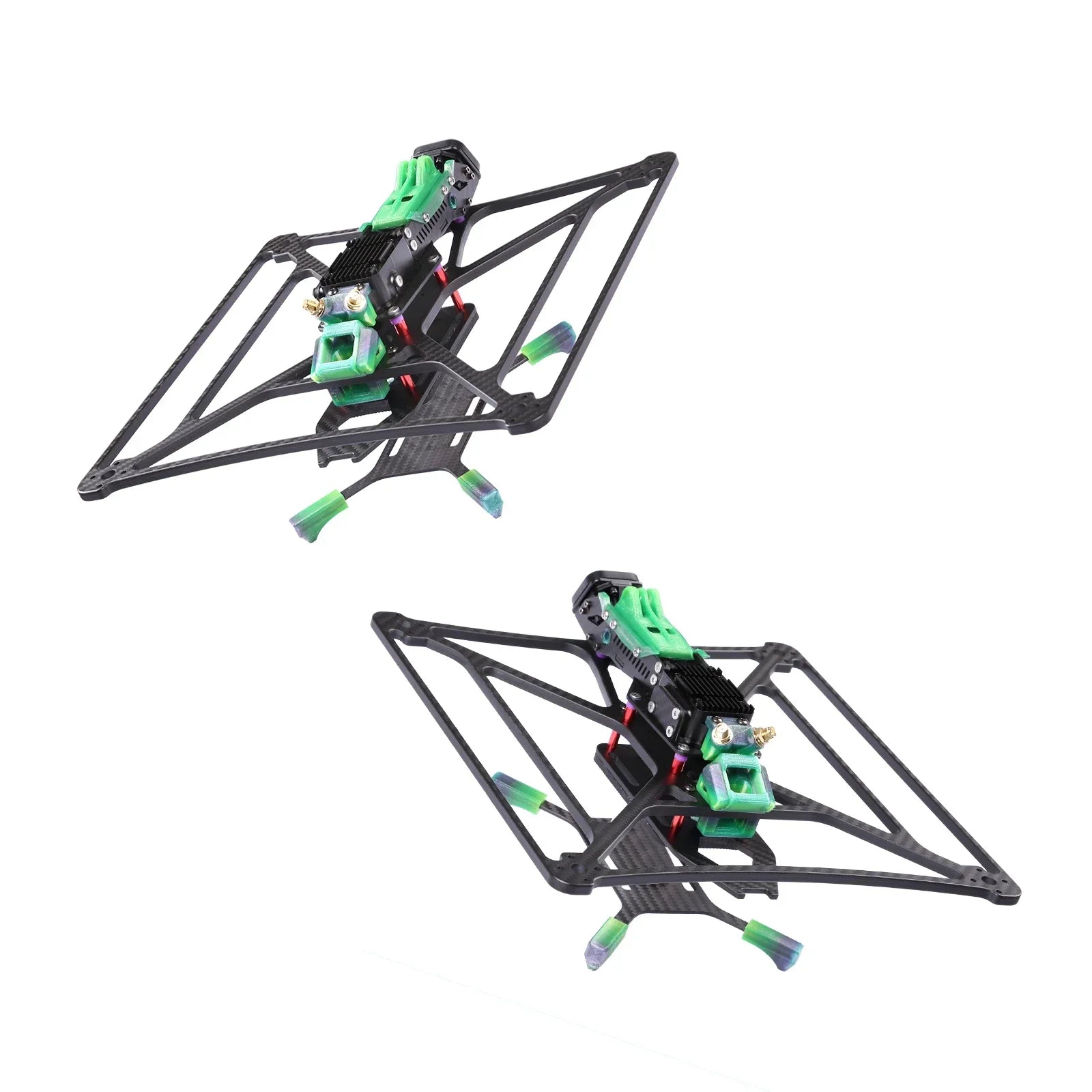

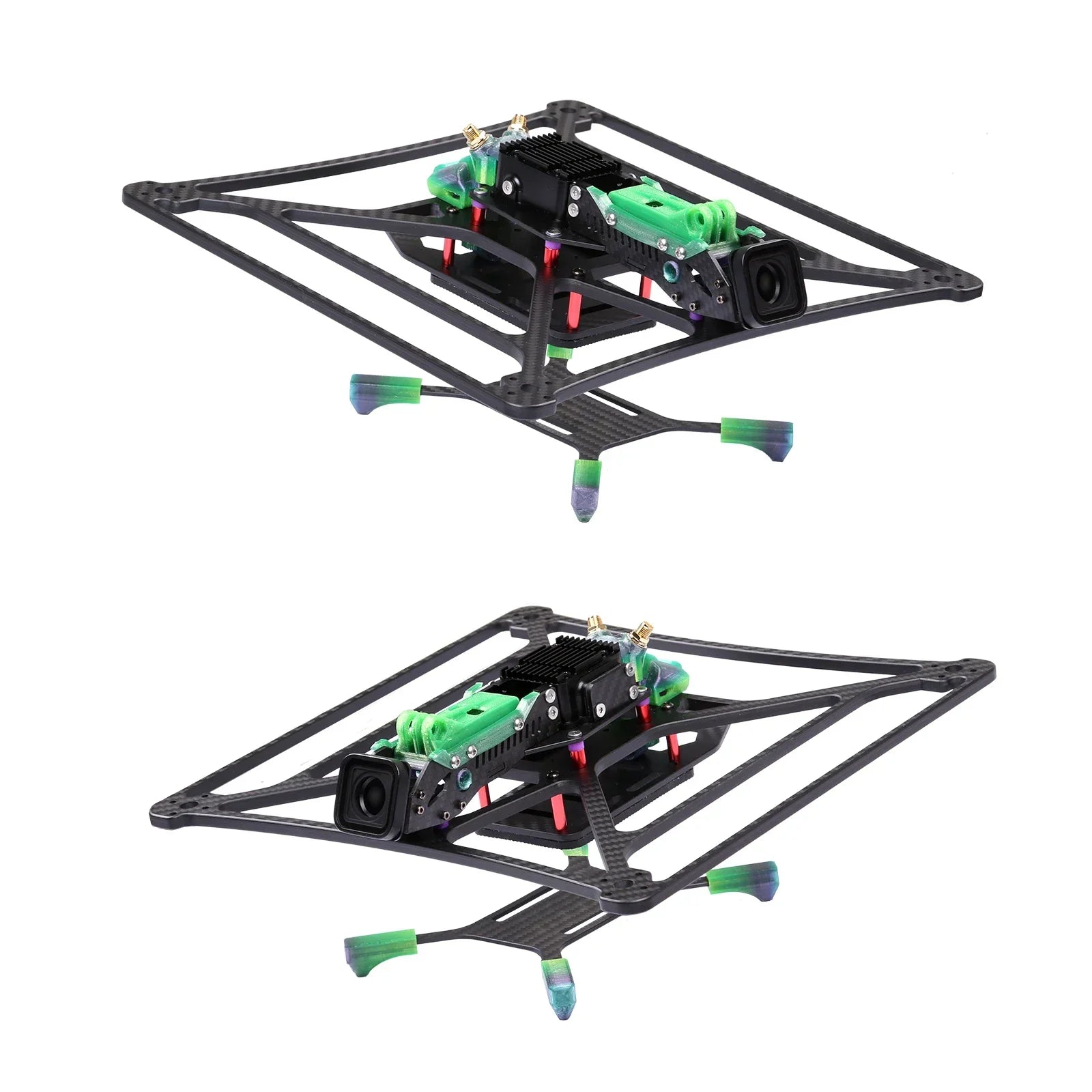

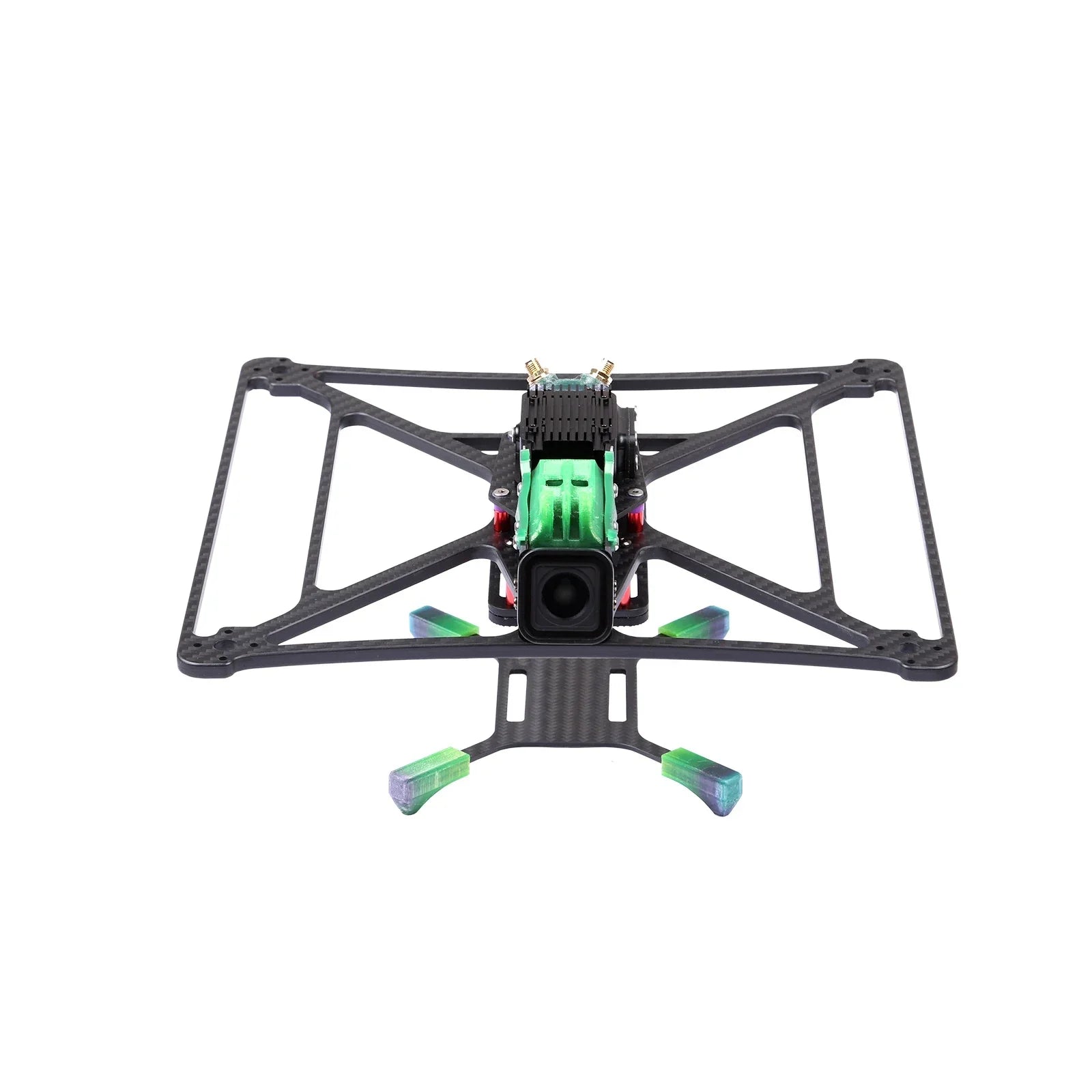

DYS Osprey SX7V1 Waterproof Long Range FPV Drone Frame works with HD O3

Description:
DYS Osprey SX7V1 is a type drone with 7 inch waterproof longrange frame, made in super-stiff carbon fibre for minimum resonance, and recommended 2807 motors for maximum 7" prop control.
The most advantage is excellent IP67 waterproof rating, enables users to capture stunning moments in water environments, including seawater, with complete peace of mind.
Fly bigger batteries bottom-mounted, 6 cells or 5 cells recommended for slow cruising. Whatever style you fly, a Lipo or Lion pack will do the job.

Optional Parts(excluded in the frame kit)
FC and ESC:DYS F722+65A 30.5x30.5mm
Brushless Motor:DYS X2807 1300kv 6S motor
Propeller:2 pairs of 7" 3-blade propellers with 5mm hole
VTX and Camera:DJI O3 Air Unit
Li-ion Battery:ZOP Power 22.2V 3000-6000mAh 75C-100C 6S li-ion battery XT60 connector

SX7V1 Edition
Wheelbase: 327mm
Weight: 380g(include TPU part)
Dimention: 255x262mm

Propeller Size: Recommended 7"
Stack Mount Hole:30.5mm*30.5mm(M3)
VTX Mount Hole:25.5mm*25.5mm(M1.6)

Specifications
Product name:Osprey SX7V1 Frame Kit
Wheelbase:327mm
Frame Dimention:L255*W262*H90mm
Frame Body Dimention:34mm
Arm Thickness:6mm
Bottom Plate Thickness:3mm
Top Plate Thickness:2mm
Upper Plate Thickness:2mm
Camera Plate Thickness:2mm
Motor Mounting:19x19mm
VTX Mounting:25*25φmm
Weight:332g(exclude TPU part)
Note: Due to the manufacturing processes, the thickness of our products many have a standard manufacturing tolerance of ±0.2mm. The size of the holes may have a standard manufacturing tolerance of ±0.1mm.

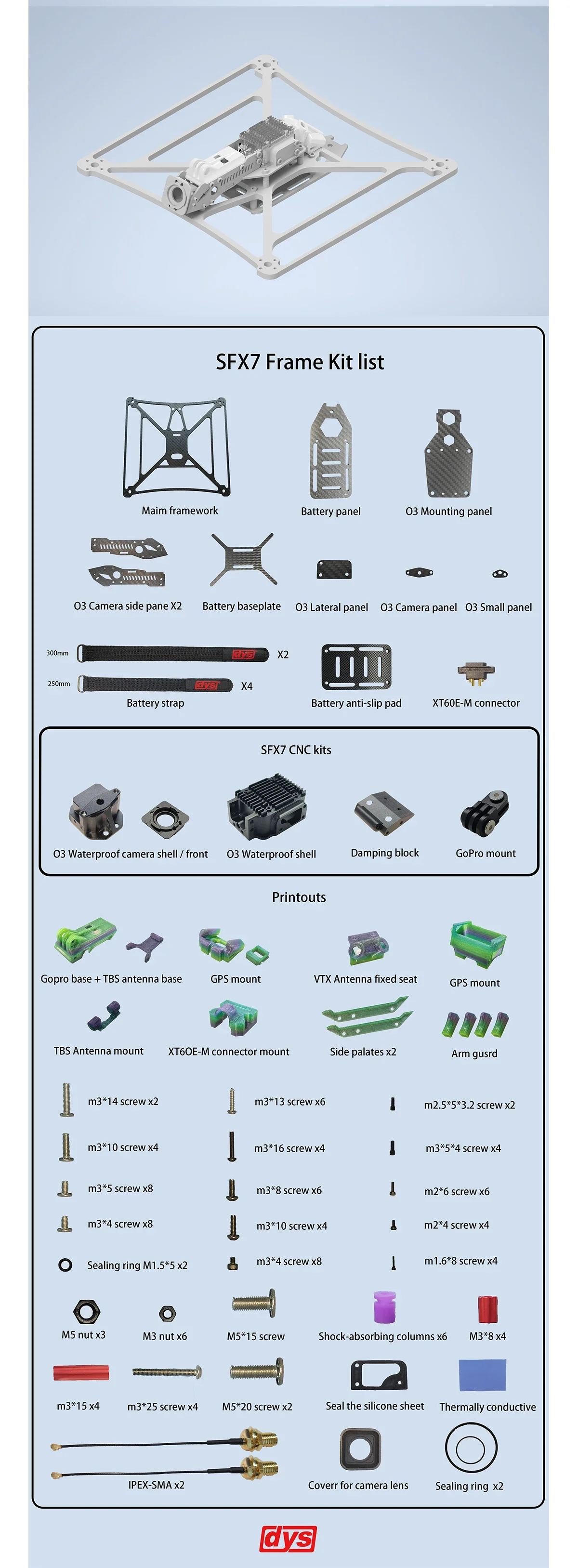

Packing List

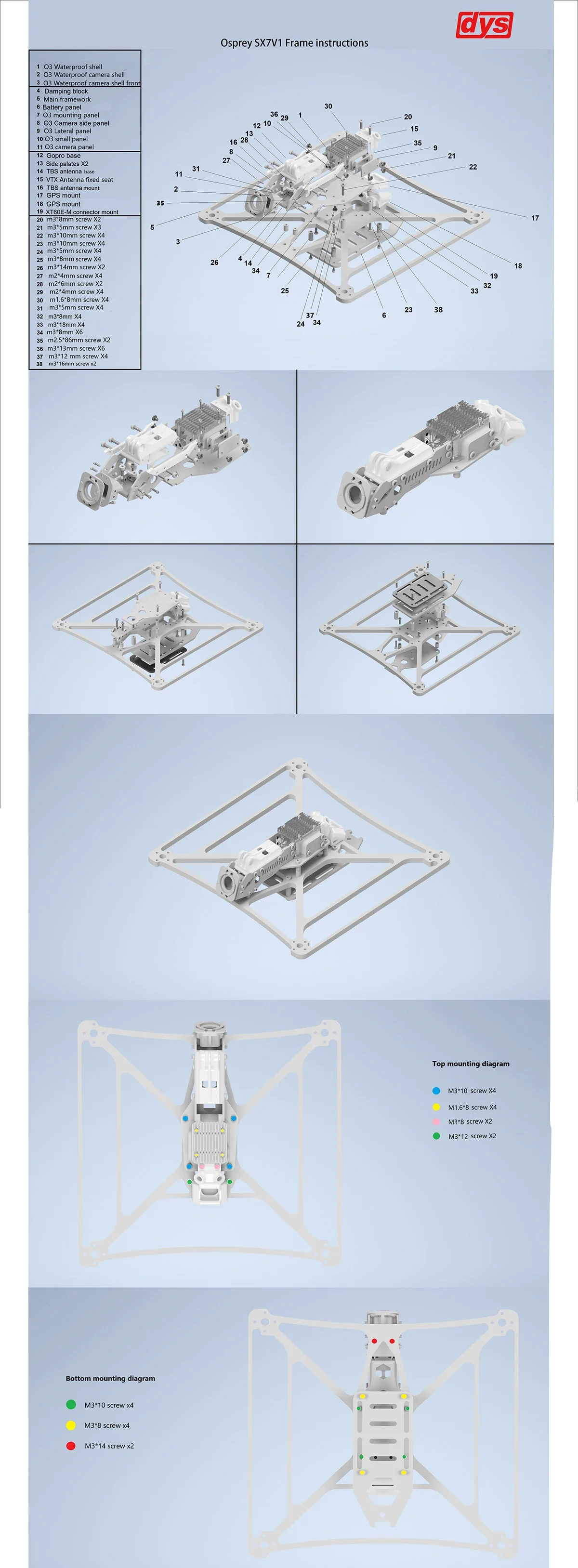

Osprey SX7V1 Frame Manual
1x Osprey SX7V1 Main Frame
1x Osprey SX7V1 Frame Kit (8PCS)
1x O3 Air Unit Waterproof Heat Sink CNC Kit(5PCS)
1x TPU Print Kit (14PCS)
1x Screw, Spare Parts Bag(23PCS)
1x L-type Hexagonal Spanner(4PCS)
2x Battery Strap(20*300mm)
4x Battery Strap(20*250mm)
