Features:
1. Use high-quality materials with guaranteed product quality
2. Exquisite and compact appearance, with beautiful arrangement of components
3. Stable performance, receiving sensitivity -105dbm
4. Easy to use, jog/self-locking/interlock can be freely set
5. Wide application range, suitable for various industrial DIY occasions

Parameter:
Working voltage: 12V
Standby current: 8mA
Working frequency: 433Mhz
Encoding types: fixed code, learning code
Receiving sensitivity: -105dbm
Output: 1 passive switch quantity (dry contact, jog/self-locking/interlock can be set by oneself)
Load recommendation: 10A relay (leave some margin during use). It is recommended that the load be less than 90w, the inductive load be less than 50w, and it is not suitable for frequent start stop
Output method: Electric shock output (can control AC and DC)

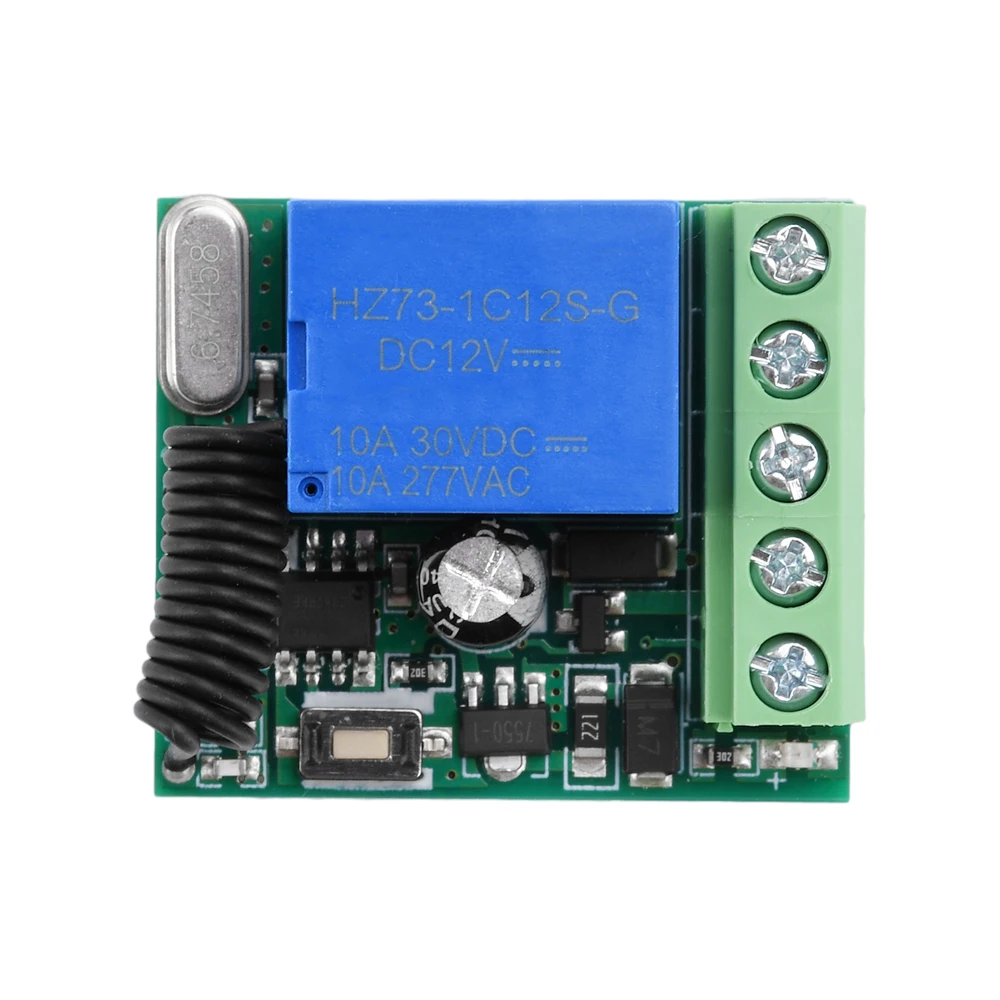

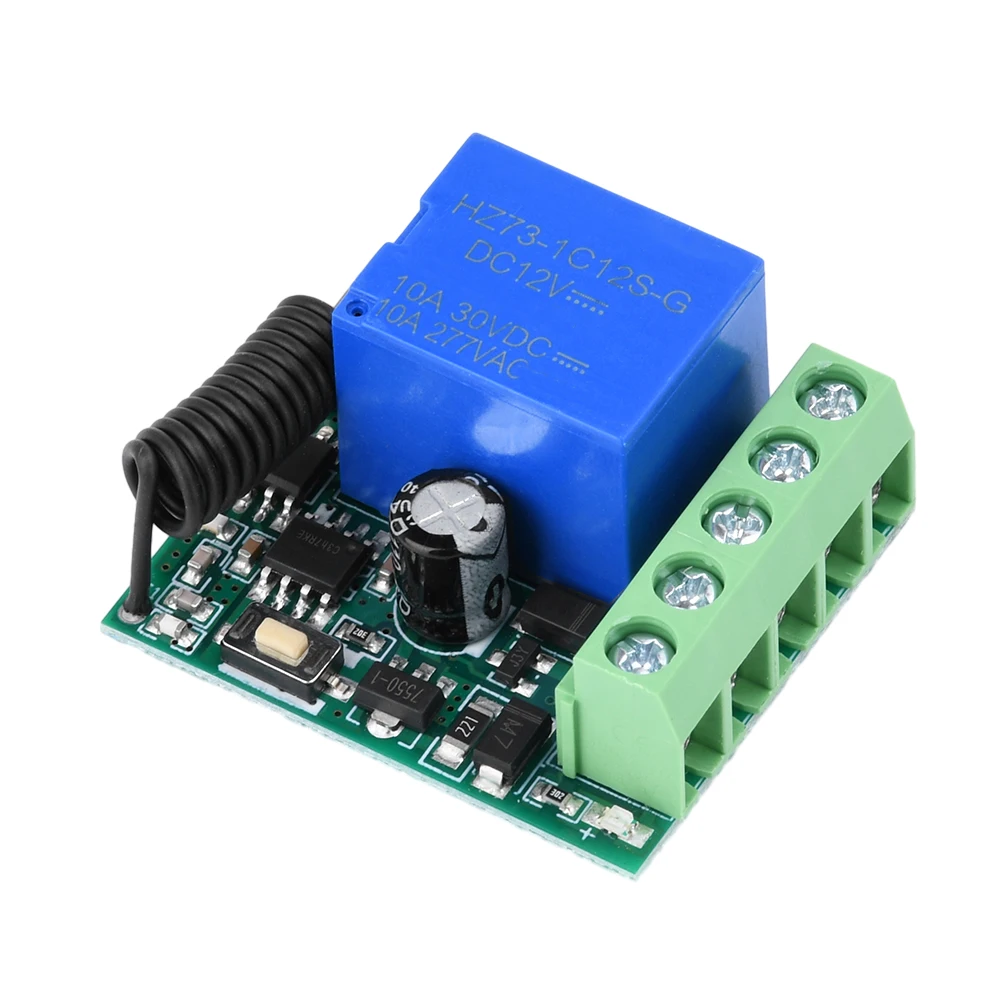

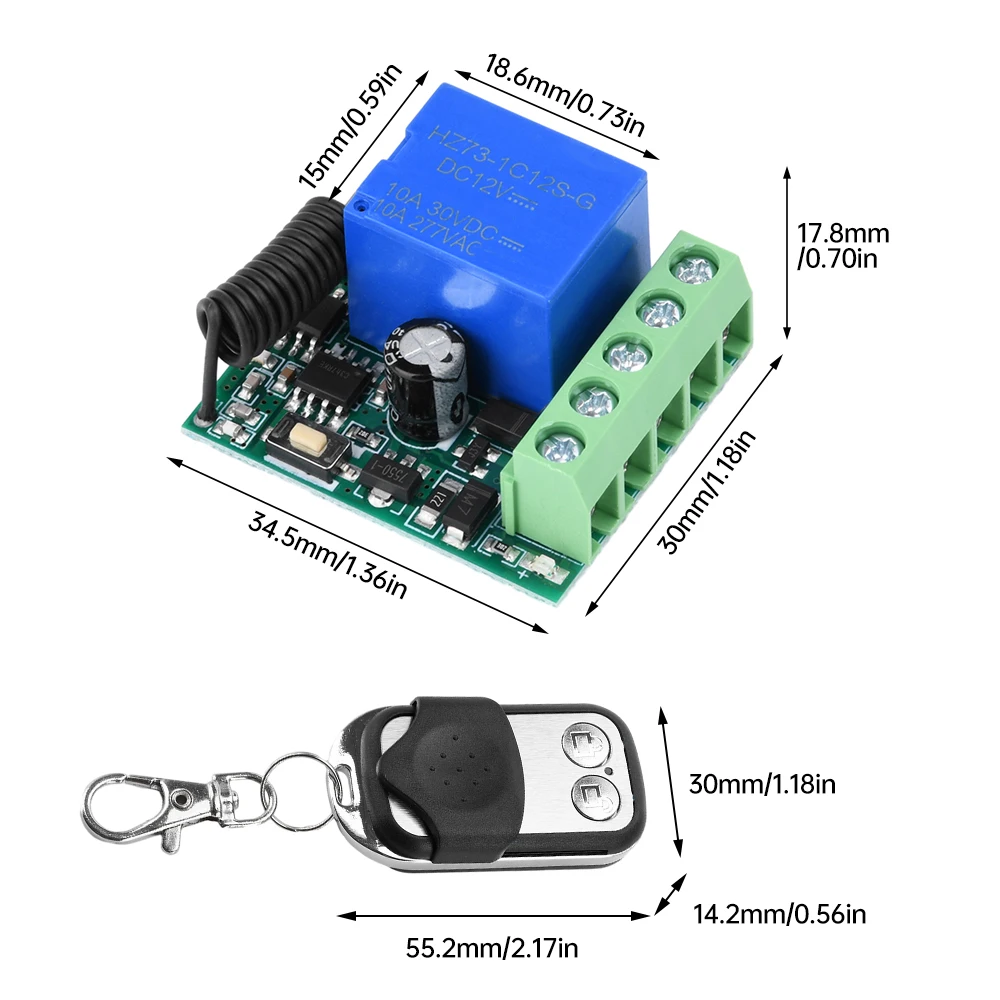

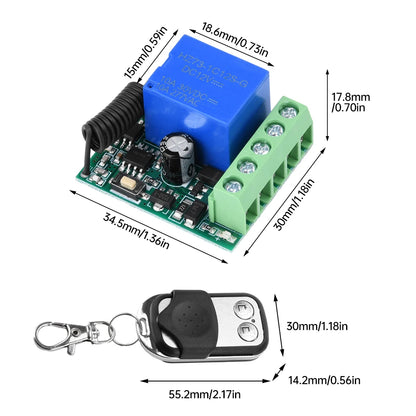

Circuit board size: 34 * 31 * 16MM
Shell size: 42 * 39 * 26MM

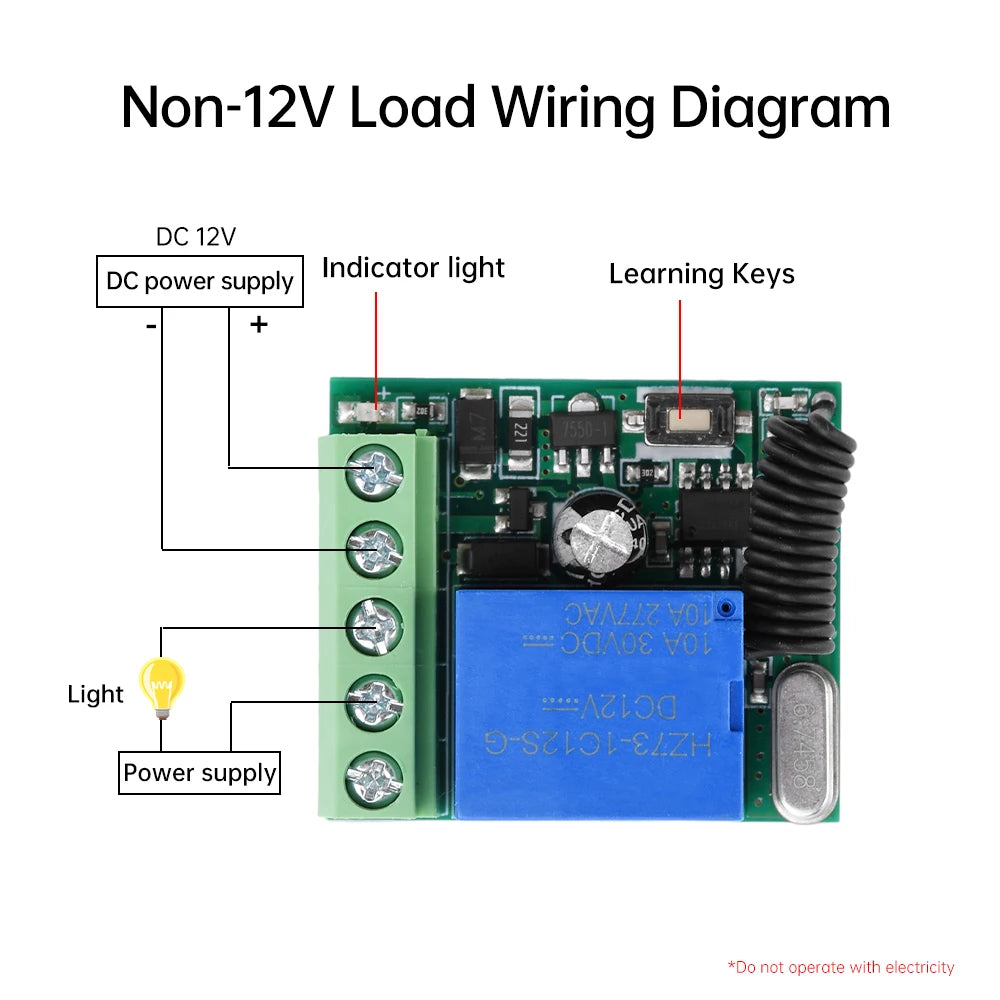

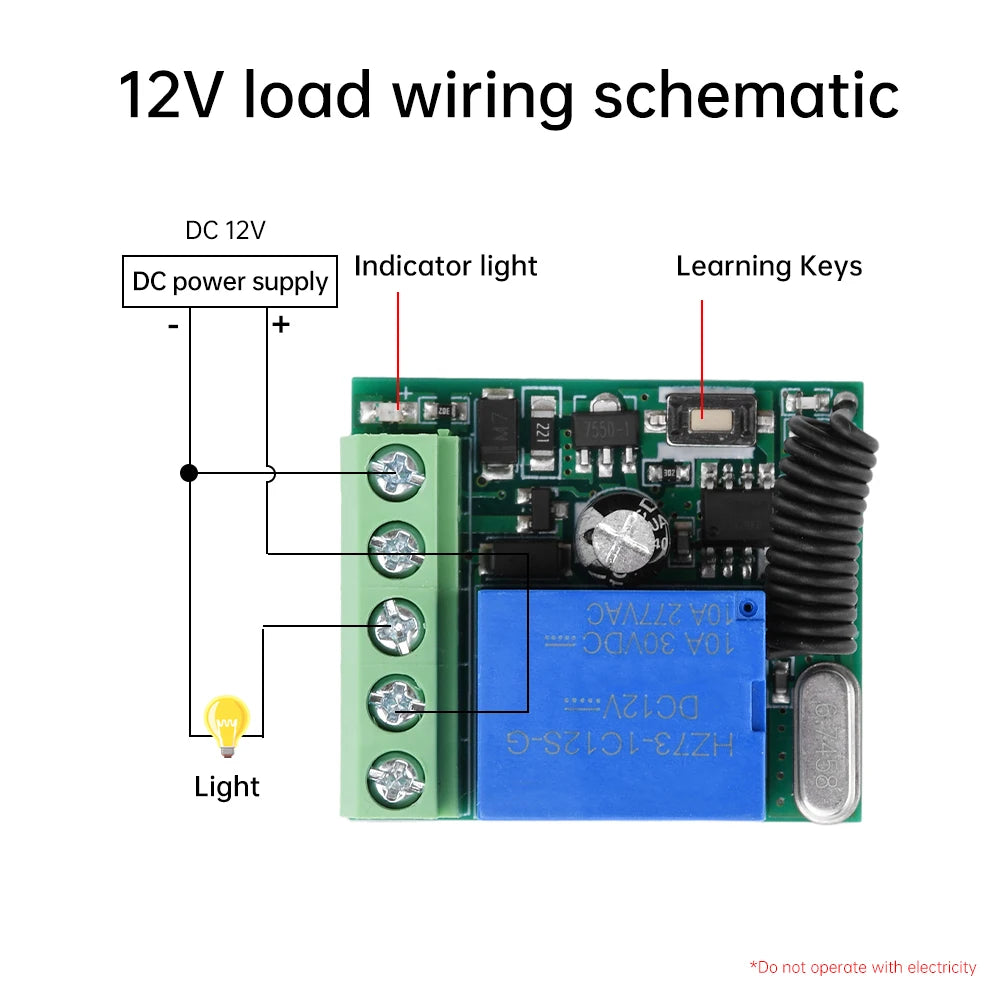

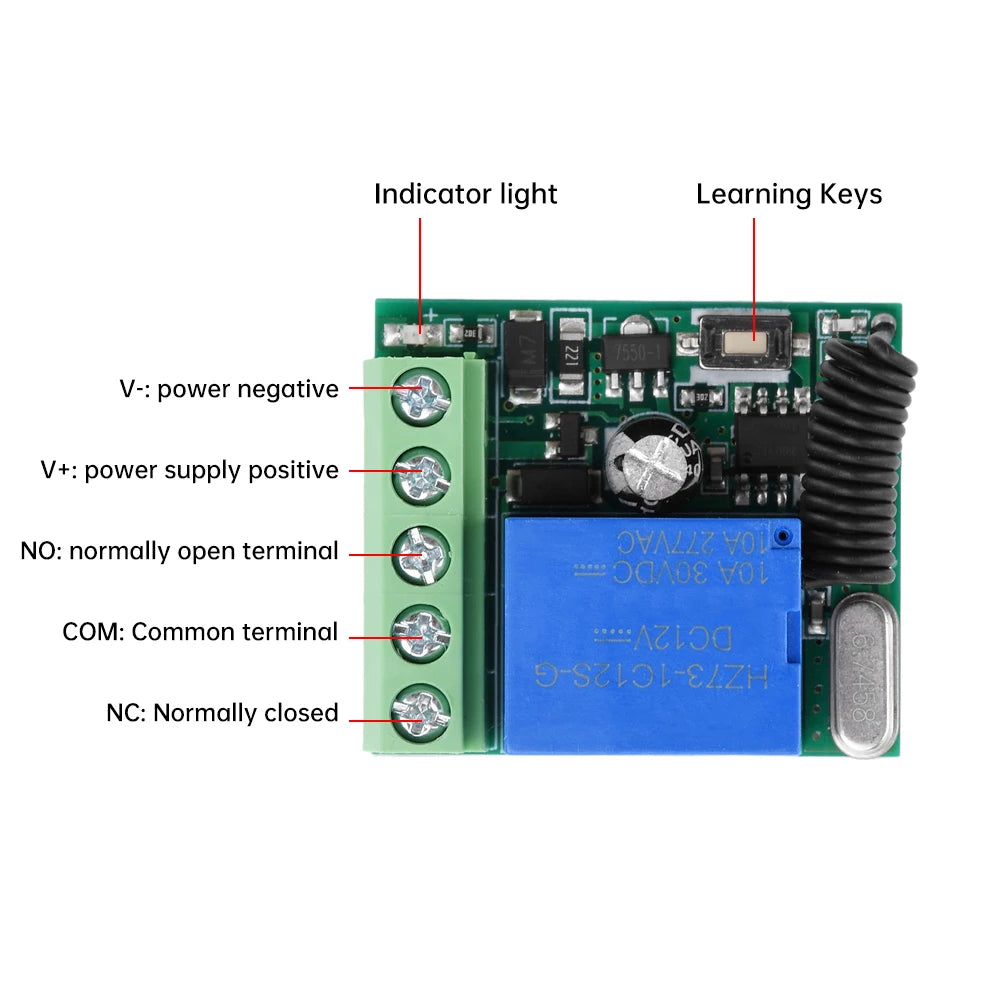

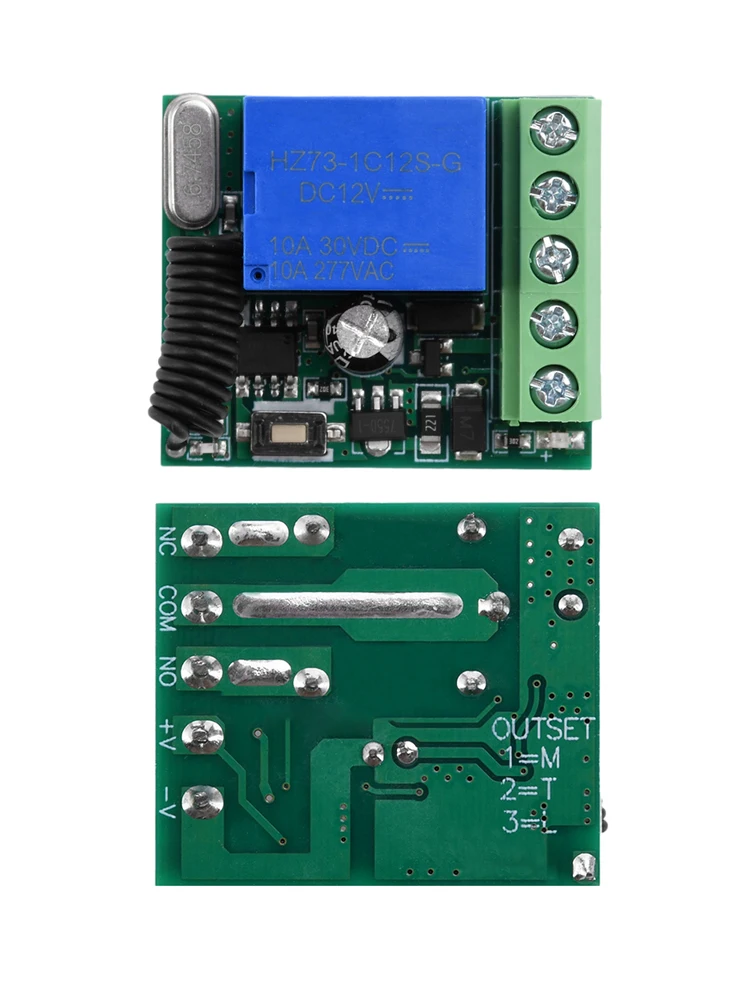

Interface Description:
1. +V: Input 12V power supply positive pole;
2. - V: Input 12V power supply negative pole;
3. NO: Output terminal; The beginning of relays;
4. COM: output terminal; Relay common terminal:
5. NC: output terminal; The normally closed end of the relay;

Explanation of working mode
1. Jog mode: Press the remote control relay to engage, release the remote control relay to disconnect.
2. Self locking mode: Press the remote control relay once to engage, then press the remote control again to disconnect the relay.
3. Interlocking mode: Press button A on the remote control to activate the relay, and press button B on the remote control to disconnect it.
4. Delay mode: Press the remote control relay to engage, release the remote control and start timing. After 5 seconds, 10 seconds, and 15 seconds (3rd gear), the relay will automatically turn off.

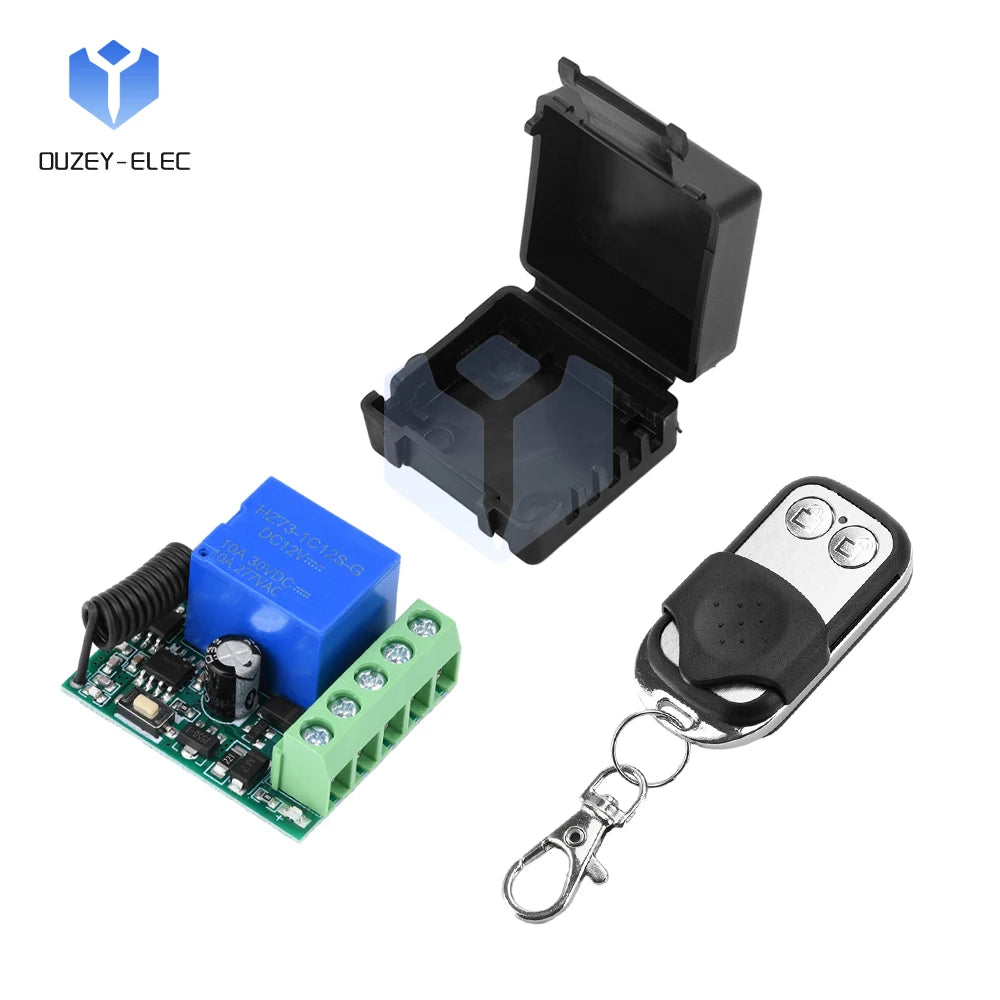

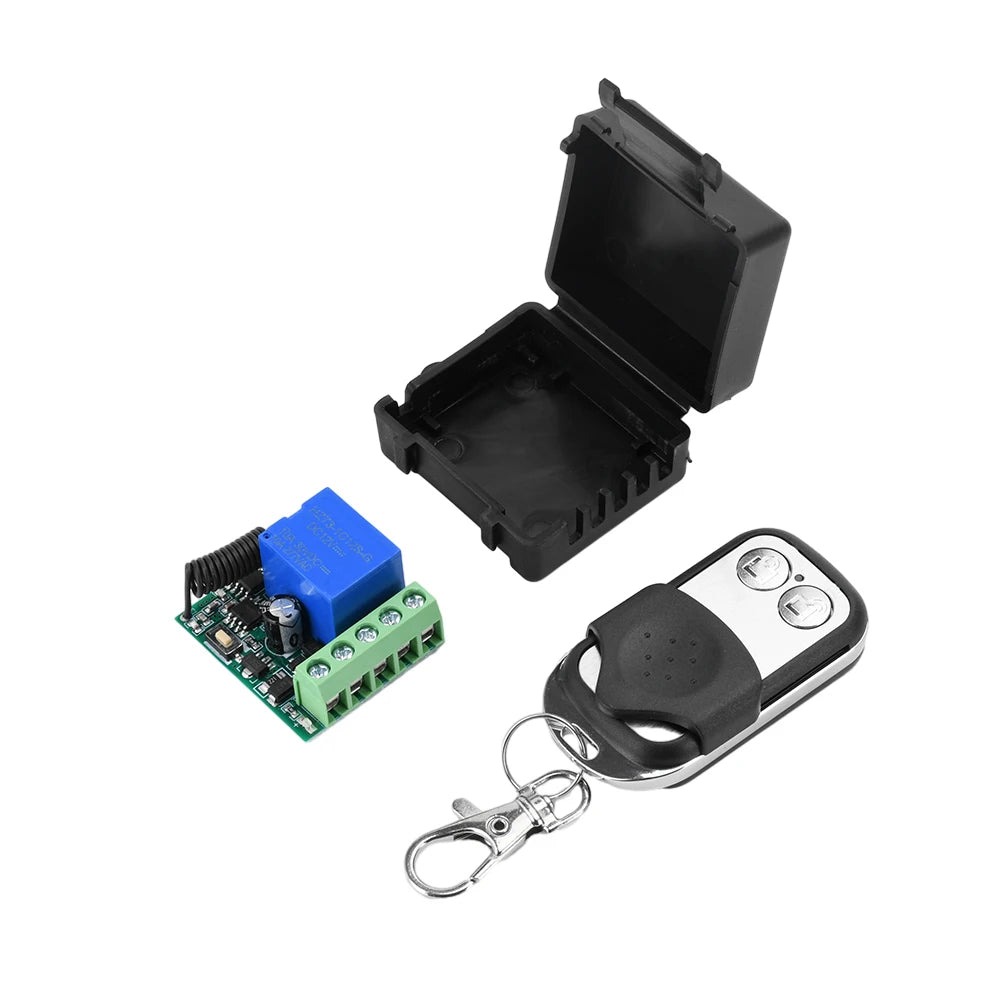

Package include:
1X receiver

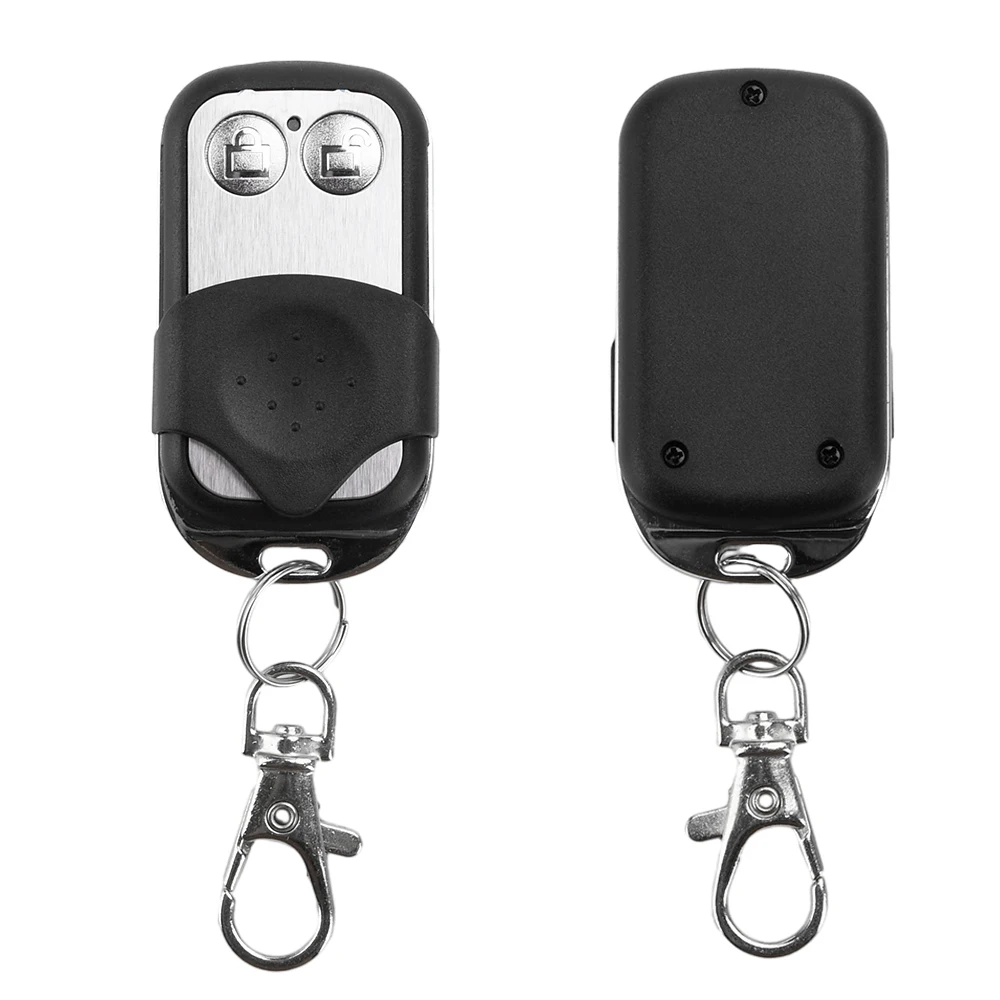

1X remote control (built-in battery)
