DarwinFPV Baby Ape Pro V2 142mm 3 Inch 2-3S FPV Racing RC Drone ELRS with 1104 4300KV Motor CADDX ANT 1200TVL Camera

$258.82

~~$271.76~~ $258.82

Sale Sold out

Shipping calculated at checkout.

Color Yellow Purple Black

SPECIFICATIONS

Brand Name: EACHINE

Control Channels: 2 CHANNELS

Flight Time: 5~10

Transit Time (Days): As Shown

Controller Mode: MODE2

Controller Mode: MODE1

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Drone Weight: As Shown

Anti-wind Ability: As Shown

Package Includes: Original Box

Remote Control: No

Features: other

Indoor/Outdoor Use: Indoor-Outdoor

Video Capture Resolution: other

Camera Mount Type: other

Takeoff Weight: As Shown

Origin: Mainland China

Type: Airplane

Dimensions: 11cm-30cm

Recommend Age: 14+y

Remote Distance: As Shown

Plugs Type: As Shown

State of Assembly: Almost Ready

Charging Voltage: As Shown

Charging Time: As Shown

Model Number: Baby Ape Pro V2 ( ELRS Version )

Controller Battery: Not Included

Introduction:

Darwin Baby Ape has been loved by many pilots as soon as it was published. In order to design a better FPV drone, we upgraded the Baby Ape based on the pilots' feedback and launched the BabyApe Pro V2. Now add the ELRS Receiver version for the option.

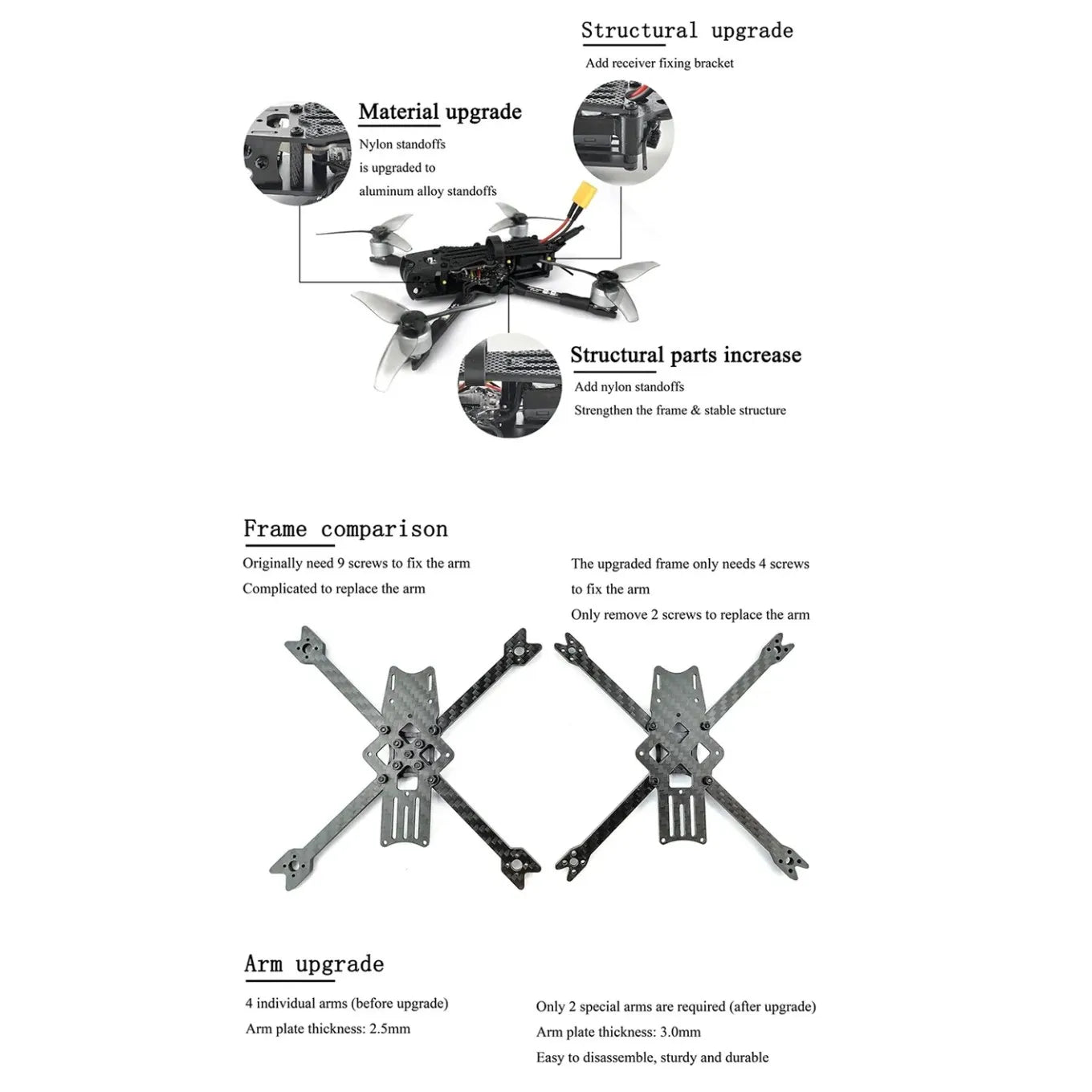

We made several upgrades to the frame. First of all, nylon standoffs are upgraded to aluminum alloy standoffs, which strengthens the frame and stable structure.

Second, We added the receiver fixing bracket.

Third, we upgraded the arms. The arms are upgraded from 4 individual arms(2.5mm thickness) to 2 integrated arms(3.0mm thickness). It is more easy to disassemble, sturdy, and durable.

Last, the V2 version only needs 4 screws to fix, and the arm can be replaced by removing 2 screws without removing the whole drone.

Specification:

Brand: Darwinfpv

Model: Baby Ape Pro V2 ( ELRS Version )

Color: Yellow/Black/Purple ( Optional)

Item Name: 142mm Wheelbase 3 Inch 2-3S FPV Racing Drone BNF

Receiver: ELRS 2.4G

F411 AIO Flight Controller
Main control chip: STM32F411
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
IMU: MPU6500 (SPI)
Mounting hole distance: 25.5*25.5mm
Supports Betaflight firmware
Onboard 4IN1 15A BL_S ESC
Input voltage: 1-3S LiPo
Continuous current: 15A
Pe ak current:17A (10S)
BEC output: no
Main control chip: EFM8BB21
Firmware upgrade: Supports Dshot600/Oneshot125
MOS: 3*3
1104 4300KV 2-3S Brushless Motor
KV: 4300KV
Lipo cell: 2-3S
3016 3-blade propeller
Mounting hole: 1.5mm
Center thickness: 5.5mm
Quantity: 2 pairs
Weight: 1.18g a pair
5.8G 40CH 0mW/25mw/200mw switchable VTX
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (Ipex antenna)
CADDX ANT Camera
Resolution:1200TVL
mage Sensor: 1/3" CMOS Sensor
Input: DC 3.7-18V
TV System: PAL/NTSC
