SPECIFICATIONS

Brand Name: NoEnName_Null

Type: Other

Origin: Mainland China

Model Number: MC-HD05

After-sale Service: Online technical support

Name: Hemodialysis Machine

maquinas de hemodialisis precios: Good service

hemodialysis machine price: Weight: about 90kg

Hemodialysis Machine: Conductivity:13mS/cm~15.5mS/cm

Power supply voltage: AC220V±10%

Frequency: 50HZ ~ 60 HZ

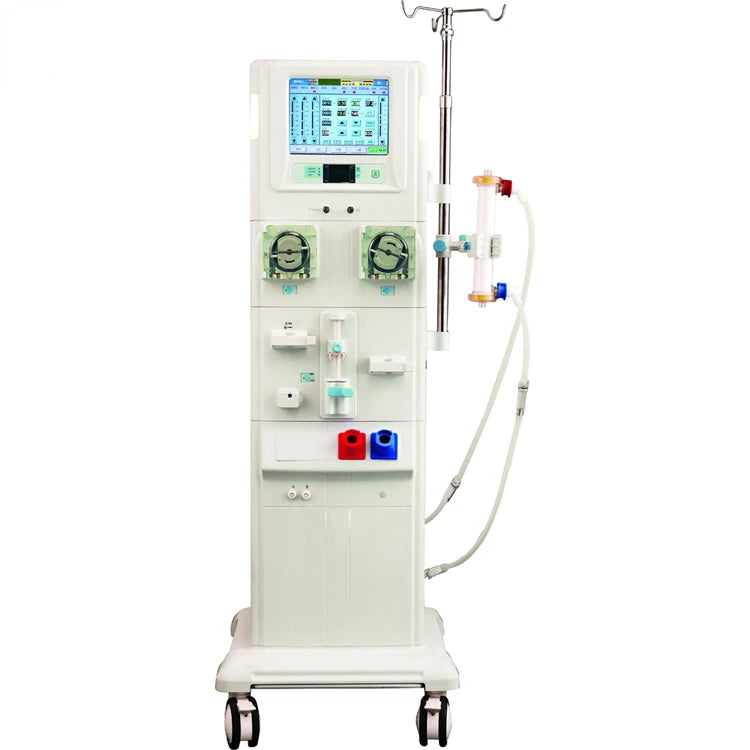

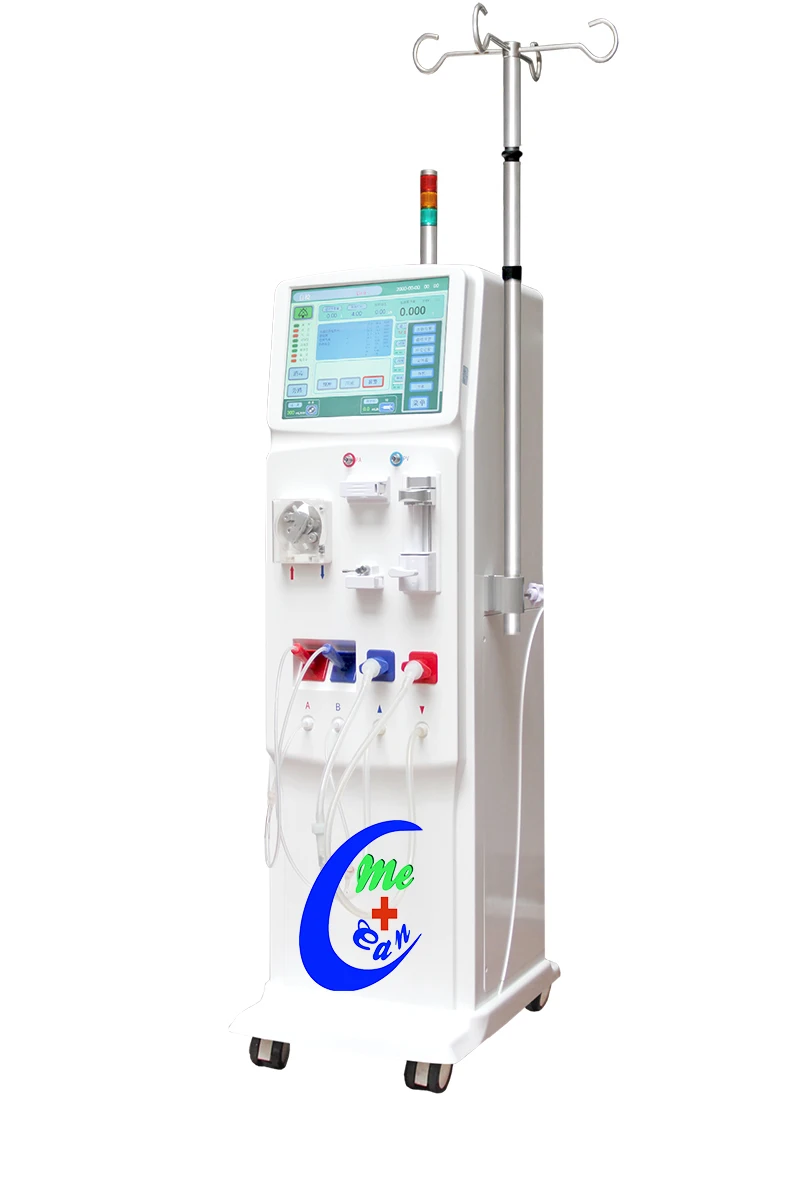

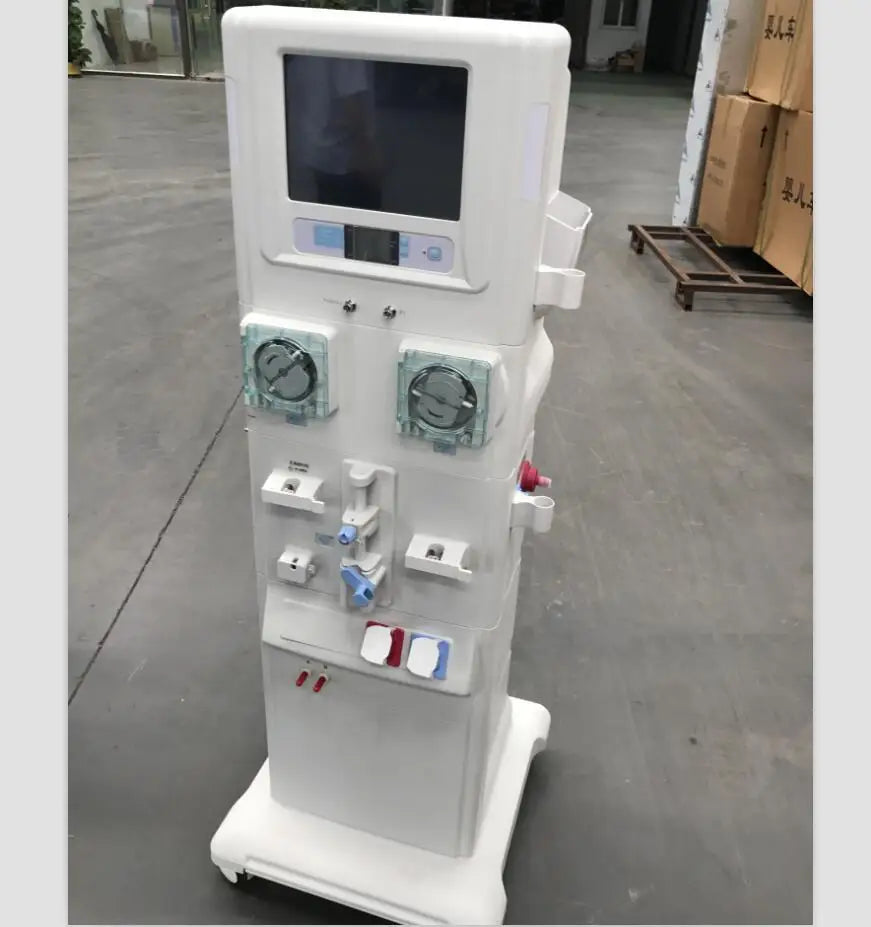

China Hemodialysis Machine Medical Kidney Dialysis Machine Manufacturer



Model : MC-HD05



What is the detail of our hemodialysis machine



Main technical parameter
Volume (length× width ×height):370mm×340mm ×1570mm
Weight: about 90kg
Power supply voltage: AC220V±10%
Frequency: 50HZ ~ 60 HZ
Power: 1500W



Blood pump/spare pump
Flux: 15 ~ 340ml/min (D 6mm)
20 ~ 460 ml/min (D 8mm)
Heparin pump:
Flux: 0.1ml/h~10ml/h(±5%)
Precise: 0.1ml/h
Injector size: 20ml/30ml/50ml 10ml/20ml/30ml (selectable)







Arterial pressure
display scope:-300mmHg~+300mmHg (±10mmHg)
Venous pressure
display scope:-50mmHg~+300mmHg (±10mmHg)
Dialysate flow:300ml/min~800ml/min linearity adjustable(+10%)(-5%)
Temperature:35.0℃~39.0℃
Resolving rate:0.1℃



Conductivity:13mS/cm~15.5mS/cm(±0.1 mS/cm)
UF flow scope: 0~1800ml/h(±30ml/h )
0~4000ml/h(optional)
ISO UF flow scope:0~2000ml/h(±30ml/h)
TMP
Scope:-100mmHg~+600mmHg (±20mmHg)
Blood leakage monitor: over 1ml blood per liter dialysate (flow:500ml/min)
Blood level monitor: ultrasonic sensor





Air bubble monitor
Infrared and response threshold value:Single air bubble of 200u I exists when Blood flux is 200ml/min
Inflow pressure:0MPa~0.6MPa
Inflow temperature: 5℃~30℃
Environment temperature: 10℃~30℃, Relative humidity≤70%
Rinse/disinfection: chemical disinfection (citric acid,peracetic acid and oxalic acid)
Hot rinse: 80℃
Back-up power supply: last for 15-30min after electric-cut.



Function
Be applicable of hemodialysis treatment,hemoperfusion,Plasma Exchange,Pure ultrafiltration project.
Touch screen was equipped and it can show Naand UF profiles;In addition,the functions ie.backup power supply,Kt/V,HCO3adjustment,single needle,acetate treatment,pyrogen filter port and net connection ect.are optional.







What is the clinical application of our Kidney Dialysis Machine?

Hemodialysis Therapy
Pure ultrafiltration Therapy
Hemoperfusion Therapy
Plasma exchange Therapy
Na+and UF profiling
Be applicable for reducing the cases during dialysis treatment such as low/high pressure,muscle convulsion, headache,nausea,vomit ect.



Kt/V function
The sufficiency of dialysis can be reflected by Kt/V.
HCO3 adjustment function:
Be applicable for sericous acid toxicosis patient.
Be capable to calibrate the acid toxicosis status according to patient's state of illness.
Backup power-supply:
It can last for 15-30 minutes after power cut off.



Pyrogen filter port
Completely filtrating the remained bacteria and endotoxin.(optional)
Net connection
One computer can audit and control the treatment of maximum 20 units hemodialysis machine (optional)

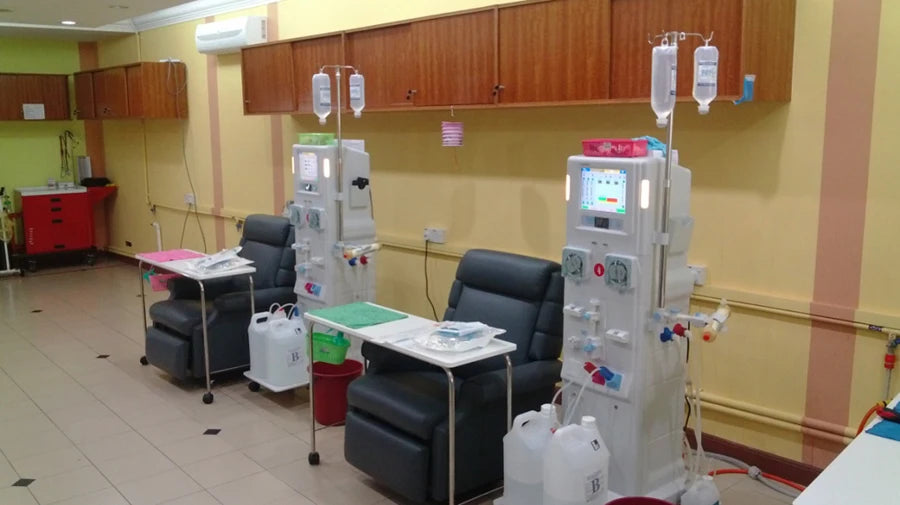

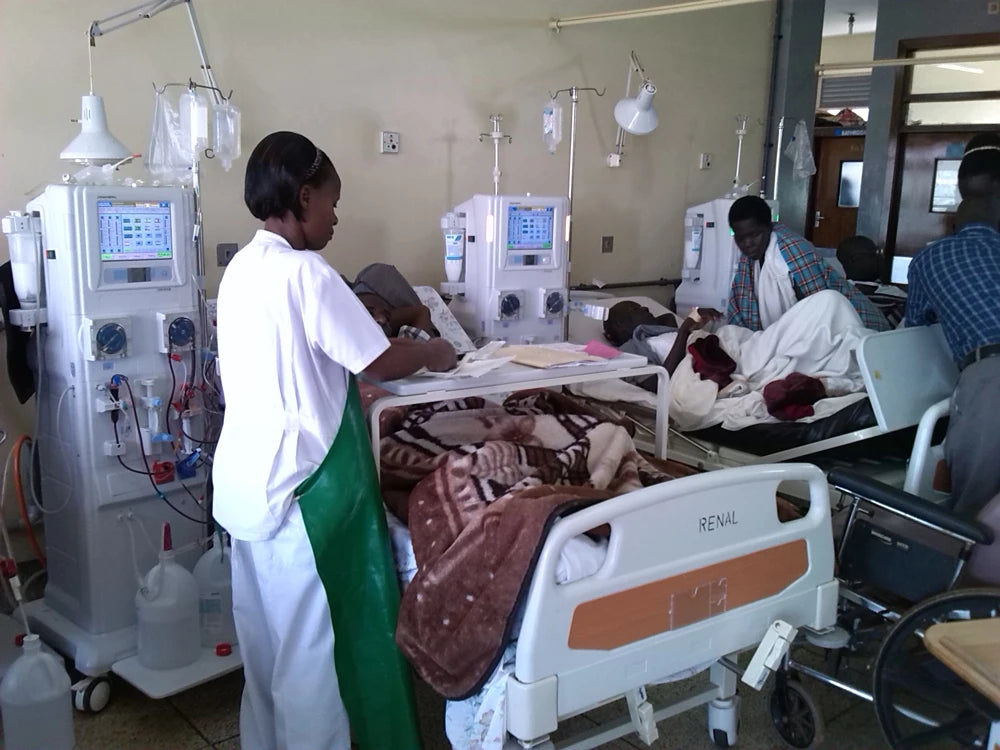

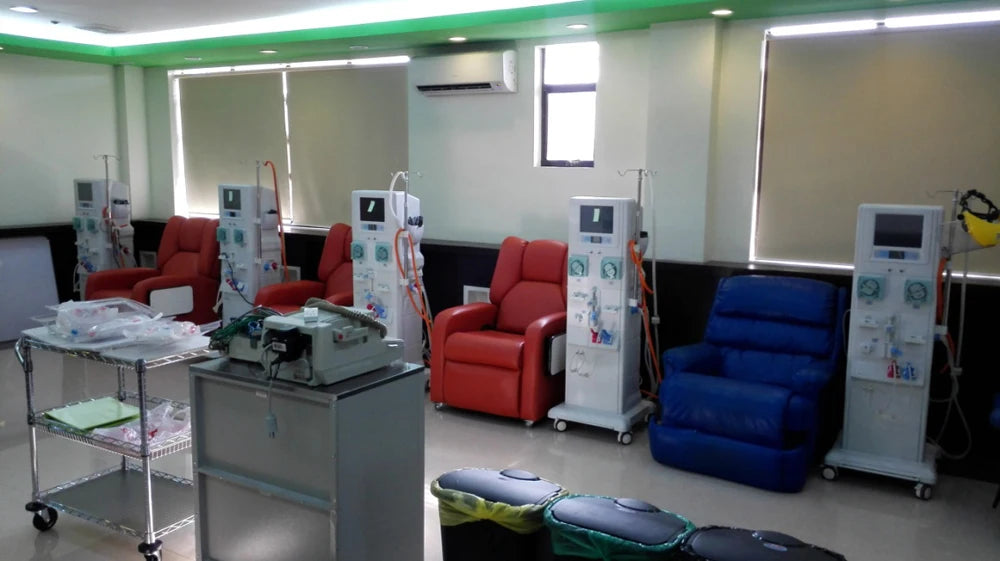

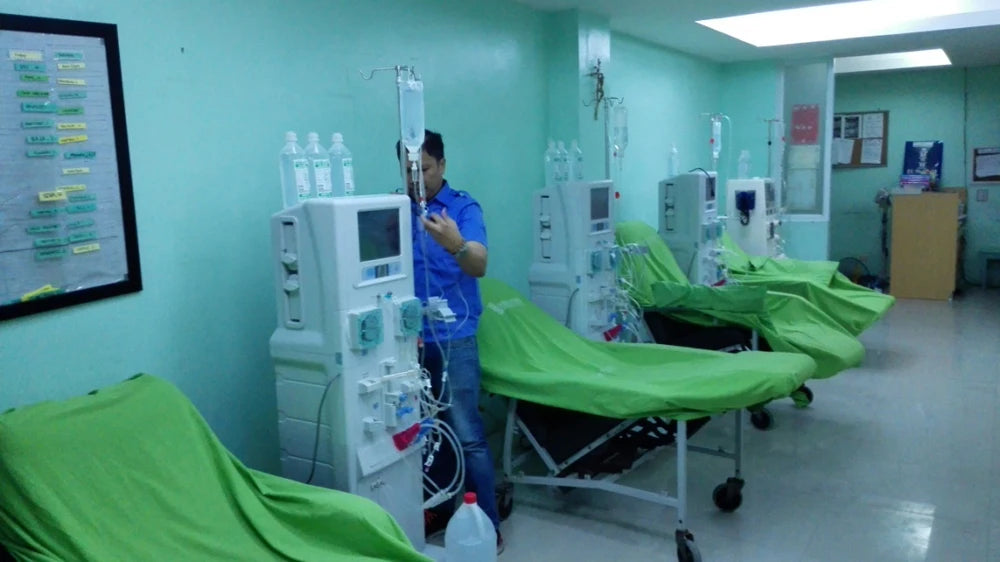

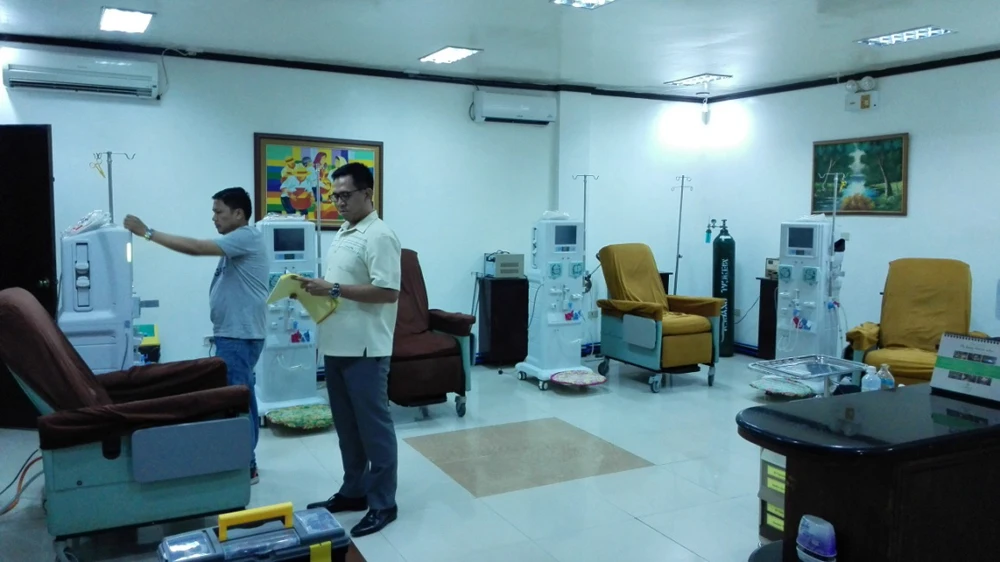

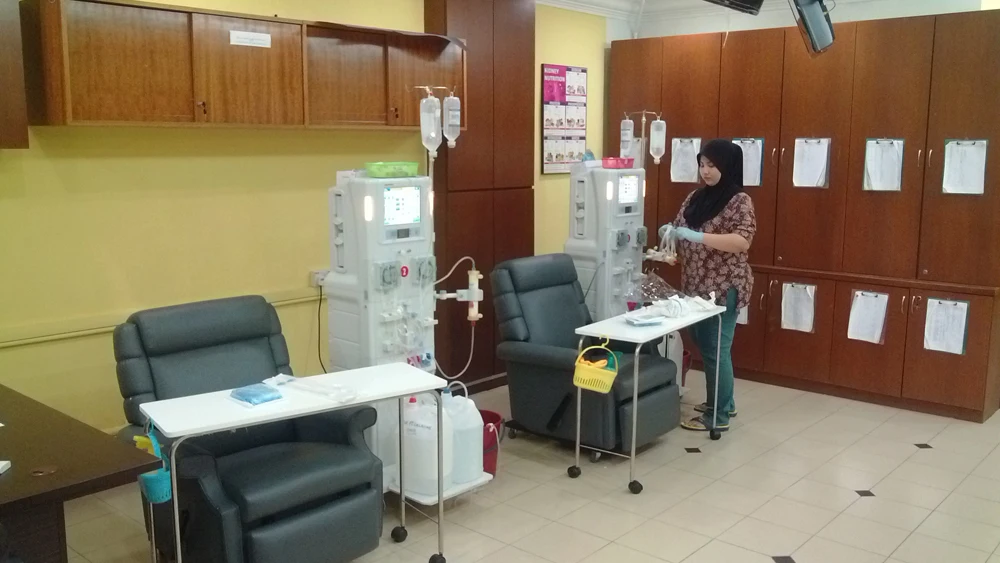

Our hemodialysis machine for kidney in different hospitals worldwide
