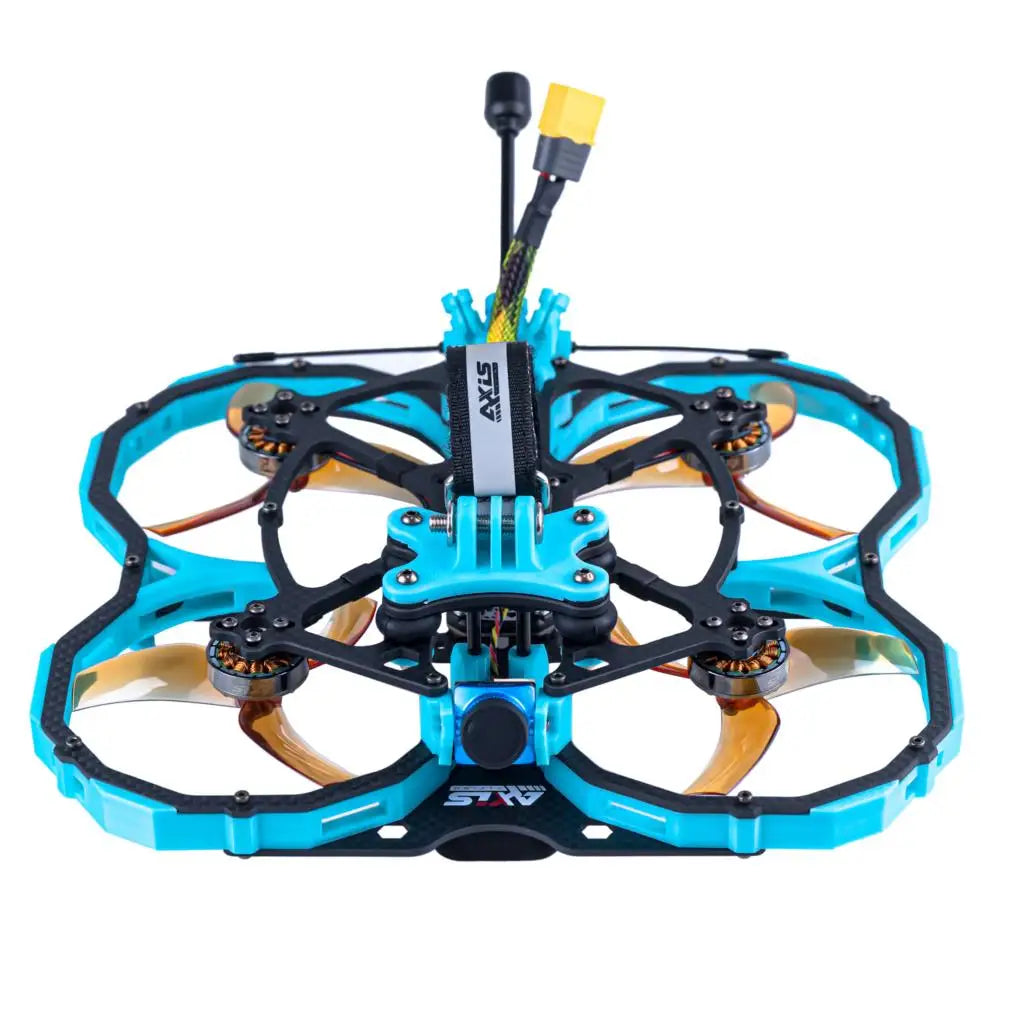

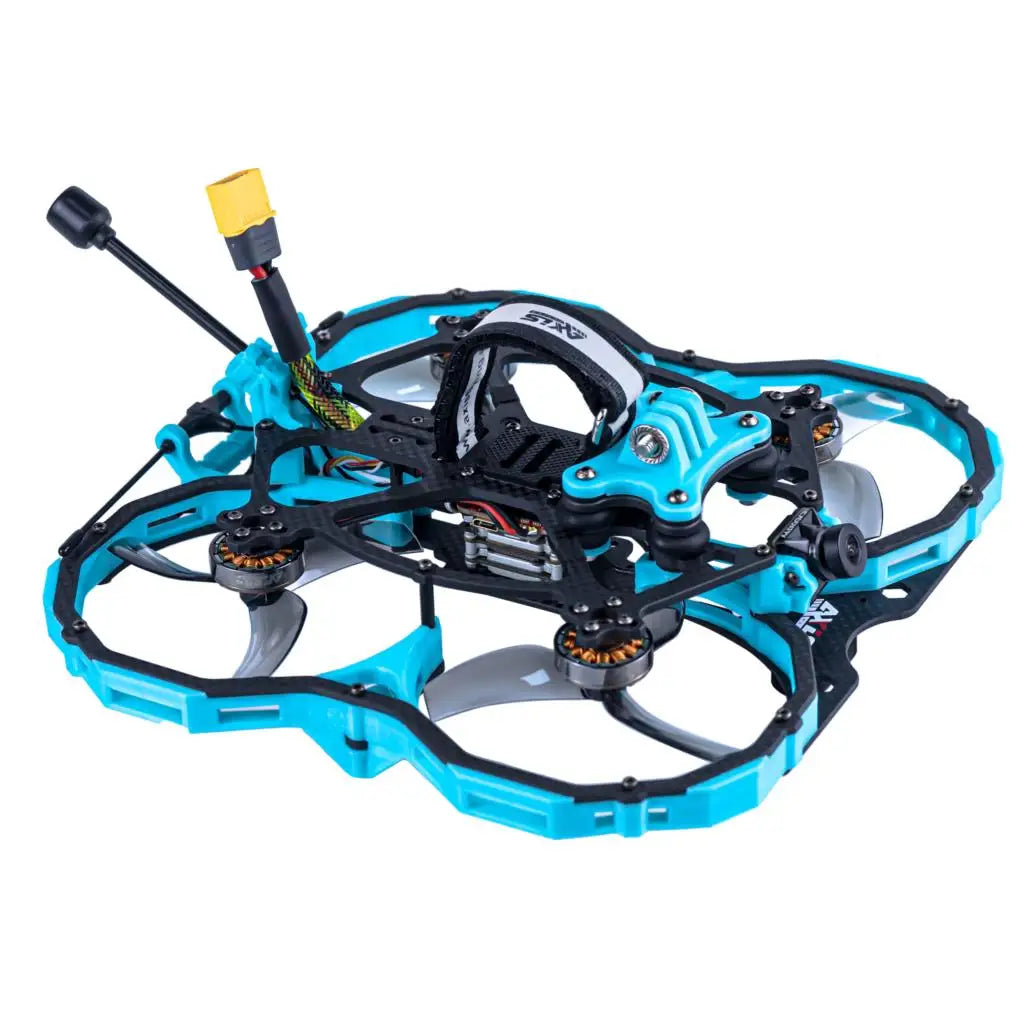

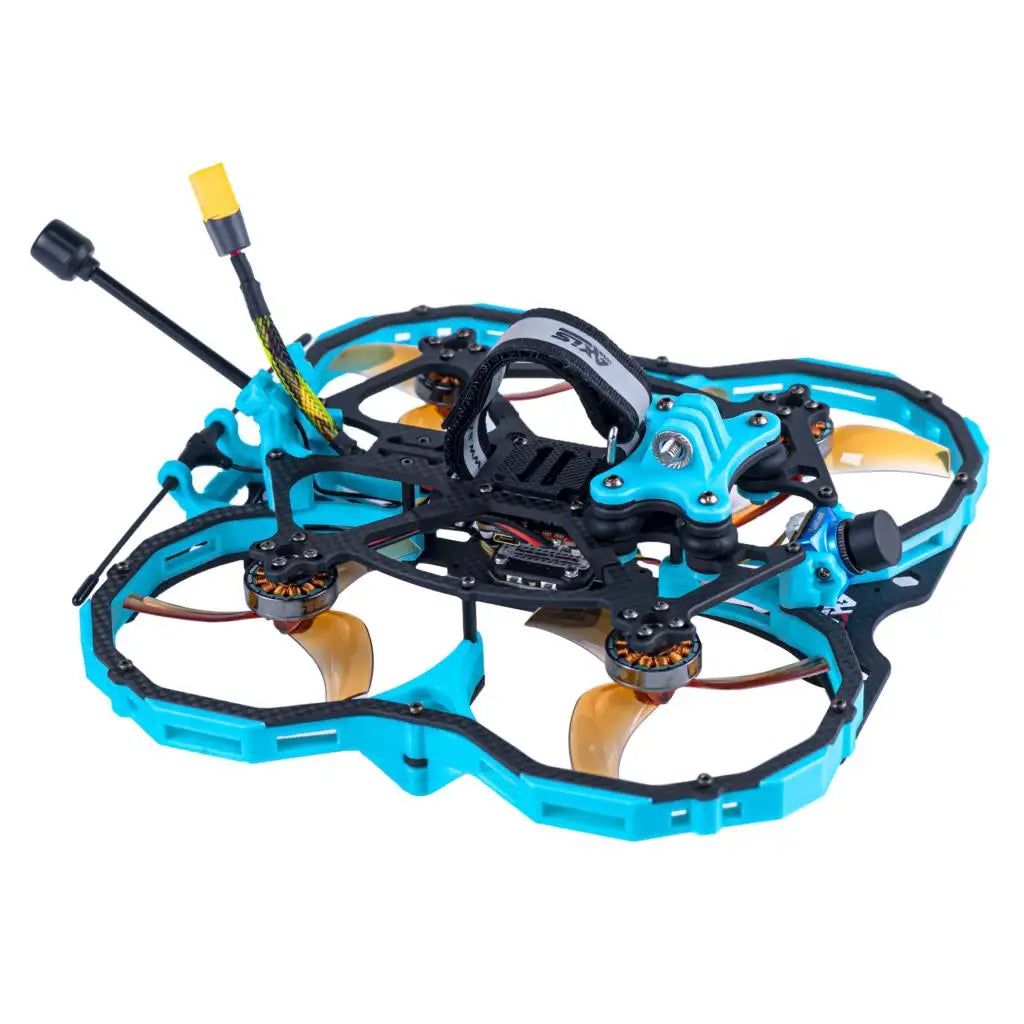

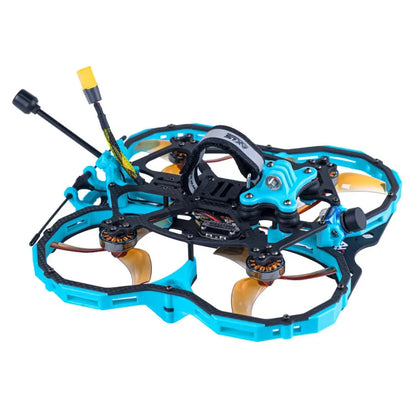

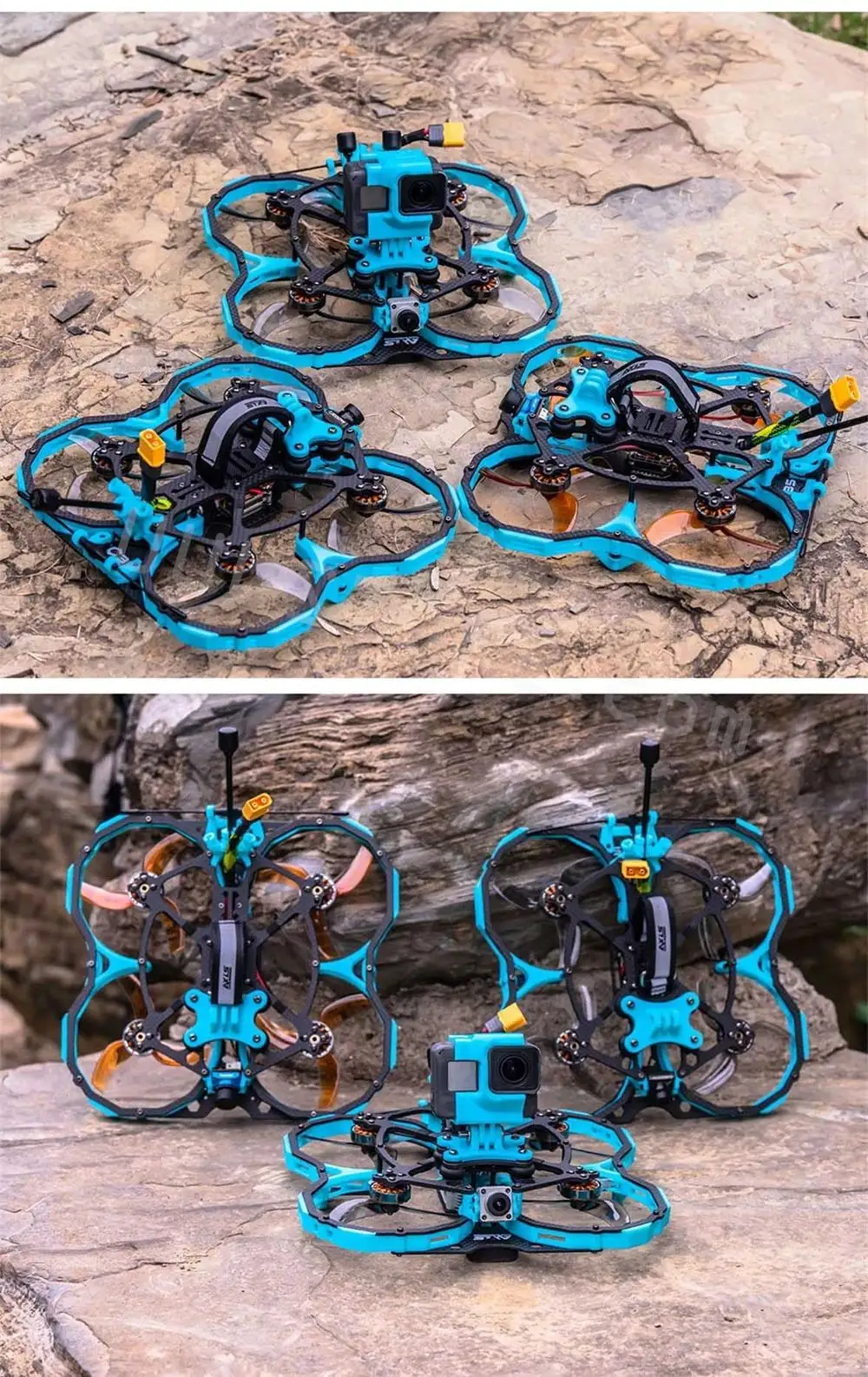

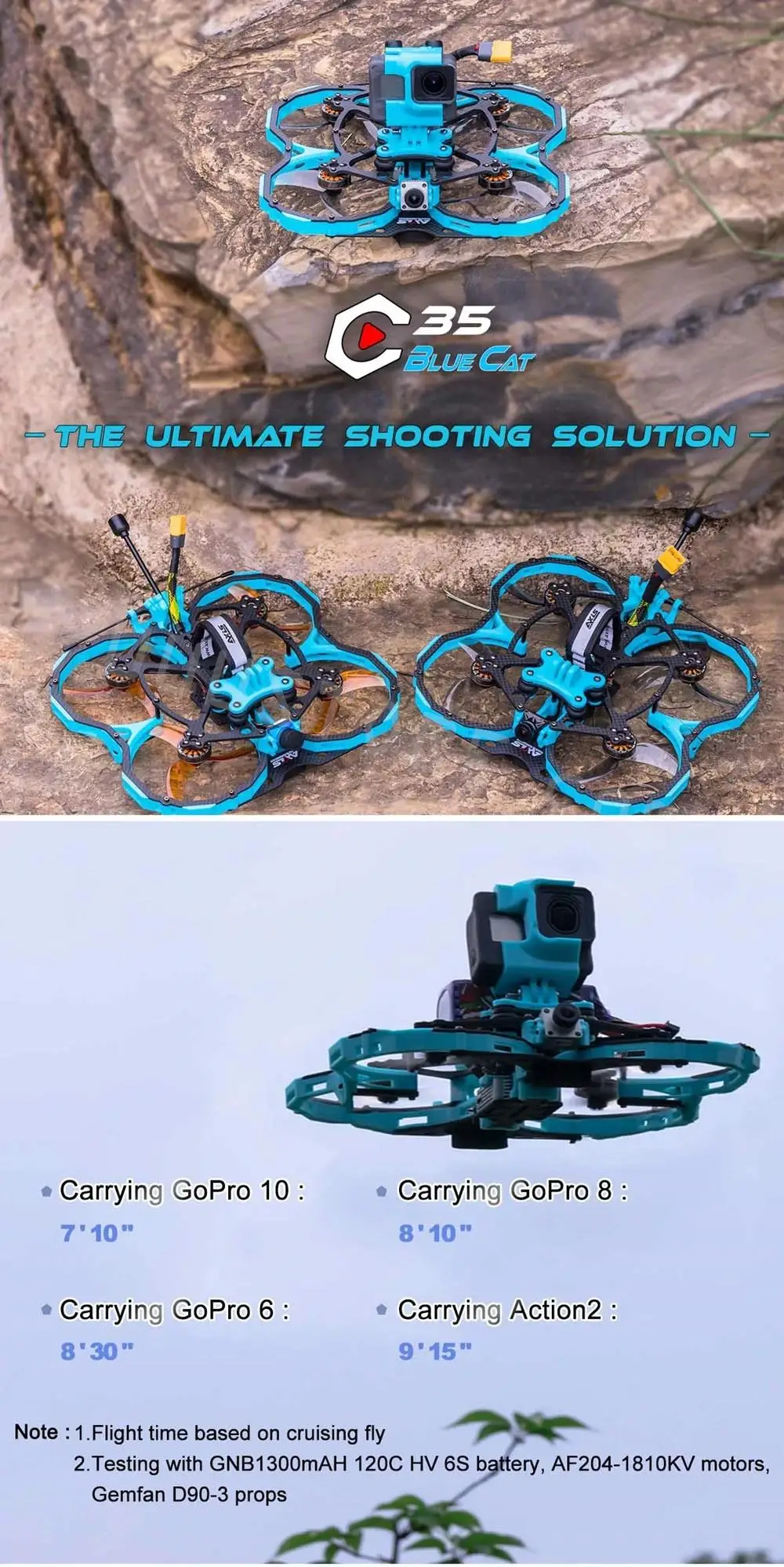

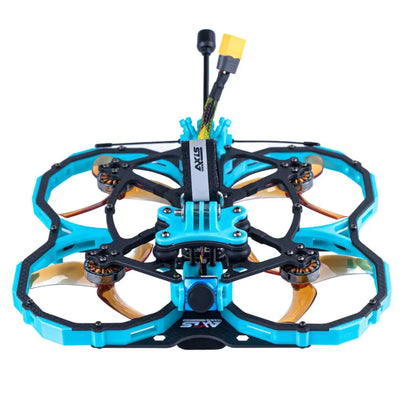

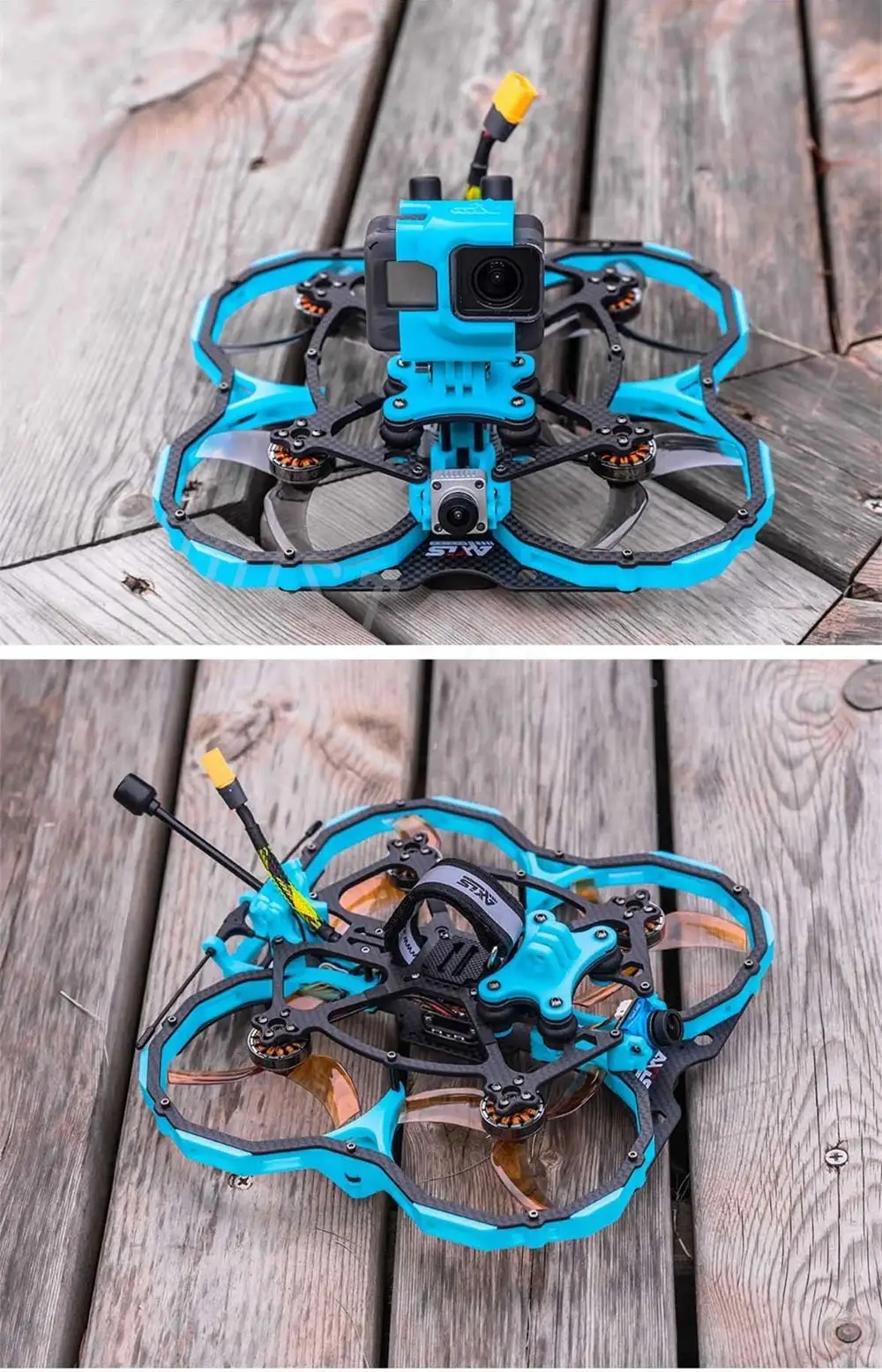

Axisflying Blue Cat C35 HD Analog 152mm F7 AIO 40A ESC 6S 3.5 Inch Cinematic FPV Racing Drone DJI Air Unit Nebula Pro HD System

$144.98

~~$151.57~~ $144.98

Sale Sold out

Shipping calculated at checkout.

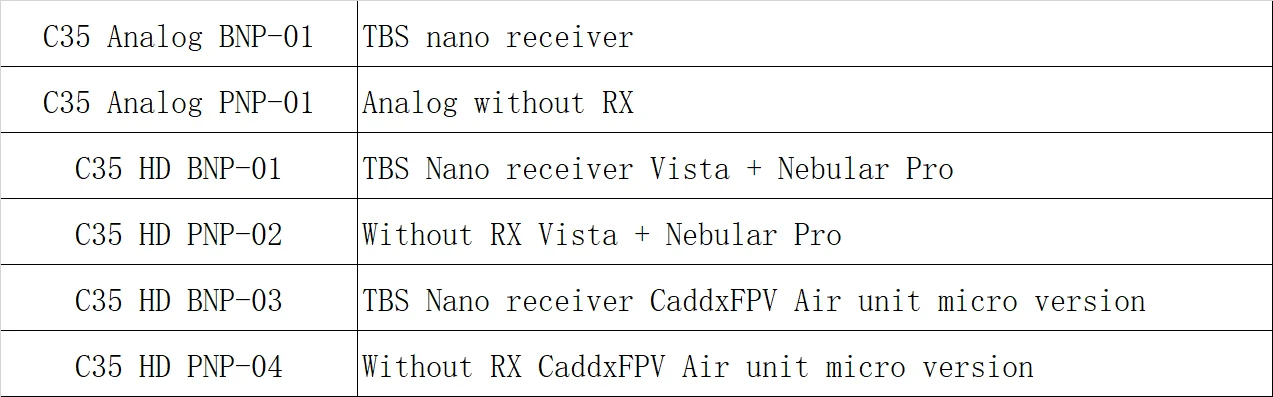

Color frame kit Analog BNP-01 HD BNP-01 HD PNP-02 Analog PNP-01 HD PNP-04 HD BNP-03

SPECIFICATIONS

Brand Name: NoEnName_Null

Indoor/Outdoor Use: Indoor-Outdoor

Video Capture Resolution: other

Camera Mount Type: Fixed Camera Mount

Controller Battery: No

Origin: Mainland China

Aerial Photography: Yes

Control Channels: 8 CHANNELS

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 12+y

Material: Carbon Fiber

Remote Distance: as show

Package Includes: Original Box

Remote Control: No

Model Number: Axisflying Blue Cat C35

Motor: Brushless Motor

Specification:

Brand: Axisflying

Model: Blue Cat C35

Item Name: 152mm F7 6S 3.5 Inch FPV Racing Drone

Wheelbase: 152mm

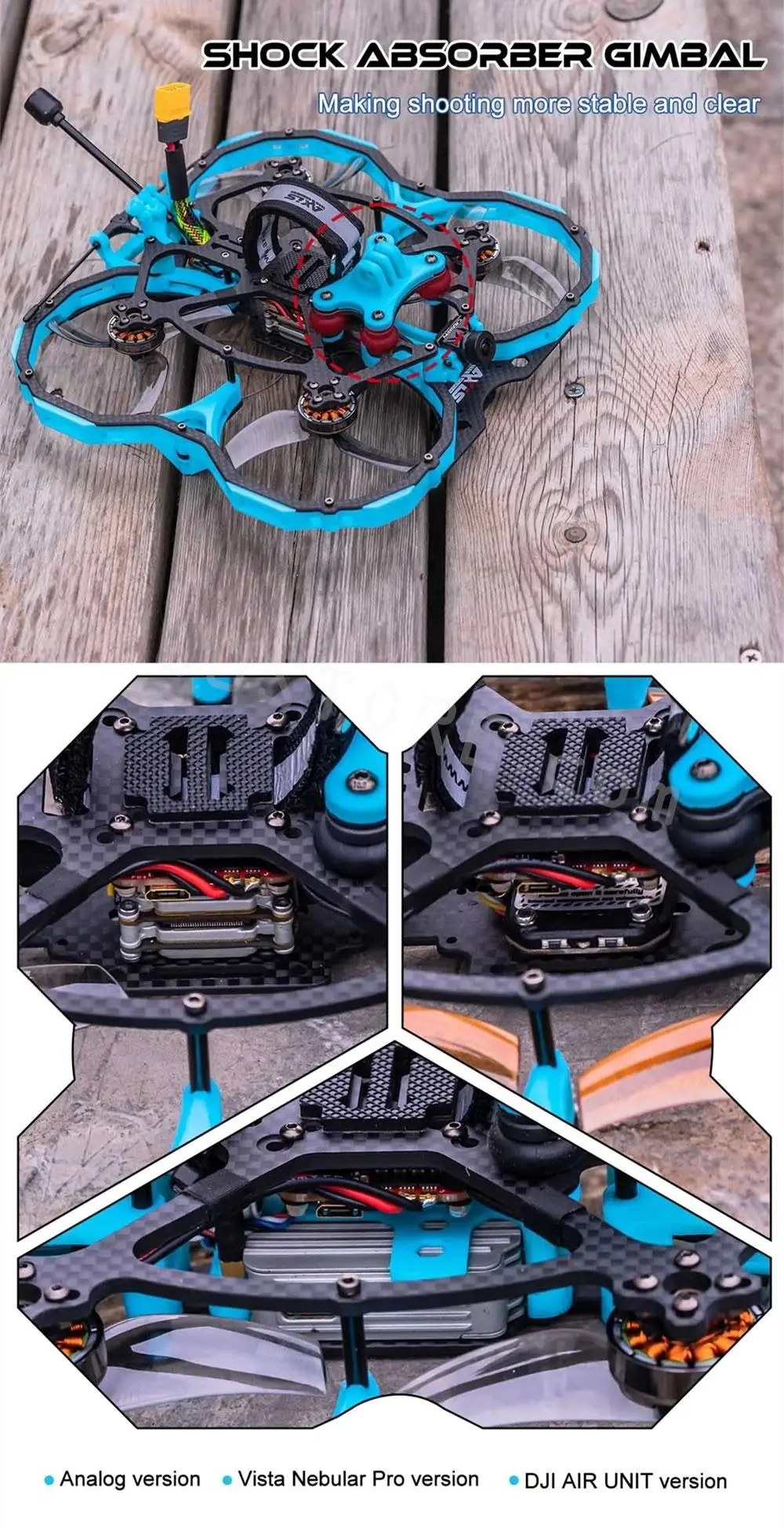

Optional Version: Analog / Caddx Vista Nebula Pro ( HD) / CADDX Air Unit ( HD)

Optional Receiver: Without Receiver / TBS CRSF Nano RX

Body Size: 225x210x70mm

Weight: 180g(+-5g)

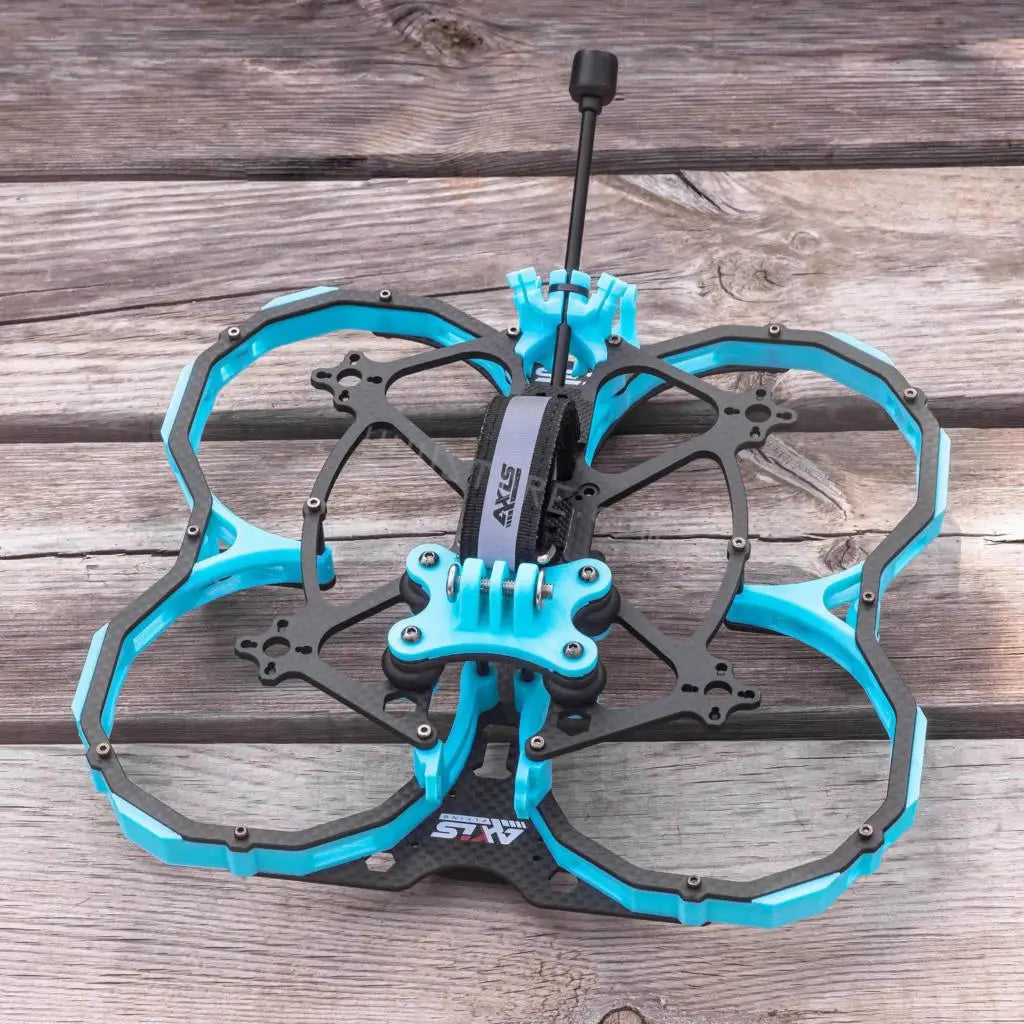

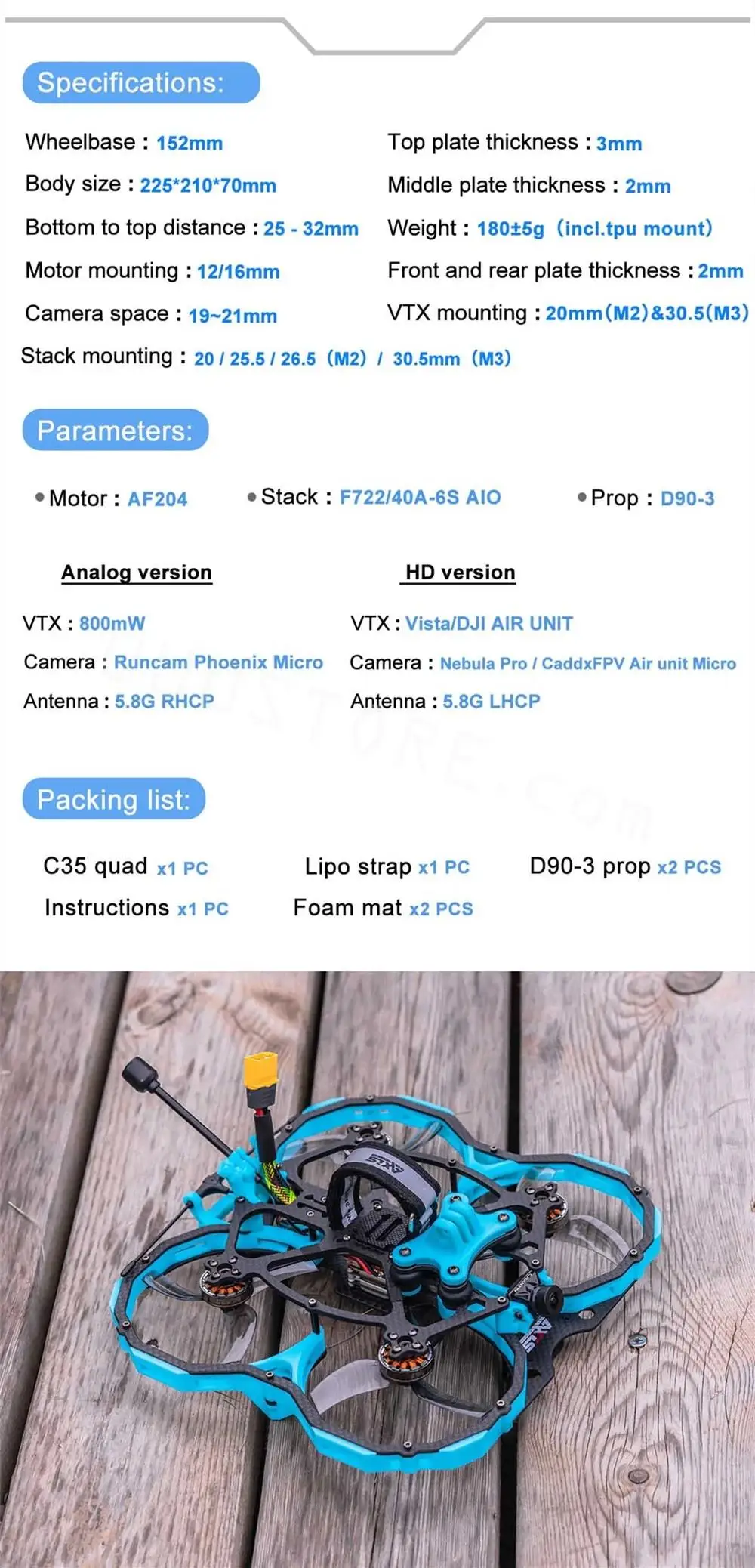

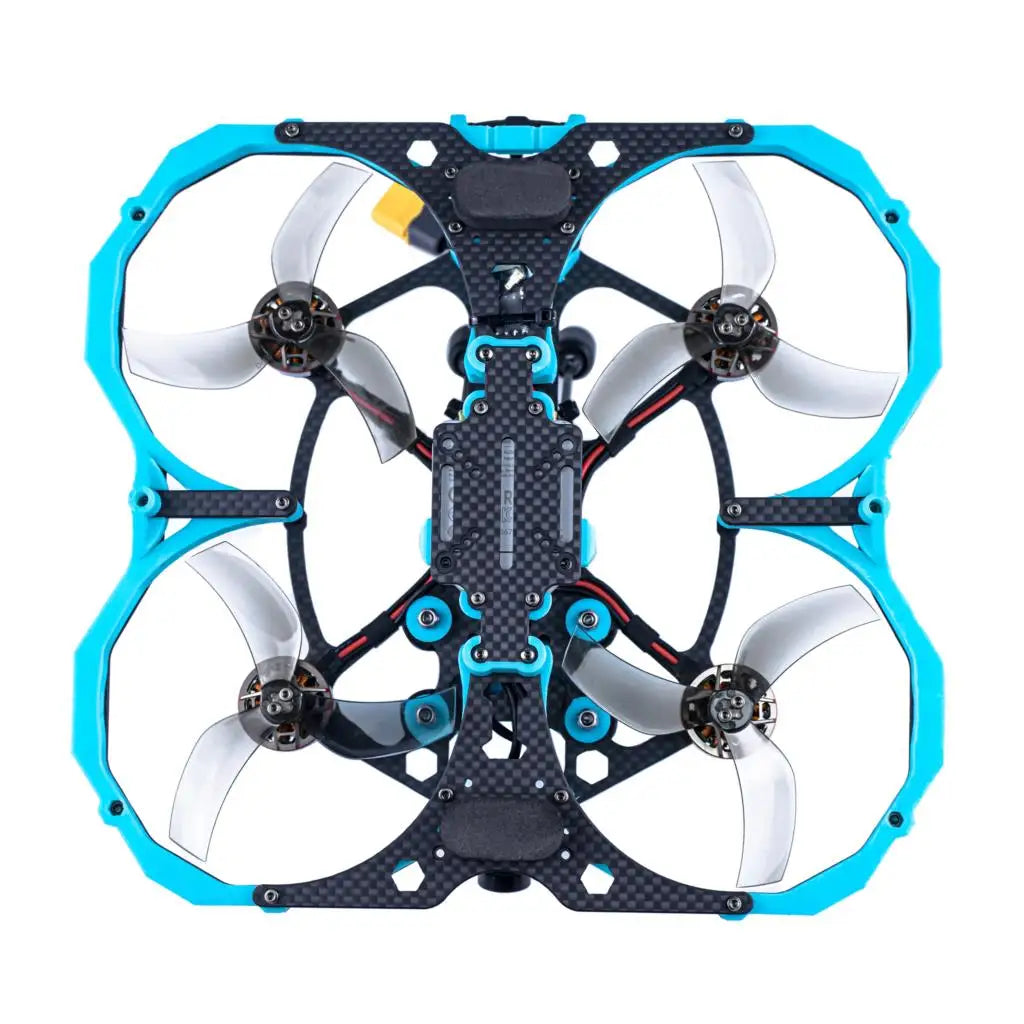

C35 Frame	Wheelbase: 152mm Top Plate Thickness: 3mm Middle Plate Thickness: 2mm Bottom to Top Distance: 25-32mm Front and Rear Plate Thickness: 2mm Motor Mounting: 12/16mm Camera Space: 19-21mm Stack Mounting: 20/25.5/26.5(M2)/30.5(M3) VTX Mounting: 20mm ( M2) / 30.5(M3)
AF204 1810KV Motor	Model: AF204 Item Name: 2004 1810KV 3-6S Brushless Motor KV: 1810KV Input Voltage: 3-6S Configuration: 12N14P Stator Size: 20x4mm Shaft Diameter: 1.5mm Motor Dimension: 24.6x15.3mm (Dia*Len) Weight: 15.4g ( Exclu. Cable) Cable: 24AWG, 130mm Max. Con. Power: 395W Max. Current: 33A

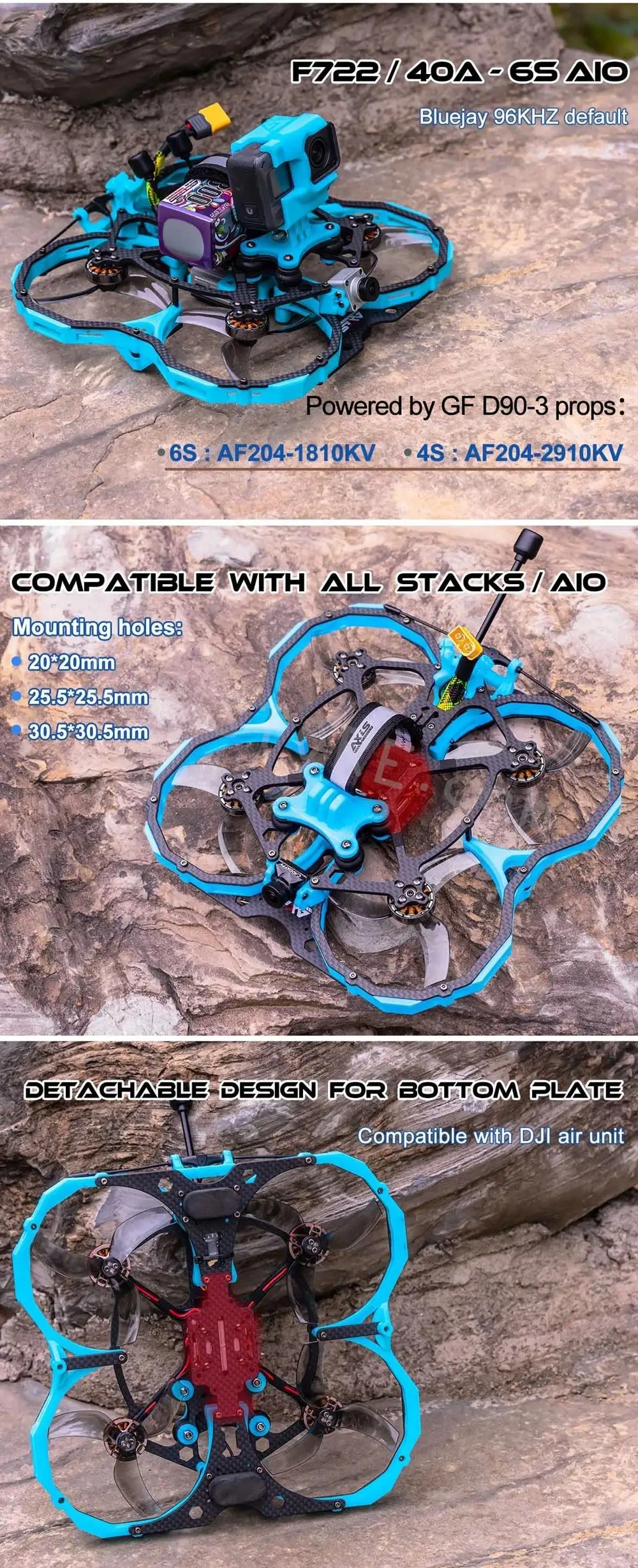

F722 Flight Controller AIO 40A ESC	Manual
Analog Version	VTX: 800mW Camera: Runcam PhoenixMicro Anatenna: 5.8G RHCP

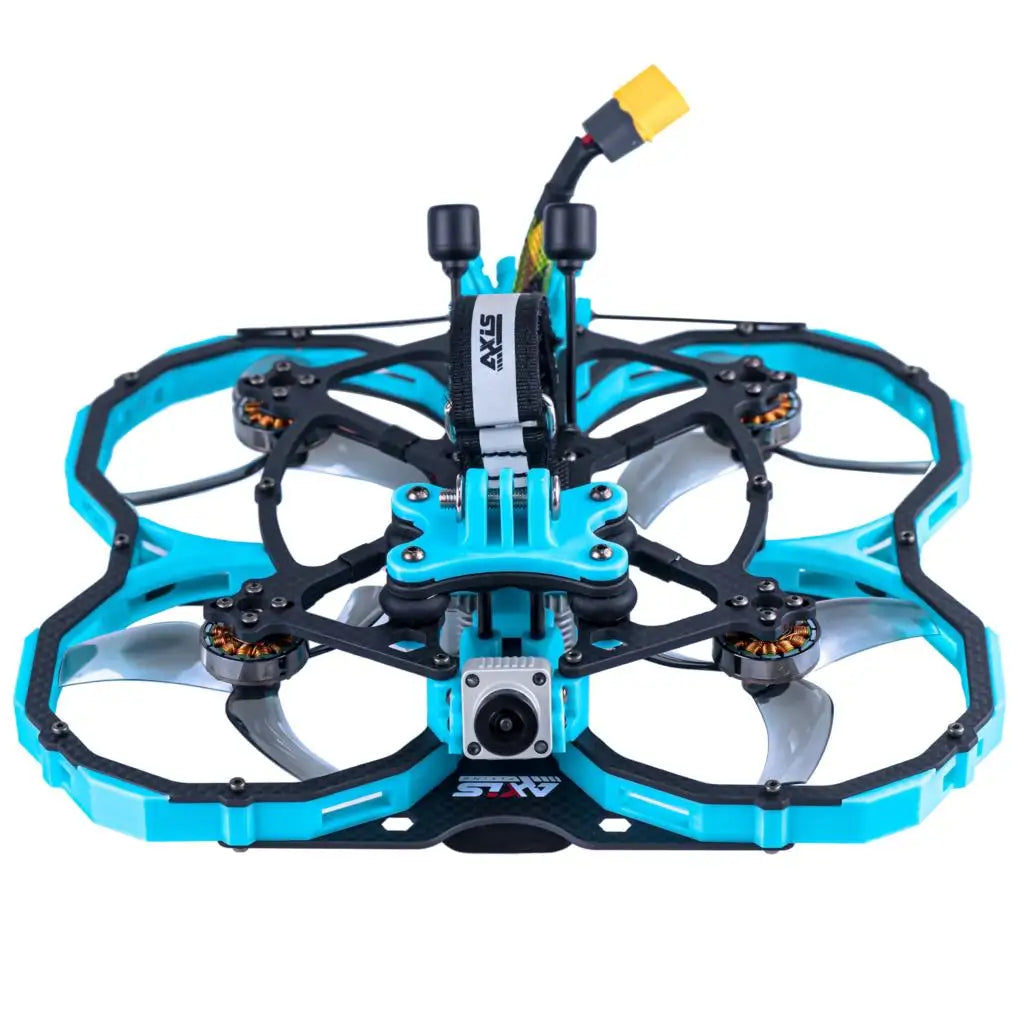

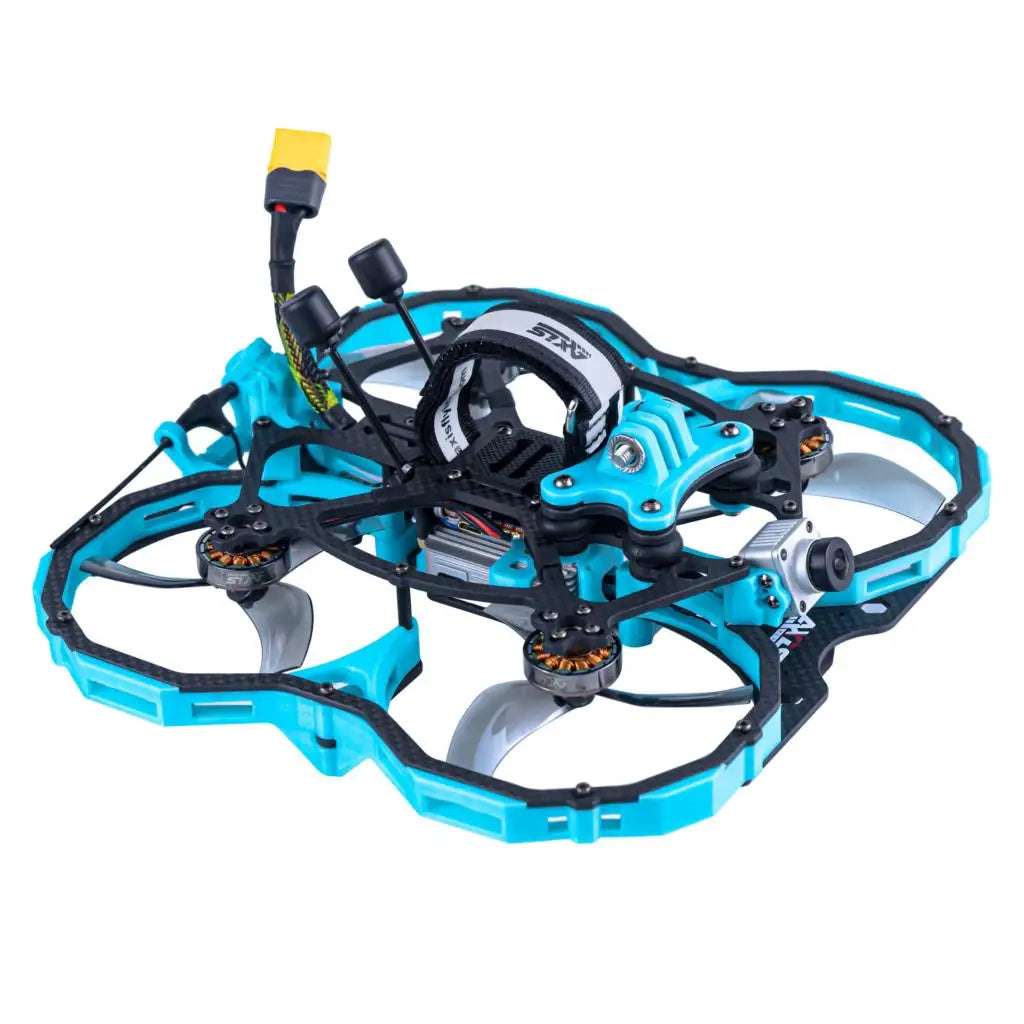

CADDX Nebula Pro Version	VTX: CADDX Vista HD Camera: CADDX Nebula Pro Antenna: 5.8G LHCP
CADDX Air Unit Micro Version	VTX: Air Unit Camera: CADDX Air Unit Micro Antenna: 5.8G LHCP
