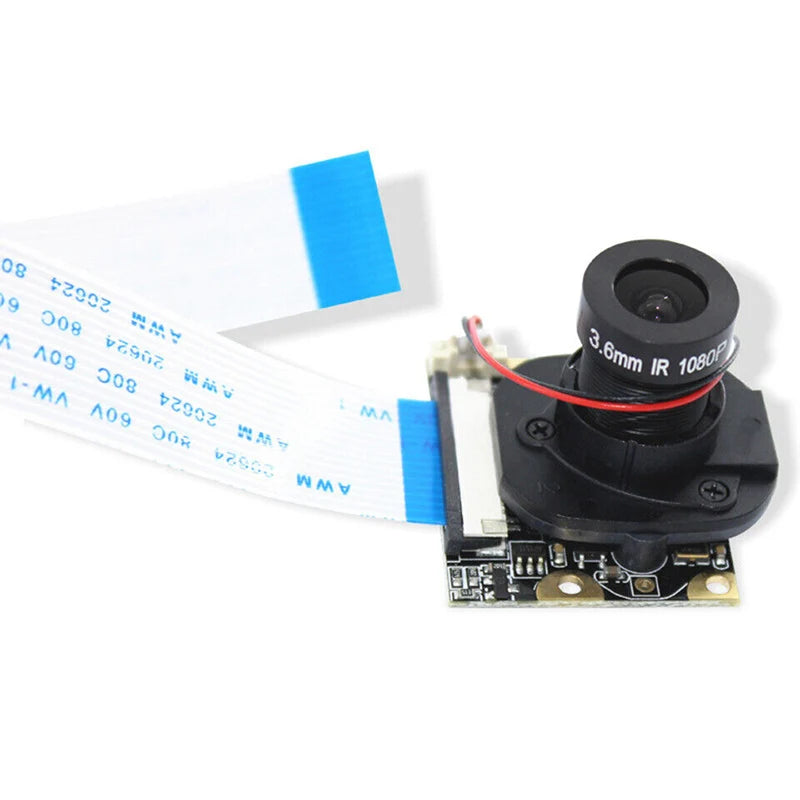

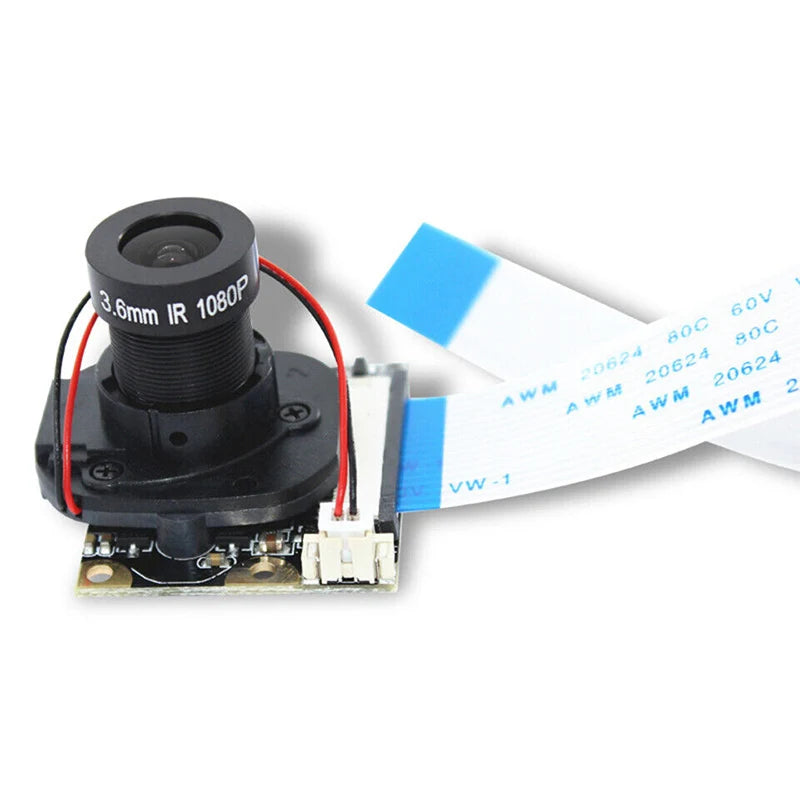

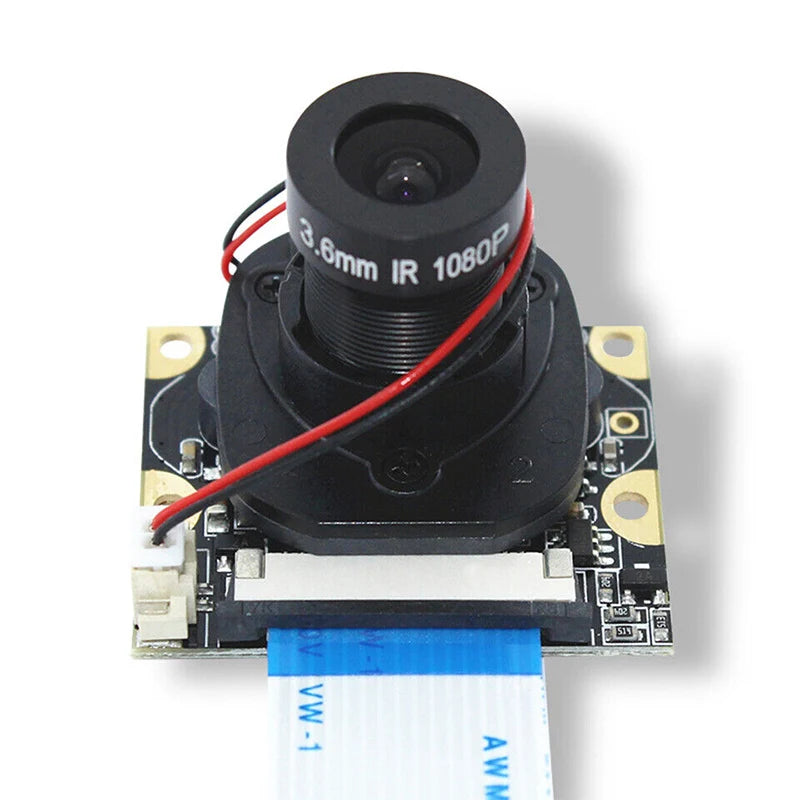

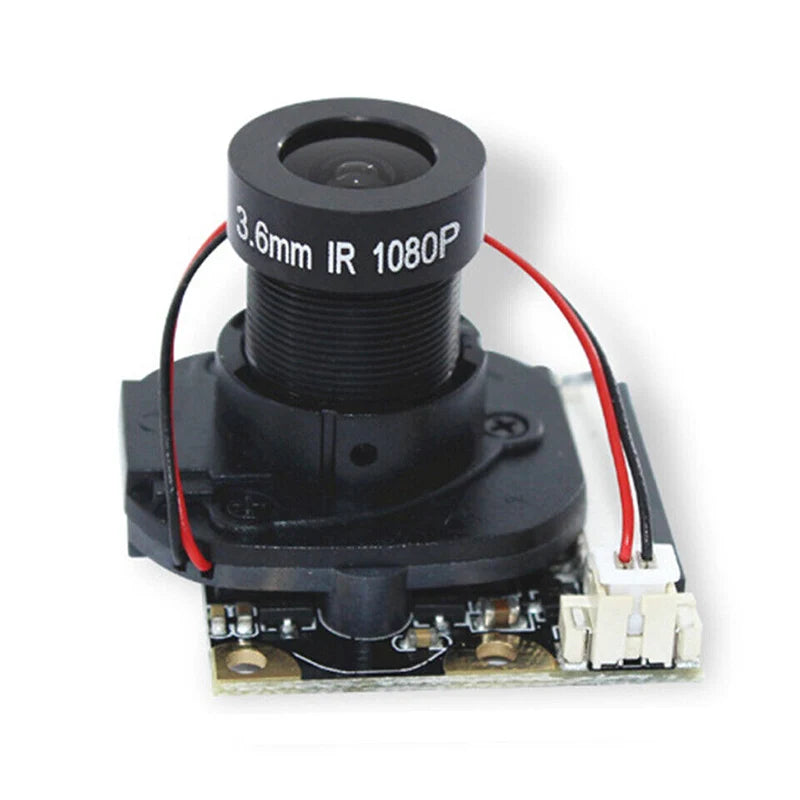

SPECIFICATIONS

Brand Name: LLXLJY

Origin: Mainland China

Compatible Camera Style: Point & Shoot Cameras

Model Number: OV5647

Compatible Brand: /

Certification: none

Package: Yes

Size: 26.5x32mm

Focal length: 3.6mm

Diagonal field of view: 75 degrees

Power supply: support 3.3V external power supply

Working temperature: -20°C~80°C

Pixels: 5 million pixels

Manual switching method: IR-CUT

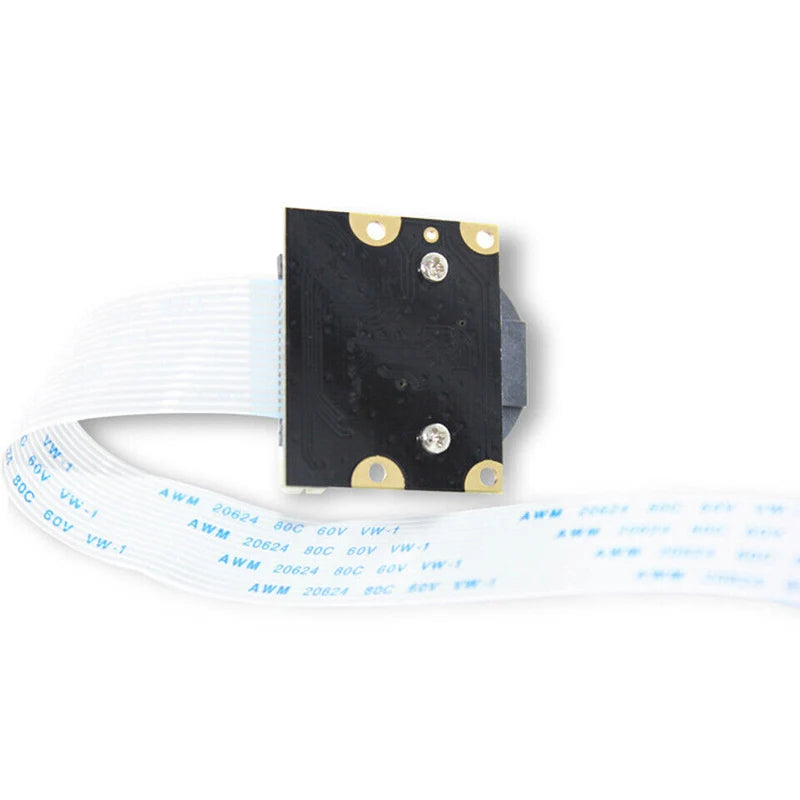

Screws: 4 screws can be used to fix the position

Photosensitive chip: OV5647

CMOS size: 1/4 inch

Fill light: optional infrared fill light

Aperture (F): 1.2

Sensor pixel: 1080P

Resolution: 2592x1944

IR-CUT【Manual switching method】

RPi lR-CUT Camera works in normal mode by default.
Execute the command: sudo nano /boot/config.txt,
Add disable_camera_led=1 to the last line,
After saving and restarting the Raspberry Pi, the Camera will work in night vision mode.

To return to normal mode, just delete disable_camera_led=1, save and restart the Raspberry Pi.

If you need to control the display mode flexibly, you can connect to the following positions through the GPIO interface of the Raspberry Pi, and switch between different modes by changing the level of the GPIO (high level is normal mode, low level is night vision mode)
