433Mhz Wireless Transmitter and Receiver Module Learning Code EV1527 Decoding Module 4CH output With antenna for Arduino DIY kit

433Mhz Wireless Transmitter and Receiver Module Learning Code EV1527 Decoding Module 4CH output With antenna for Arduino DIY kit

$6.15
$6.40 $6.15
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

Brand Name: Diese

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Wireless Communication: RF

Support APP: No

Channel: 4

Package: Yes

Frequency: 433 MHz

Model Number: RX480E,TX118SA-4,receiver and transmitter

Receiver Working voltage: DC 3.3~5V

Quiescent Current: less than 5MA

Output current: 10mA

Channels: 4 Channels

Frequency band: -0.2MHz , +0.2MHz

Working temperature: -25~+75 degrees

Receiving Sensitivity: -108dB

Amount of storage remote controls: 25 pieces

Support encoding: EV1527 Leaning code

RF Operating mode: ASK superheterodyne wireless reception

Receiver Size: 28*12.3*6 (mm)

Receiving range: above 15 meters (Open space)

Remote operating mode: Momentary Mode / Toggle Mode / Latched Mode

Transmitter Working voltage: DC 3V-24V

Rate of fire: maximum: 10KB / S

Transmit deviation: +/- 7. 5KHZ / narrow-band emission

Transmitting power: 11dbm

Transmitter Size: 18*18*6 (mm)





433Mhz Wireless Transmitter and Receiver Module Learning Code EV1527 Decoding Module 4CH output With antenna for Arduino DIY kit

 Product Features

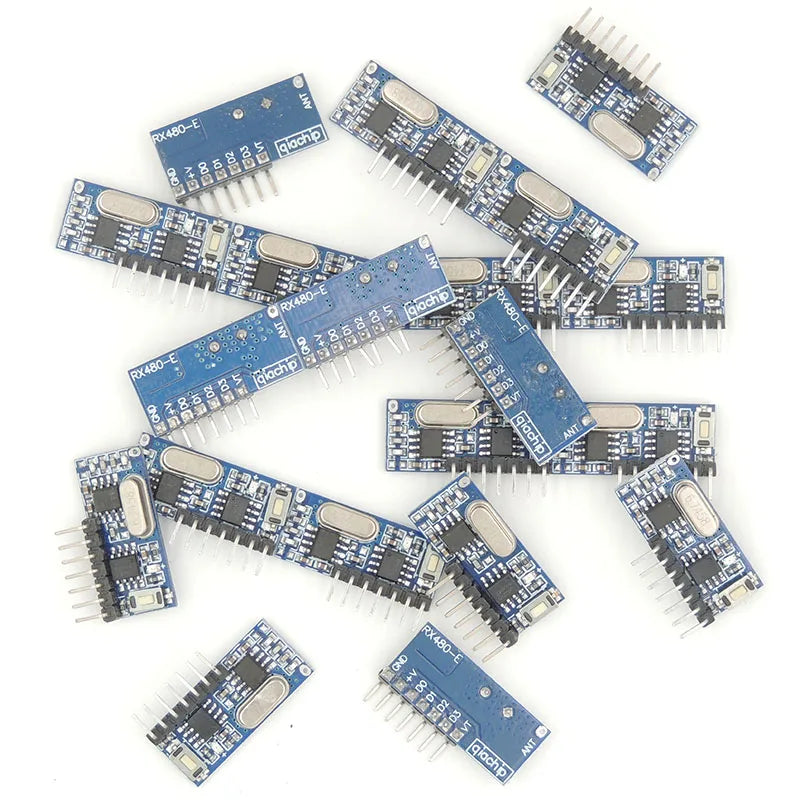

Receiver module(RX480E)
  • Working voltage  :  DC 3.3~5V
  • Quiescent Current  :  less than 5MA
  • Output current  :  10mA
  • Channels  :  4 Channels
  • RF frequency  :  433MHz
  • Frequency band  :  +0.2MHz, -0.2MHz
  • Working temperature  :  -25~+75 degrees
  • Receiving Sensitivity  :  -108dB
  • Amount of storage remote controls  :  25 pieces
  • Support encoding  :  EV1527 Leaning code
  • RF Operating mode   : ASK superheterodyne wireless reception
  • Size  :  28*12.3*6 (mm)
  • Receiving range  :  above 15 meters (Open space)
  • Remote operating mode  :  Momentary Mode / Toggle Mode / Latched Mode

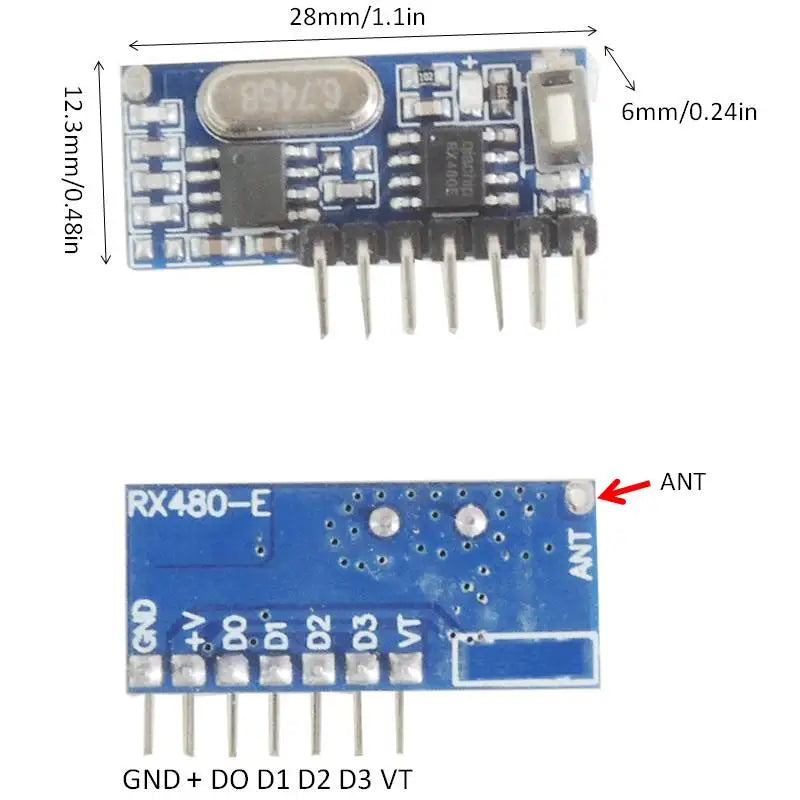

Pins Instruction
GND : ground or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output(When any pin of D0-D3 outputs the level signal, VT is output synchronously; VT is usually used as the output indicator.)

The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.

Application example

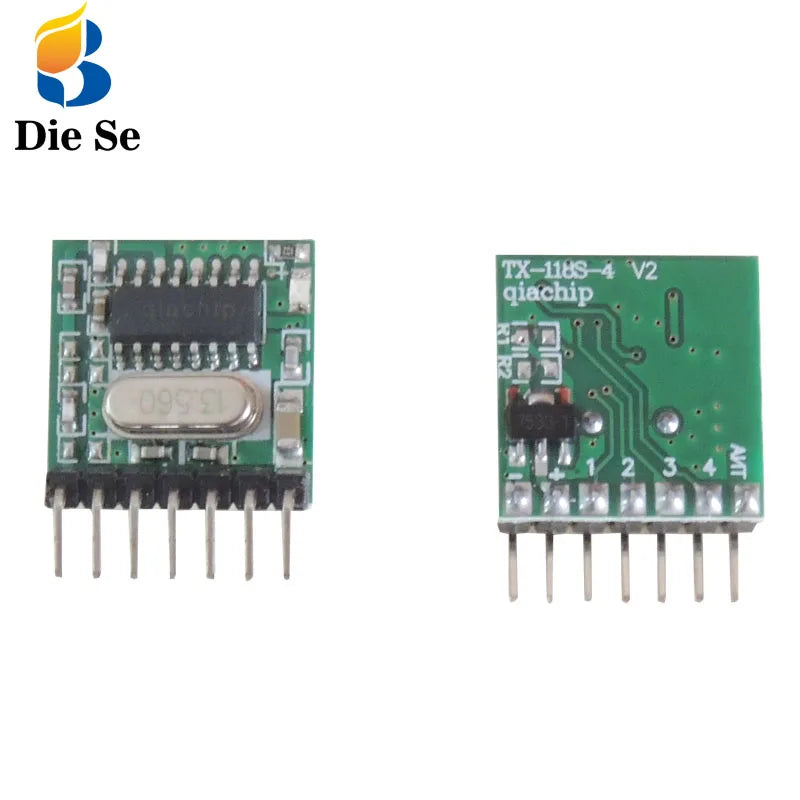

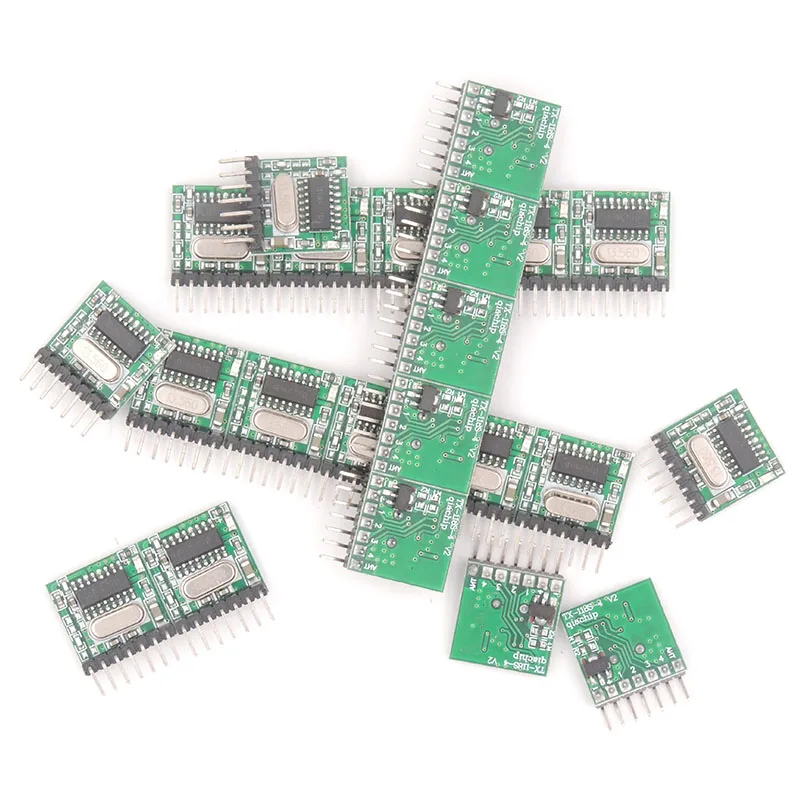

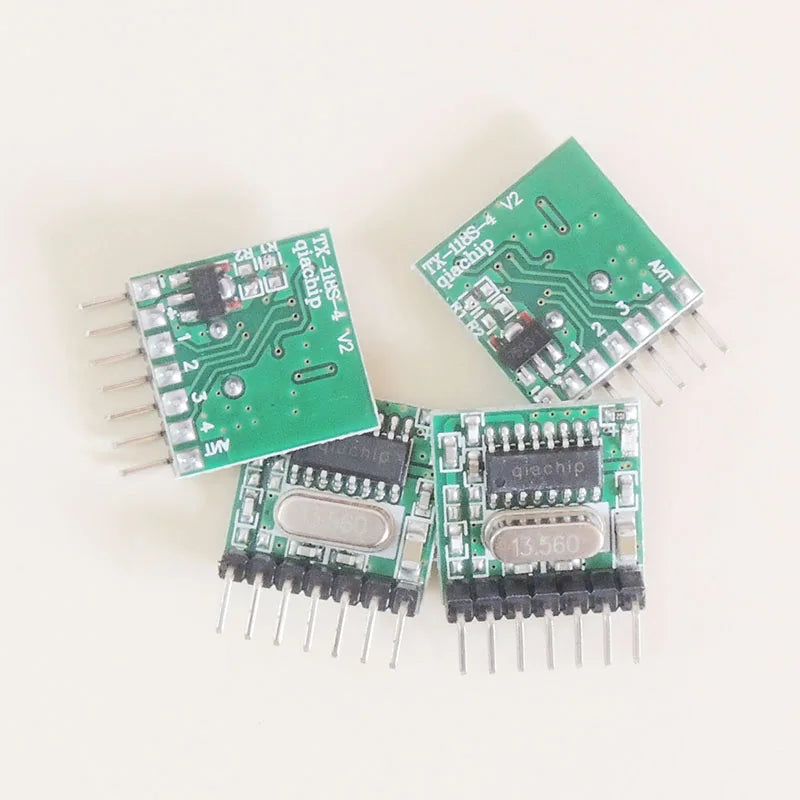

Transmitter module( TX118SA-4 )
  • Working voltage  :  DC 3V-24V
  • Channels  :  4 Channels
  • Emission current  :  10MA
  • Rate of fire   :  maximum: 10KB / S
  • Transmit deviation  :  +/- 7. 5KHZ / narrow-band emission
  • Transmitting power  :  11dbm
  • RF frequency   : 433MHz
  • Working temperature  :  -25~+75 degrees
  • Size  :  18*18*6 (mm)
  • Support encoding  :  EV1527 Leaning code
  • Modulation   :  ASK

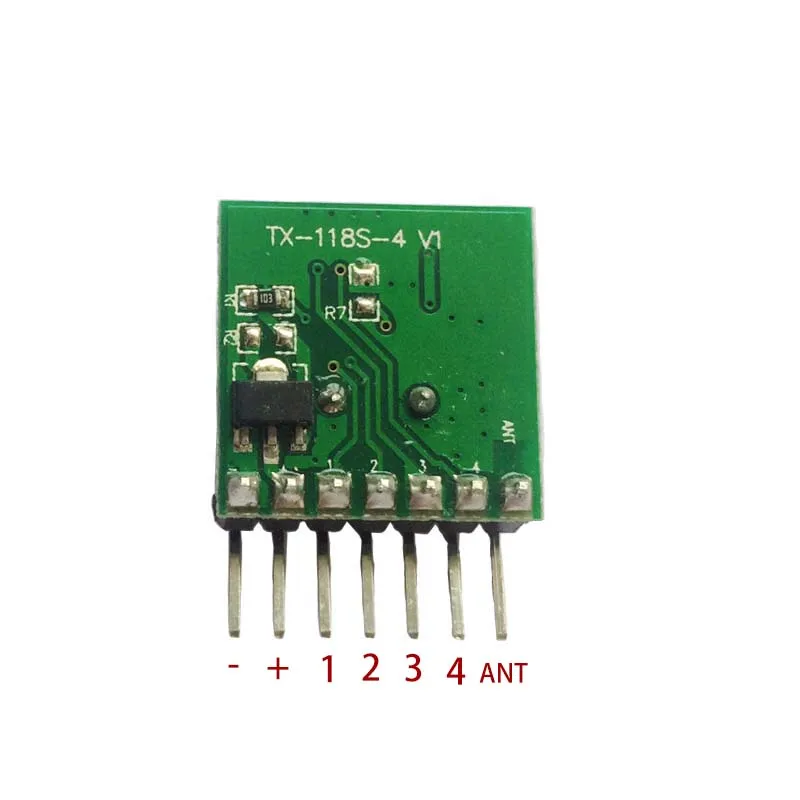

Pins Instruction
- : Negative power supply
+: Positive power supply, DC 3-24V
K1: 1 short to Negative start transmitting data, Similar the A button on the remote control.
K2: 2 short to Negative start transmitting data, Similar the B button on the remote control.
K3: 3 short to Negative start transmitting data, Similar the C button on the remote control.
K4: 4 short to Negative start transmitting data, Similar the D button on the remote control.
ANT: transmitting antenna

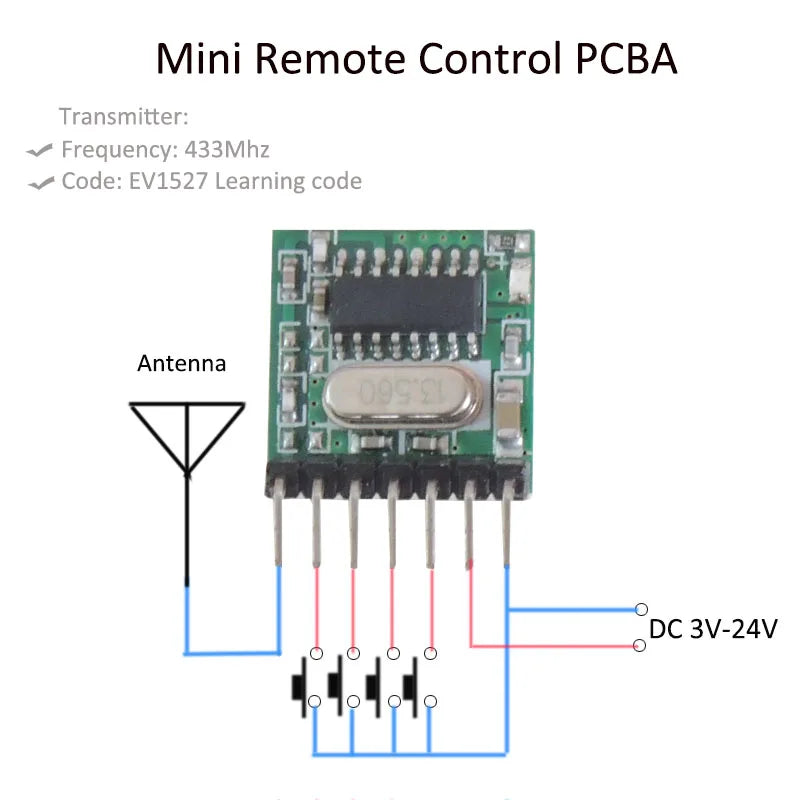

Application example

 Product Usage
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

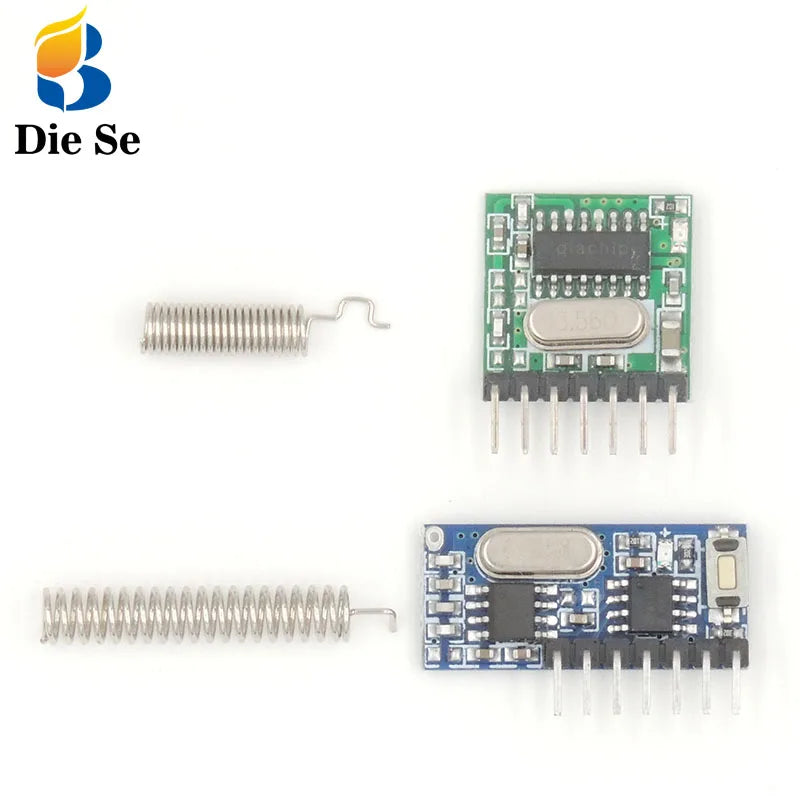

  Package include
Transmitter module (TX118SA-4)
Receiver module (RX480E)
With antenna


  Operating Mode
You can match the Remote Control with the Receiver Switch Module in 3 modes.

Momentary Mode:

1. Press and hold one button, relay "1" will turn on;

2. Release the button, this relay "1" will turn off.

Toggle Mode:

1. Press button "A", relay "1" will turn on;

2. Press button "A" again, this relay "1" will turn off.

Latched mode:

1. Press button "A", relay "1" will turn on;

2. Press button "B", relay "2" will turn on, at the same time relay "1" will turn off.


  Reset

1.Delete the existing data about operating modes

Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.


2.Set up

Set up(Momentary)

1. Press the learning button(on the Receiver) once. Wait for 3 seconds;

2. Press button "A" on the remote control. Wait for 3 seconds. Succeed.

Set up(Toggle)

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;

2. Press one button "A" on the remote control. Wait for 3 seconds. Succeed.

Set up(Latched)

1. Press the learning button(on the Receiver) triple. Wait for 3 seconds;

2. Press button "A" on the remote control. Wait for 3 seconds. Succeed.



On this products details page, there is a demonstration video available.
