433 Mhz Superheterodyne RF Receiver and Transmitter Module For Arduino Wireless Module Kit 433Mhz Remote Control

Description:

1.Support ASK / OOK modulation, receiver sensitivity of -108dBm;

2.Operating frequency: 433.92 MHz, bandwidth of about ± 150KHz;

3.Mains input voltage range: 2.2V-5V;

Working current: Type :2.1mA (Requirement:VDD=5V) ; Type :2.1mA (Requirement:VDD=3V)

4. Quiescent Current: 1uA

5. Low power consumption;

6. Good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;

7. Good local oscillator radiation suppression, receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting receiving distance;

8. transmission rates, the general module for 2KHz, up to 10KHz;

9. Temperature range: -40-85 °C

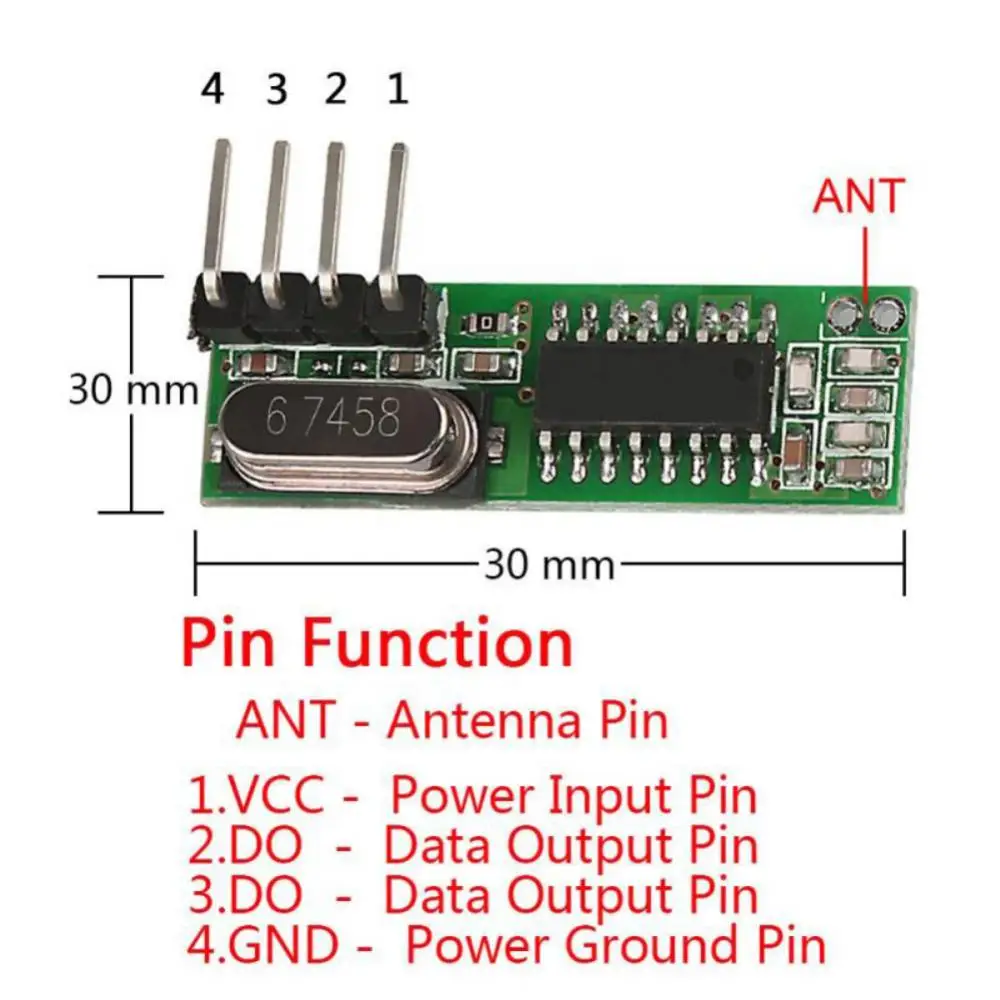

10. Oltra-small size of 30 × 9 × 1 (mm) (can be customized according to customer)

11.External antenna: 32CM single core wire, wound into a spiral.

Specifications:

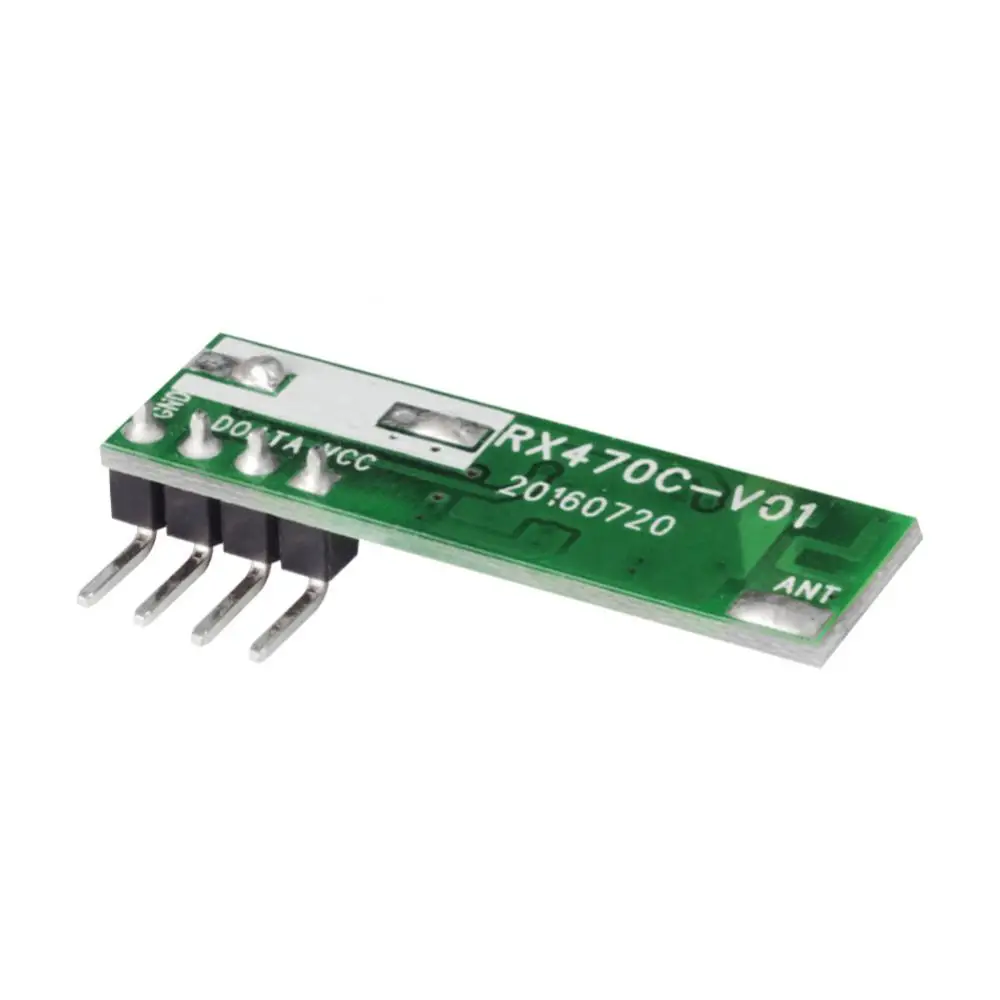

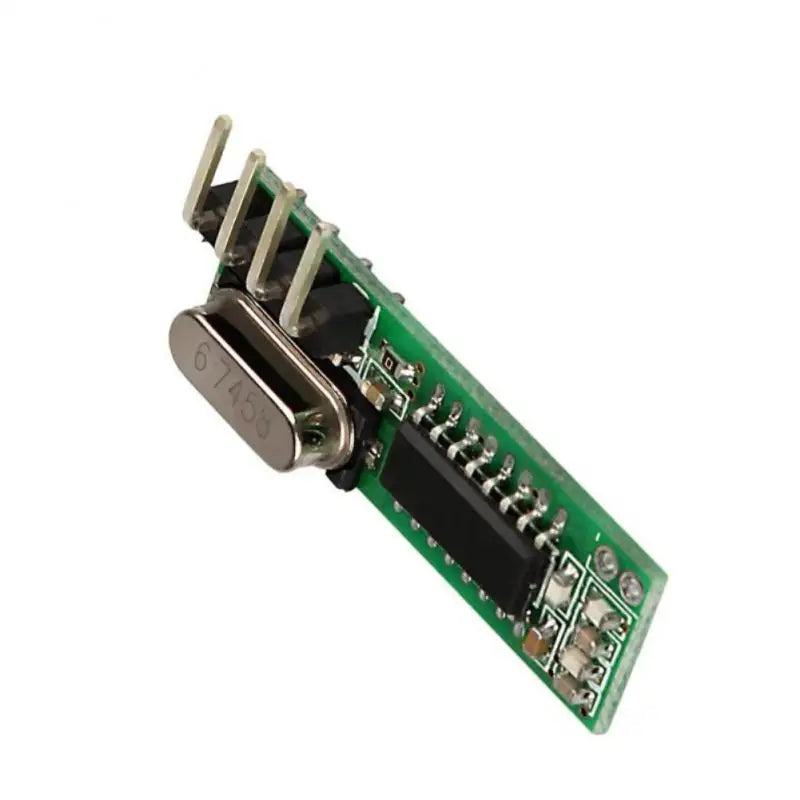

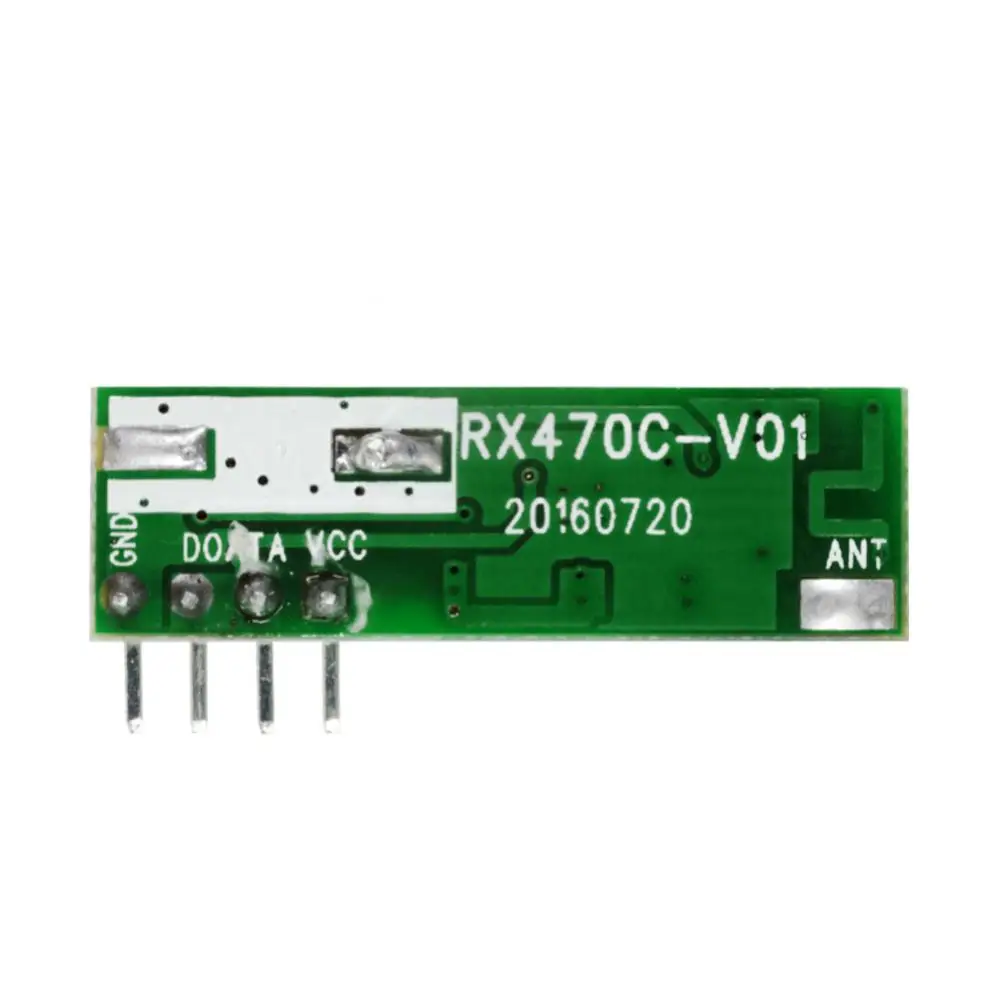

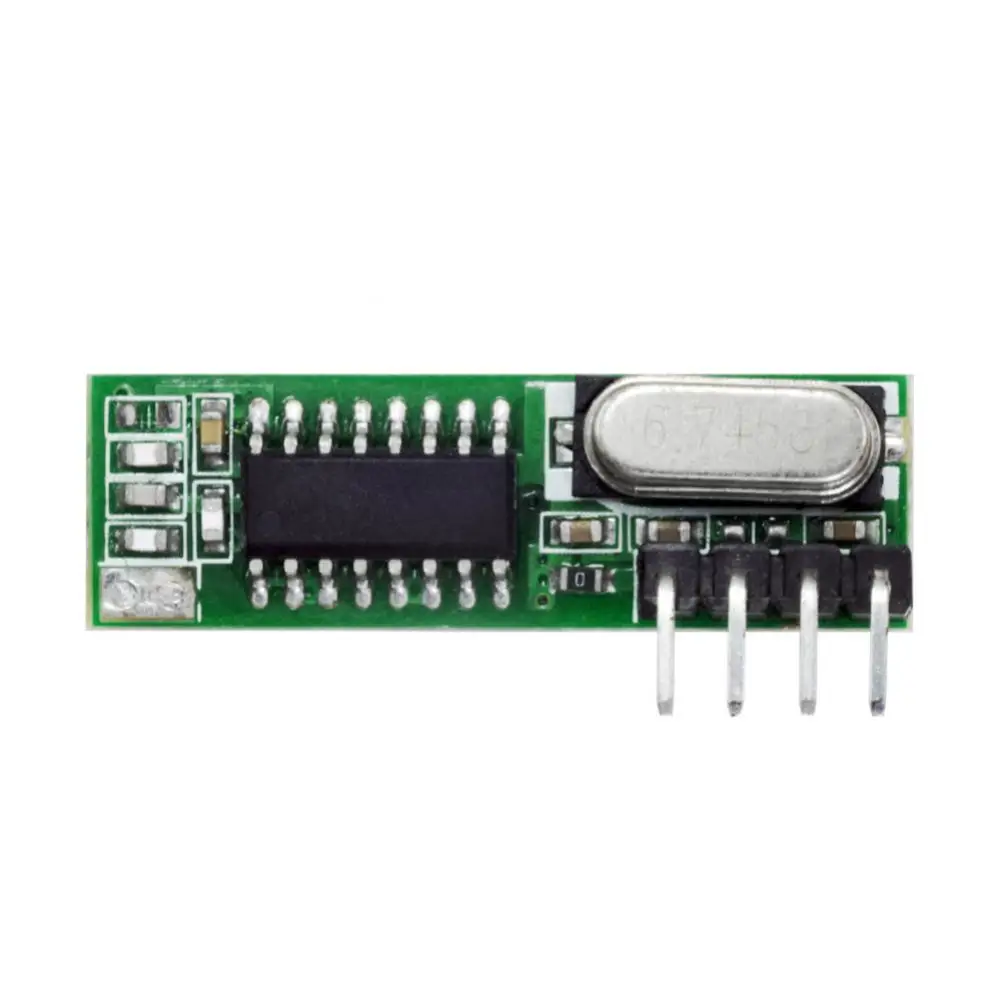

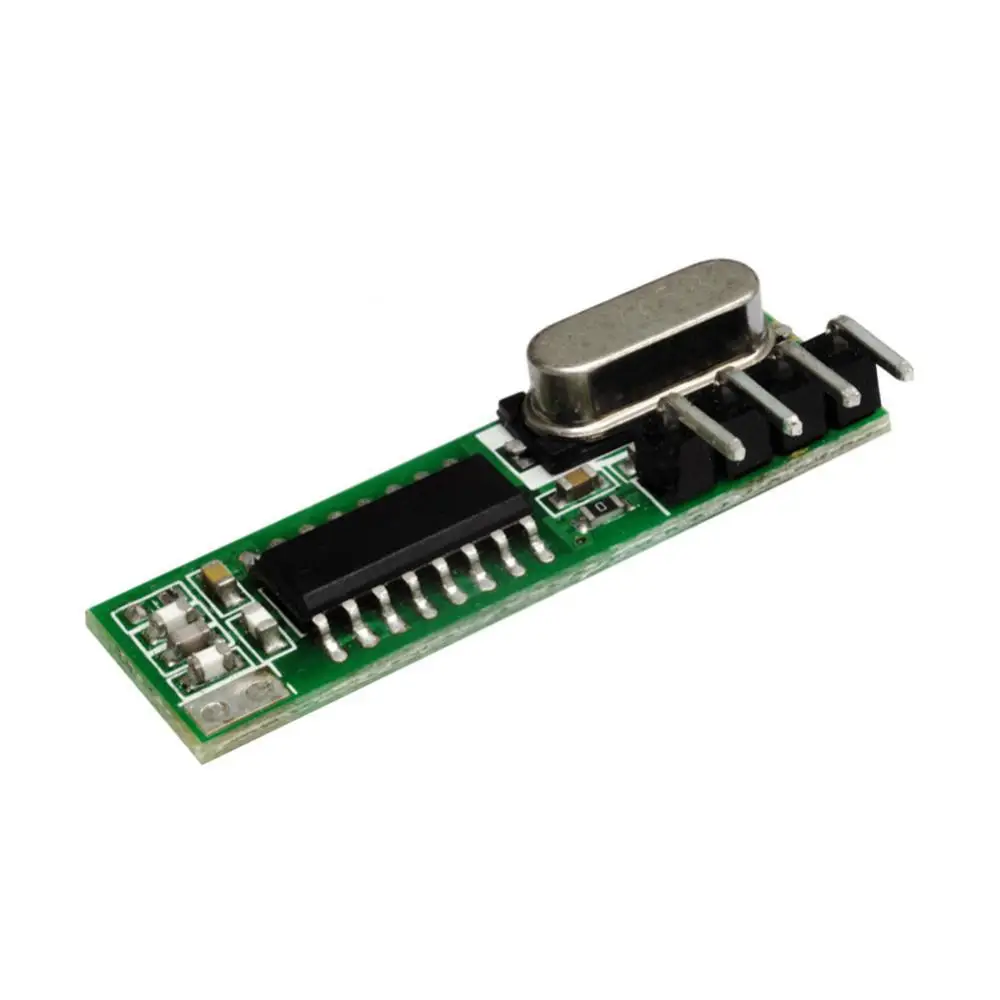

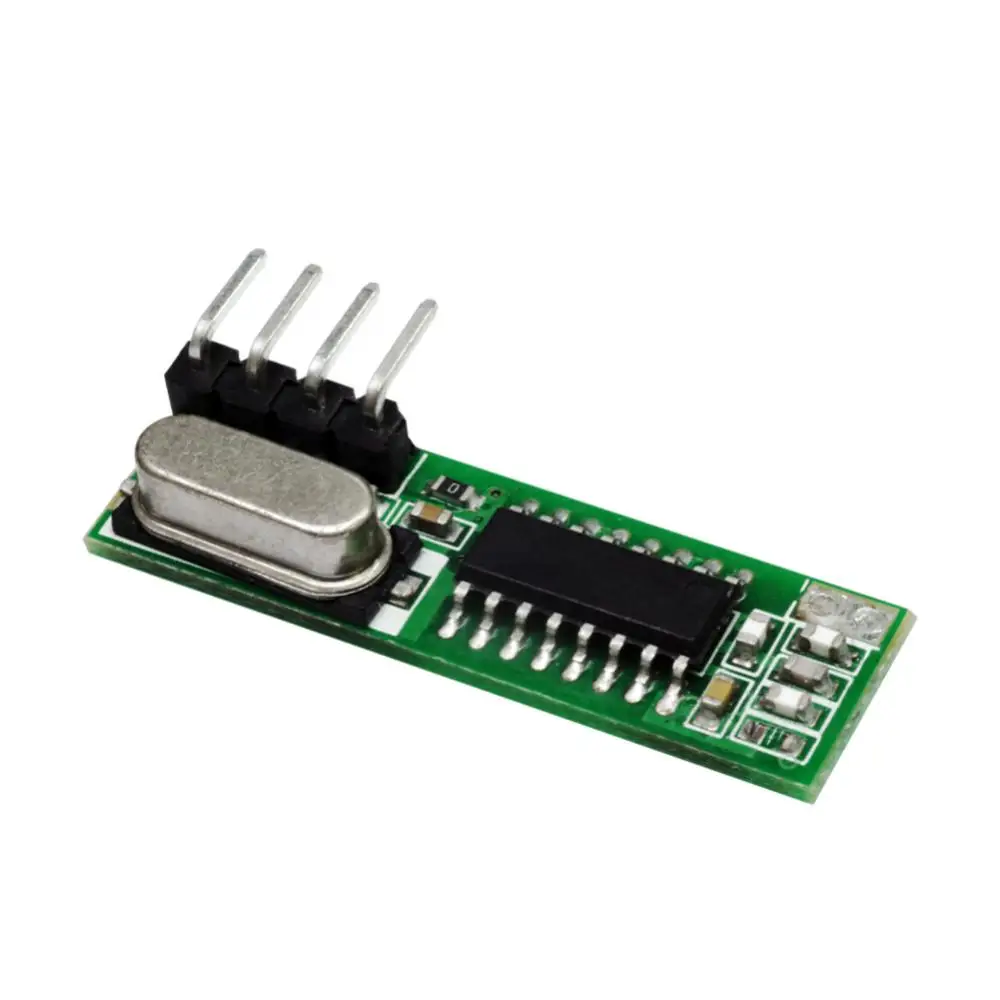

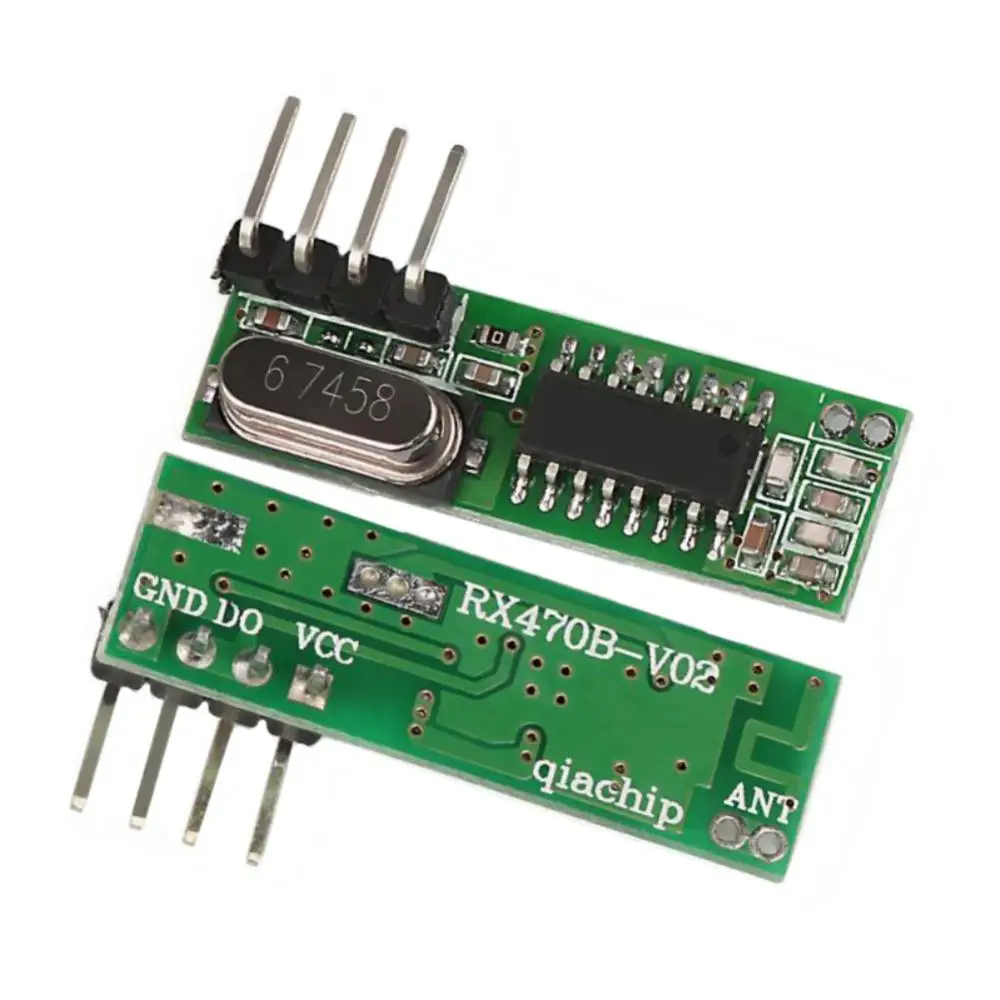

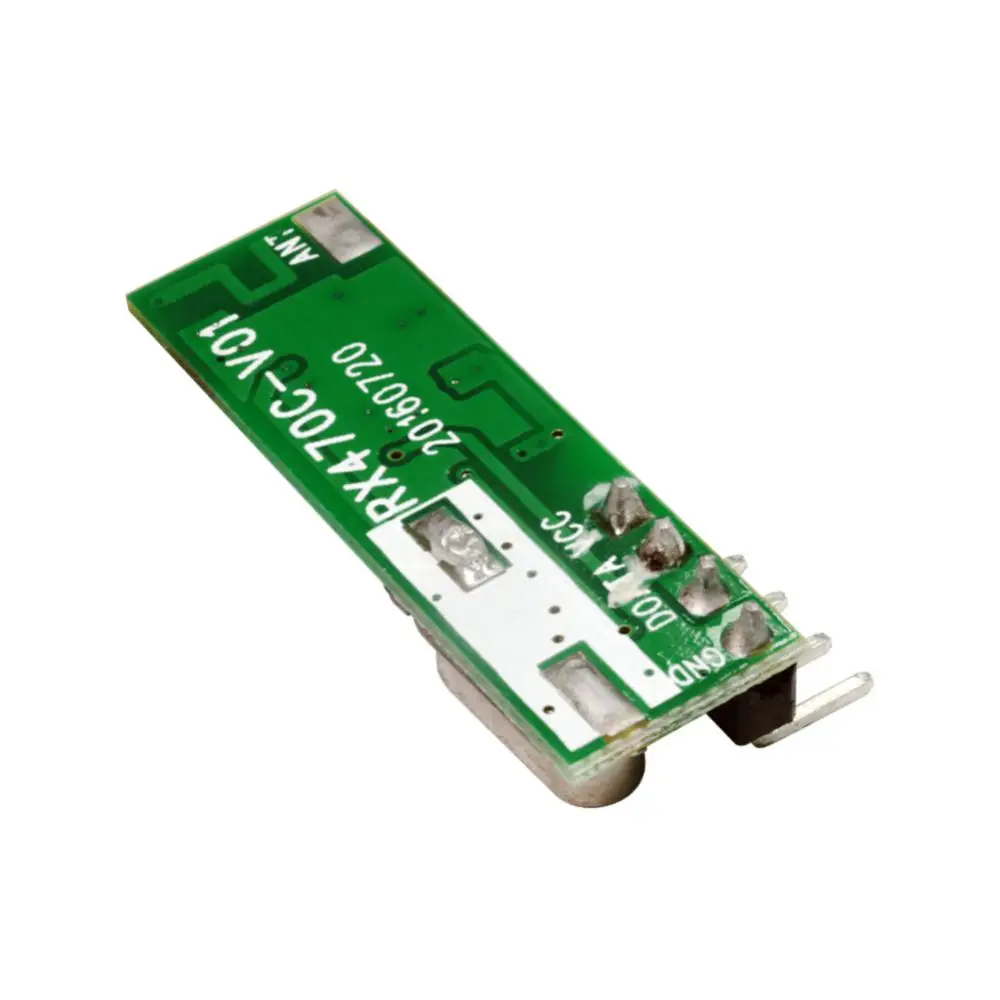

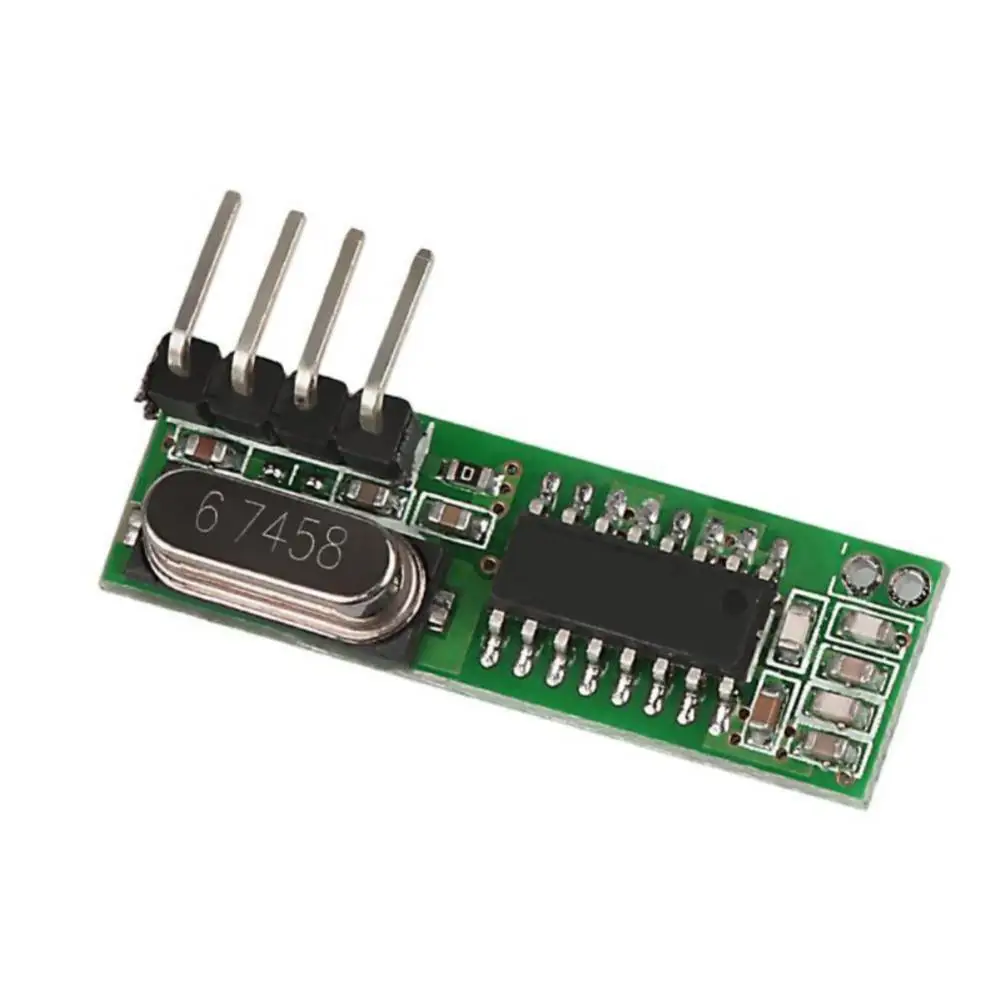

Receiver Module ] Product Model: RX470-4

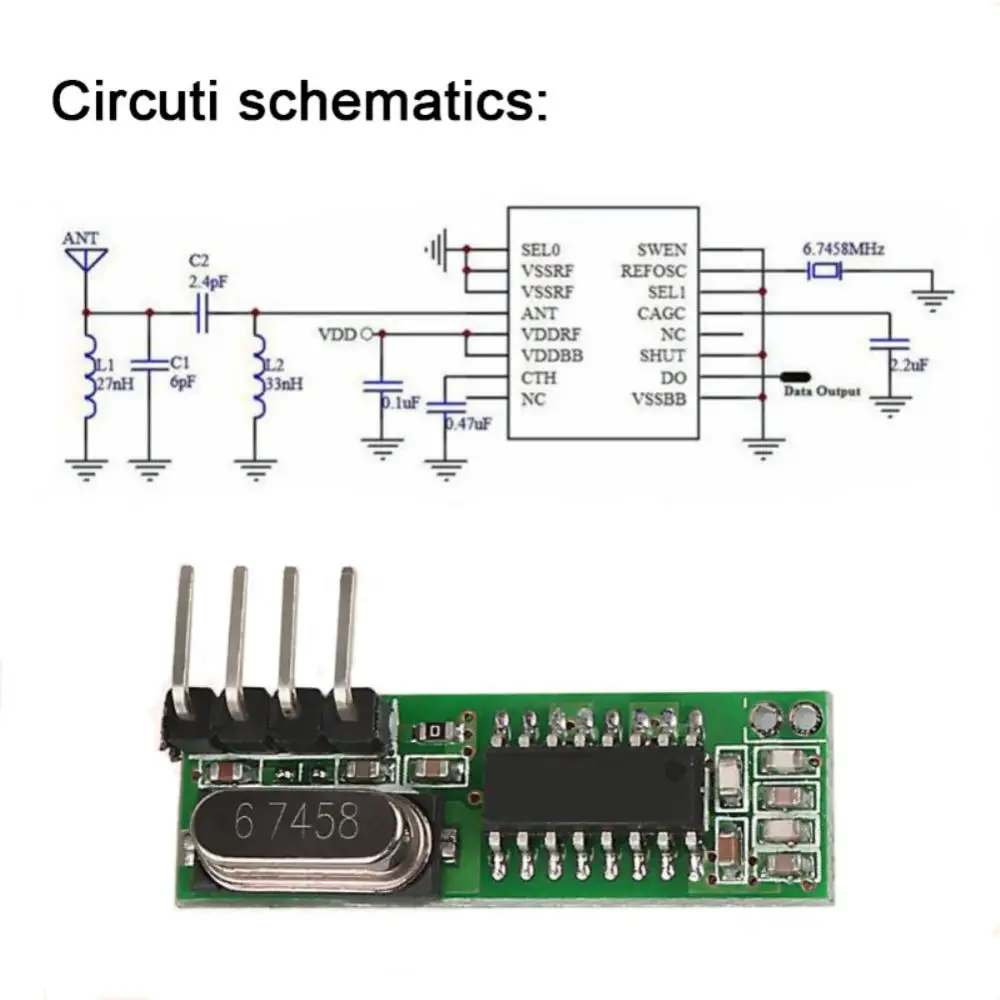

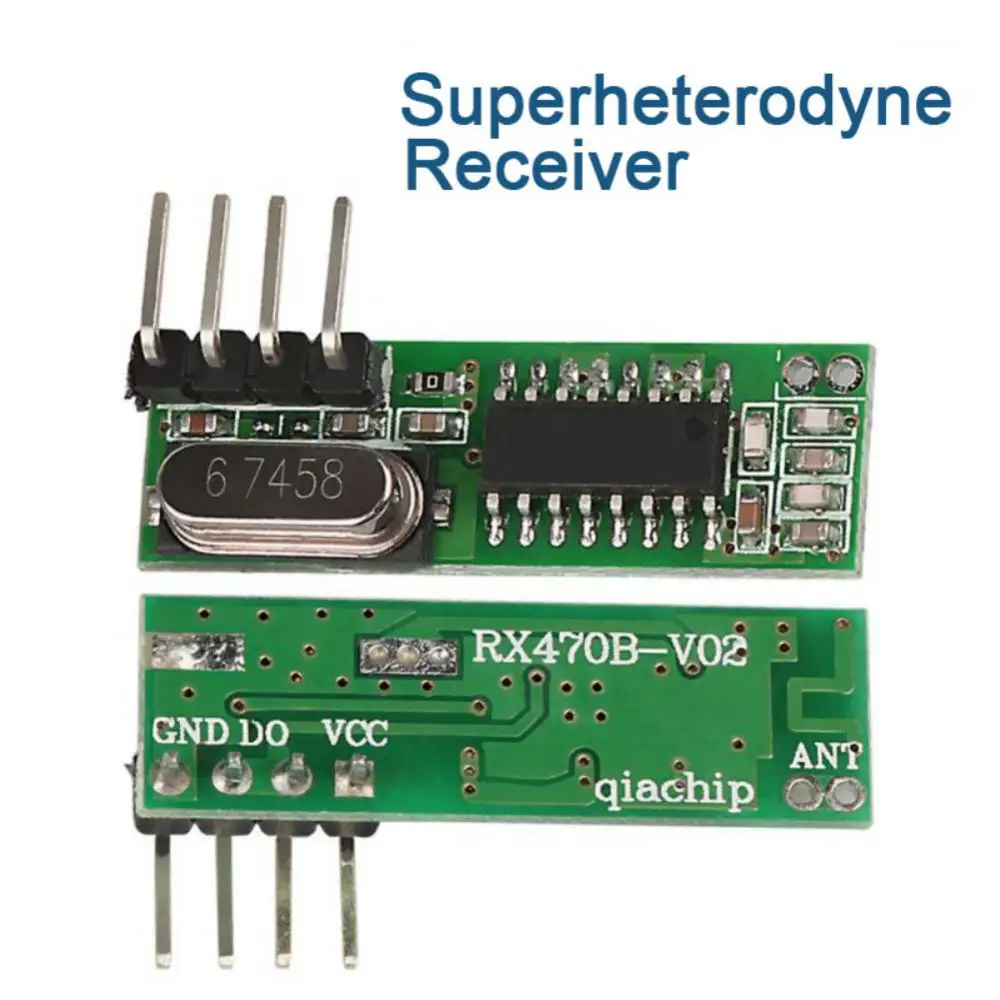

RX470-4 : superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation. The receiver module has high sensitivity (-108dBm),

Low-power performance, along with high dynamic range (greater than 60dB). Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.

Package Included:

1* 433MhzRX470-4Superheterodyne Receiver Module
