433 Mhz Superheterodyne RF Receiver and Transmitter Module For Arduino Uno Wireless Module Diy Kit 433Mhz Remote Control Module

433 Mhz Superheterodyne RF Receiver and Transmitter Module For Arduino Uno Wireless Module Diy Kit 433Mhz Remote Control Module

$4.00
$4.16 $4.00
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

Brand Name: WenQia

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: RoHS

Frequency: 433 MHz

Channel: 2

Package: Yes

Model Number: RX470

Transmitter Working voltage: DC 2-3.6V

Receiver Working voltage: DC 2.2~5V

Quiescent Current: 1uA

transfer rate: 20KHz

Transmitter Size: 16* 12 * 6(mm)

Receiver Size: 30*9*6 (mm)

Working temperature: -30~+80 degrees

Transmit deviation: +/- 7. 5KHZ / narrow-band emission

Transmit Sensitivity: larger than 11dBm

RF Operating mode: ASK /OOK superheterodyne wireless reception

Max current: 2.1mA

Frequency band: +/- 150KHz

Receiving Sensitivity: -108dB





433 Mhz Superheterodyne RF Receiver and Transmitter Module For Arduino Uno Wireless Module Diy Kit 433Mhz Remote Control
Product Application Area
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Applications

  • 1.wireless power switch, socket, remote control switch, receiver module,

  • 2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system

  • 3. security, surveillance systems, home security products, electric doors, alarm host, alarm

  • 4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door

  • 5. smart home products, remote control curtains, remote MP3, audio

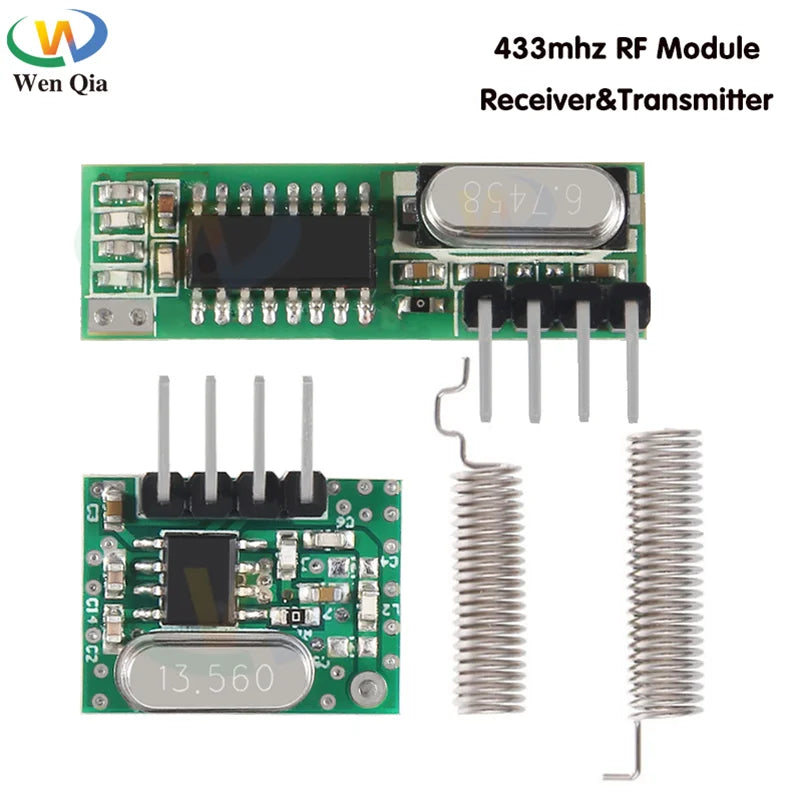

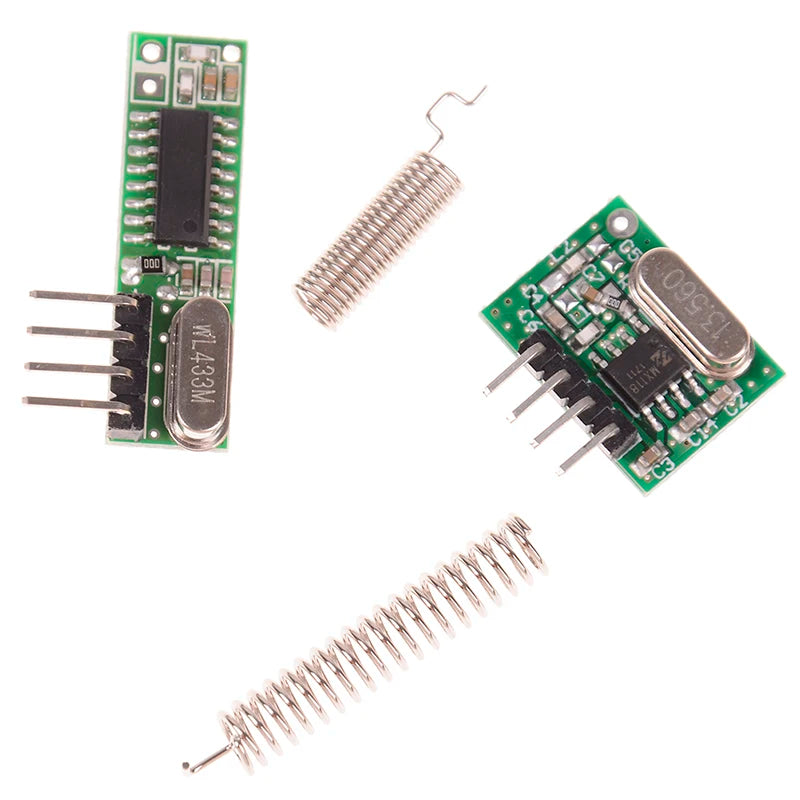

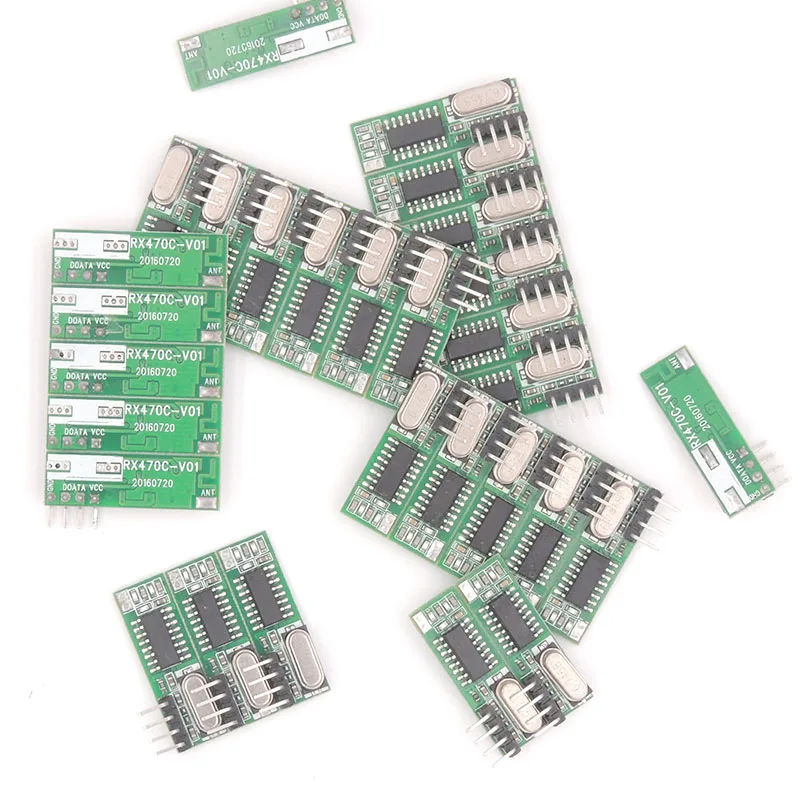

Package include
Transmitter module (WL102-341)
Receiver module (RX470-4)
With long antenna for receiver
With short antenna for transmitter

  Technical Data

  • Working voltage  :  DC 2.2~5V

  • Quiescent Current : 1uA

  • Max current  :  2.1mA

  • RF frequency  : 433.92 MHz

  • Frequency band  : +/- 150KHz

  • transmission rates  : 2KHz to 10KHz

  • Working temperature  : -30~+80 degrees

  • Receiving Sensitivity  : -110dBm

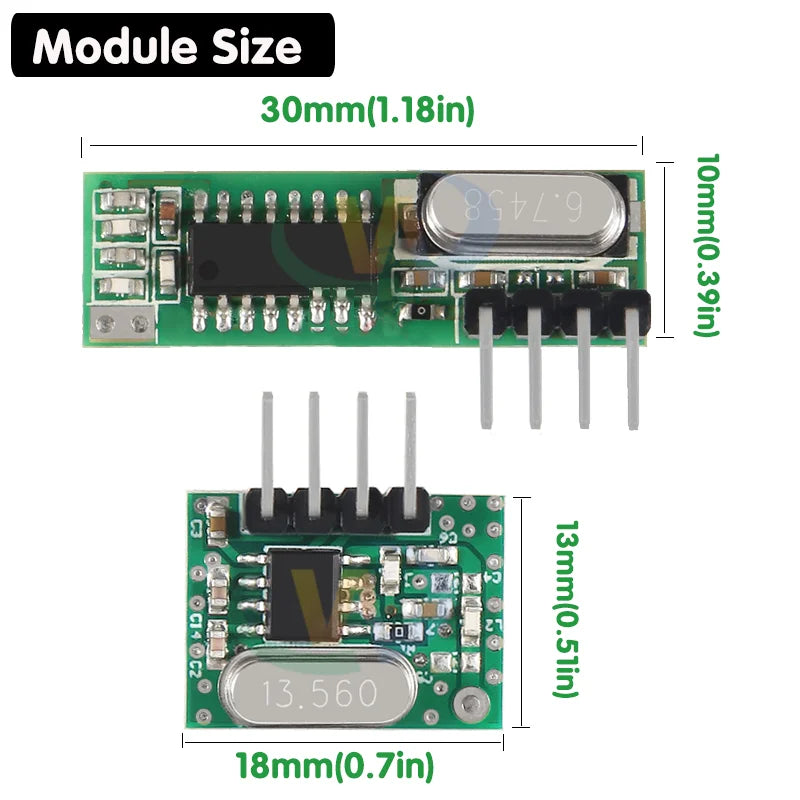

  • Size  :  30*9*6 (mm)

  • RF Operating mode  : ASK /OOK superheterodyne wireless reception

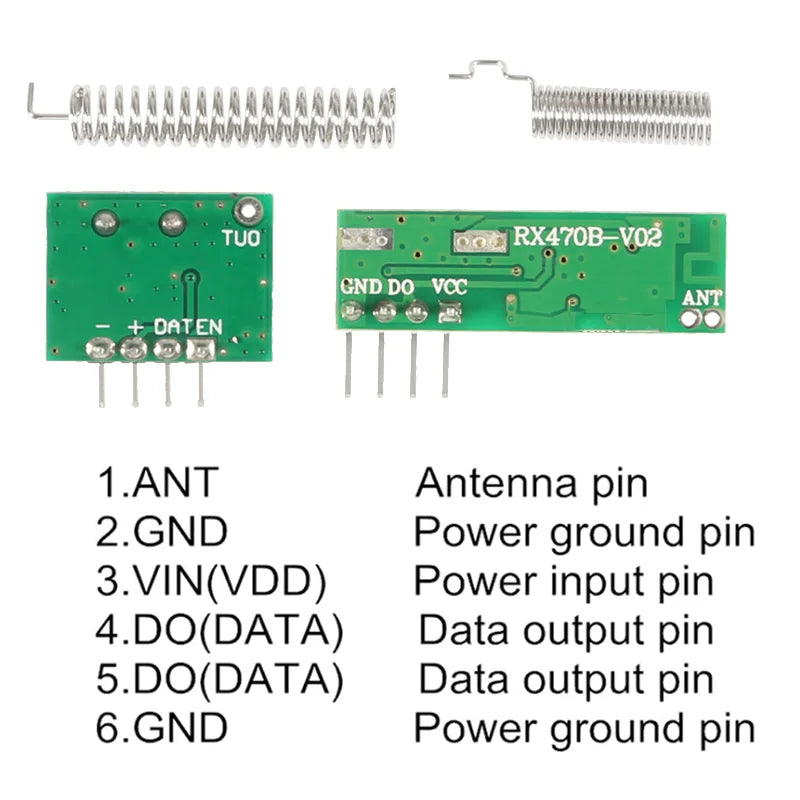

Pins Instruction
GND : ground or negative pole
D0: Data output
D0: Data output
VCC: Power input
ANT:  Antenna

Features

  • 1.Low power consumption;

  • 2.good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;

  • 3.Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance;

  • 4.External antenna: 32CM single core wire, wound into a spiral

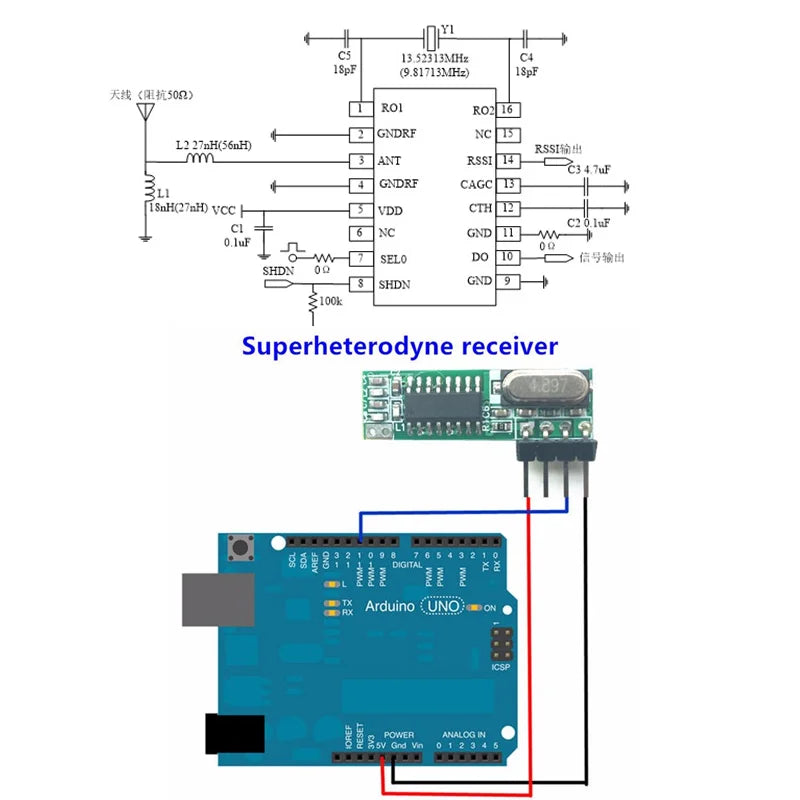

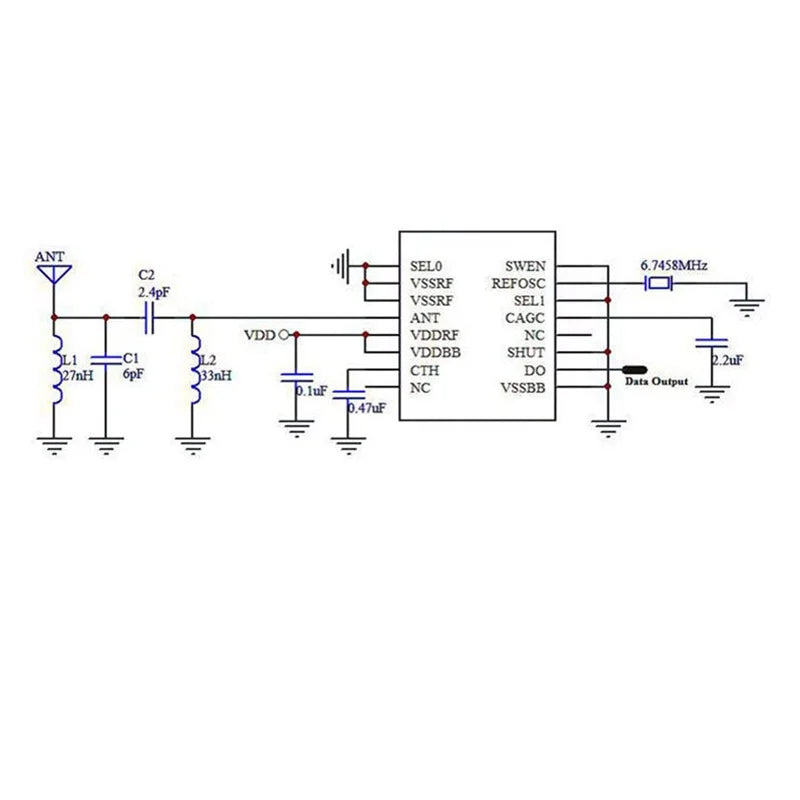

Application example




  Transmitter module

  • Working voltage  :  DC 2-3.6V

  • Quiescent Current  : 1uA

  • transfer rate  :   20KHz

  • RF frequency  : 433.92 MHz

  • Working temperature  : -30~+80 degrees

  • Receiving Sensitivity :   larger than 11dBm

  • Size  : 16* 12 * 6(mm)

  • RF Operating mode  : ASK /OOK superheterodyne wireless reception


Pins Instruction

DAT - Wave signal input

OUT - Antenna pin . RF signal output, can directly connect to the antenna.

EN - Enable Pin .But this product EN pin is connected to the power supply, no function

- - Power- ground Pin . The ground wire connects power supply.

+ - Power supply pin . Power Input

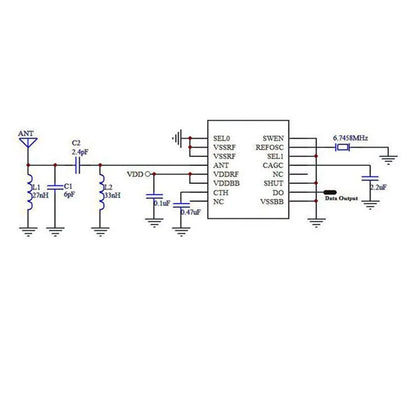

Application example



Antenna selection Description

General application mode
For general application mode ,the antenna can directly adopt the general specifications from the market;
The specific information as follows:
The antennarsquos core of conductor diameter(including the Antenna skin): 1.0mm,(except the Antenna skin): 0.5mm ;
The wire length of weld end: 17.5mm, the wire length of antenna terminal: 9.5mm;
The diameter of antenna winding (including the Antenna skin):5mm;
The turn number of winding: 15 turns

The diagrammatic drawing:

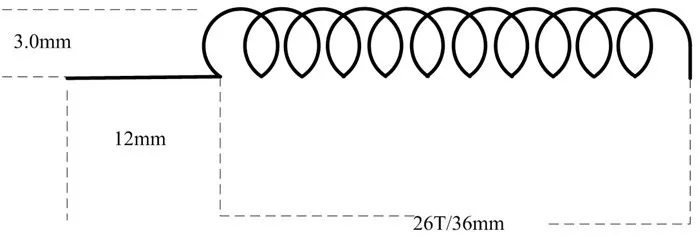

The special enhancement mode

The general application mode cannot satisfy if you need farther communication distance, so the special enhancement mode can receive farther communication distance, and the specific information as follows:

433Mhz Antenna

The antennarsquos core of conductor diameter (including the Antenna skin): 1.0mm; (except the Antenna skin): 0.35mm
The wire length of weld end: 12mm
The diameter of antenna winding (except the Antenna skin):3.0mm;
The turn number of winding: 26 turns; The length of the winding: 36mm

The diagrammatic drawing:
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
