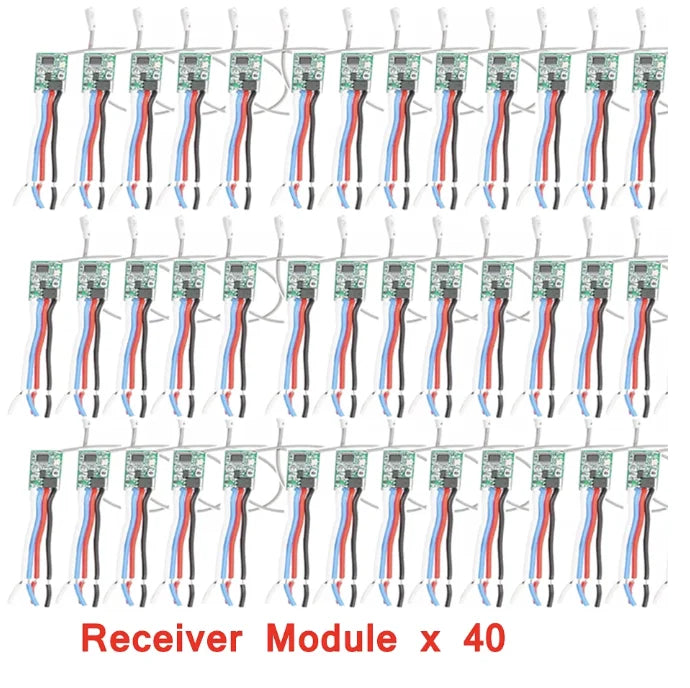

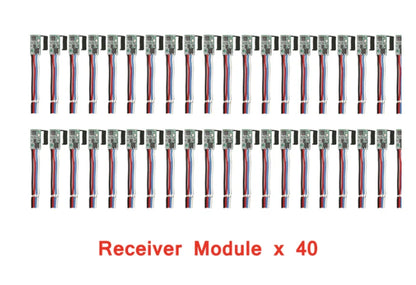

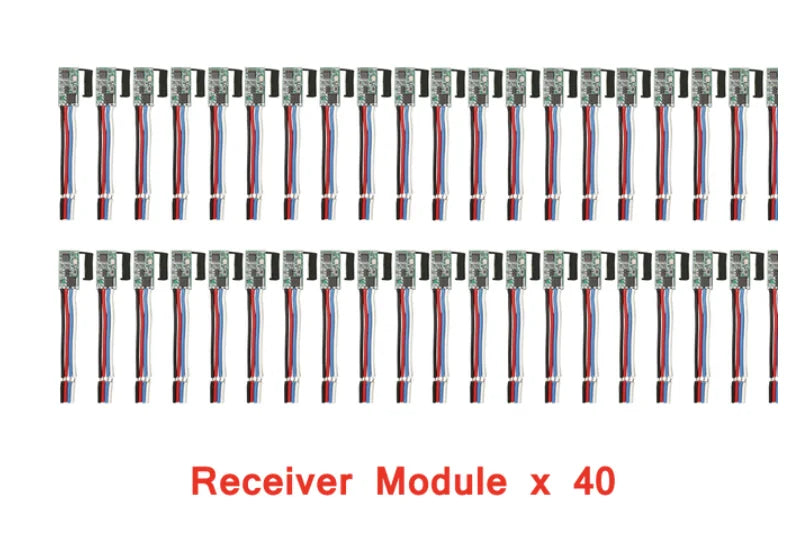

40pcs 433.92Mhz Universal Wireless DC 3.6V-24V Remote Control Switch QIACHIP 1 CH RF Relay Receiver LED Light Controller DIY Kit

$81.51

~~$85.06~~ $81.51

Sale Sold out

Shipping calculated at checkout.

Color 40pcs 40pcs 1

SPECIFICATIONS

Brand Name: difoda

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Certification: CE

Frequency: 433 MHz

Channel: 1

Package: Yes

appliance: LED lamp string

working mode: Momentary

static current: 3.6 mA ~ 5.5mA

working temperature: -20 degrees 80 degrees

working distance: 20 Meters above in open space. 3V 5V 12V 24V remote control switch

working voltage: DC 3.6V~24V

maximum load: 2A

controller type: Learning Code 1527

Application environment:

Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

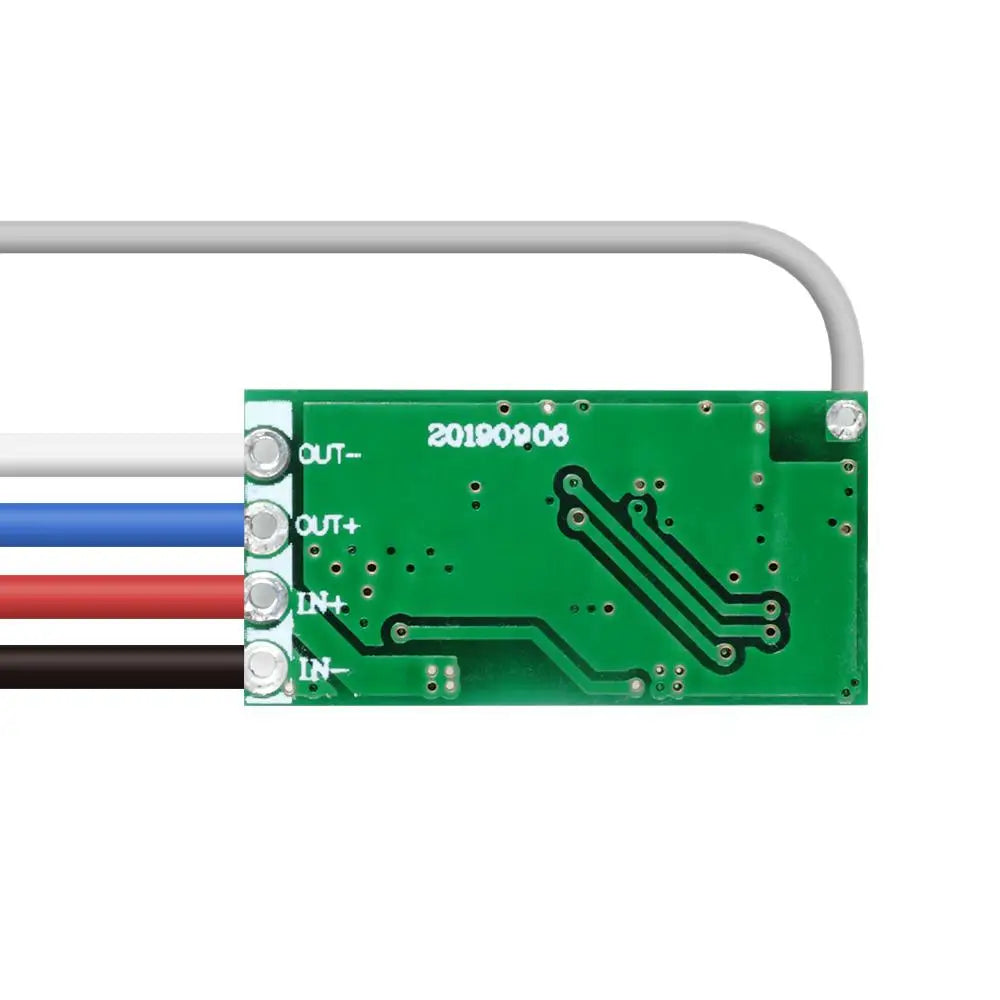

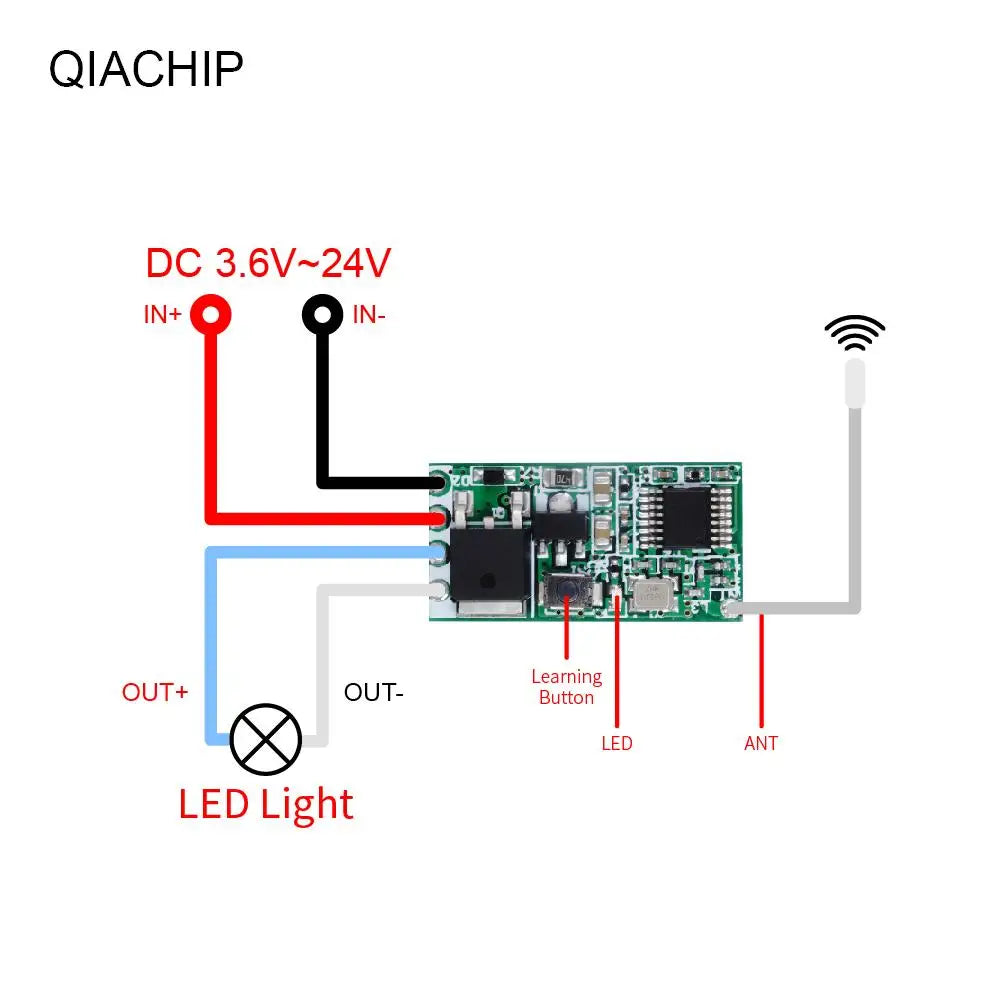

Specifications Of The Receiver:

Model Number:QA-R-011 (QA-R-012)
Working Voltage: DC 3.6V~24V.
Maximum Load: 2A.
Static Current: 3.6 mA ~ 5.5mA.
Working Frequency: 433MHz.
Reception Sensitivity: ≥ -107dBm.
Modulation Mode:ASK (superheterodyne).
Number Of Stored Remote Controls: ≤ 10.
Working Mode: Momentary, Toggle, Latching Mode.

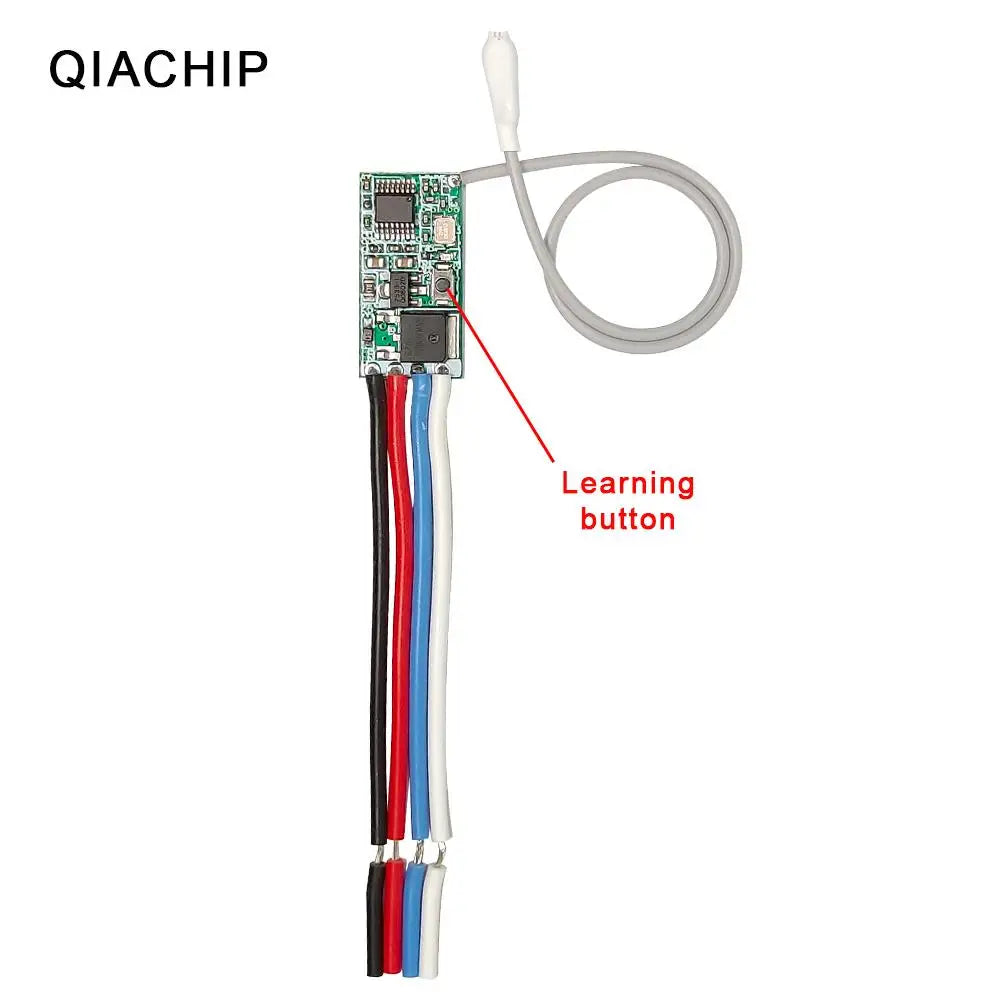

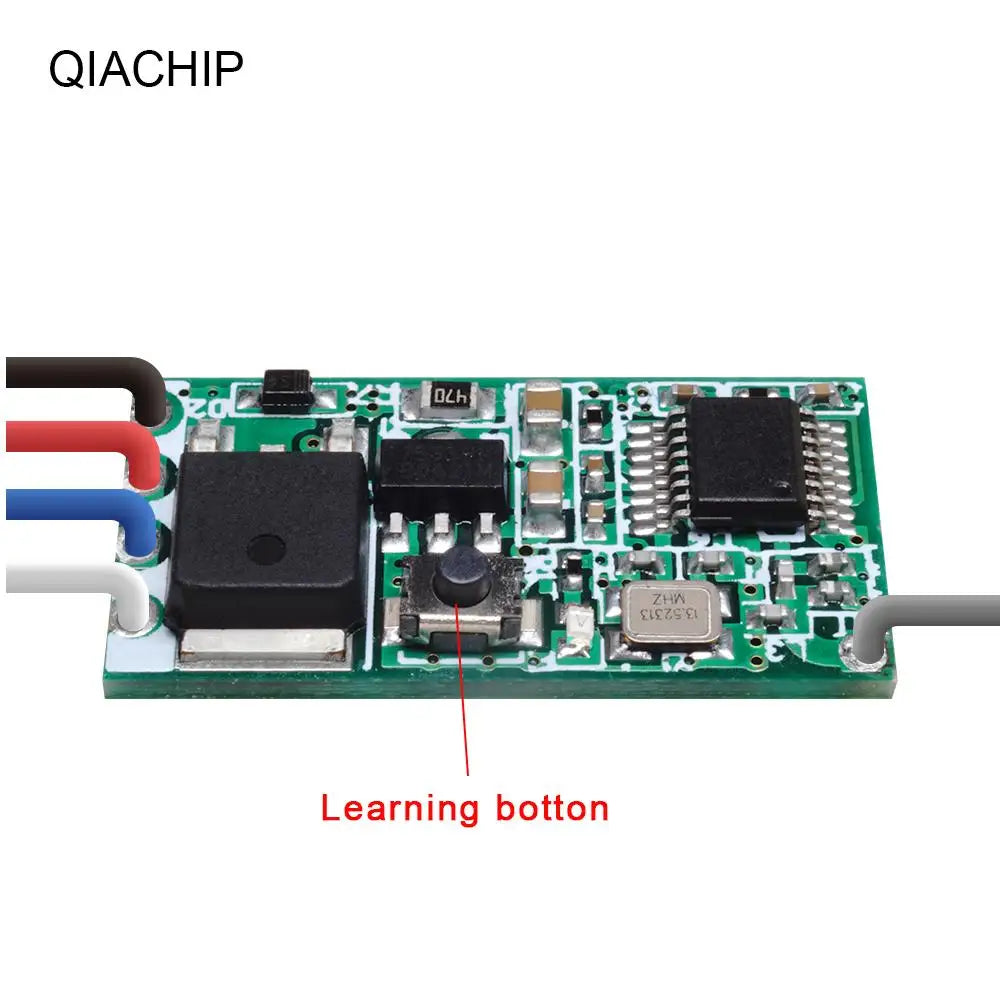

Learning Style: Learning Button.
Working Temperature: -20 degrees 80 degrees.

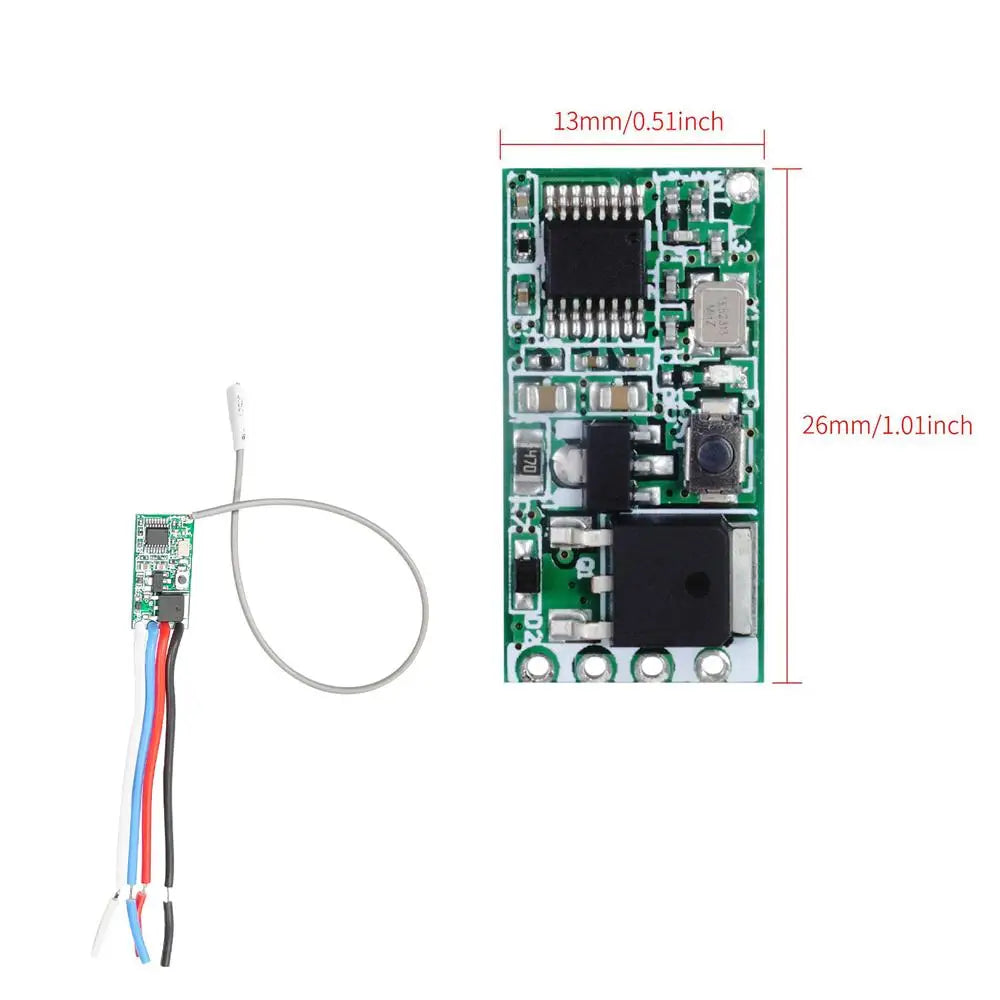

Appearance Size: 26mmx 13mm x 1mm (length × width × high).
