SPECIFICATIONS

Brand Name: ZKRLLF

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Certification: CE

Certification: RoHS

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Channel: 4

Package: No

Frequency: 433 MHz

Model Number: 433 MHz RX480 Motion Sensor Wireless RF Remote Control Switch Receiver

Warranty: 1 year warranty RX 480 433Mhz 4CH Learning Code Receiver Diy

Switch Type: Remote Control

Remote Distance: 433mhz Wireless Remote Control Receiver Learnin Code Decoder Module

Working Voltage: 2.2V ~ 5V

Quiescent Current: Less than 5mA

Receive Sensitivity: -108dB

Receive Distance: 15 meters above

Encoding: EV1527 1527 2262 Learning Code Button Remote Conterol Receiver

Working Temperature: -25~75 Degree Celsius

Function: Superheterodyne Learning Code Decoding Receiver

Working mode: Momentary Mode , self-locking,interlocking

Application: Mandos a Distancia De Puertas De Garage

Application Example: Garage Doors Car Keyless Switch Access DIY CoControl System

Application environment:

Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

 Details:

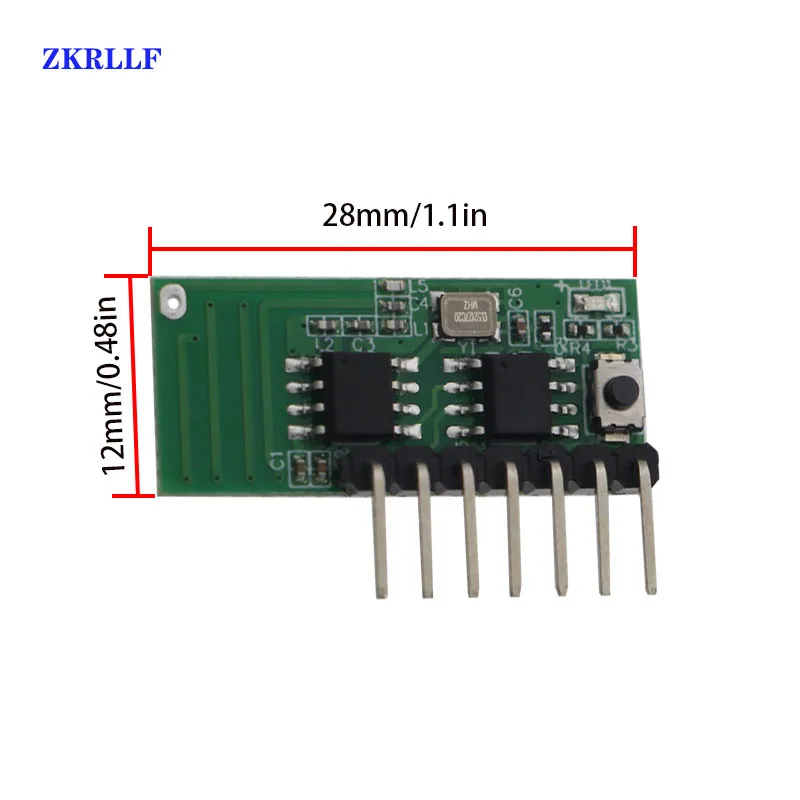

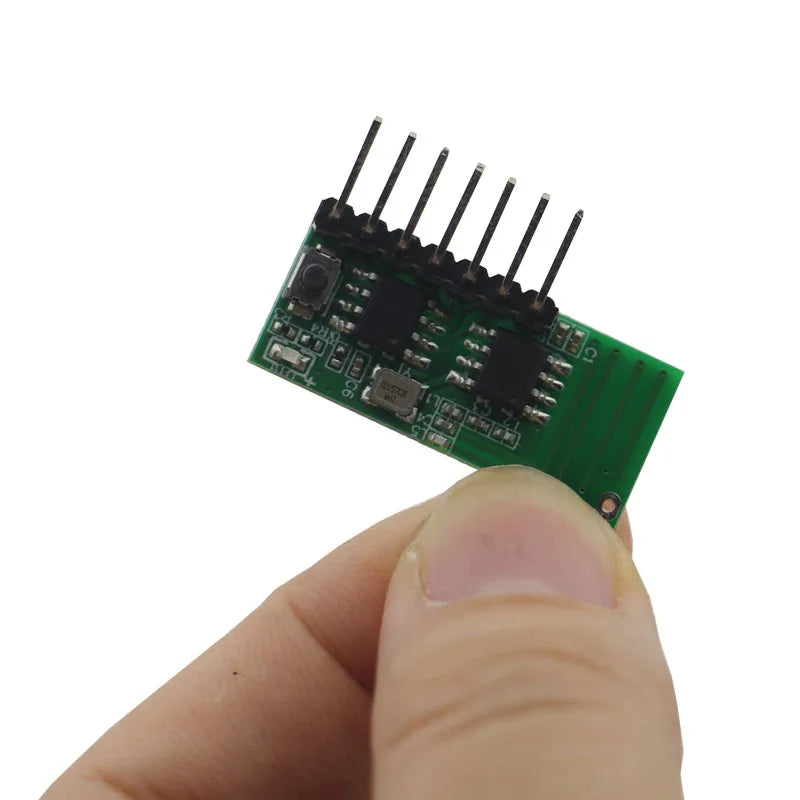

[Receiver module ] Product Model:  RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : ≤5mA
Working Frequency: 433MHz( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance:  15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75

Working mode:Point move, self-locking, interlocking

The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.


Notice:
Different options include different packages

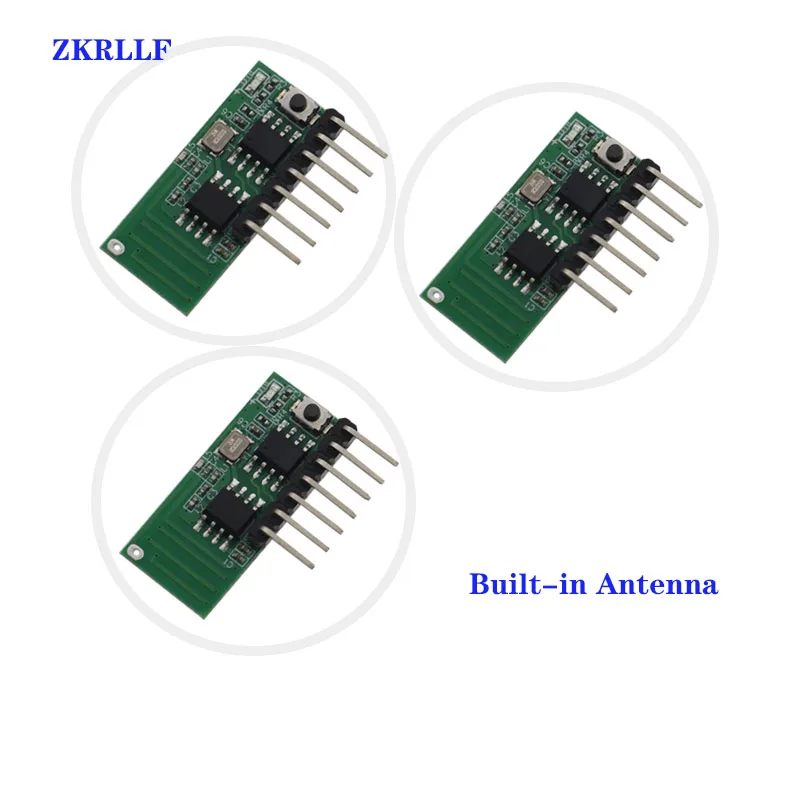

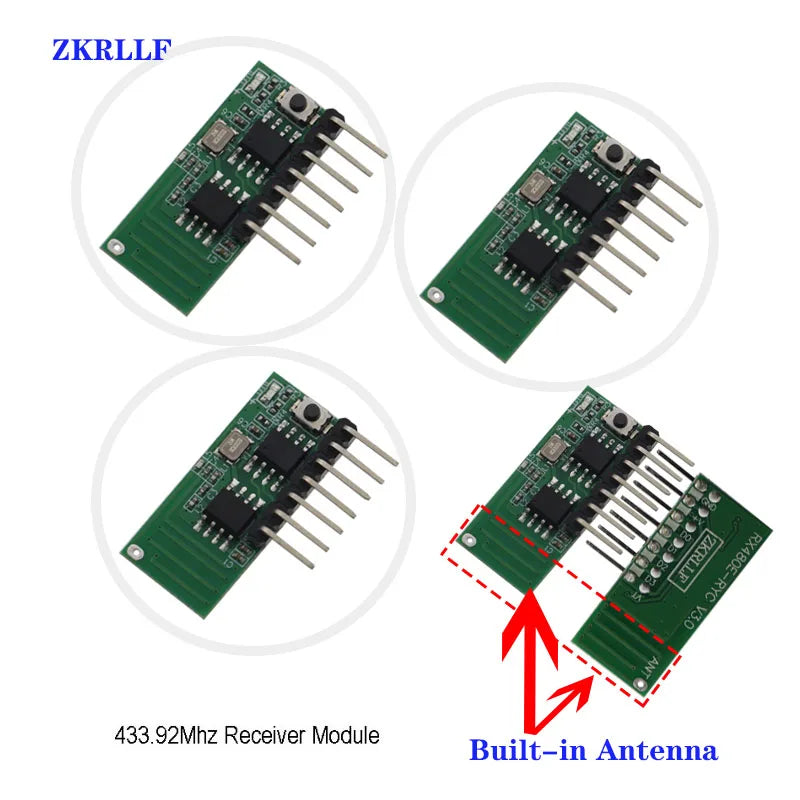

Package  Included 1: 433MHz Receiver module (rx480 Built-in antenna ) *   3pcs.

Attention Please:
Compatible transmitter encoding type: EV1527
If you are not using the transmitter encoding EV1527 will not be applied to the receiver.

If you need to customize other decoding modes such as PT2262, HT6P20B, HCS301, T301A, T301E, HT6P20B, HCS301, T301A, E301E etc; need order more than 500pcs (each 500pcs) welcome custom orders, please contact us.

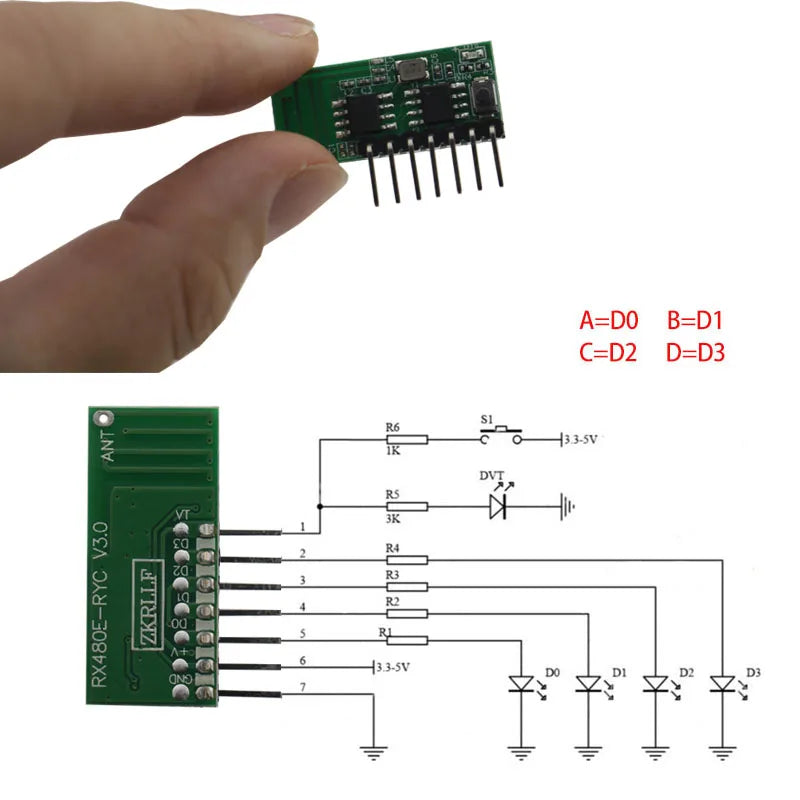

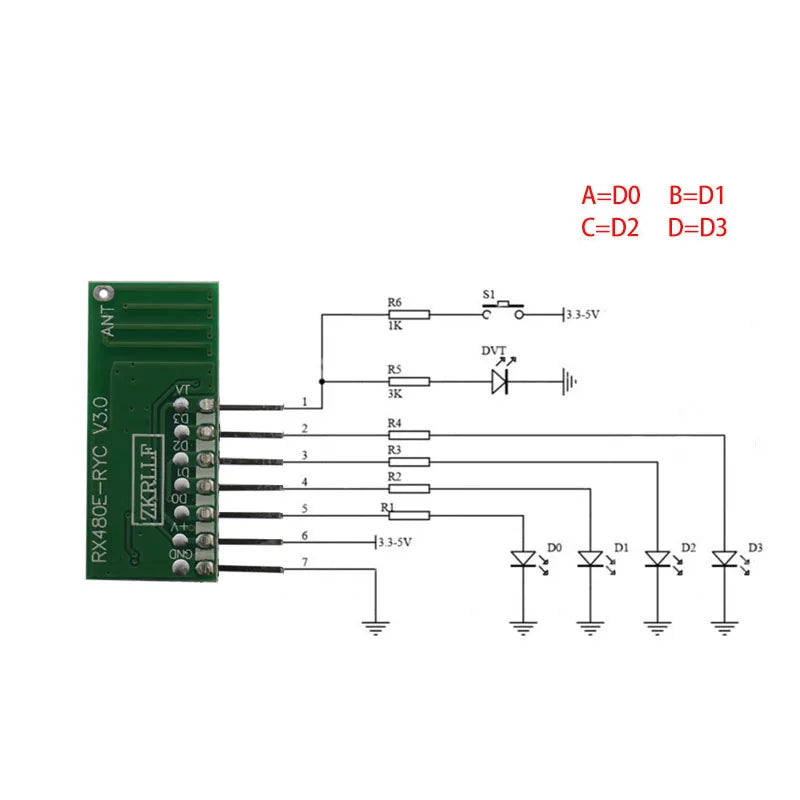

Pins Instruction:

GND : groud or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output

How To Programming:

1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control .


More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.

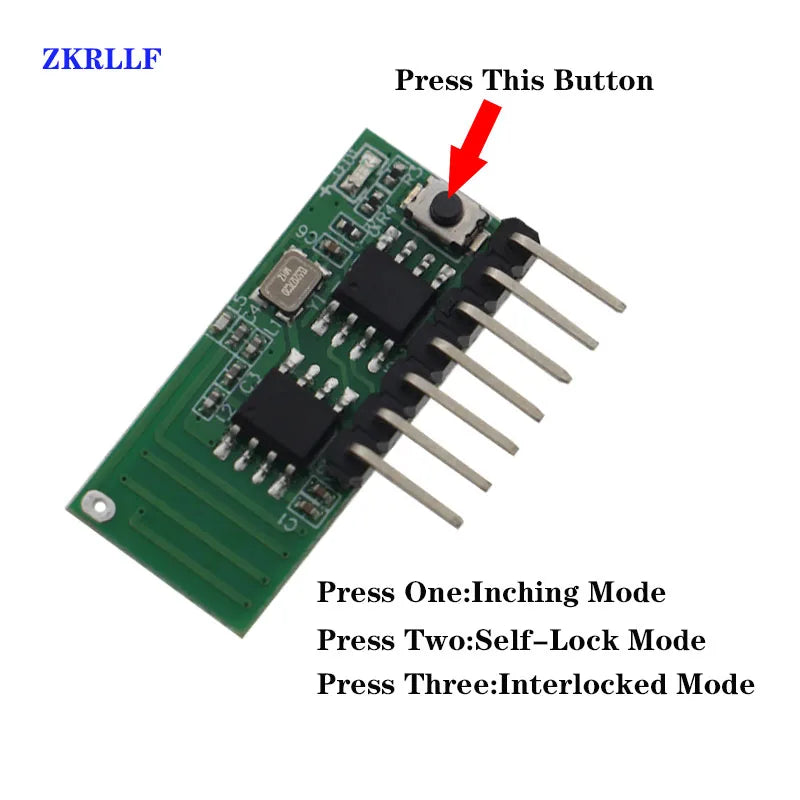

Button usage (sets mode and starts pairing process):
Press once: Inching mode (Momentary Mode)
Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)

(This instructions is provided by Manfred, thanks to Manfred)


Application example
