Description
SPECIFICATIONS
Brand Name: LanYuXuan
Origin: Mainland China
DIY Supplies: ELECTRICAL
Warranty: 1 Year
Customized support: OEM, ODM
Brand Name: Shenchen
Model Number: OEM-UCXZ Series
Place of Origin: Hebei, China
Application: Food and Beverage Industry, Industrial Utilities
Power Source: Electric
Pressure: Low Pressure
Structure: OEM peristaltic pump
Voltage: 12v, 24v
Power: 40W
motor: DC Motor
Pump head: UC25
Flow rate: 0.3423~3331.5mL/min
Speed: 0.1-300rpm
Tube size: 15#, 24#, 35#, 36#
Tube material: Silicone tube
Hello, welcome to my shop. What can I do for you? If you have any questions, you can send me product information to ask, if you have something urgent to tell me, please add my WhatsApp +86 17352823125 . If you need to confirm the product and confirm the shipping cost of the product, please contact me after placing the order. My email: 3353361535@qq.comHello, welcome to my shop. What can I do for you? If you have any questions, you can send me product information to ask, if you have something urgent to tell me, please add my WhatsApp +86 17352823125 . If you need to confirm the product and confirm the shipping cost of the product, please contact me after placing the order. My email: 3353361535@qq.com
Product Description

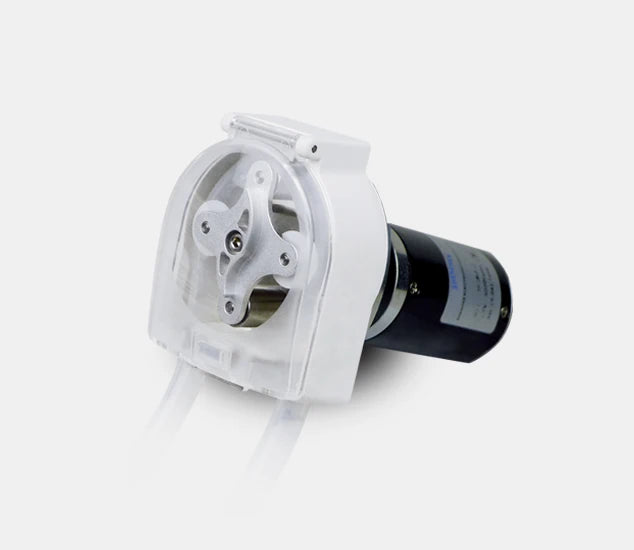

UC25 pump head can observe the working situation anytime with the transparent protective cover;
Running smoothly, low noise;
Support DC motor, burshless DC motor, stepper motor, servo motor and AC motor.
Flow Data
|
Model
|
Housing Material
|
Tubing
|
Speed
(rpm)
|
Flow Rate
(mL/min)
|
Weight
(kg)
|
||||
|
Base
|
Protecting Cover
|
Size
|
IDxWall(mm)
|
||||||
|
UC25
|
PSF
|
PC
|
15#
|
4.8x2.4
|
0.1-300
|
0.3423-1027
|
1.39
|
||
|
24#
|
6.4x2.4
|
0.5033-1510
|
|||||||
|
35#
|
7.9x2.4
|
0.8588-2576
|
|||||||
|
36#
|
9.6x2.4
|
1.1105-3331
|
|||||||
Technical Parameters
|
OEM-UCXZ Series Technical Specifications
|
||
|
Model No.
|
OEM-UCXZ series
|
|
|
Speed range
|
300 rpm (DC motor speed error: ±10%)
|
|
|
Flow rate
|
≤3331 mL/min
|
|
|
Motor type
|
φ50 DC brush planetary gear motor
|
|
|
Power supply
|
OEM-UCXZ001: DC24V, 9A;
OEM-UCXZ101: DC12V, 9A
|
|
|
Power consumption
|
40W
|
|
|
Working environment
|
0-40℃, 80%RH
|
|

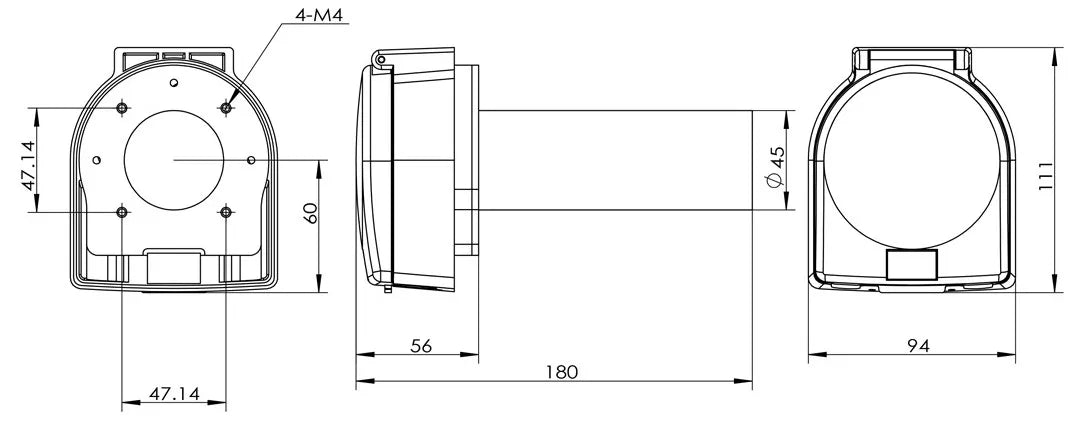

Product Dimensions

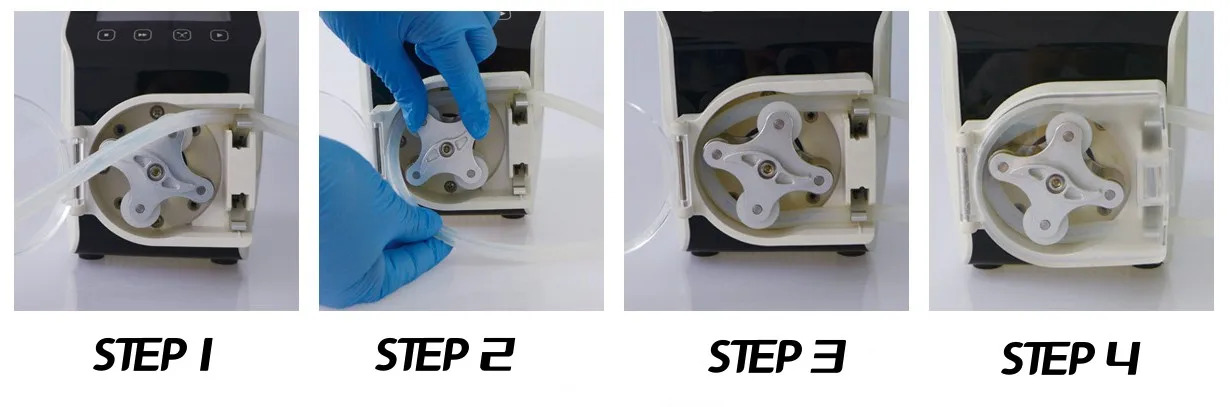

Tubing Installation Procedure
STEP 1. Press the tubing clamp, put the tube into the U shaped groove.
STEP 2. Put the tubing between the two guide posts. Hold the spanner, rotate the wheel body.
STEP 3. Press the tubing clamp, put the tubing into the U shaped groove.
STEP 4. Installation is finished.
Related Products
Packing & Delivery
Packing: 1 set/carton.
Delivery Time: within 3 days after payment.
Courier: DHL, TNT, UPS, Fedex, delivery door to door.
Power Plug: GB, European standard, American standard, British standard.
Delivery Time: within 3 days after payment.
Courier: DHL, TNT, UPS, Fedex, delivery door to door.
Power Plug: GB, European standard, American standard, British standard.

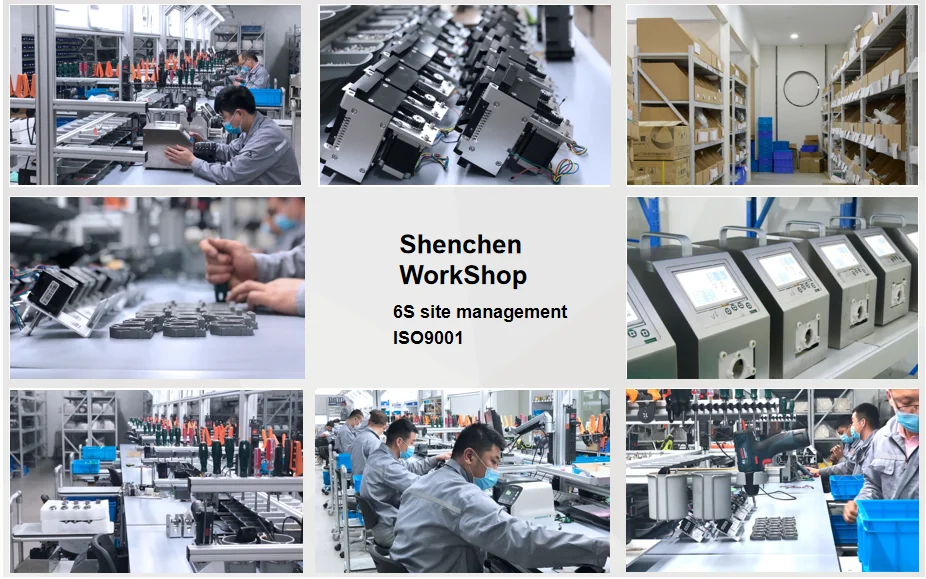

Shenchen Workshop
