Note: There are two kinds of packaging methods, please check whether it is the product model and packaging method you want when you place an order.

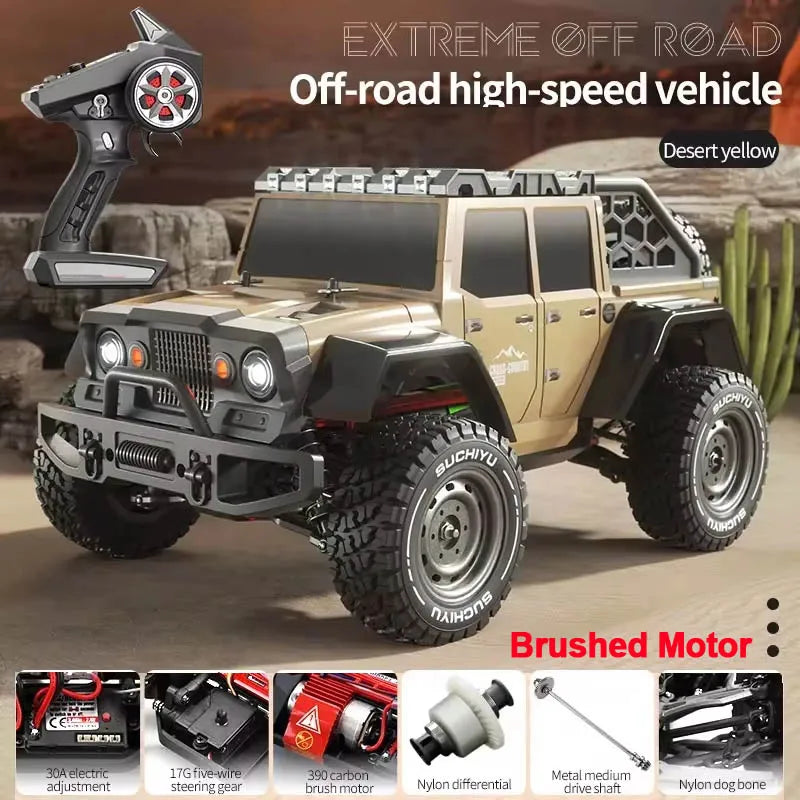

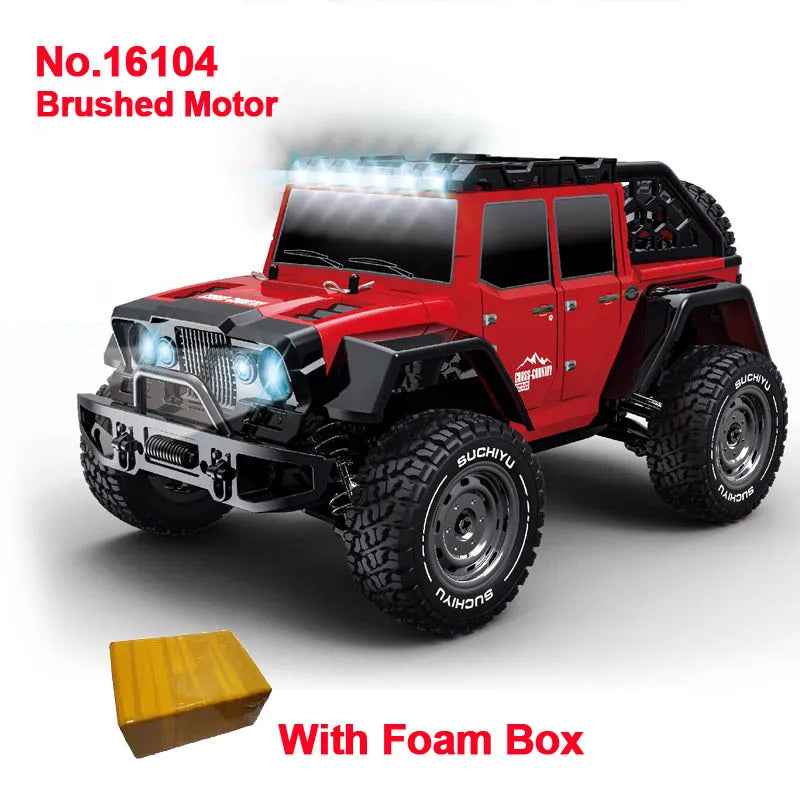

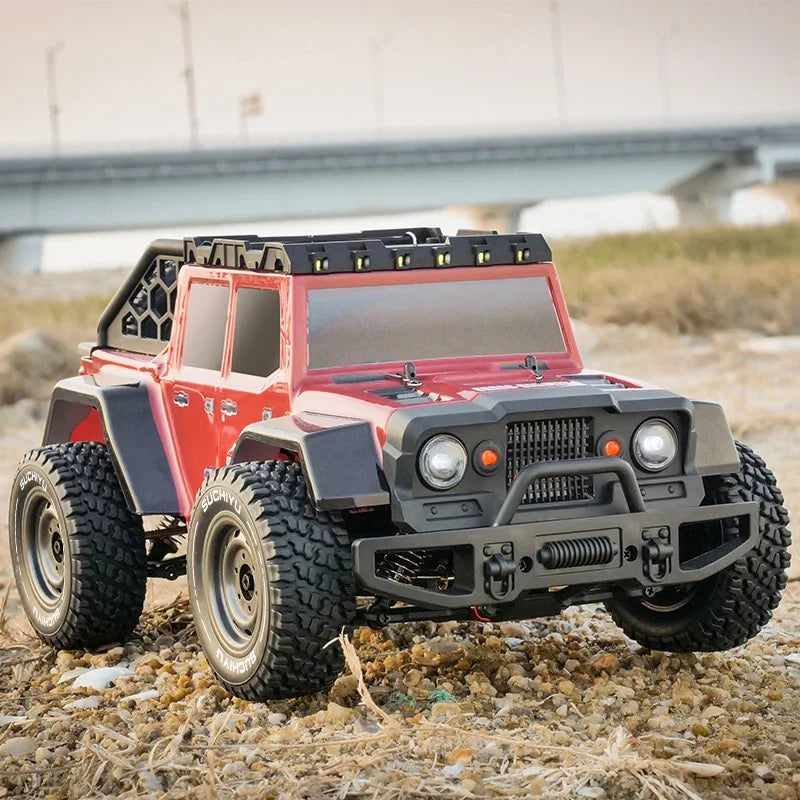

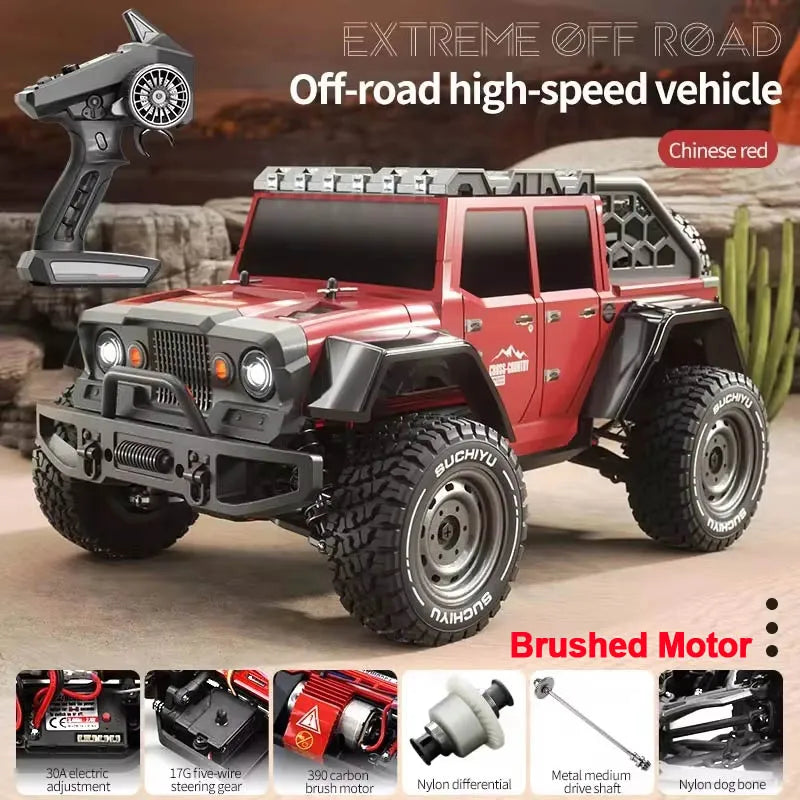

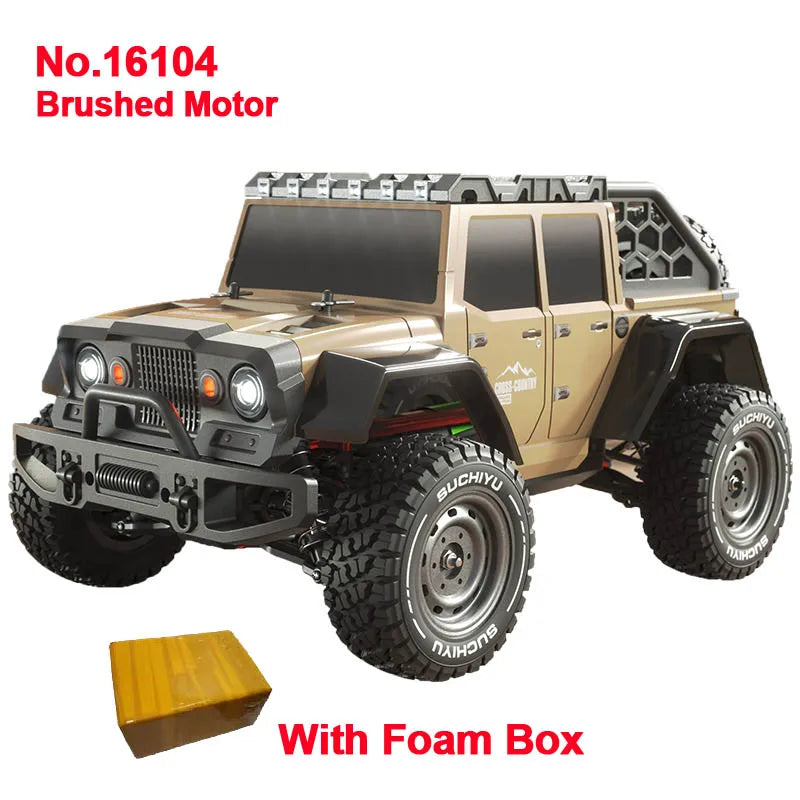

Item No.: 16104

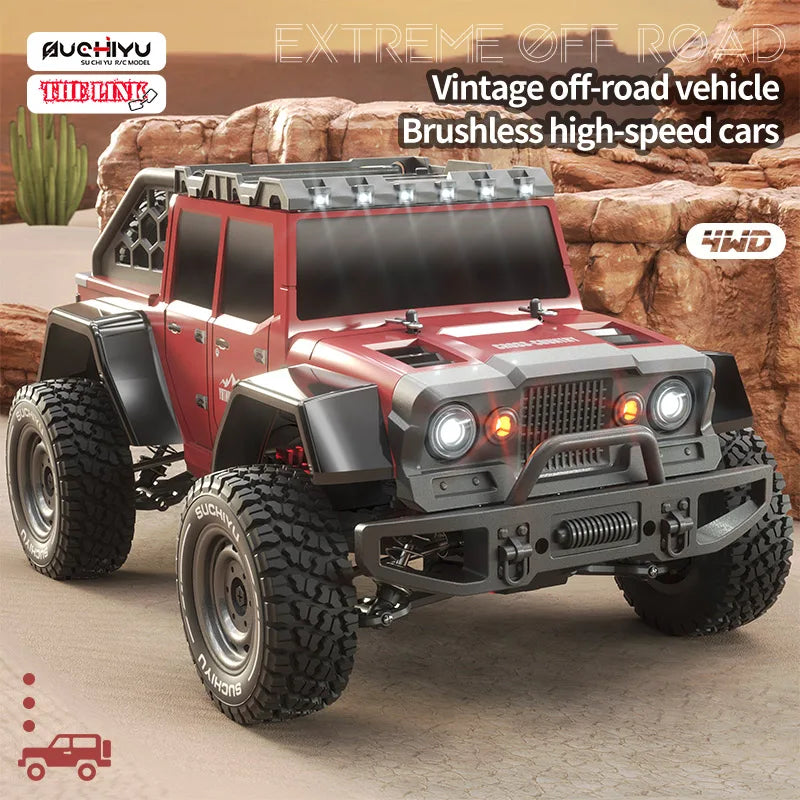

Product Name:4WD "Vintage Wrangler" 1:16

Material: hardware/electronics/plastic

Product colour ：Red

Batteries for remote control: 3*"AA"(need to buy separately)

Battery: 7.4V 1300mah lithium-ion battery

Charging: USB cable

Lights configuration: LED headlights, LED roof lights

Differential structure: front and rear nylon gear planetary differentials

Motor: RC390 high-speed carbon brush strong magnetic (magnetic protection + heat sink)

ESC : ESC/receiver integrated control (splash-proof)

Product specification (cm) : 33.5*20.5*16.5

Product speed (km/h): 38

Remote control time (min): 15-18

Colour box specification(cm) :34.8*21.6*20.3

Charging time(min) :180-210

Remote Control Distance(m): ≥80

Protection function

1. Charging protection: constant current and constant voltage balanced charging, overcharge and overcurrent protection function for the battery.

2.Motor anti-jamming protection: the motor stops working when overloaded.

3. High temperature protection: when the working temperature is higher than the set condition, the drive control circuit stops working, and resume working after the temperature drops to the safe value.

4. ESC low voltage cut-off function, the battery is lower than 6.3-6.4V or so, automatically cut off the power to prevent the battery over-discharge and damage.

Product Configuration

1) the whole car 2) remote control 3) English manual 4) lithium battery 5) USB charger 6) double side door DIY stickers 7) shock-absorbing adjustable buckle 8) metal pins 9) small cross screwdrivers

Product Features

1.Adopt simulation structure design, with real car control feeling, achieve full scale stepless speed change, high speed, rapid acceleration, deceleration, braking, reversing, left turn, right turn;

2. Applicable sites: flat ground, sand, mud, grass.

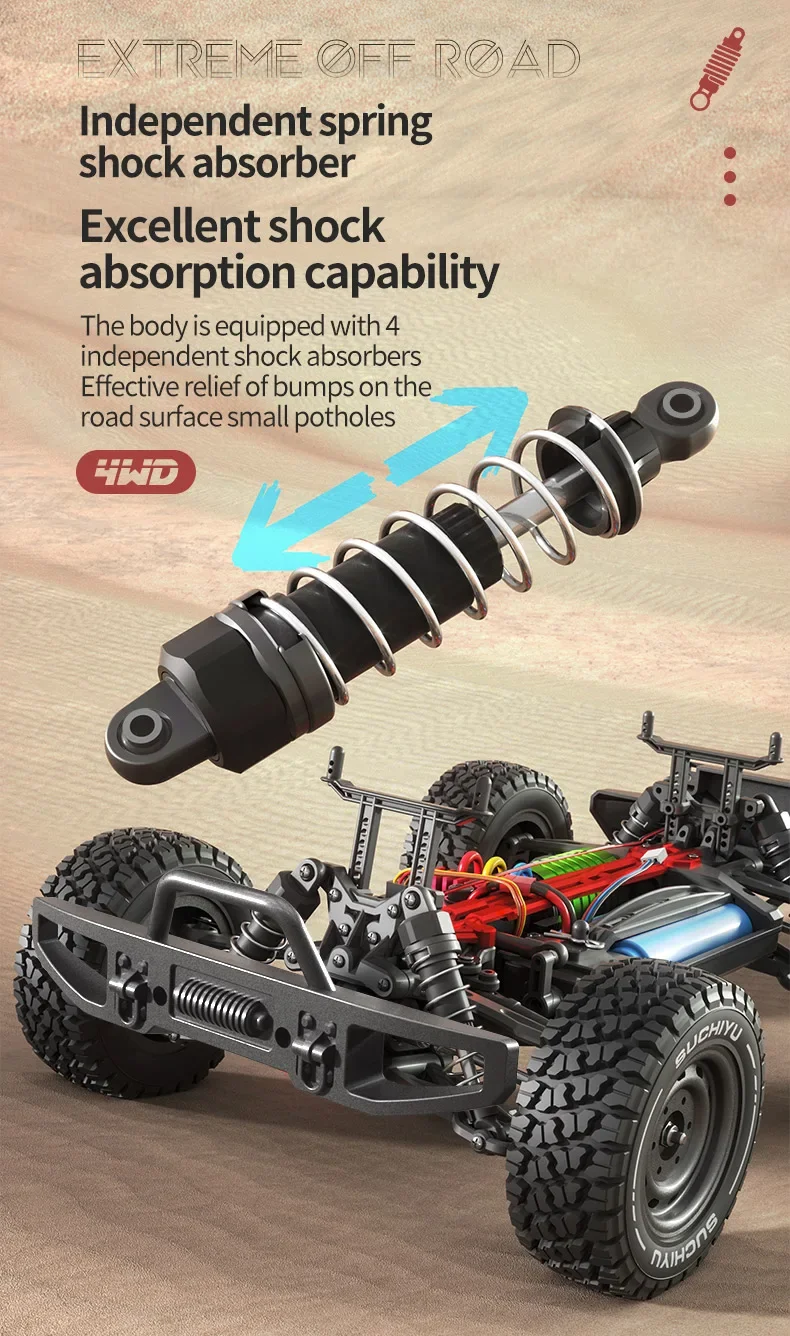

3.4WD drive: front and rear upright spring damping, double-wishbone independent suspension system;

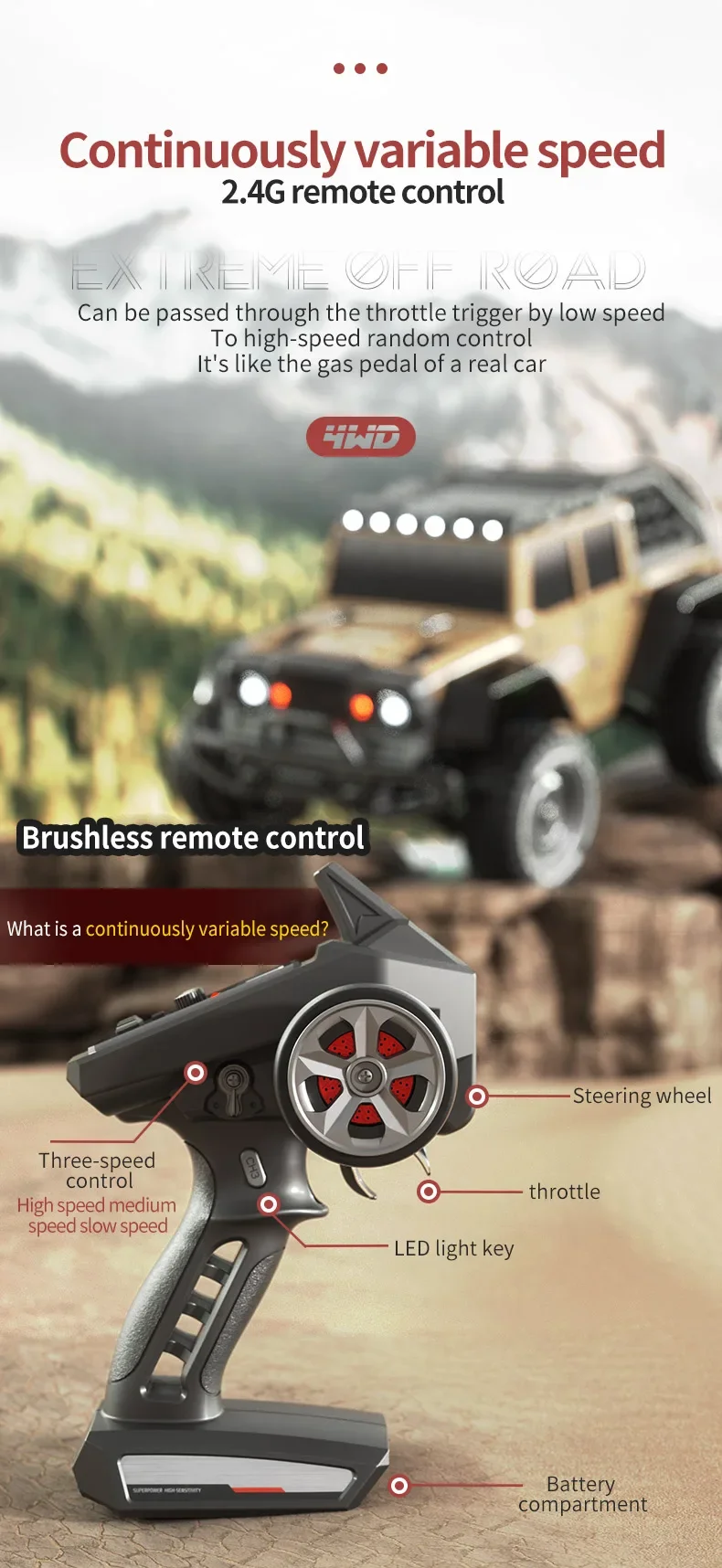

4.2.4G full scale synchronised remote control system . Full ratio throttle/steering;

5.2.4G anti-splash four-way 30A integrated ESC/receiver;

6.Front wheel cross ball head universal joint driveshaft, rear wheel split dogbone driveshaft;

7.5-wire 17G servo;

8.Super battery power: 7.4V, 18650-1300mAh Li-ion battery (T-plug), discharge multiplier 10C;

9. The whole vehicle adopts 16 ball bearings;

10. Metal second floor plate, metal front and rear arm code, metal centre drive shaft;

11. The car shell adopts high toughness explosion-proof PVC car shell;

12. The car shell is equipped with LED headlight, LED roof light; (three modes: normal light, slow flash, fast flash);

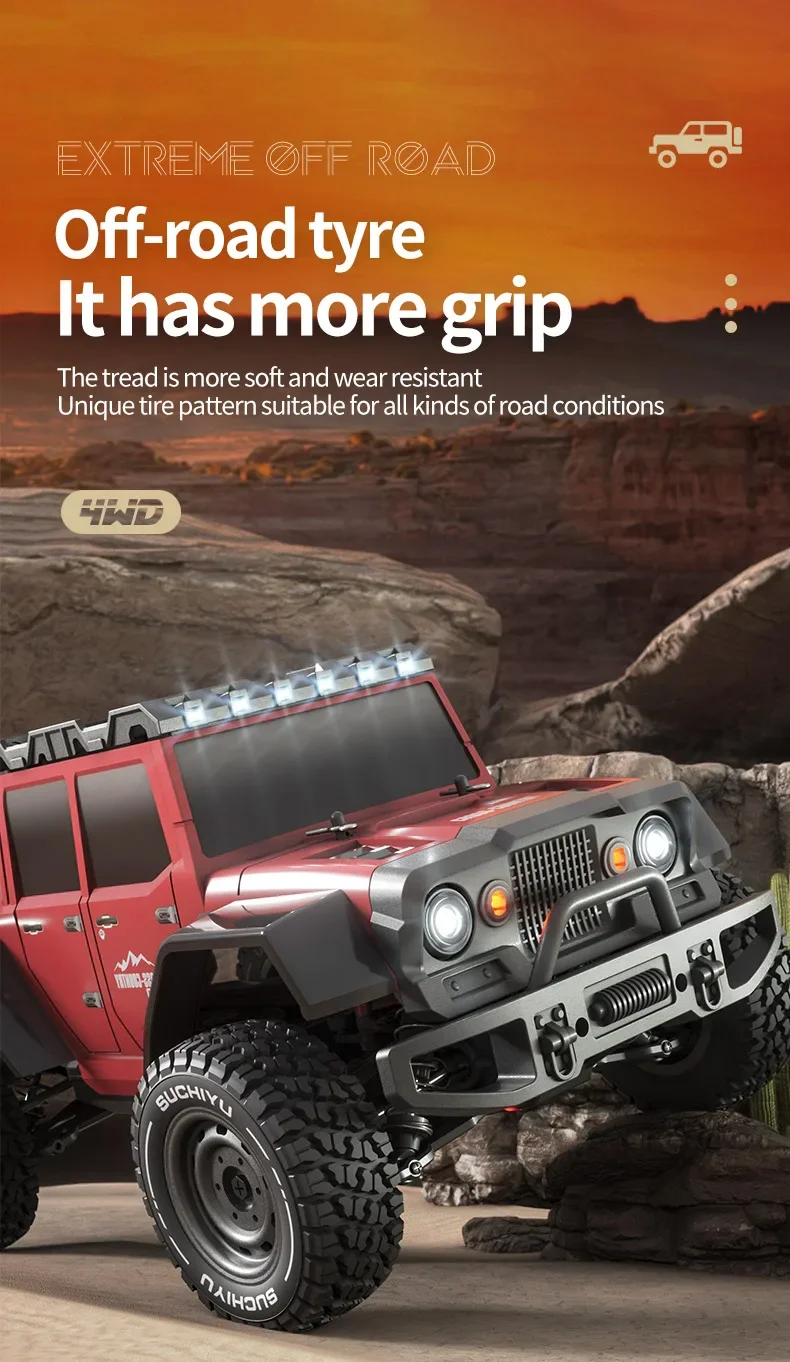

13. Simulated off-road tyres with strong grip;

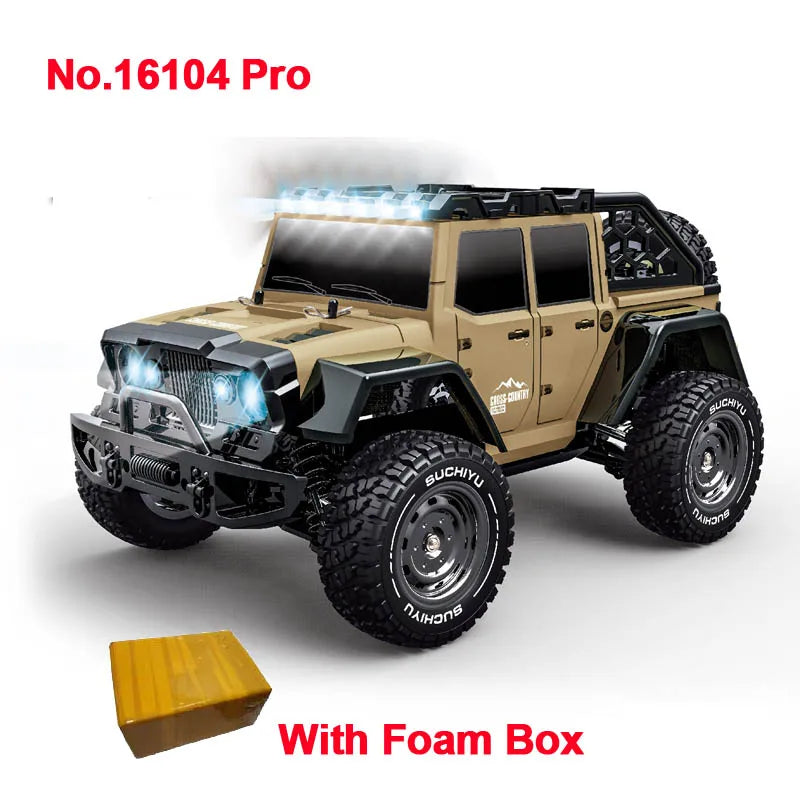

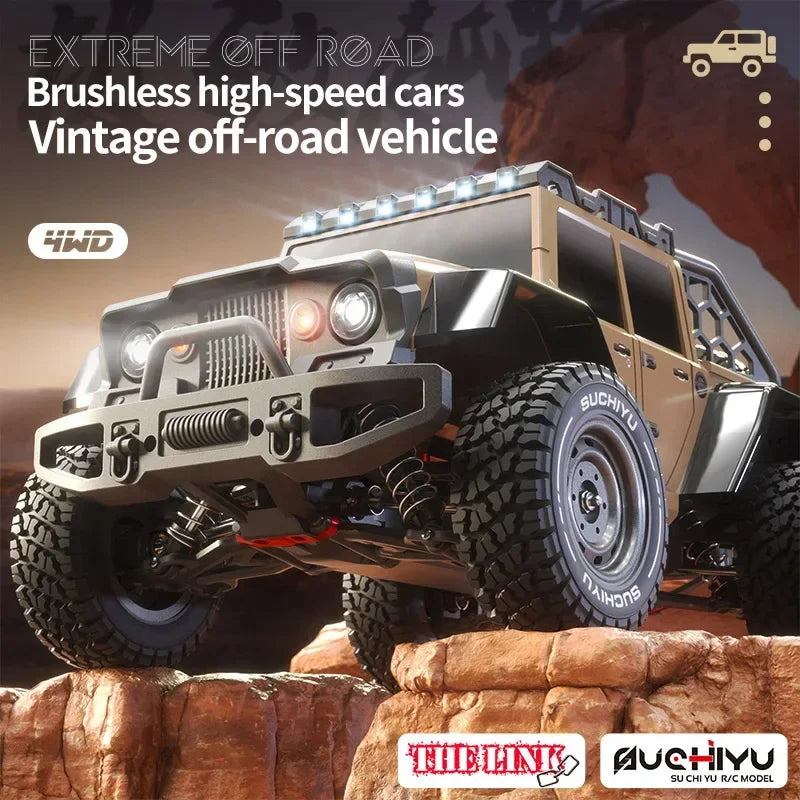

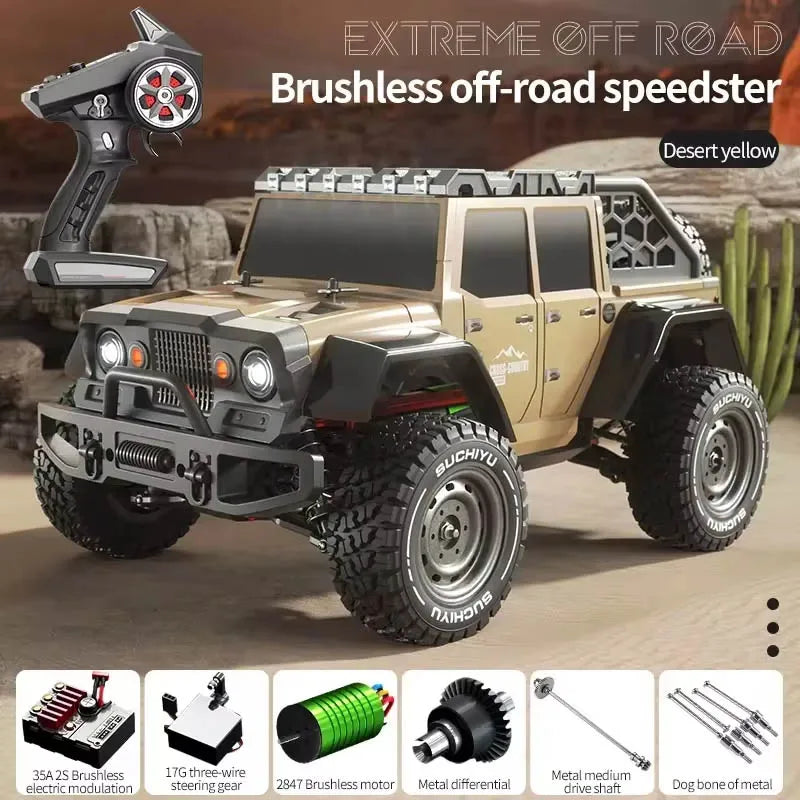

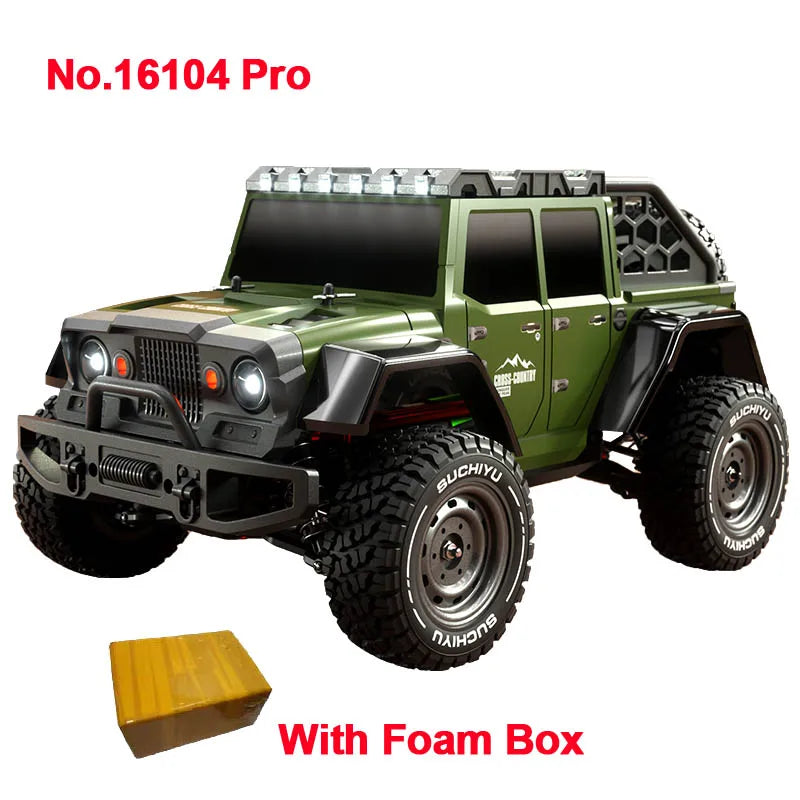

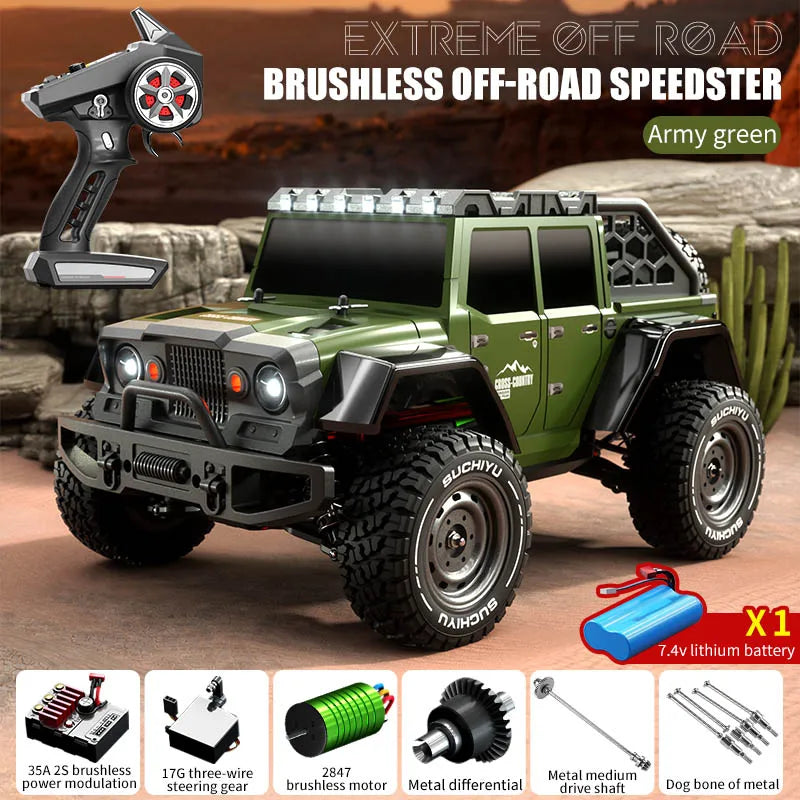

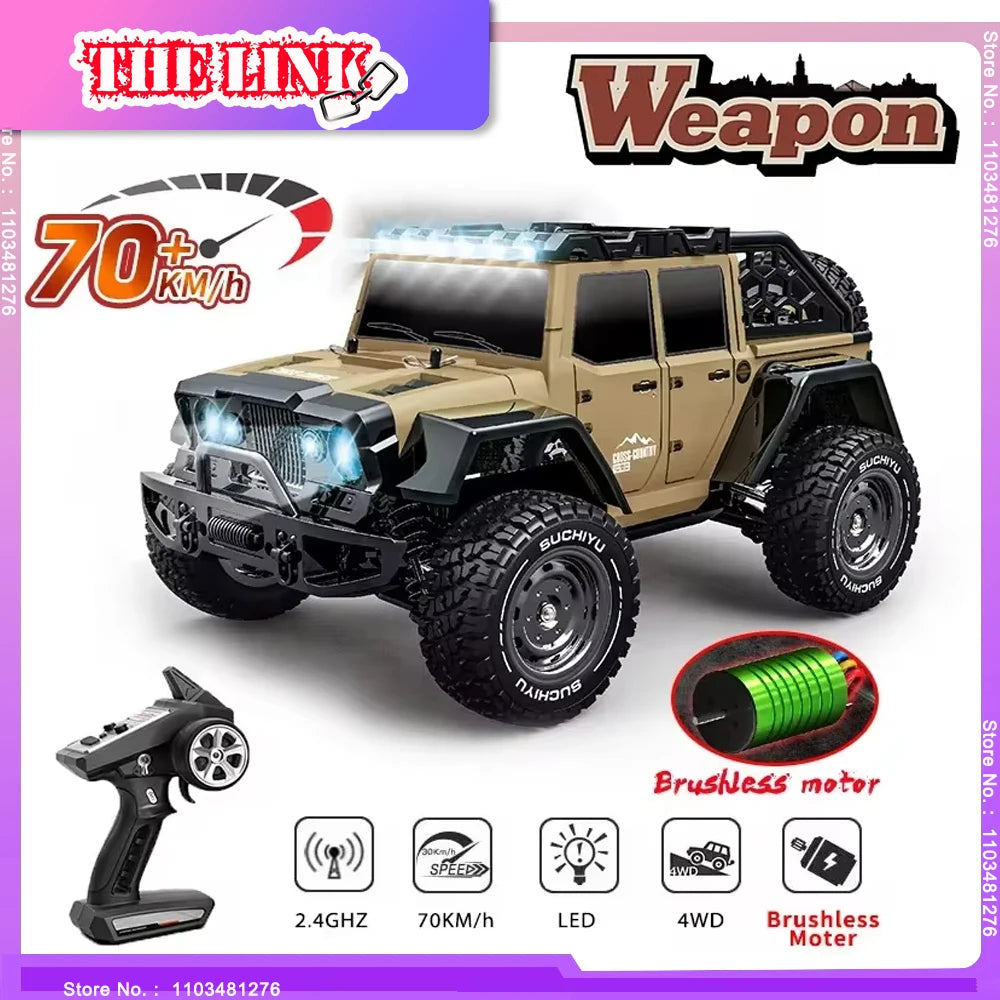

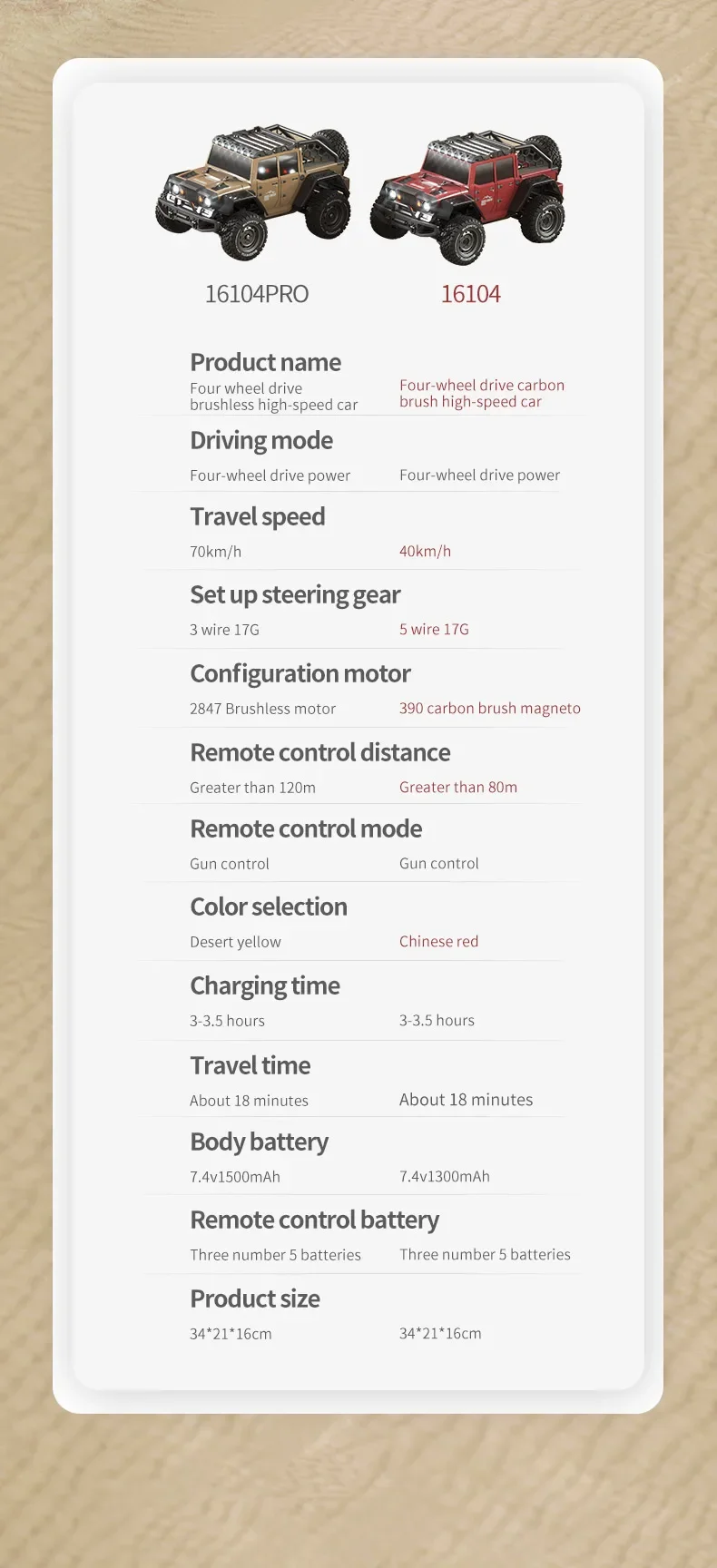

Item No. :16104PRO

Product Name :4WD "Vintage Wrangler" 1:16

Remote control batteries: 3*"AA"(need to buy separately)

Product Colour: Green/Sand Yellow

Charging :USB cable

Material: Hardware/Electronics/Plastic

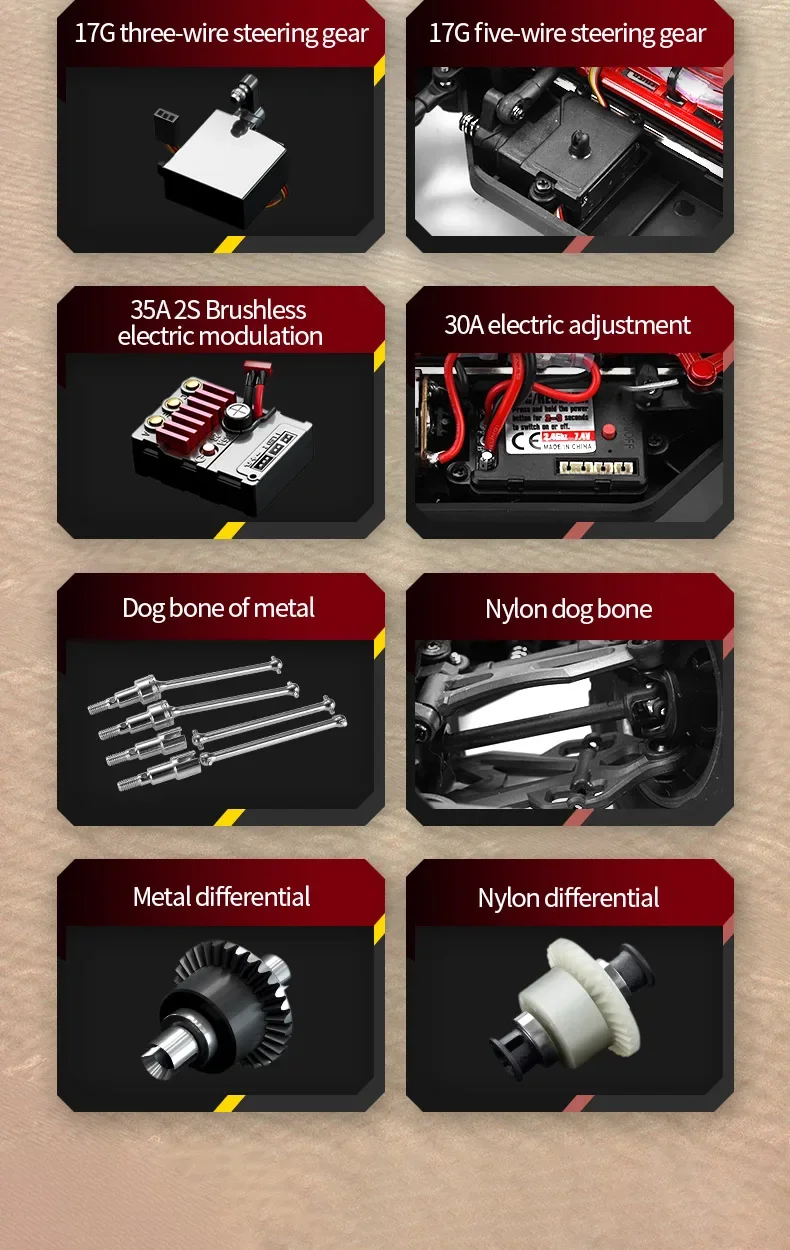

Servo :3-wire 17G digital servo

Battery: 7.4V 1500mah 15C lithium-ion battery

Lighting configuration: LED headlight, LED roof light

Differential structure: metal planetary gear differentials

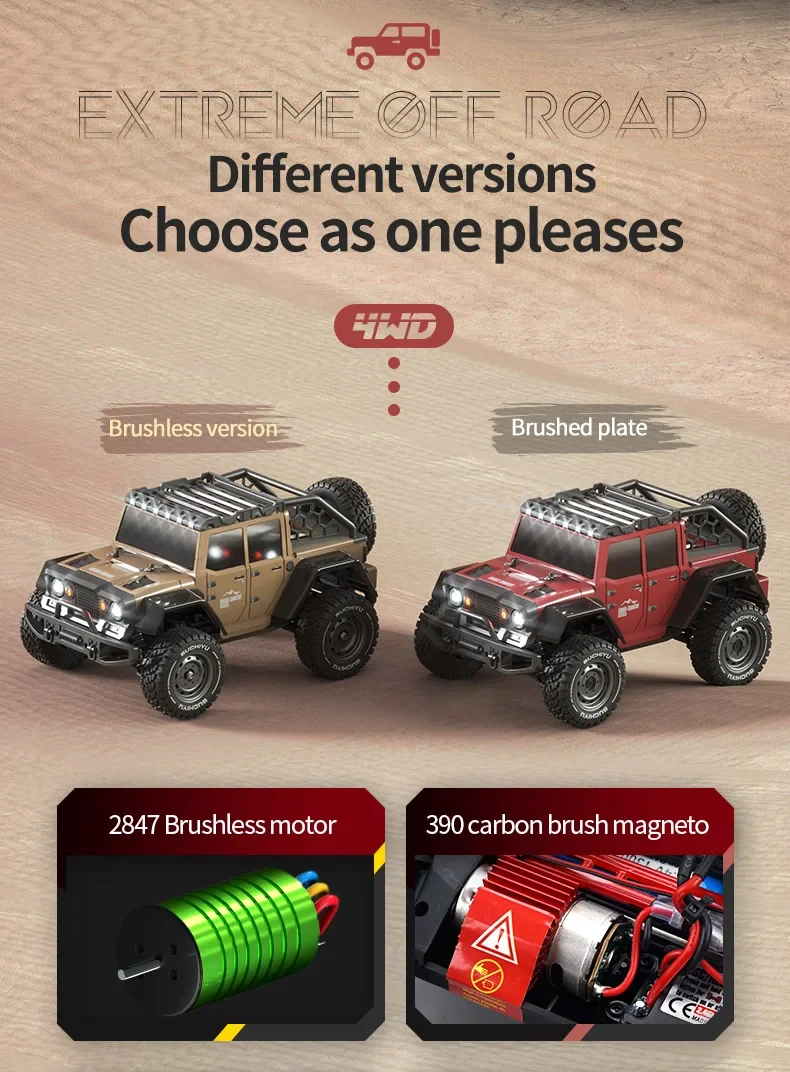

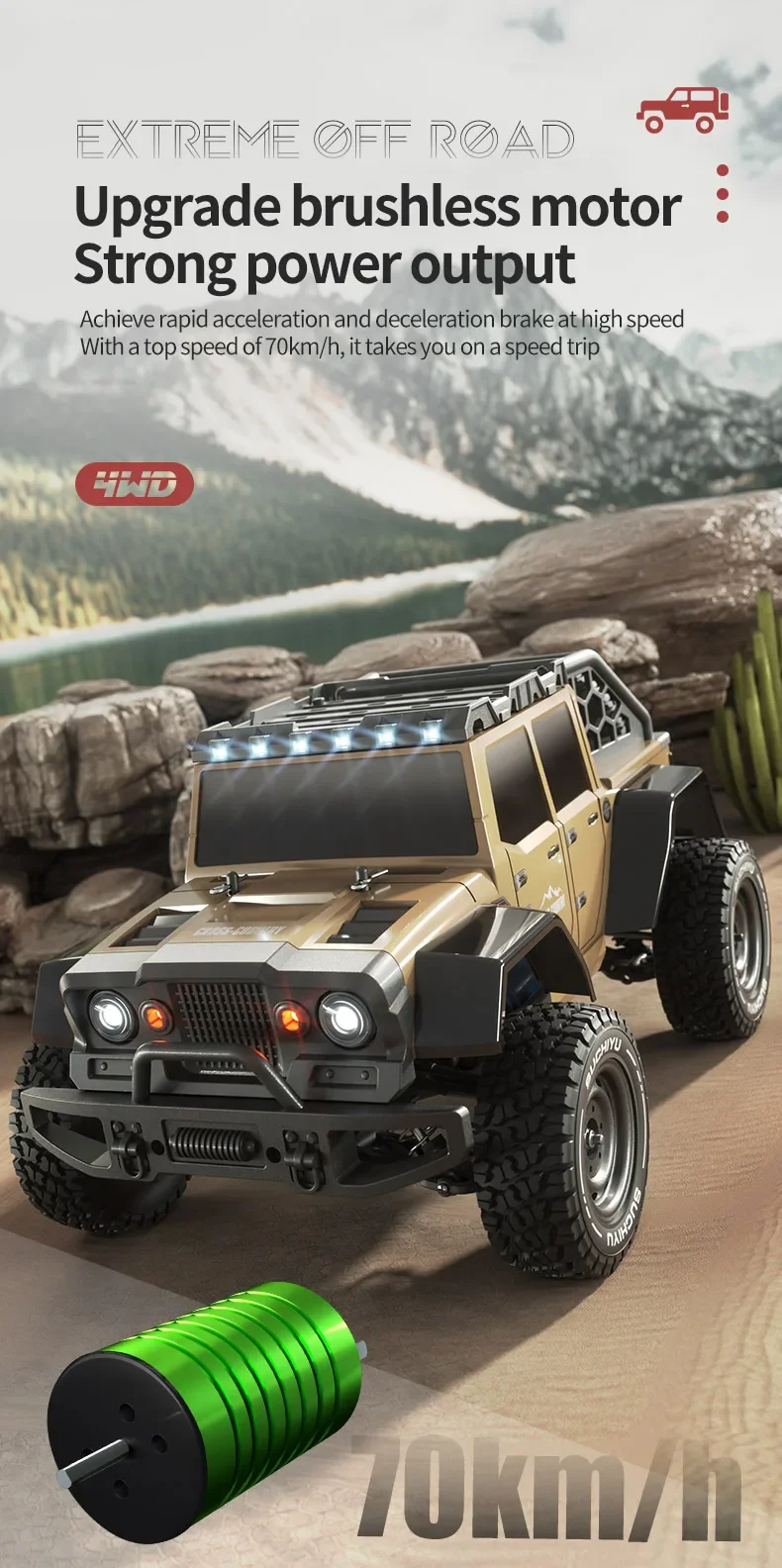

Motor: 2847 brushless motor (4000 KV value)

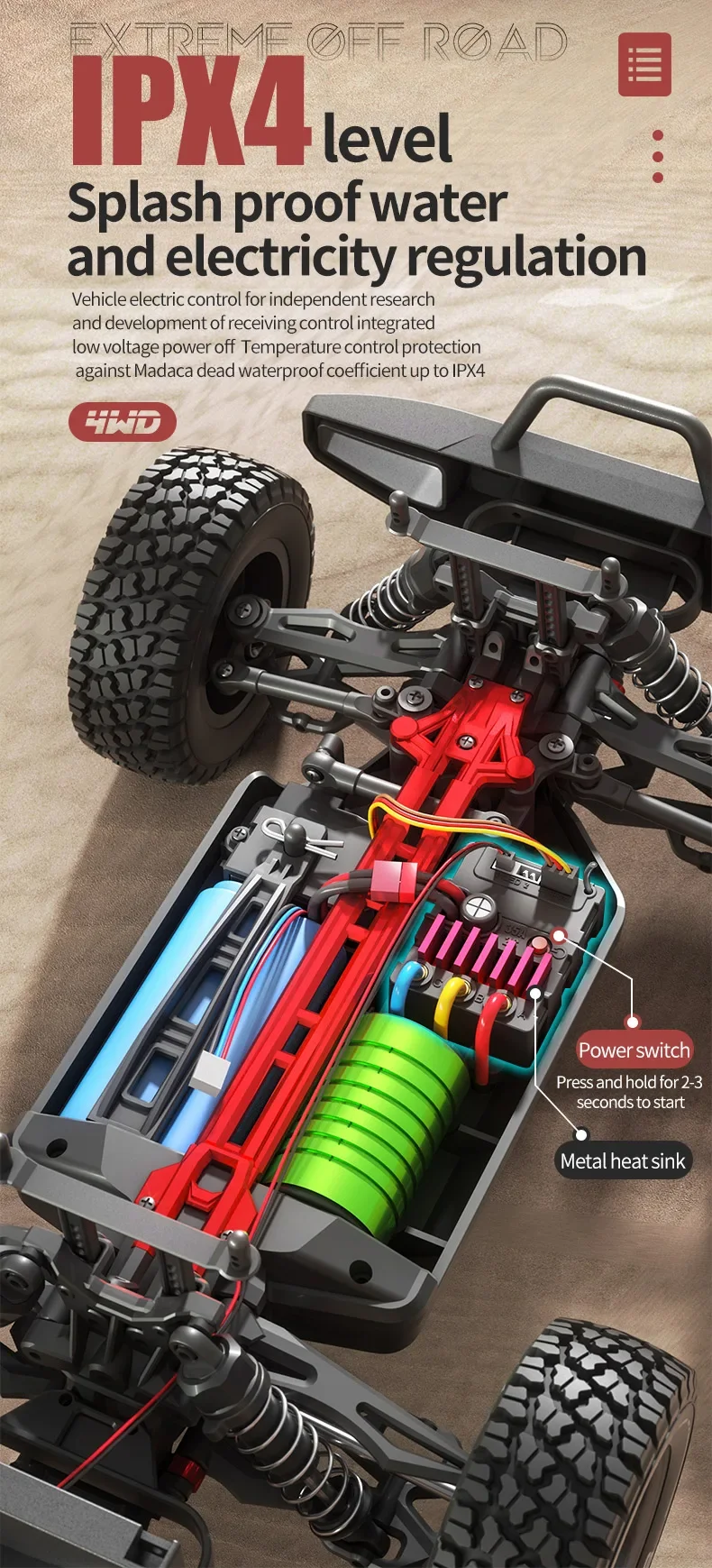

ESC :35A ESC/receiver integrated control (splash-proof)

Product speed(km/h): 70

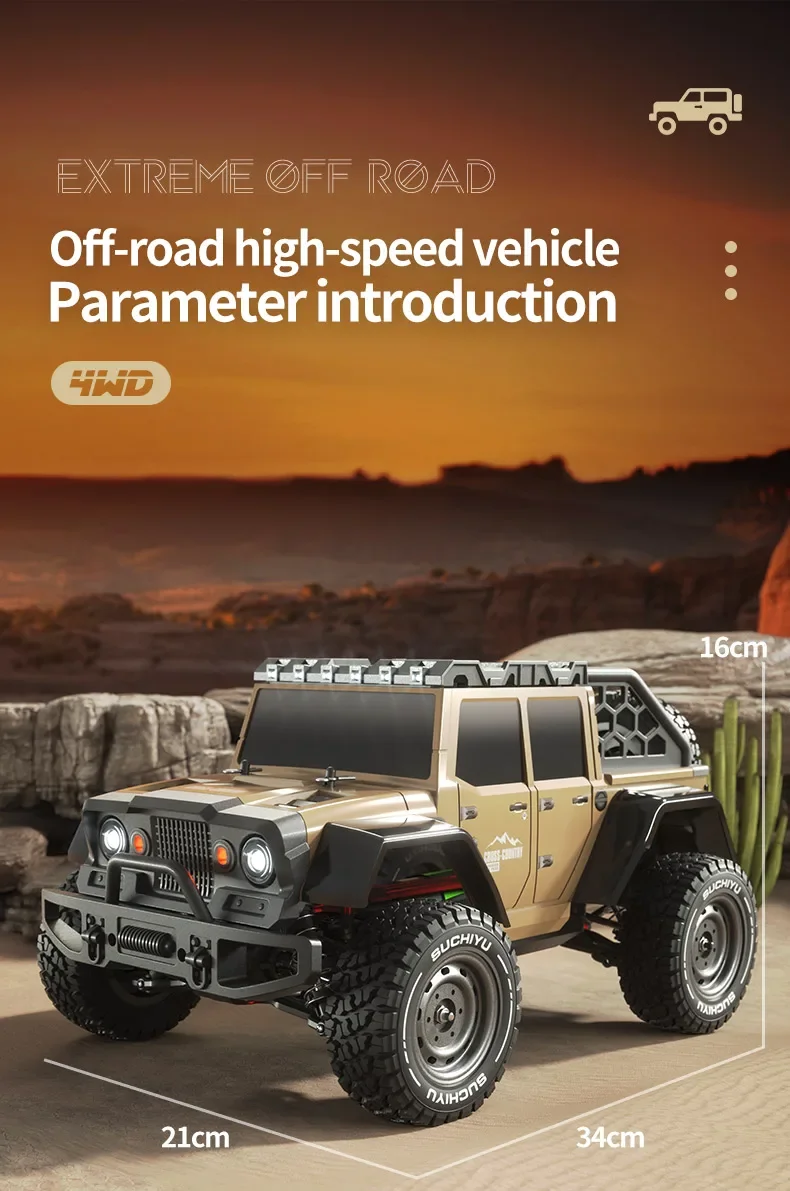

Product specification(cm):33.5*20.5*16.5

Remote control time(minute): 15-18

Charging time(min): 180-210

Colour box specification(cm): 34.8*21.6*20.3

Remote control distance (m): ≥120

Protection function

1. Charging protection: constant current and constant voltage balance charging, overcharge and overcurrent protection for the battery.

2: Motor anti-jamming protection: when overloaded, the motor stops working.

3. High temperature protection: when the working temperature is higher than the set condition, the drive control circuit stops working, and resume working after the temperature drops to the safe value.

4.ESC low voltage cut-off function, the battery is lower than 6.3-6.4V or so, automatically cut off the power to prevent the battery over-discharge and damage.

Product configuration

1)Car 2)Remote control 3)Chinese and English manual 4)Li-ion battery 5)USB balance charger 6)DIY sticker for double side doors 7)Shock absorbing adjustable grommet 8)Metal pin 9)Hexagonal socket 10)Brushless version of the guidebook inserts

Product features

1.Adopt simulation structure design, with the real car control feeling, to achieve the full ratio of stepless speed, high speed, rapid acceleration, deceleration, braking, reversing, left turn, right turn;

2. Applicable sites: flat ground, sand, mud, grass.

3.4WD drive: front and rear upright spring damping, double-wishbone independent suspension system;

4.2.4G full scale synchronised remote control system . Full ratio throttle/steering;

5.Metal differential, metal differential cup, powder planetary gear, powder active gear, powder main gear;

6.Metal CVD front drive shaft, metal rear dogbone, metal wheel cups;

7.Three-wire 17G digital servo;

8.7.4V, 18650-1500mAh Li-ion battery (T-plug), discharge multiplier 15C;

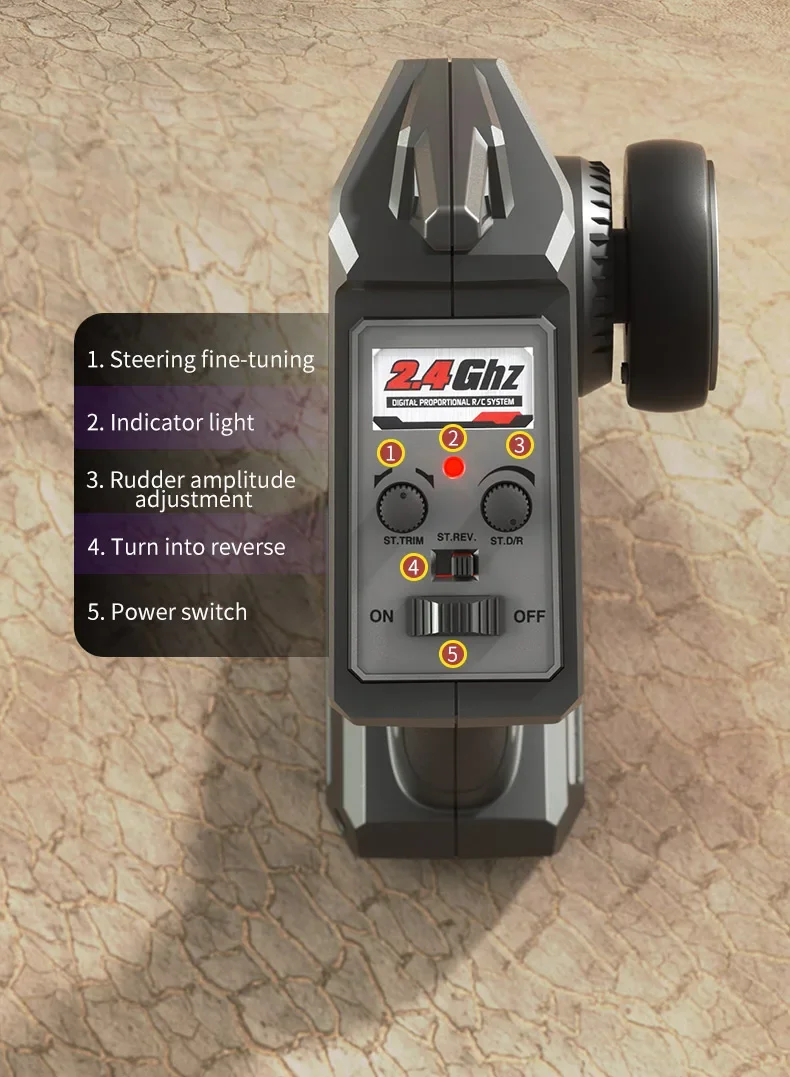

9.New remote control panel function: rudder volume size adjustment;

10. The whole car adopts 16 ball bearings;

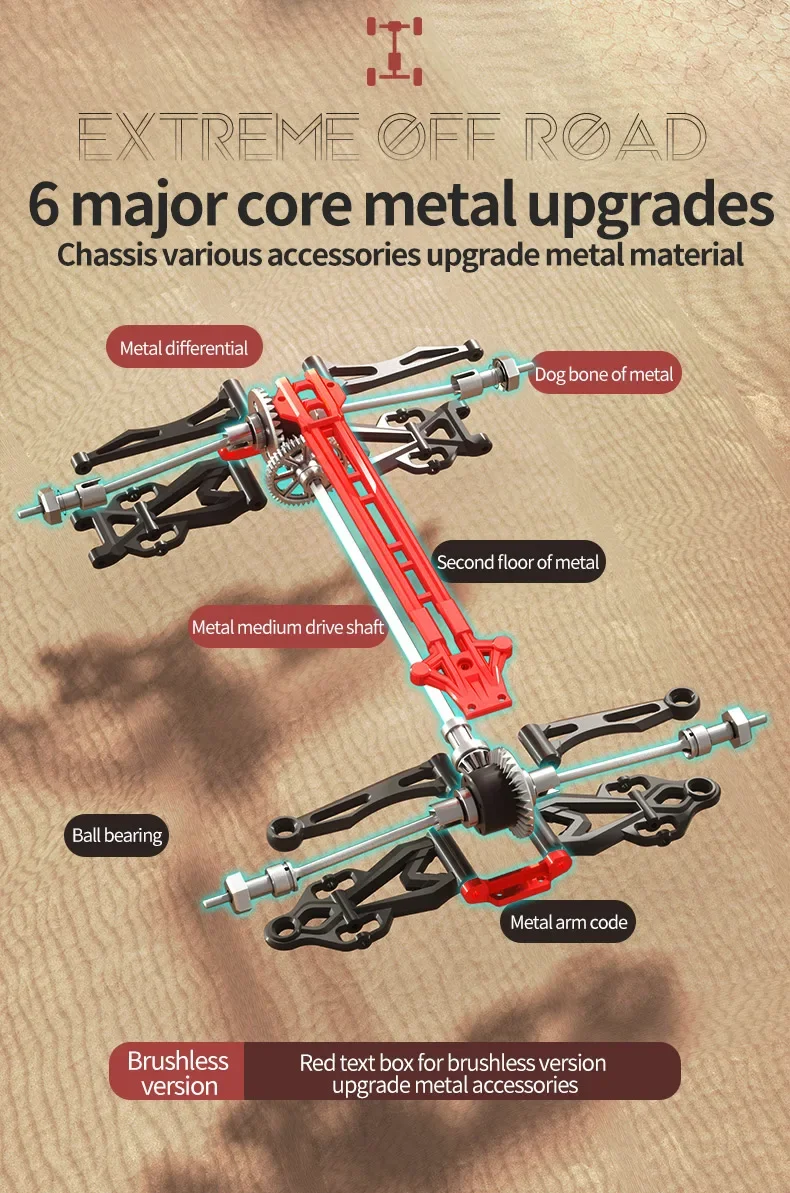

11. Metal second floor plate, metal front and rear arm code, metal centre drive shaft;

12. The car shell adopts high tenacity explosion-proof PVC car shell;

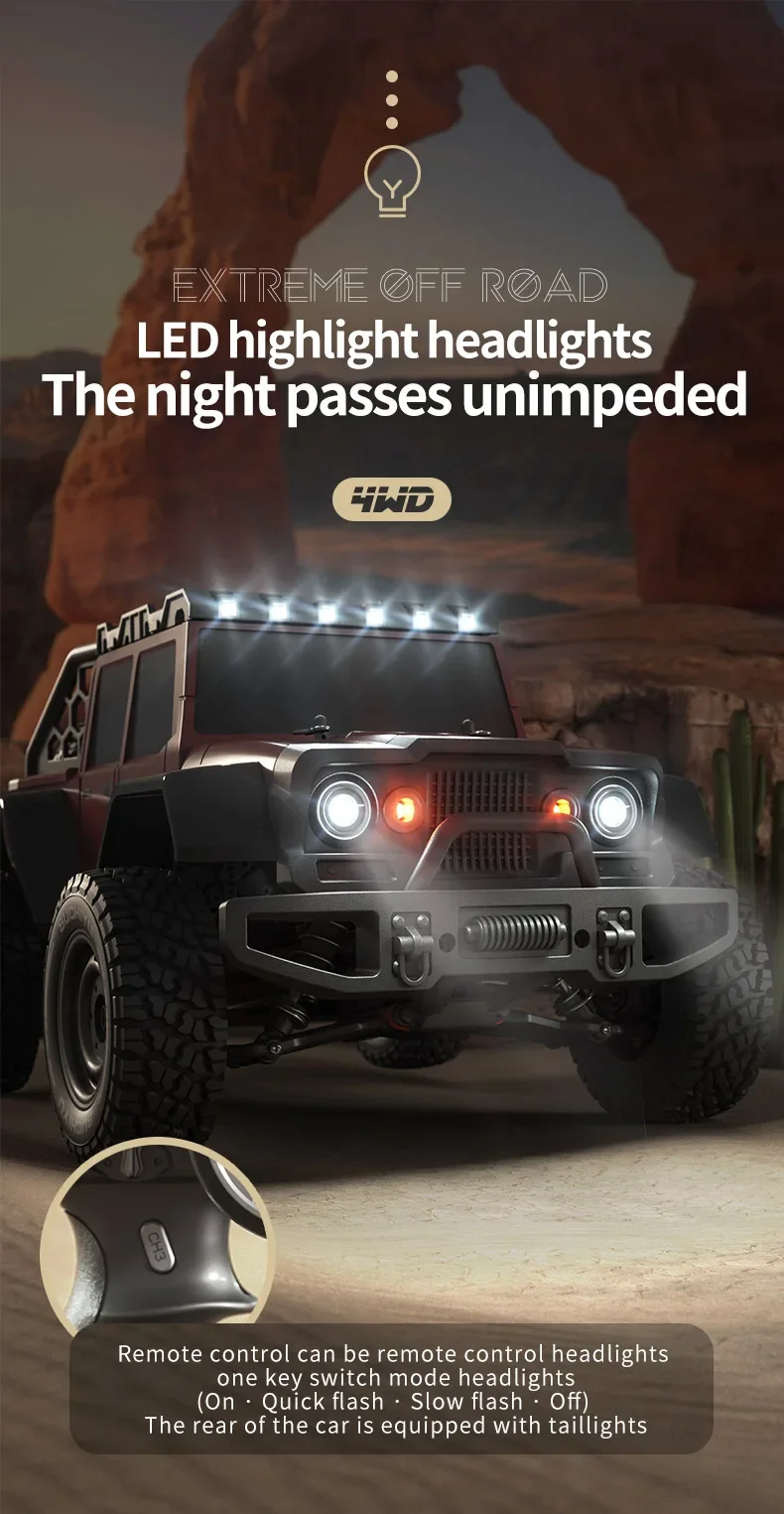

13. The car shell is equipped with LED headlight, LED roof light; (three modes: normal light, slow flash, fast flash);

14. Simulated off-road tyres with strong grip;
